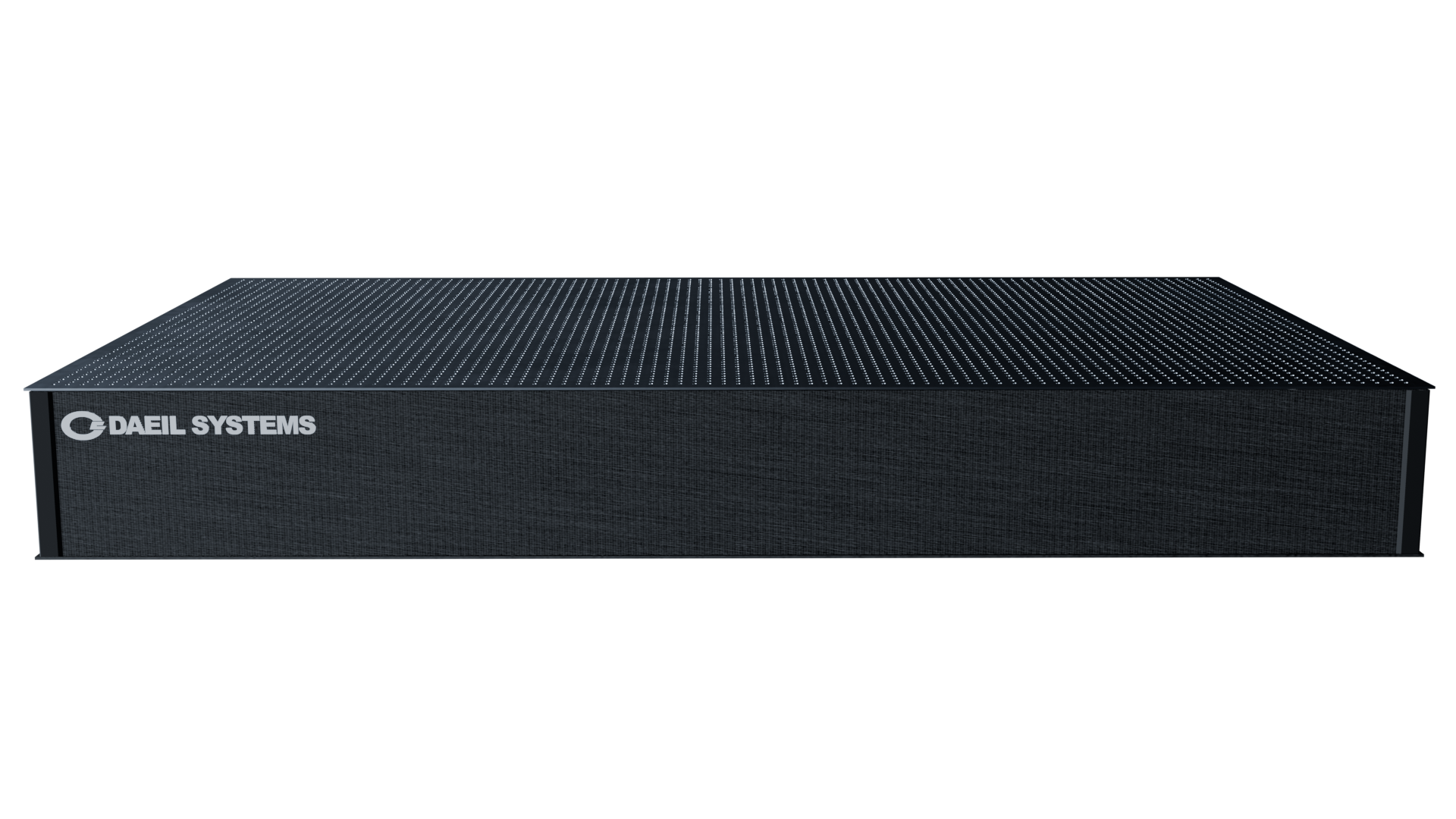

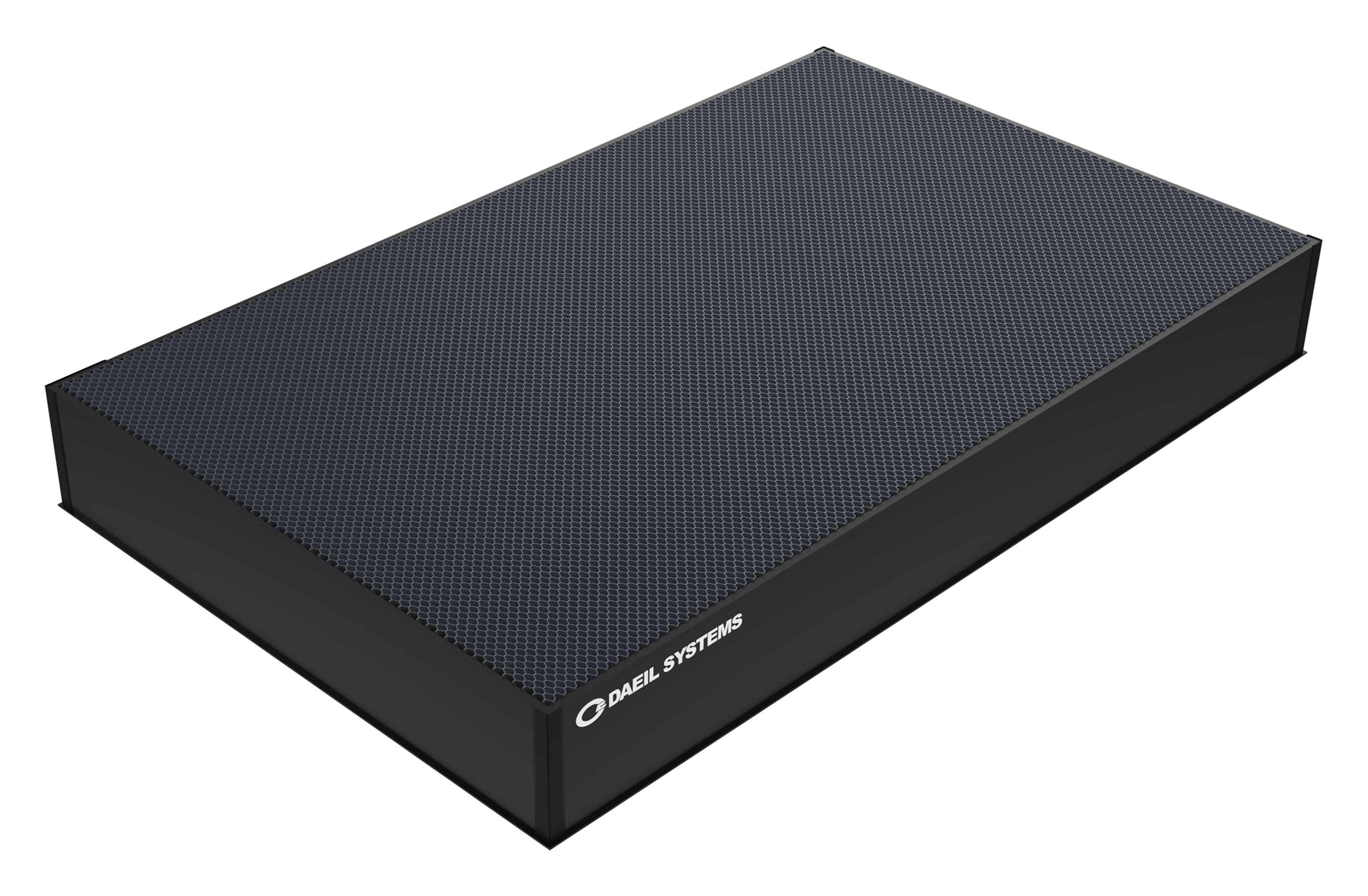

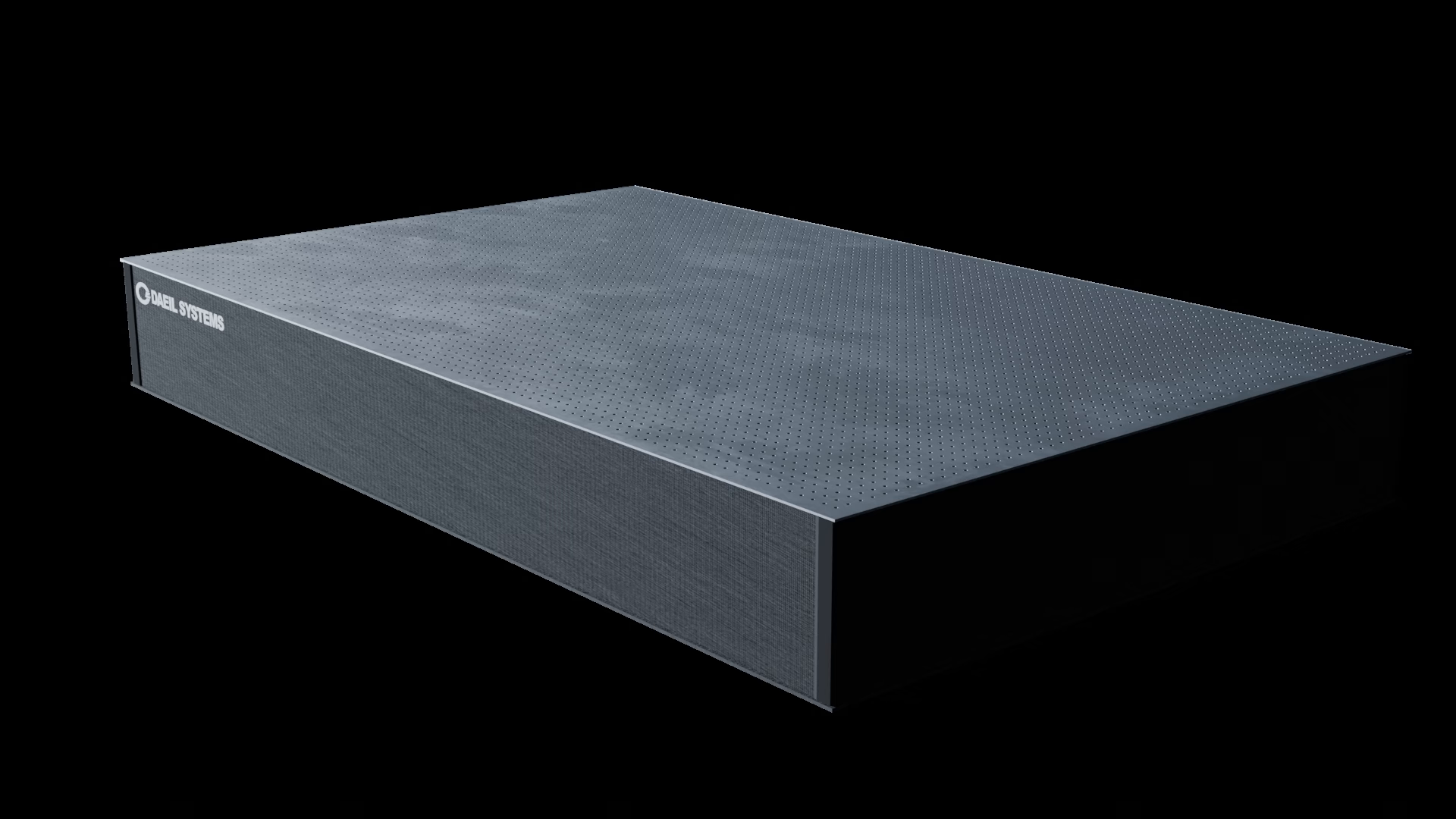

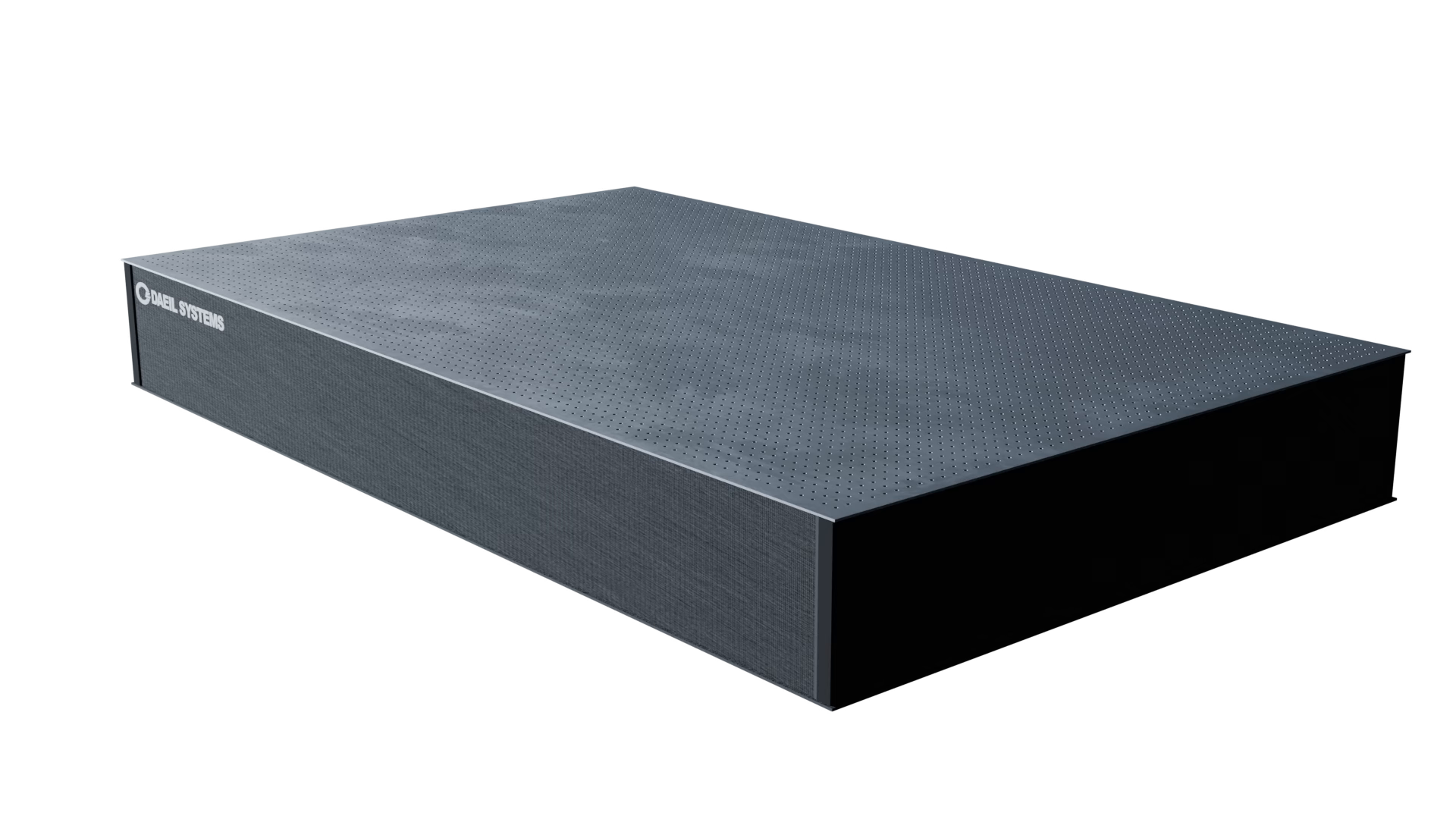

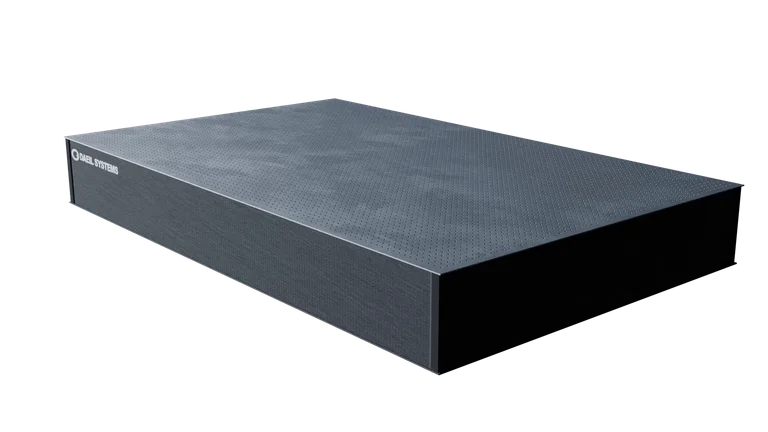

Optical Tabletop
A foundation for unlimited discovery
A foundation for unlimited discovery
The Optical Tabletop is designed for labs where even the smallest vibration matters.
It delivers a perfectly flat and ultra rigid foundation for lasers, microscopes, interferometers,
and the most sensitive optical setups.
It delivers a perfectly flat and ultra rigid foundation for lasers, microscopes, interferometers,
and the most sensitive optical setups.
See how it is built.
Honeycomb core structure.
Maximum stiffness.
At the heart of the Optical Tabletop is a steel honeycomb core that does far more than hold the skins apart. It is the structure that gives the table its stiffness, its high natural frequency, its low compliance, and its fast settling behavior.
Ultra stiff by design. Ideal rigid body.
The honeycomb core forms a deep, lightweight sandwich structure with a very high stiffness to mass ratio. Cell geometry, core height, and skin thickness are tuned together so the tabletop resists bending across its entire span. That stiffness pushes the main resonant modes to higher frequencies, well above typical building vibration ranges. In real lab conditions, the table behaves much closer to an ideal rigid body instead of flexing with every disturbance.
It feels like a surface that stays composed, even when the environment is not.
It feels like a surface that stays composed, even when the environment is not.

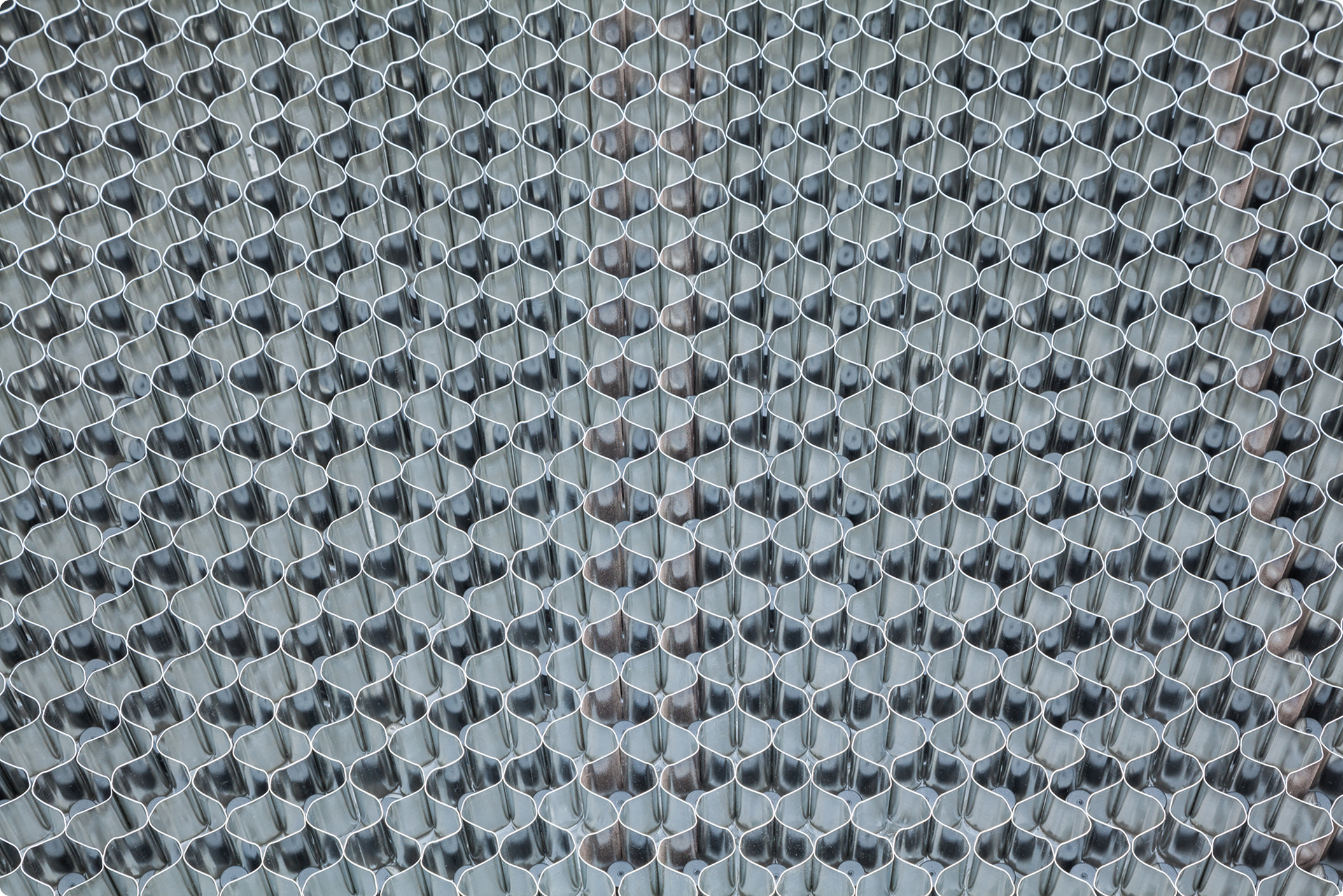

High core density. Low dynamic deflection.
Low compliance comes directly from the honeycomb core structure: tall cells, high core density, and many closely spaced support points increase bending stiffness and reduce how much the top skin can flex between cells. As a result, dynamic deflection stays very low when the table is excited, the surface moves less under changing loads, long optical paths stay aligned, and the tabletop does not behave like a flexible plate during real experiments.
Internal damping. Controlled vibration.
The honeycomb core is bonded to the skins with adhesive layers that act as internal damping. When the tabletop vibrates, shear in these thin films and at each bonded interface converts vibration energy into heat instead of letting it ring. Inside the sidewalls, highly damped wood composite panels work as built in absorbers, so the frame does not behave like a ringing metal box.
Because the honeycomb sandwich contains many joints, interfaces, and adhesive layers, it offers far more paths for vibration energy to be dissipated than a solid metal or granite slab. In practice, that means lower resonance peaks, shorter ring down times, and a surface that stops moving sooner after a disturbance. The result is a tabletop that feels mechanically calm: you tap it or adjust a stage, the motion dies out quickly, and your optics can get back to work.
Because the honeycomb sandwich contains many joints, interfaces, and adhesive layers, it offers far more paths for vibration energy to be dissipated than a solid metal or granite slab. In practice, that means lower resonance peaks, shorter ring down times, and a surface that stops moving sooner after a disturbance. The result is a tabletop that feels mechanically calm: you tap it or adjust a stage, the motion dies out quickly, and your optics can get back to work.
Ultra flat surface with
precision mounting grid.
Surface flatness ±0.03 mm,
engineered with intention
The Optical Tabletop is machined to a verified flatness of ±0.03 mm across the full working area. It forms an optical reference plane that combines engineering precision with a premium, refined feel, supporting long-range alignment and high-accuracy beam paths with confidence.The Optical Tabletop is machined toa verified flatness of ±0.03 mm across
the full working area. It forms an
optical reference plane that combines
engineering precision with a premium,
refined feel, supporting long-range
alignment and high-accuracy beam
paths with confidence.The Optical Tabletop is machined to
a verified flatness of ±0.03 mm across
the full working area. It forms an
optical reference plane that combines
engineering precision with a premium,
refined feel, supporting long-range
alignment and high-accuracy beam
paths with confidence.
Bonded under controlled pressure
for structural accuracy
Flatness at this level starts deep inside the tabletop. A precision hydraulic press applies uniform, repeatable pressure during bonding, ensuring consistent adhesive layers and eliminating voids or tension points that could warp the top skin.Flatness at this level starts deep inside the tabletop. A precision
hydraulic press applies uniform,
repeatable pressure during bonding,
ensuring consistent adhesive layers
and eliminating voids or tension
points that could warp the top skin.Flatness at this level starts deep
inside the tabletop. A precision
hydraulic press applies uniform,
repeatable pressure during bonding,
ensuring consistent adhesive layers
and eliminating voids or tension
points that could warp the top skin.
High-density honeycomb core for consistent support
The tabletop uses a sufficiently dense honeycomb core to support the skin across its entire span. Too little core depth or inadequate cell density allows the skin to flex between cells, preventing the table from ever reaching optical-grade flatness. The chosen core geometry ensures minimal unsupported regions and distributes load evenly.The tabletop uses a sufficiently densehoneycomb core to support the skin
across its entire span. Too little core
depth or inadequate cell density allows
the skin to flex between cells,
preventing the table from ever reaching
optical-grade flatness. The chosen core
geometry ensures minimal unsupported
regions and distributes load evenly.The tabletop uses a sufficiently dense
honeycomb core to support the skin
across its entire span. Too little core
depth or inadequate cell density allows
the skin to flex between cells,
preventing the table from ever reaching
optical-grade flatness. The chosen core
geometry ensures minimal unsupported
regions and distributes load evenly.

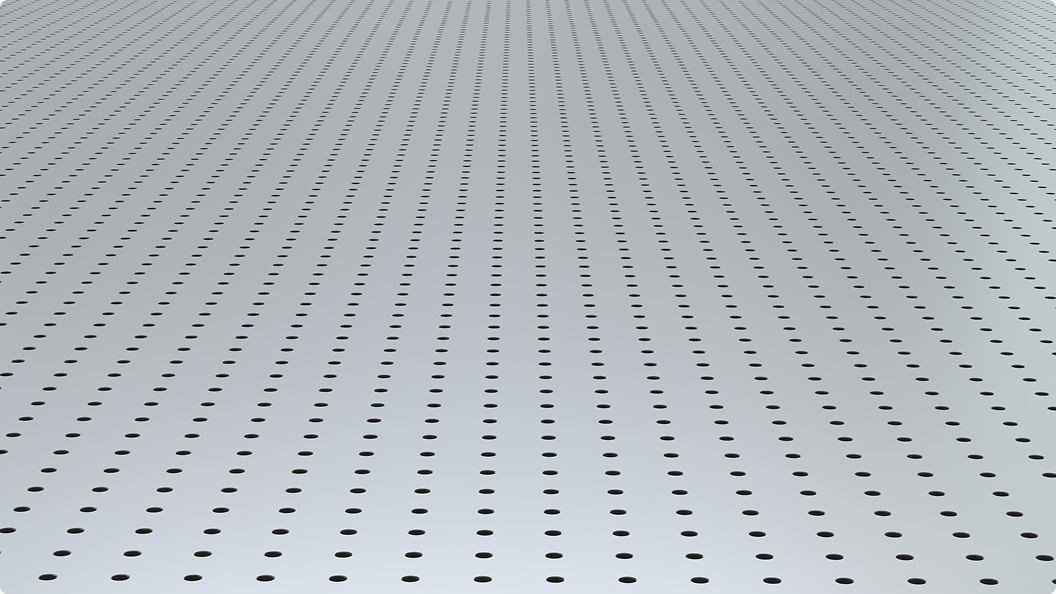

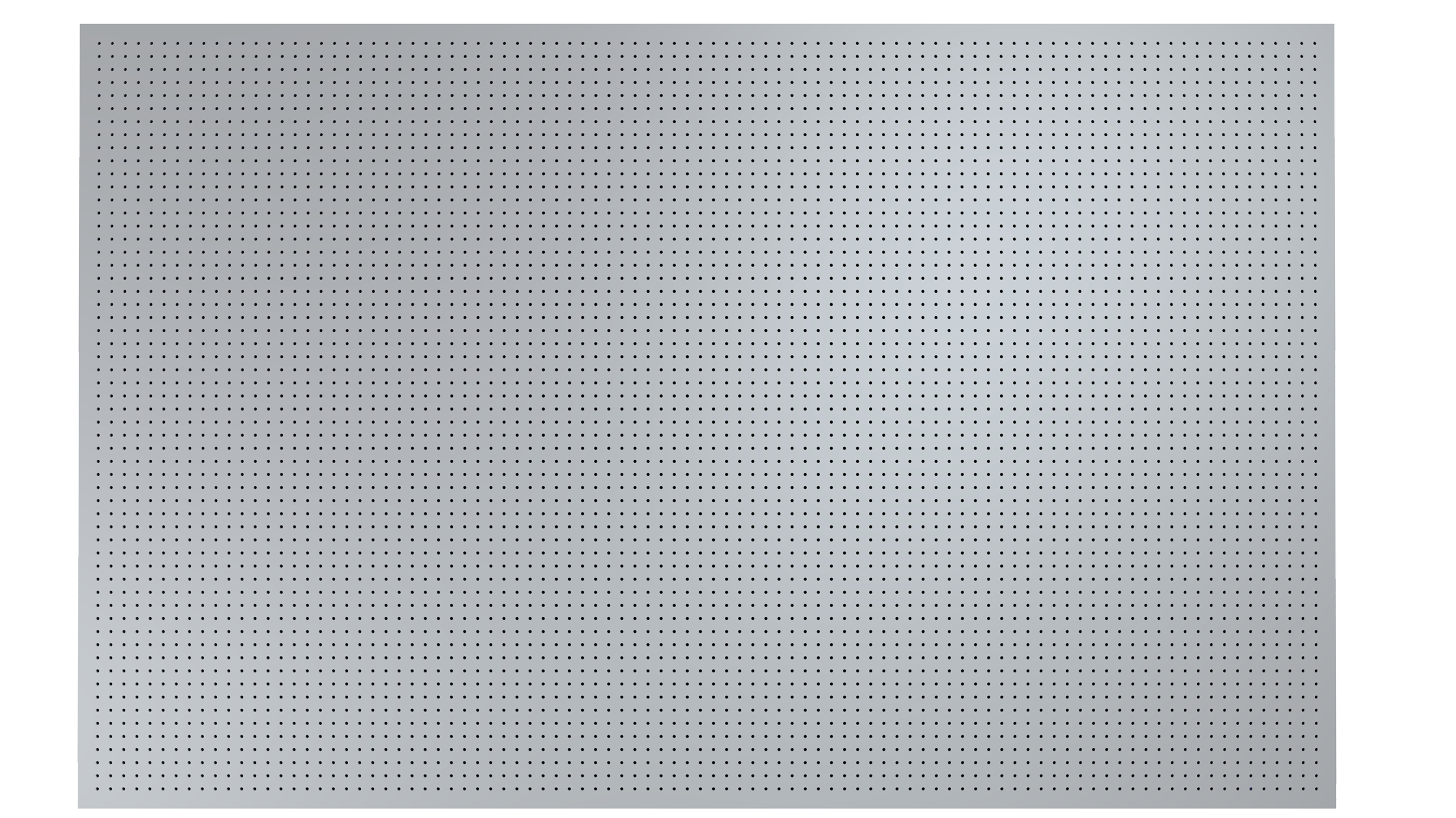

Precision mounting grid for precise alignment.
On top of this ultra flat surface sits a precision mounting grid. Each tapped hole is accurately machined and aligned so optics and instruments can be placed exactly where your design requires them, with repeatable positioning across the tabletop. You get cleaner layouts, easier alignment, and setups that can be disassembled and rebuilt with confidence.

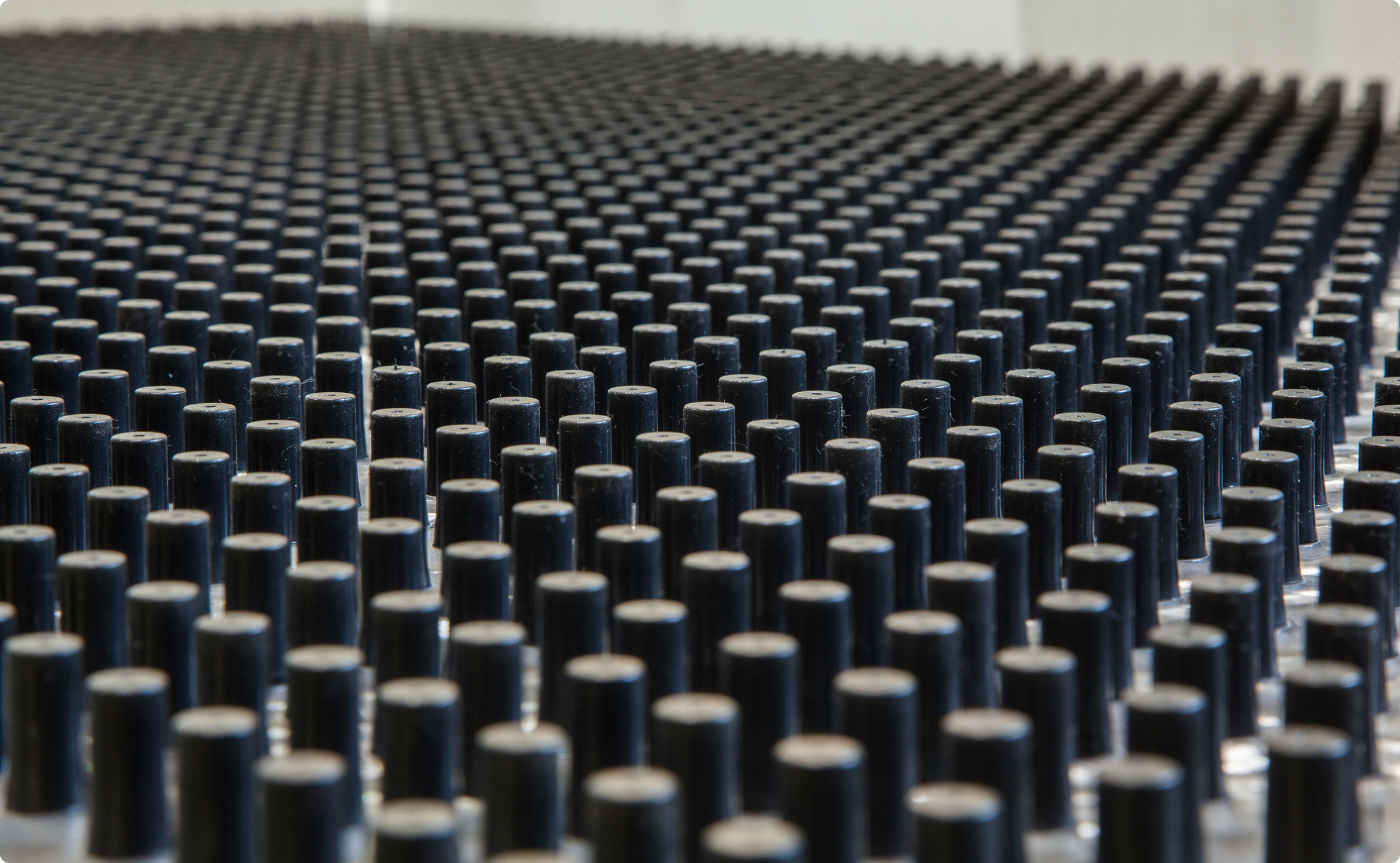

Every hole, individually sealed.
Inside the tabletop, every mounting hole is closed off with an adhesive bonded cylindrical cap. Each hole receives its own cap so the threads are not an open path into the honeycomb core. The caps bond directly to the underside of the top skin and create a tight seal that blocks liquids, dust, and moisture from entering through the mounting pattern. Spilled solvents or cleaning fluids stay on the surface instead of seeping down into the structure.
By keeping the honeycomb core dry and clean, the sealed holes protect the adhesive bonds and internal damping layers, prevent corrosion and loss of stiffness inside the core, and help the tabletop maintain its vibration performance over many years. What you see on the outside is a simple, clean grid of mounting points. What you do not see is a forest of cylindrical caps working quietly underneath, protecting the core and preserving the way the table feels and performs from day one.
By keeping the honeycomb core dry and clean, the sealed holes protect the adhesive bonds and internal damping layers, prevent corrosion and loss of stiffness inside the core, and help the tabletop maintain its vibration performance over many years. What you see on the outside is a simple, clean grid of mounting points. What you do not see is a forest of cylindrical caps working quietly underneath, protecting the core and preserving the way the table feels and performs from day one.
Performance
Natural Frequency235 HzCompliance84 n m/NScientific GradeMeasured on 2400 x 1200 x 400 mm scientific grade optical tabletop.

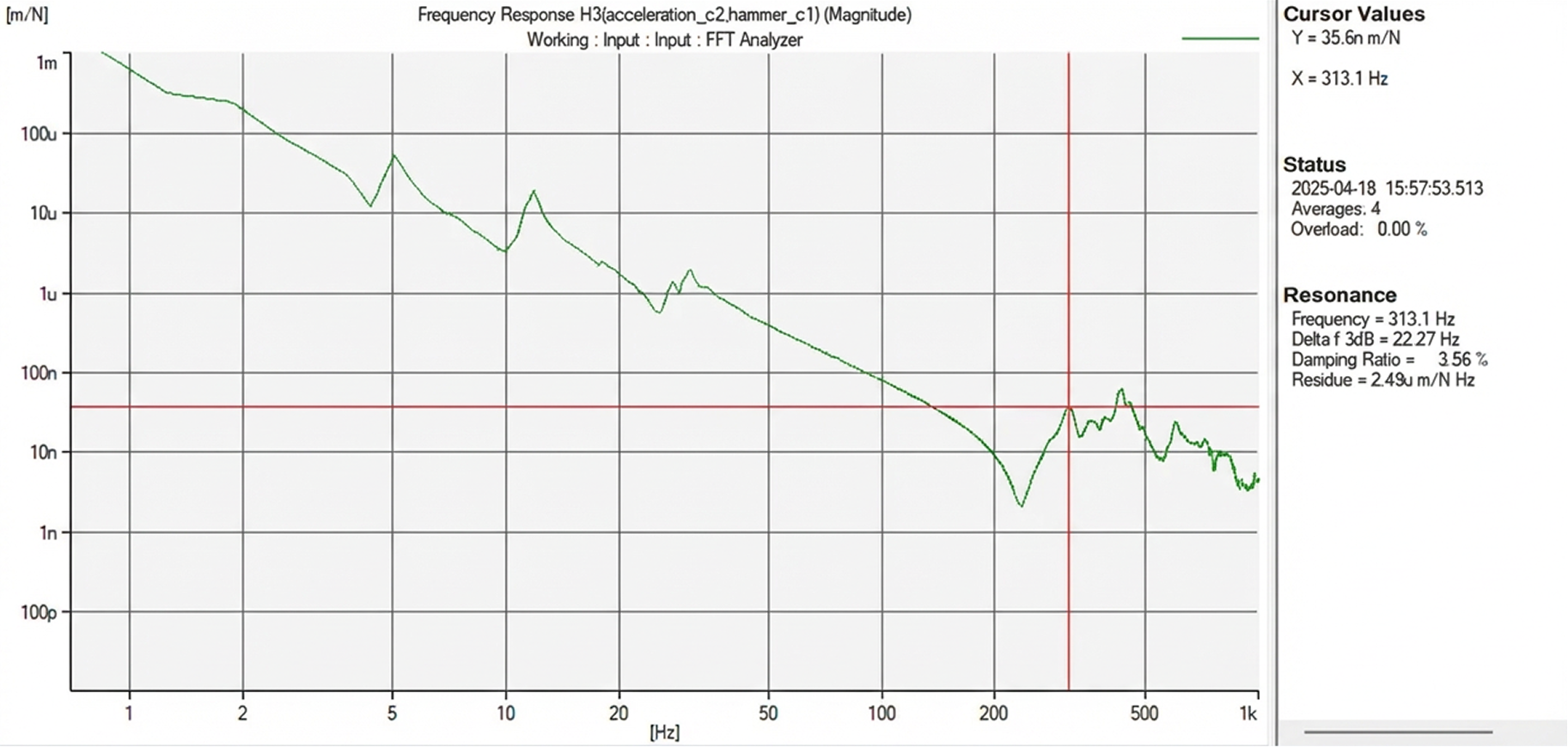

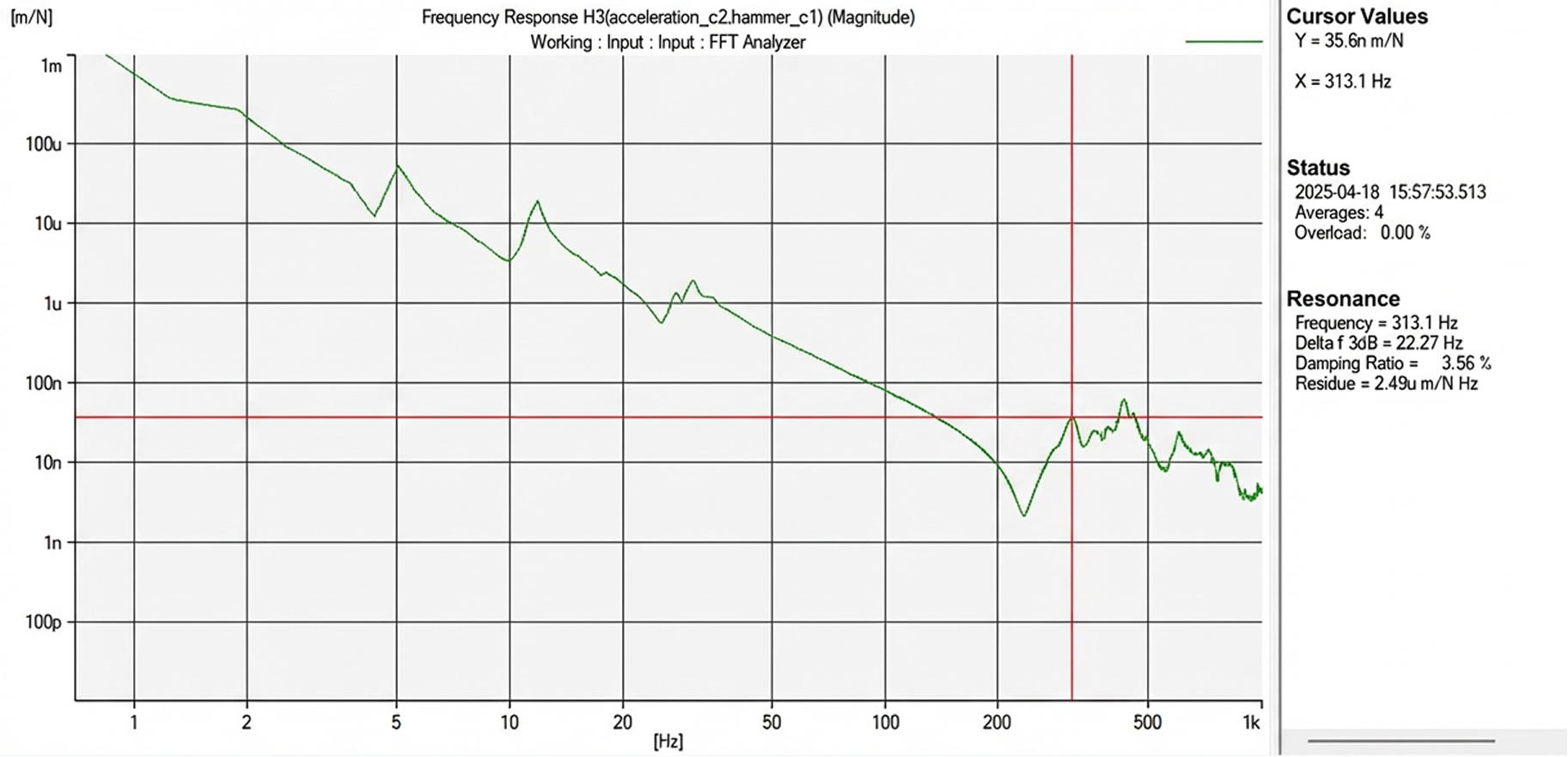

Natural Frequency313 HzCompliance35 n m/NResearch GradeMeasured on 2400 x 1200 x 400 mm research grade optical tabletop.
Specifications
Research Grade
Scientific Grade
Non-magnetic Grade
Table Construction
Core Construction
Steel honeycomb core structure,
0.25 mm thick foil
Steel honeycomb core structure,
0.25 mm thick foil
304 non-magnetic stainless steel
honeycomb core, 0.25 mm thick foil
Honeycomb Cell Size
2.9 cm²
Top Skin Material
4.0 mm thick 430 series
ferromagnetic stainless steel
4.0 mm thick 430 series
ferromagnetic stainless steel
4.0 mm thick 304 series
non-magnetic stainless steel
Bottom Skin Material
4.5 mm thick steel
4.5 mm thick steel
4.5 mm thick 304 non-magnetic
stainless steel
Side Panel Construction
2.0 mm thick steel plate with
highly damped composite wood
2.0 mm thick steel plate with
highly damped composite wood
2.0 mm thick 304 non-magnetic
stainless steel plate with highly
damped composite wood
Surface & Mechanical Properties
Core Shear Modulus
19339 kgf/cm² (275,000 psi)
Surface Flatness
±0.03 mm
Damping Method
Broadband damping from honeycomb sandwich
construction, bonded interfaces, and damped side walls
Mounting Configuration
Thread Specification
M6 × 1.0 (1/4-20)
Hole Grid Pitch
25 mm pitch (1.0 in square grid)
Edge Distance
37.5 mm (1.5 in)
Hole Sealing
21 mm deep cylindrical sealing cap on each hole
Dynamic Performance
Resonant Frequency
313 Hz
235 Hz
235 Hz
Compliance (Static)
35 nm/N
84 nm/N
84 nm/N
Ordering Information
Width Range: 1000–3600 mm
Depth Range: 600–1500 mm
Thickness Option: 200, 300, 400 mm
Grade Option: Scientific, Research, Non-magnetic
Optional Accessories

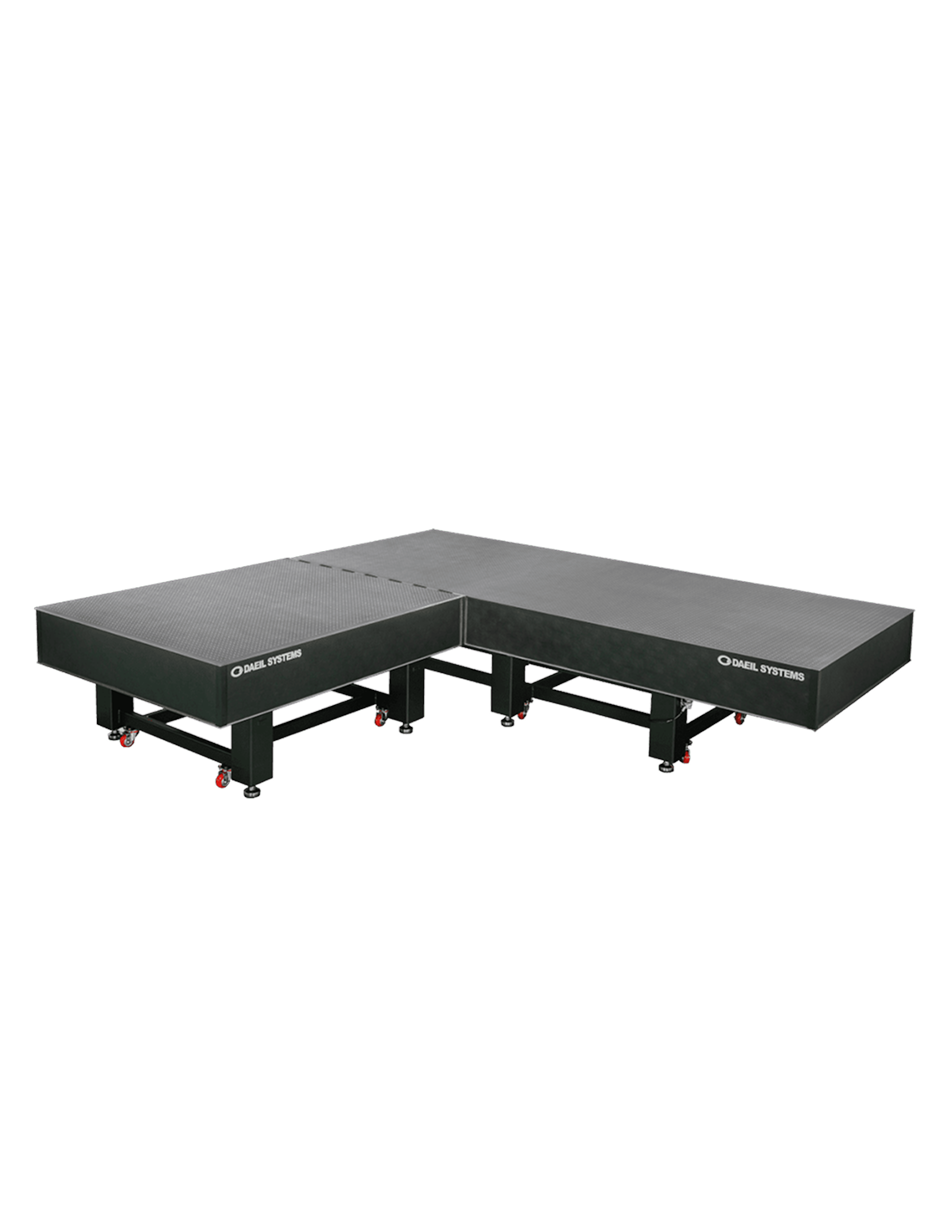

Joined Optical Table.Joined Table Systems allow optical tables to be connected in "L", "T", or cross-shaped configurations—end-to-end, side-to-side, or mixed. Ideal for large or complex setups, these matched systems are precision-assembled and tested in-factory for flatness, then shipped dismantled for easy on-site assembly.

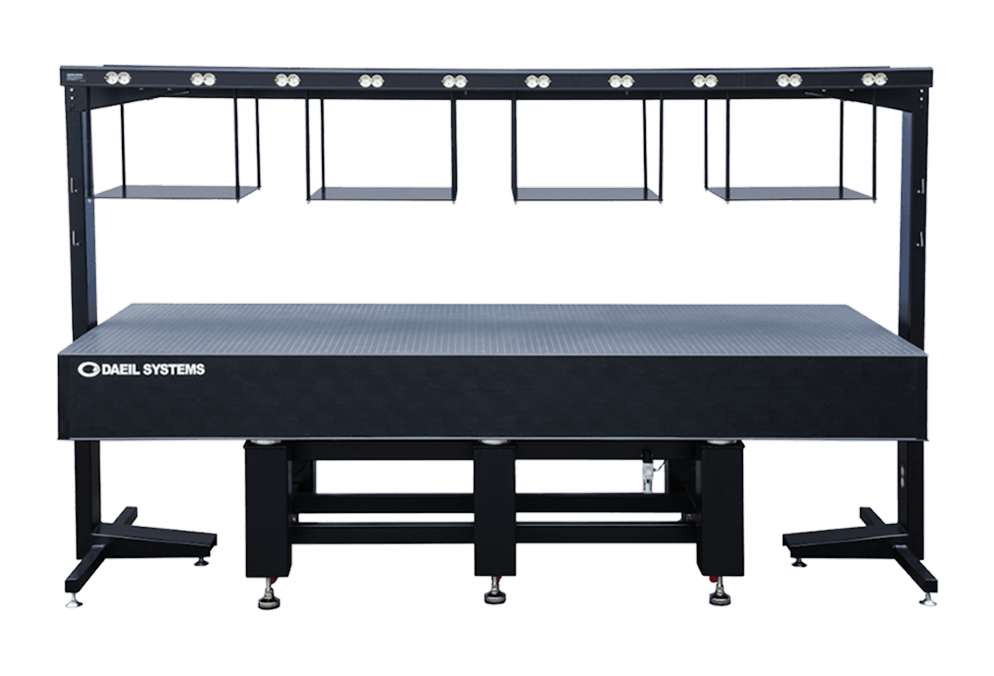

Overhead Shelf System.Overhead Optical Table Shelf Systems streamline lab space, supporting power supplies, controllers, oscilloscopes, and more. Dual-sided top outlets offer easy access to power, while adjustable shelves provide flexible, efficient organization.

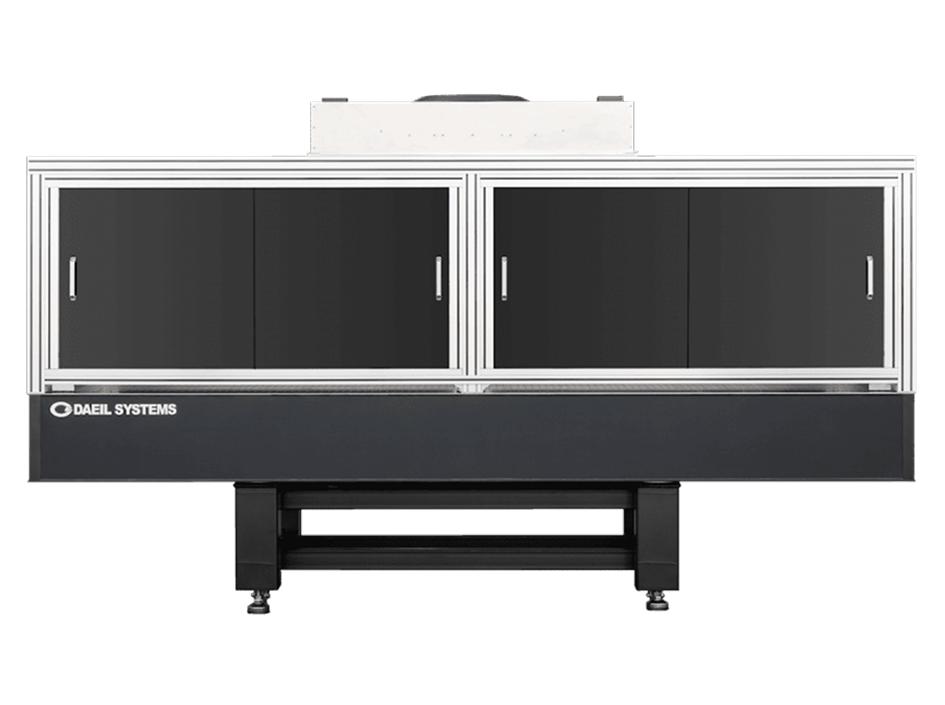

Table Enclosure.Our optical table enclosure is a fully custom, rigid housing designed to protect sensitive experiments from dust, drafts and ambient light while keeping your setup accessible and easy to work with.
