Tier-1 Electronics Component Manufacturer BGA PSP DVIA-P2200 Installation Report

DVIA-P Series

Installation Report

Tier-1 Electronics Component Manufacturer

BGA PSP

Plating Thickness Gauge

DVIA-P2200

260115R1

Overview

The DVIA-P2200 was installed in the B1 1F Clean Room at a Tier-1 electronics component manufacturer, and tuning and vibration measurement were performed.

The inspection and vibration measurement were conducted in the IDLE state.

The measured data are presented as VC Curves, and reference vibration-level criteria are provided.

Vibration Isolation System Information

Model: DVIA-P2200

Serial Number: 260115R1

Engineer

Juhyeok Kim, DAEIL SYSTEMS

Dongkyu Park, DAEIL SYSTEMS

Tuning Date

June 17, 2026

Installation Site

B1 1F Clean Room

End User

Tier-1 Electronics Component Manufacturer

Customer Equipment

Manufacturer: Tier-1 Electronics Component Manufacturer

Equipment: Plating Thickness Gauge

Model: BGA PSP

Vibration Specification

VC-B

Equipment Status

IDLE

Measuring Equipment

Measurement Equipment

- Hardware: B&K Front End Type 3040-A-040

- Software: B&K Pulse Labshop2 2 Version

Accelerometer: PCB 393B05

Measuring Set-up

F Span: 200 Hz

Lines: 3200

Engineering Units: m/s

Window: Hanning

Averaging: FFT Spectrum Averaging

Measurement Summary

Measurement Point	Status	Vibration Specification	Axis	Floor	DVIA-P2200
1. Floor 2. DVIA-P2200	IDLE	VC-B	Vertical	✓ PASS	✓ PASS
			Left to Right	✓ PASS	✓ PASS
			Front to Back	✓ PASS	✓ PASS

Data and Image

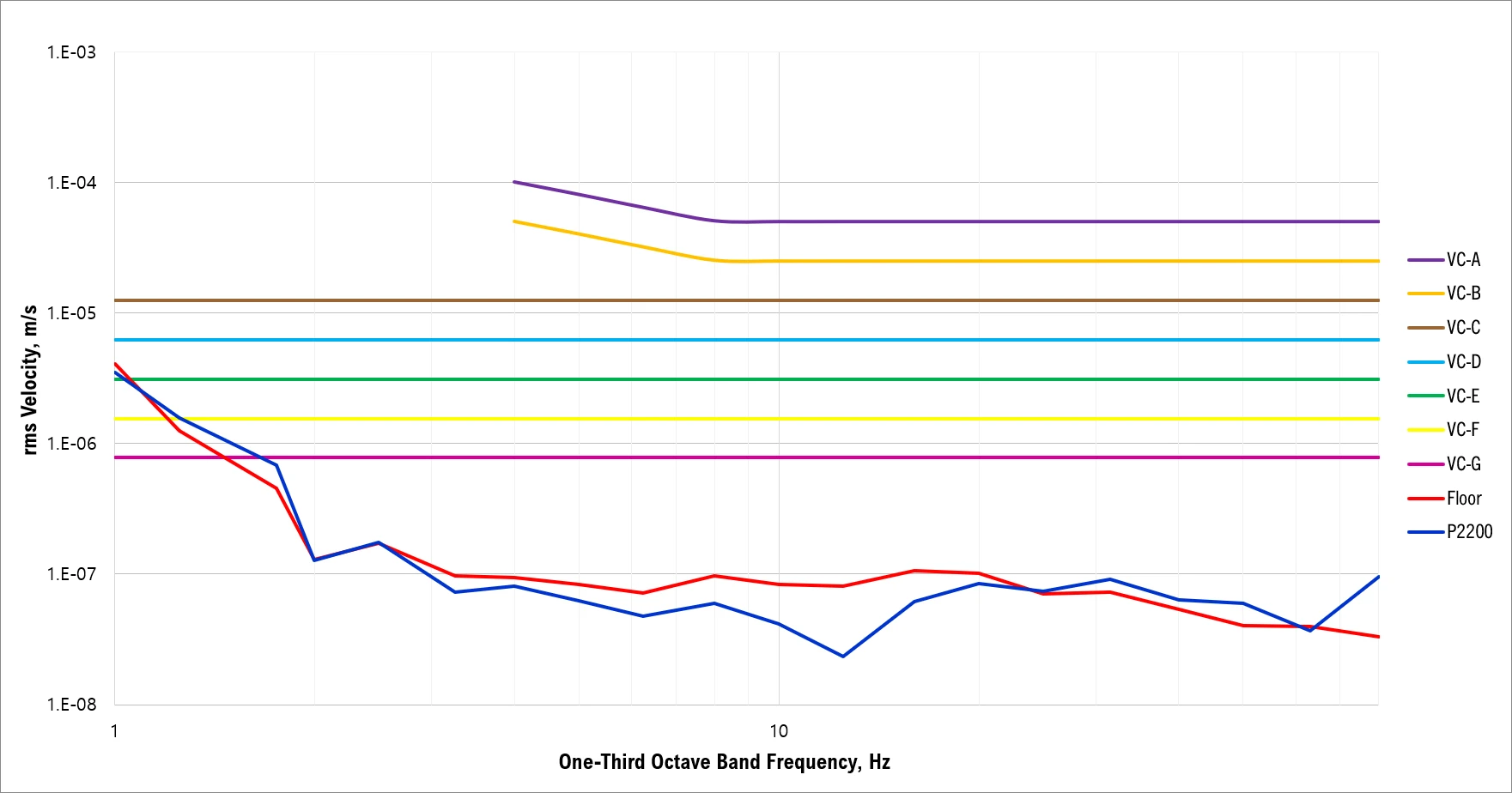

Vertical VC Curves

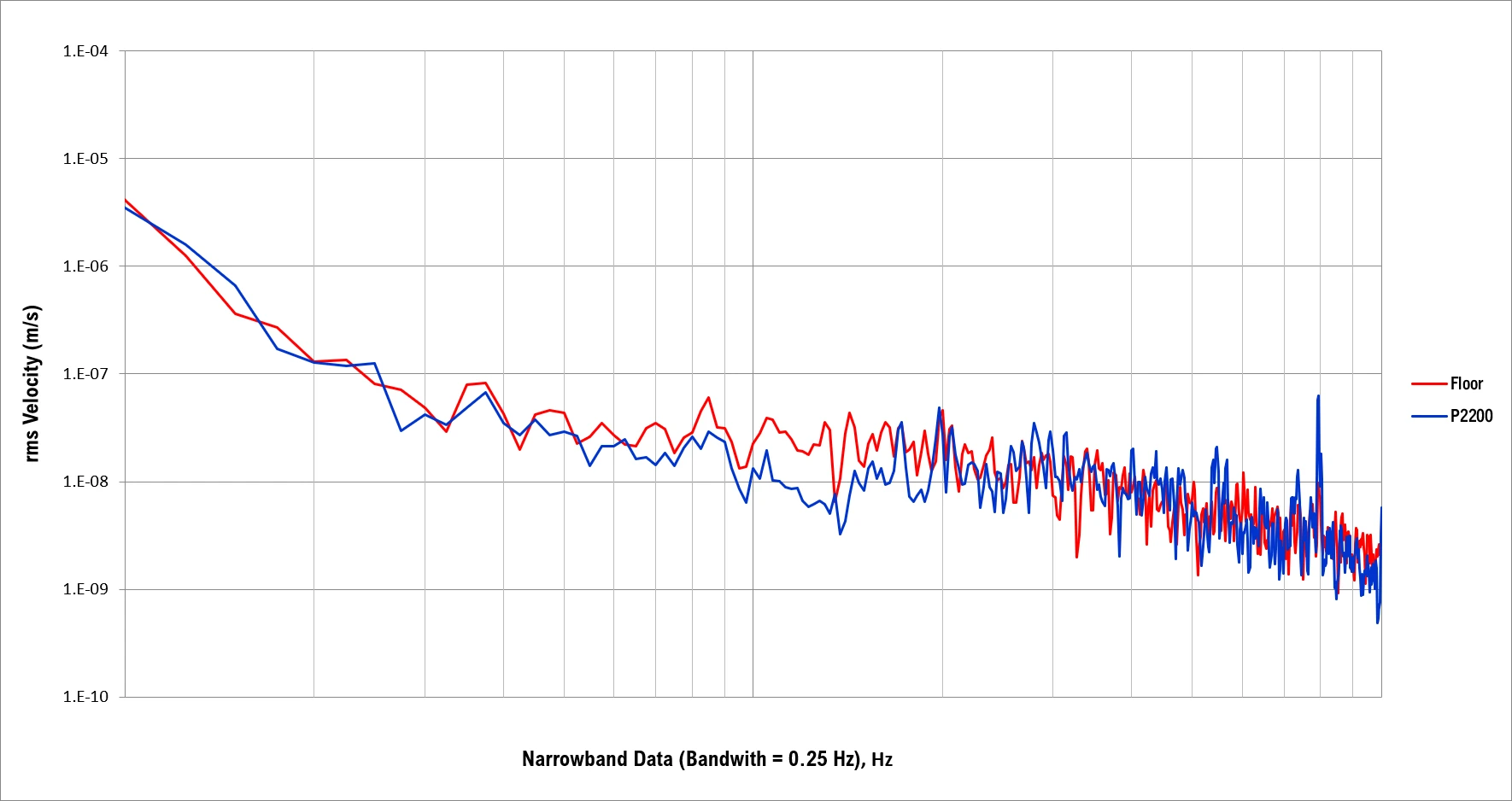

Vertical Autospectrum

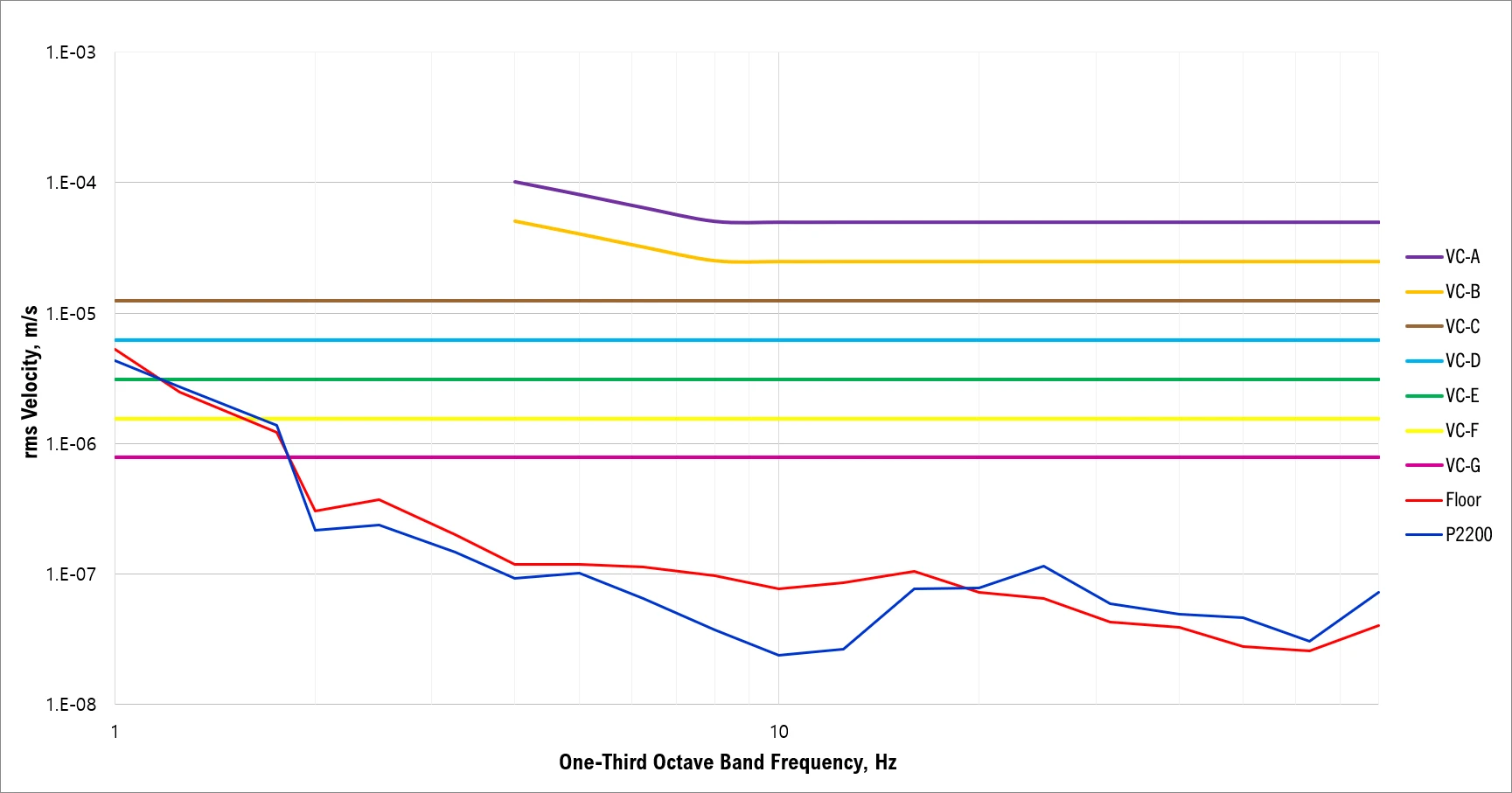

Left to Right VC Curves

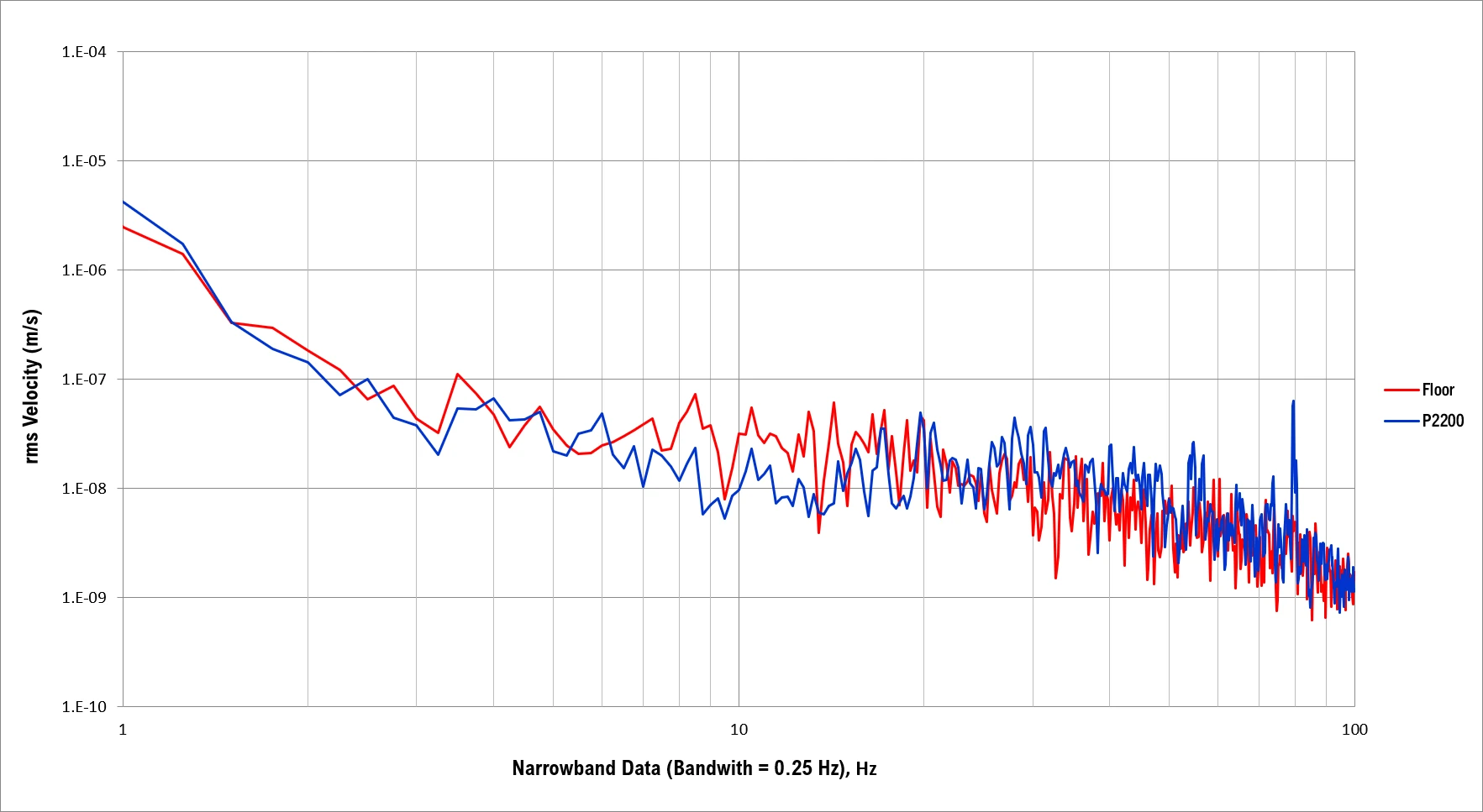

Left to Right Autospectrum

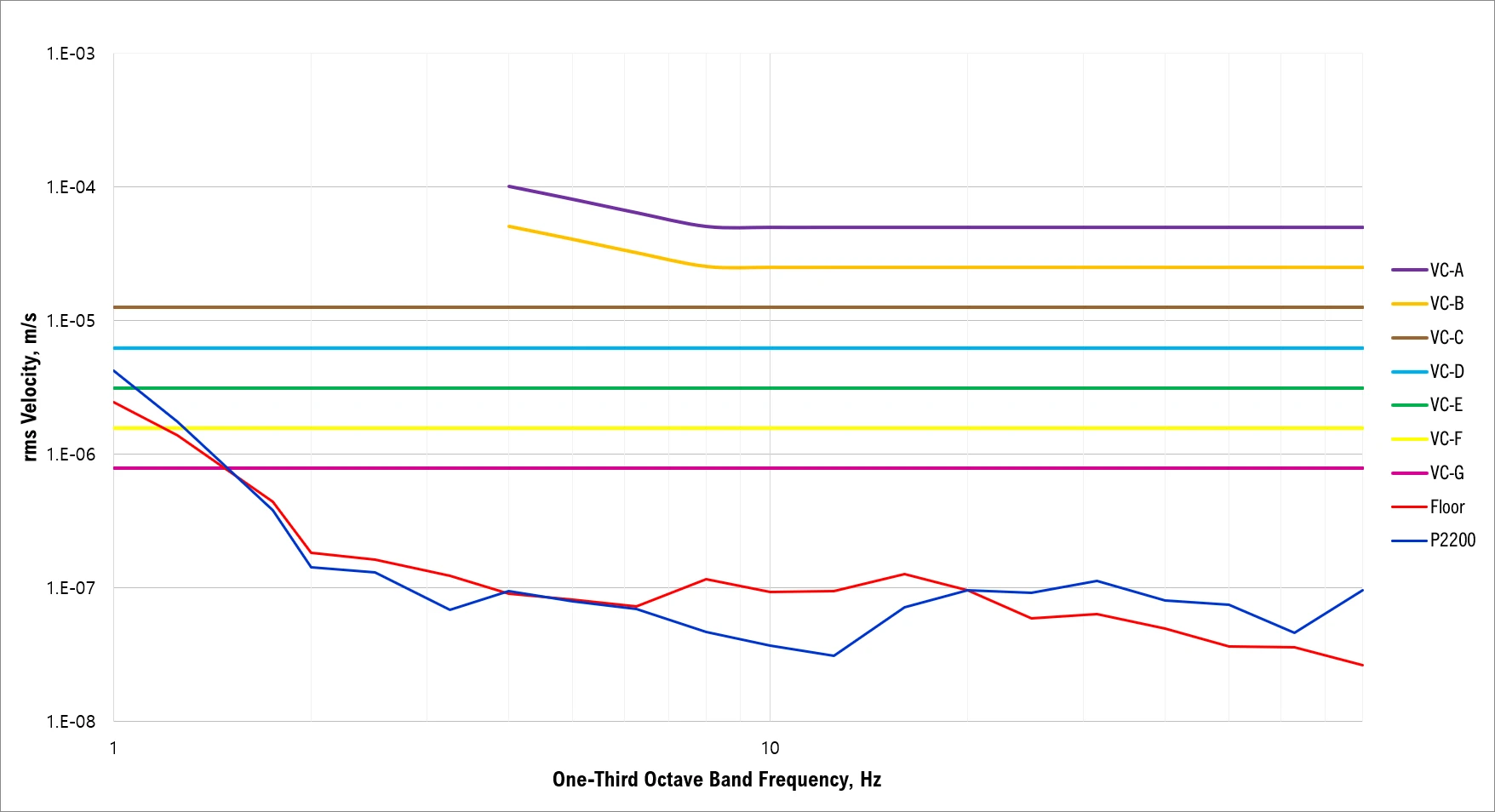

Front to Back VC Curves

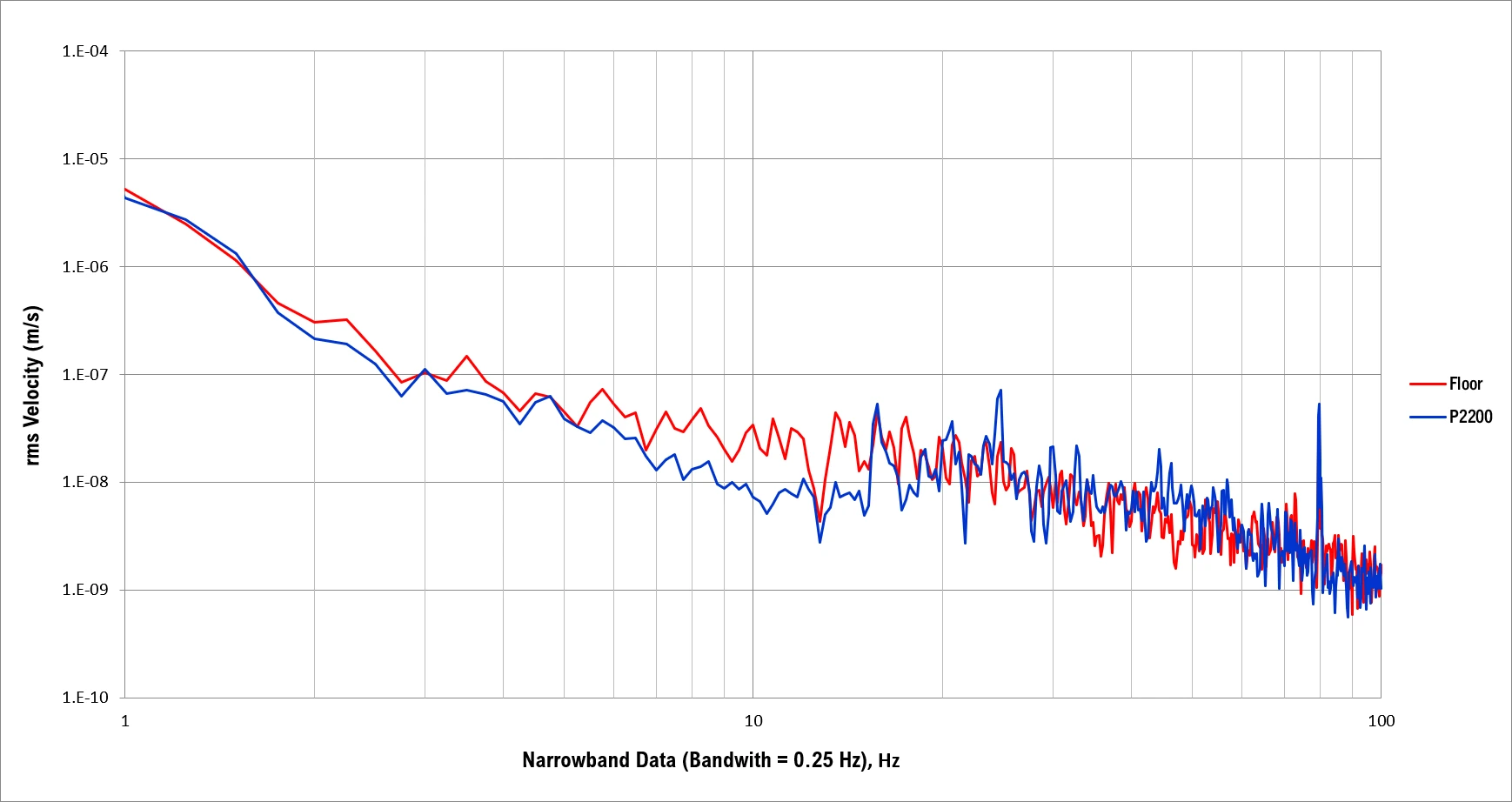

Front to Back Autospectrum

Reference

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.

2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
