Installation Report
DVIA-M Series
09-05-2025

DVIA-ML1000 (250227R2) Installation Report

DVIA-M Series
Installation Report
DVIA-ML1000
250227R2

Contents

Overview

N/A

Vibration Isolation System Information

Model: DVIA-ML1000

Serial Number: 250227R2

Engineer

이채원

Tuning Date

25.09.04

Report written date

25.09.05

End User

N/A

Number of Tuning Trial

N/A

Location

Tier-1 전자부품 제조사 수원사업장 중앙연구소 나노분석실험실

Equipment

Manufacturer: N/A

Equipment: N/A

Model: DVIA-ML1000

Equipment Condition

Turned on/IDLE

Measurement Summary

측정 장소상태방향측정 데이터측정 결과
바닥 진동DVIA-ML1000바닥 진동DVIA-ML1000
Tier-1 전자부품 제조사 수원사업장 중앙연구소 나노분석실험실 1.바닥 진동 2.DVIA-ML1000장비설치/ Turned offVerticalVC-C @ 12.5 HzVC-F @ 12.5 Hz✓ PASS✓ PASS
Left to RightVC-F @ 31.5 HzVC-G @ 31.5 Hz✓ PASS✓ PASS
Front to BackVC-E @ 12.5 HzVC-F @ 12.5 Hz✓ PASS✓ PASS

Data and Image

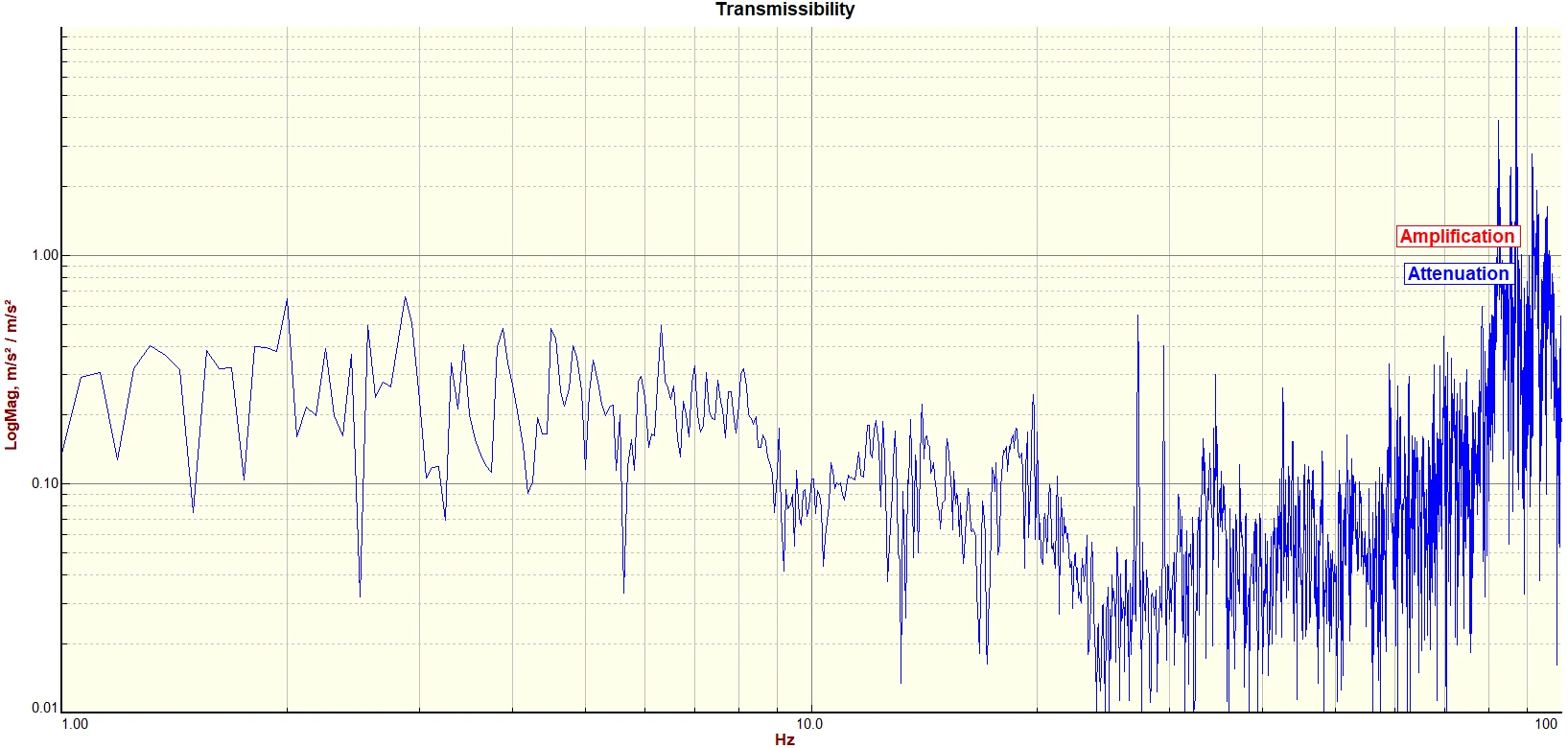

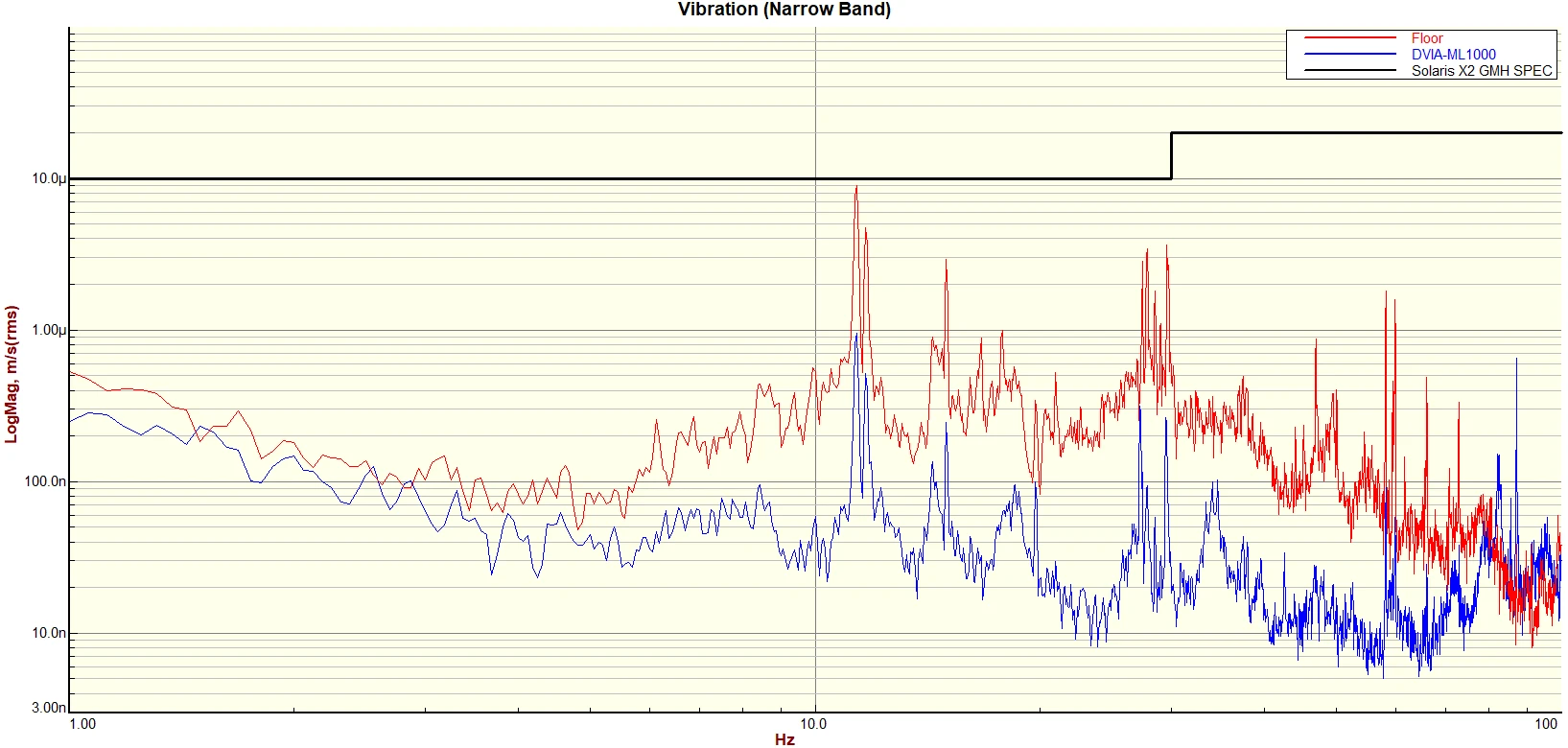

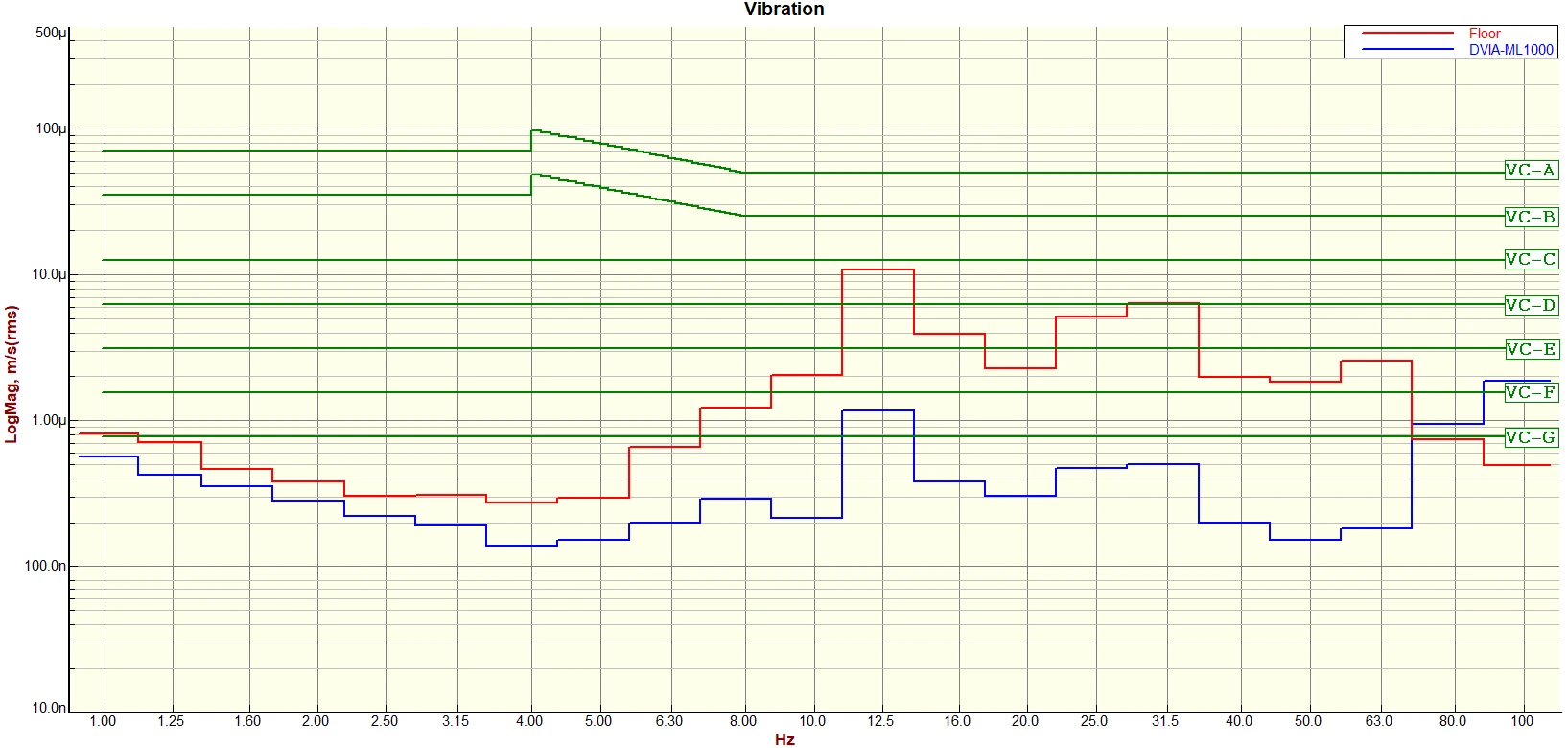

Vertical VC Curves

Vertical VC Curves

Vertical VC Curves

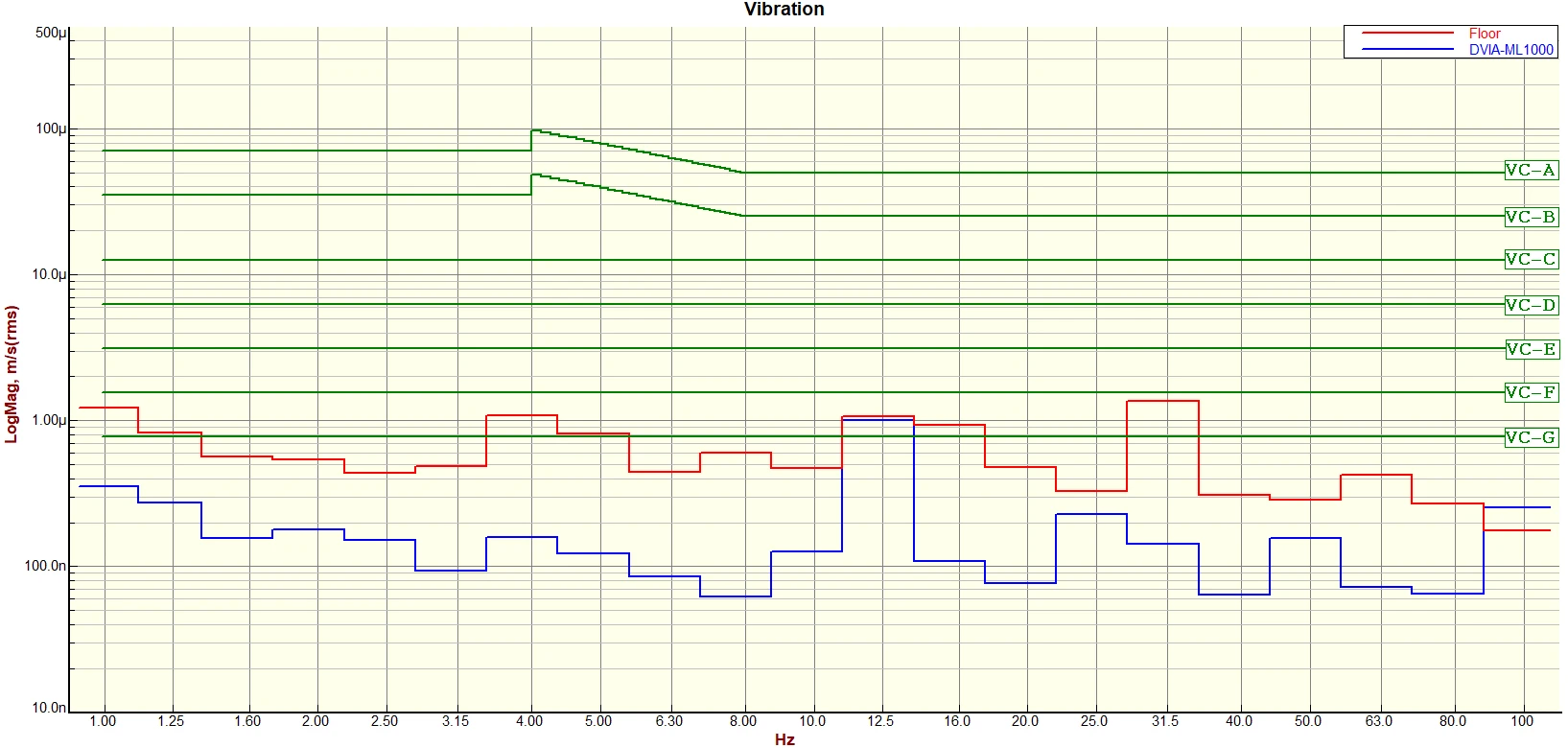

Vertical Autospectrum

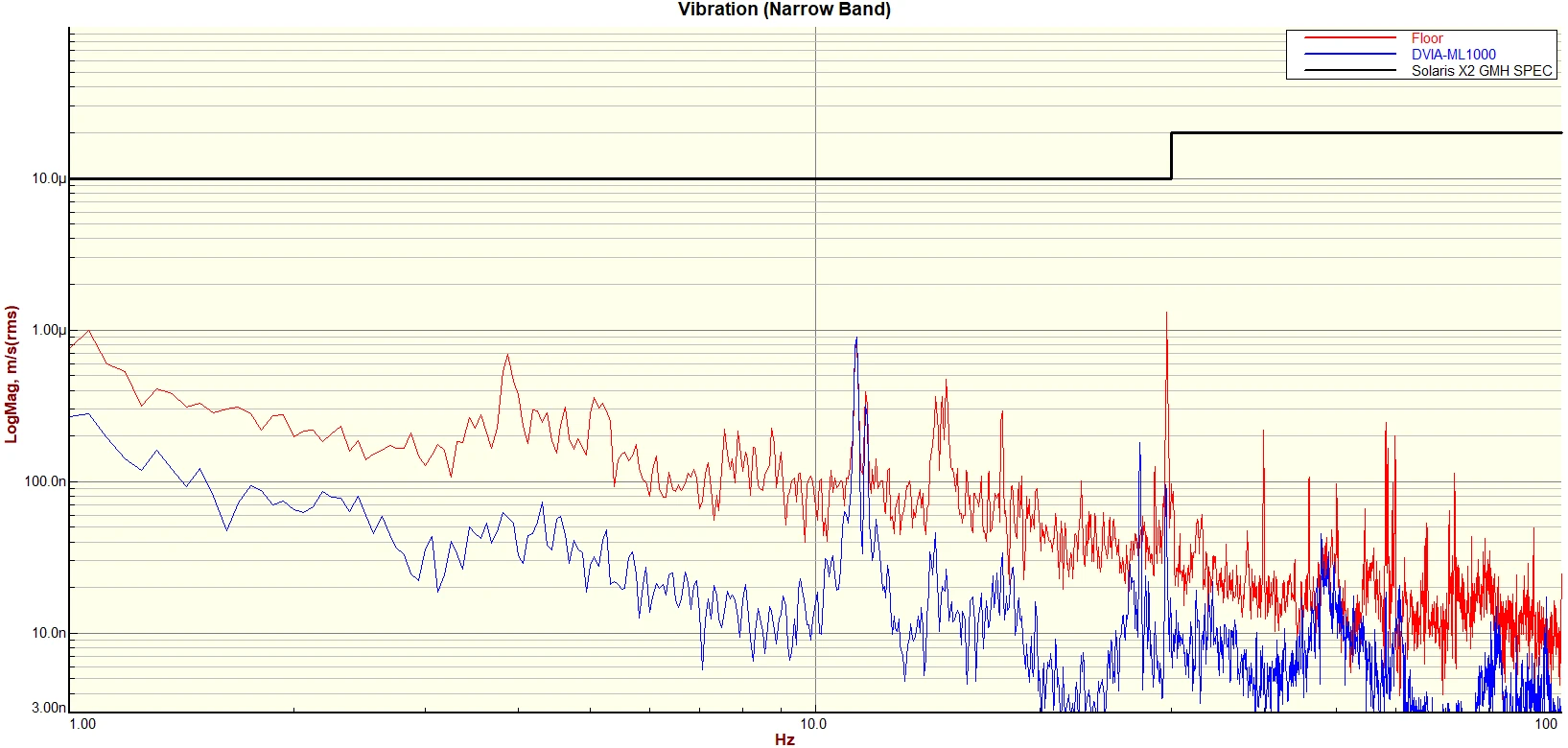

Vertical Transmissibility

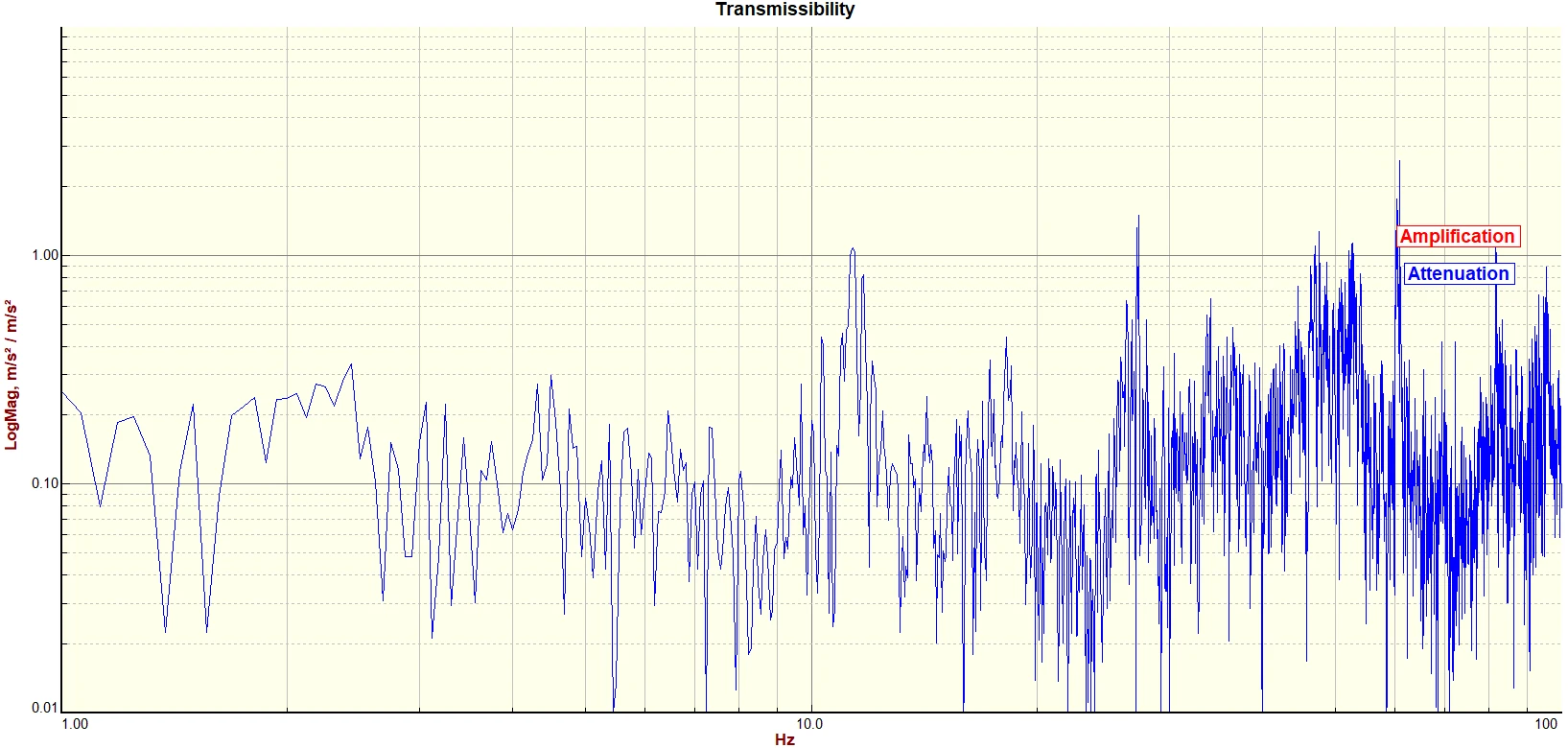

Left to Right VC Curves

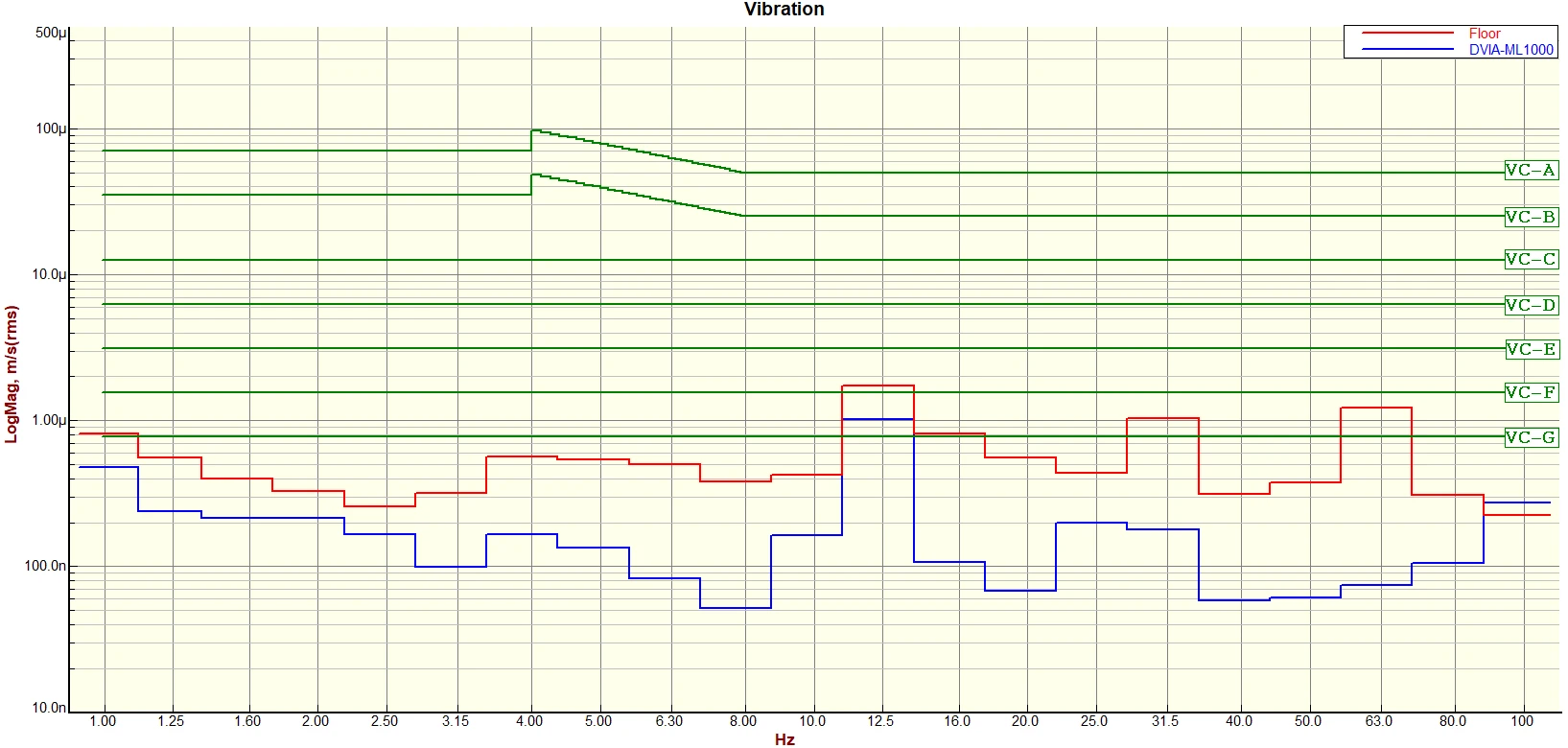

Left to Right Autospectrum

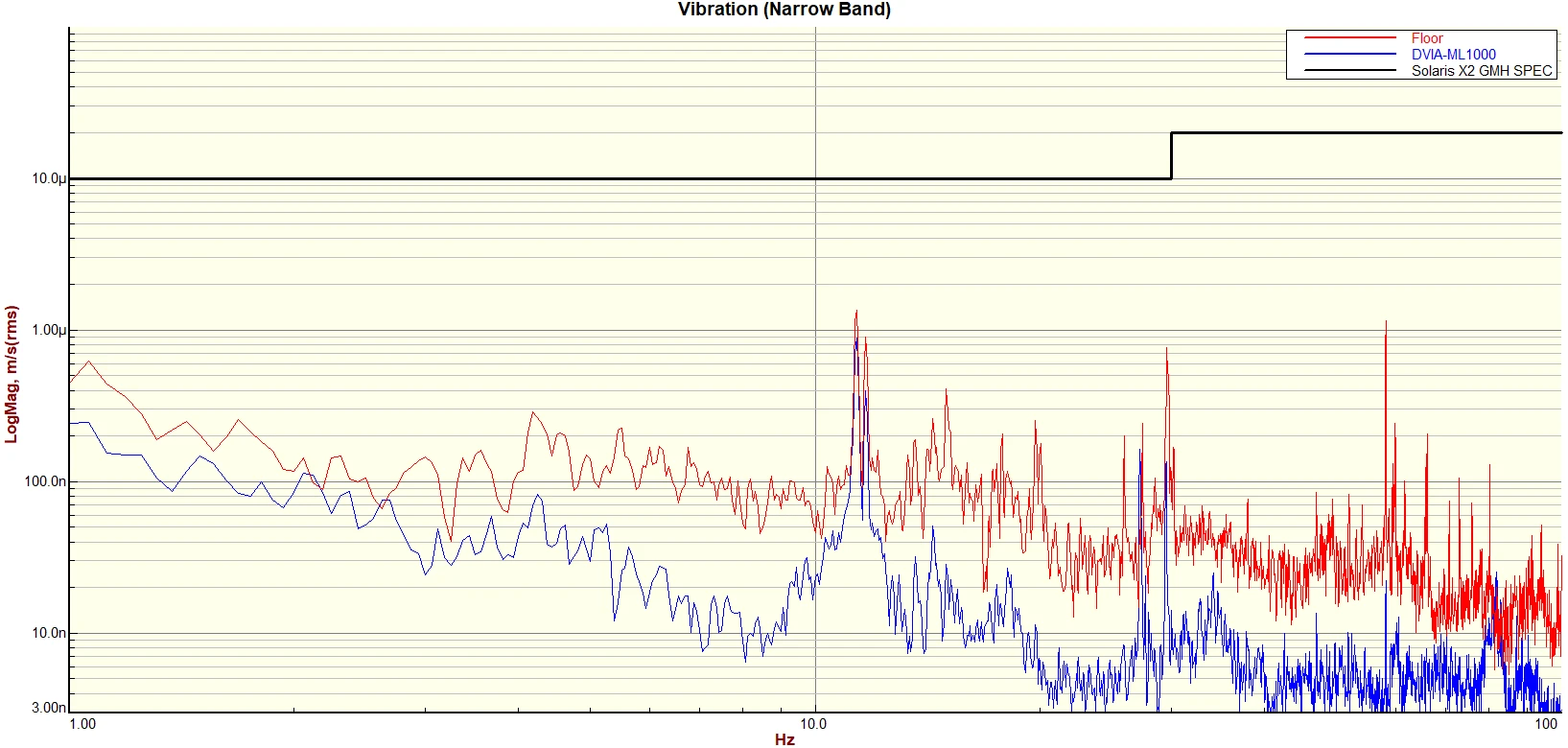

Left to Right Transmissibility

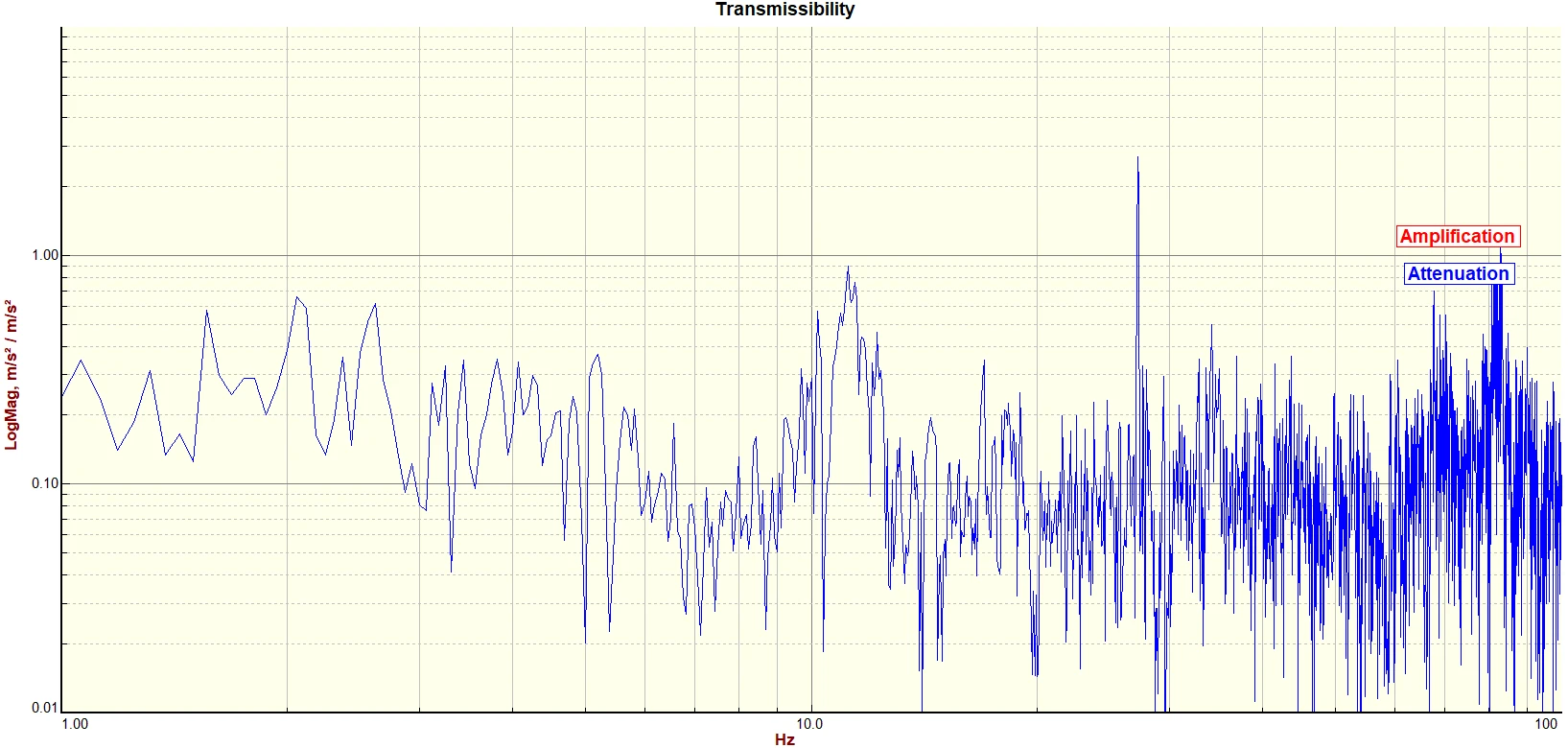

Front to Back VC Curves

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
µm/s (µin/s)		Detail Size
µm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
