China Electric Power Research Institute Sigma500 DVIA-UB700 (220512R4) Installation Report — Beijing
DVIA-UB Series
Installation Report
DVIA-UB700
220512R4
China Electric Power Research Institute
CEPRI
Sigma500
Beijing
Contents
Prepared for
CHINA ELECTRIC POWER RESEARCH INSTITUTE
Prepared by
Engineer: Youngha Lee
Tuning date: 23.01.31
Report written date: 23.01.31
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-UB700 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-UB700
Serial Number: 220512R4
Engineer
Youngha Lee, from DAEIL SYSTEMS
Tuning Date
January 31, 2023
Location
Beijing, China
Equipment
Sigma500
Data and Image

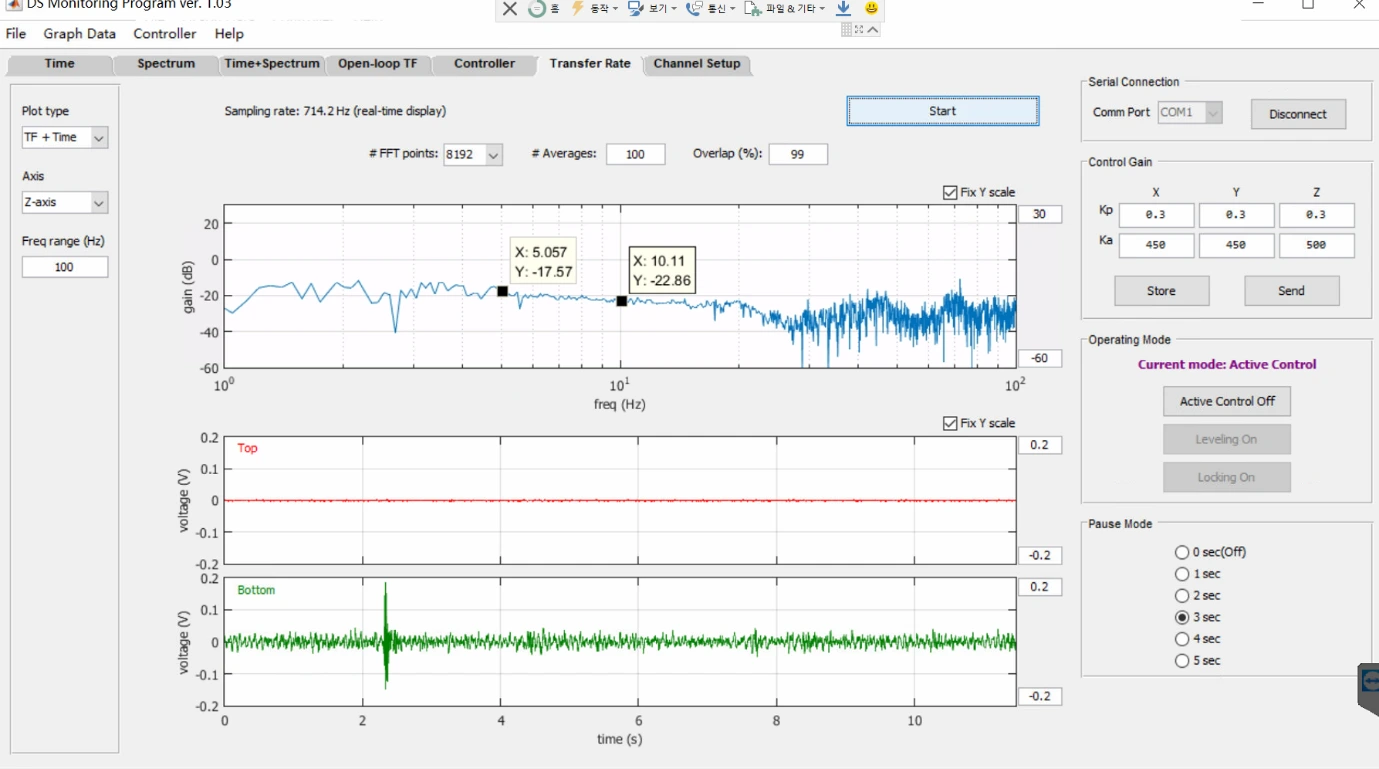

Z-axis (Vertical) Transmissibility

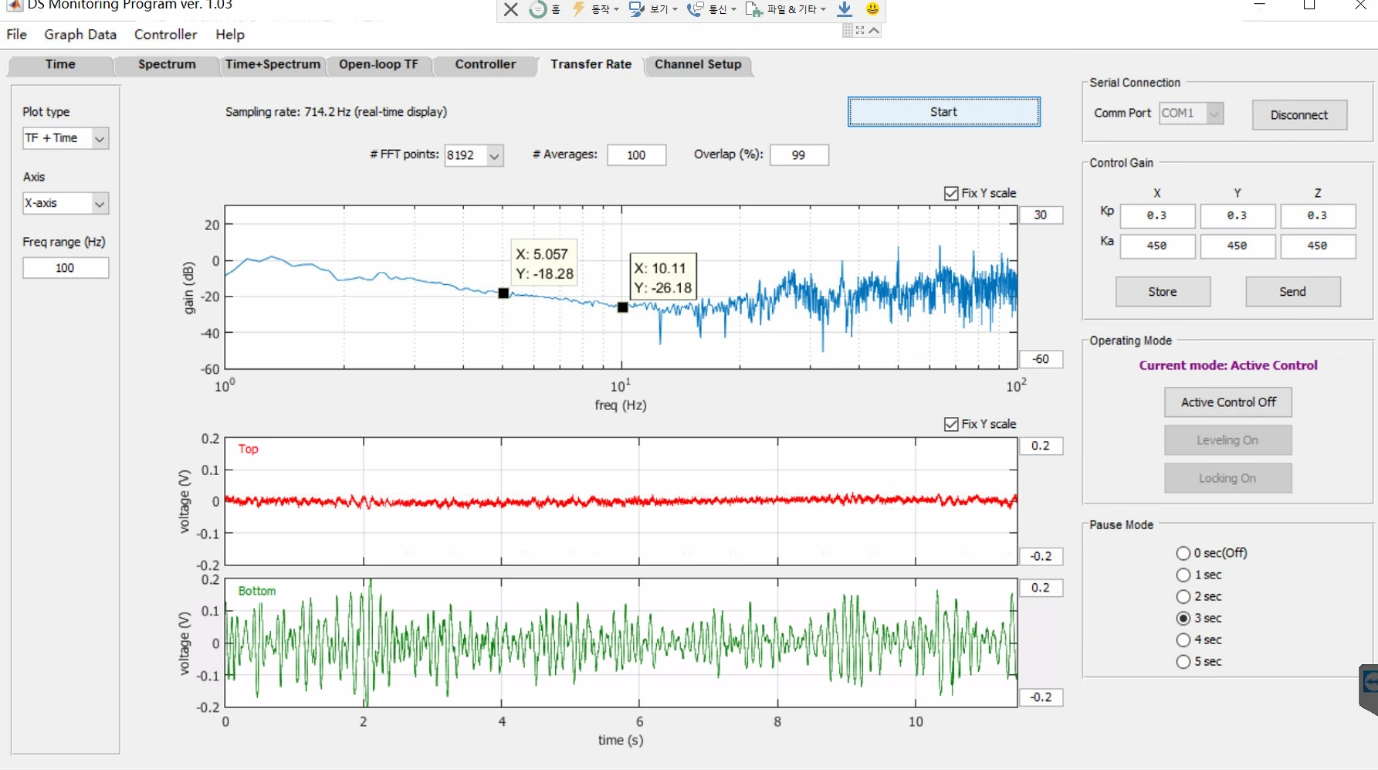

X-axis (Left to Right) Transmissibility

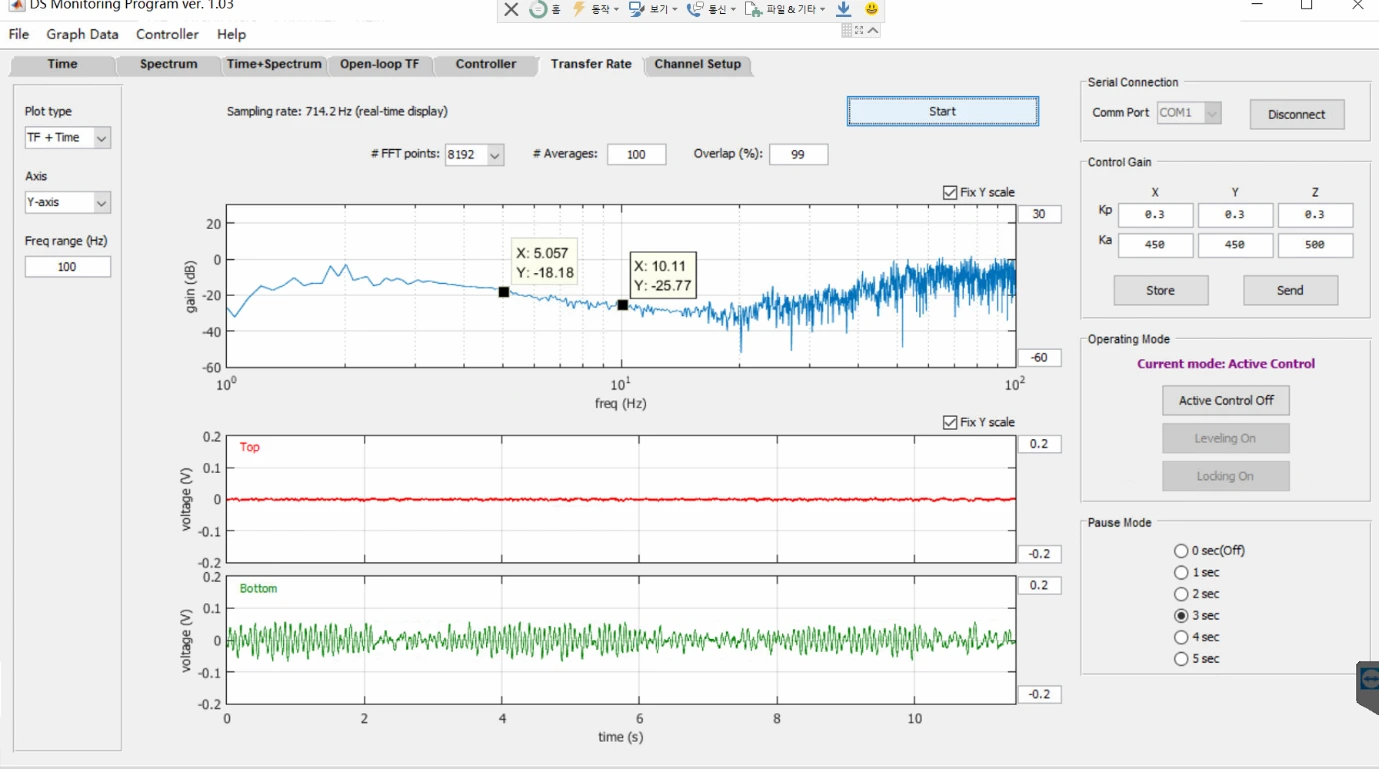

Y-axis (Front to Back) Transmissibility

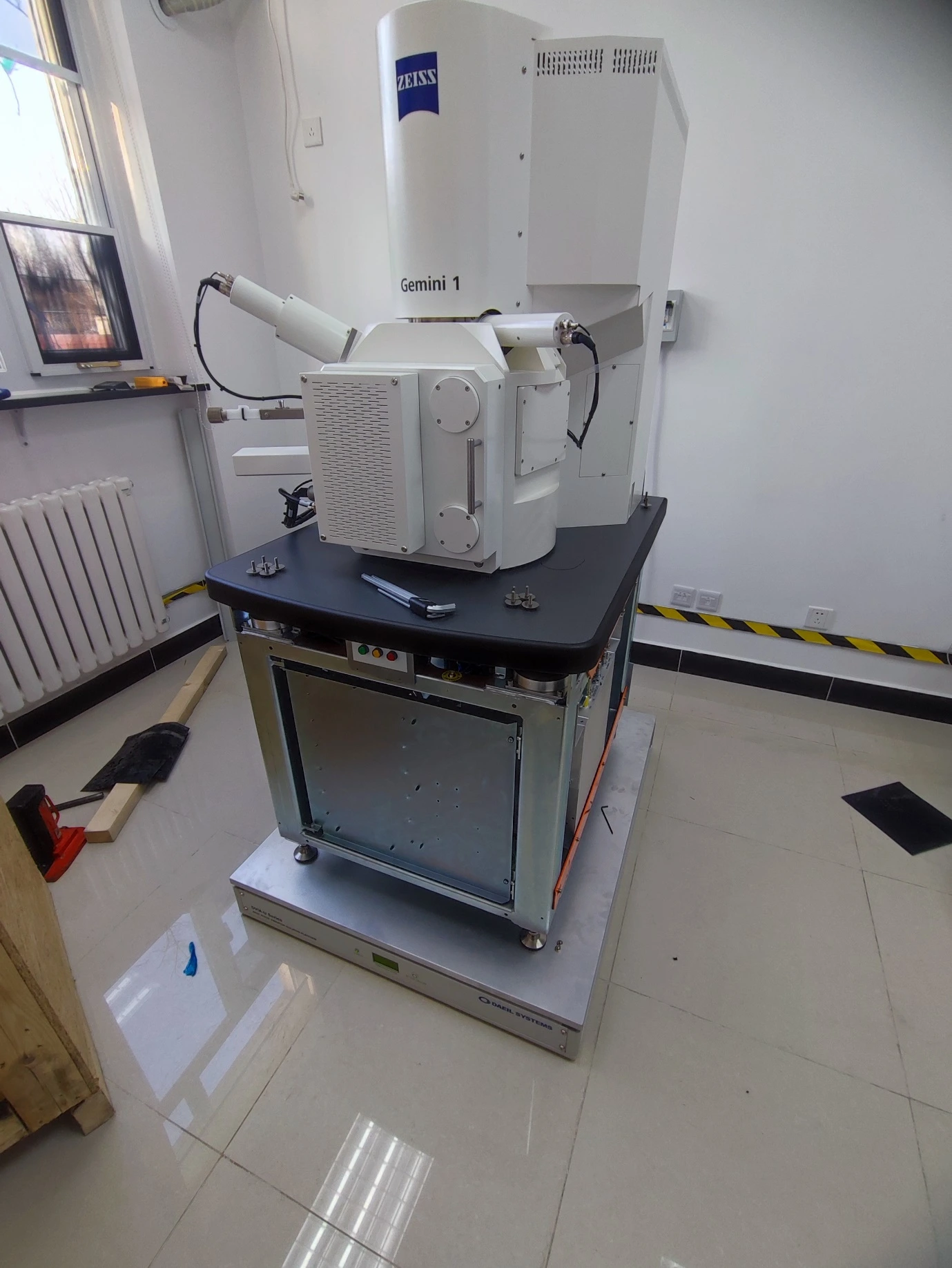

Equipment image
