Installation Report
DVIA-M Series
01-24-2022
Xiamen Farad Electronics Thermo Fisher Apreo 2S DVIA-M1000 MB1000 Worksheet (211206R2) — 2022-01-24
DVIA-M Series
Installation Report
DVIA-M1000
MB1000
Thermo Fisher
Apreo 2S
YIMO
Xiamen Farad Electronics
CABOT
Contents
MB1000 P275(211206R2)

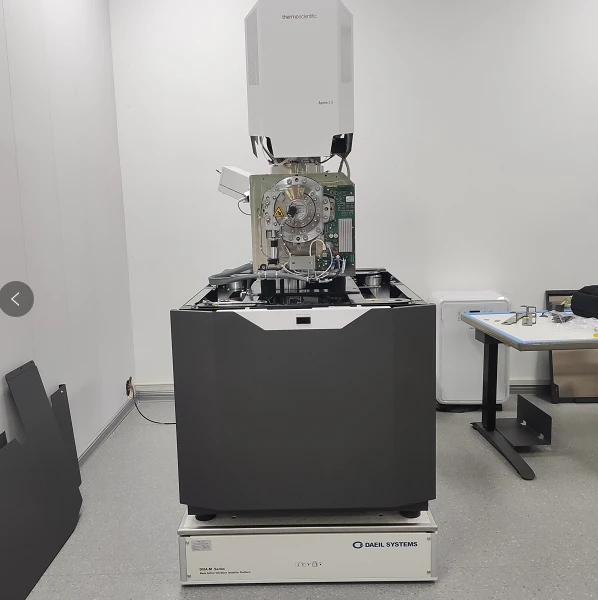

MB1000 setup
Target equipment
Thermo Fisher Apreo 2S
Place of installation
CABOT
Remark
Good Performance
END USER
厦门法拉电子
Operator
Operator: Yu, Hosang
Date of setup
Date of setup : 22.01.19
Date of reporting
Date of reporting : 22.01.24
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 22.01.19 (WED)
Operator: Daeil System, Research engineer Yu, Hosang
Place of measurement : CABOT, 厦门法拉电子
Equipment Model: Thermo Fisher Apreo 2S
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -28 dB | -23 dB | -23 dB |
| X | -37 dB | -30 dB | -36dB |
| Y | -27dB | -31 dB | -28 dB |
Good omnidirectional performance.
Good omnidirectional performance.
MB1000 internal program performance measurement result

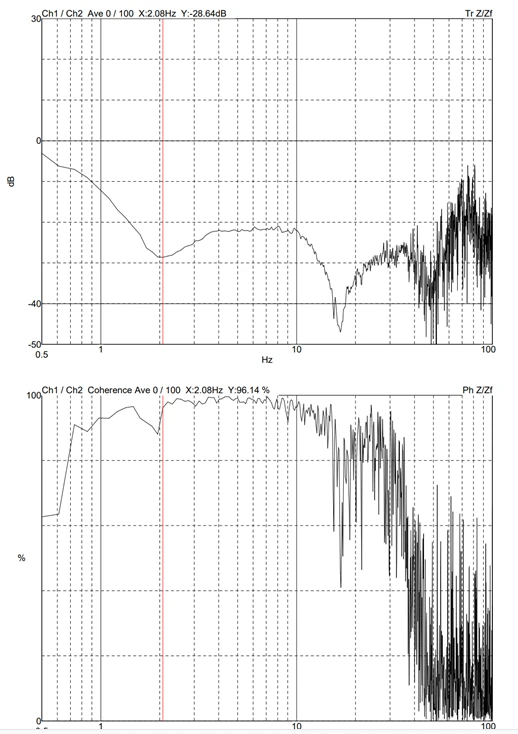

Z axis

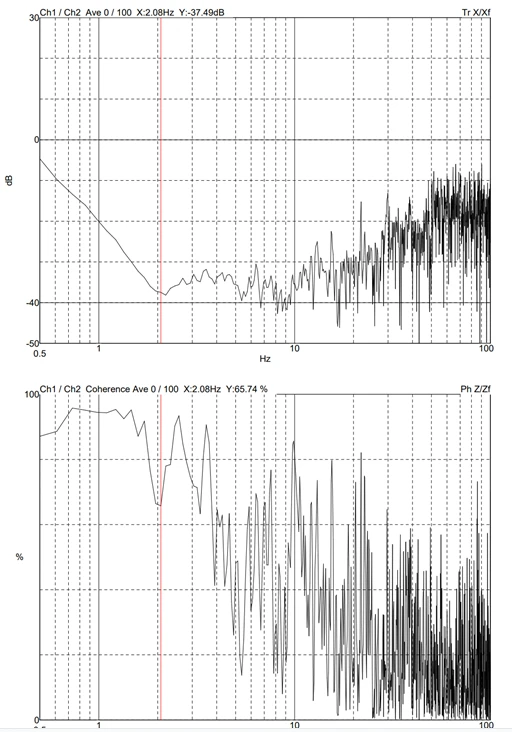

X axis

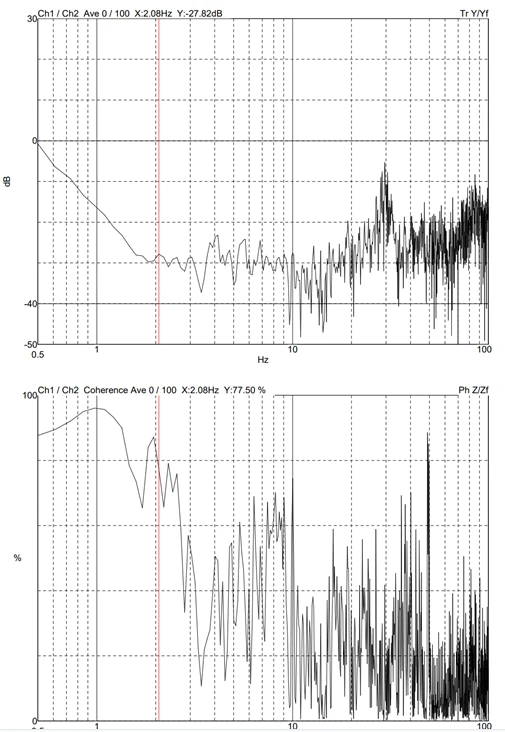

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date01-24-2022
Tags
DVIA-M Series
Installation Report
DVIA-M1000
MB1000
Thermo Fisher
Apreo 2S
YIMO
Xiamen Farad Electronics
CABOT
Related Case Studies
DVIA-M Series
YIMO Thermo Fisher Scientific SEM Apreo 2S DVIA-M1000 (240930R6) Installation Report
03-31-2025Read more
DVIA-M Series
YIMO Thermo Fisher Scientific SEM Apreo 2S DVIA-M1000 (240930R6) Installation Report
03-25-2025Read more
DVIA-M Series

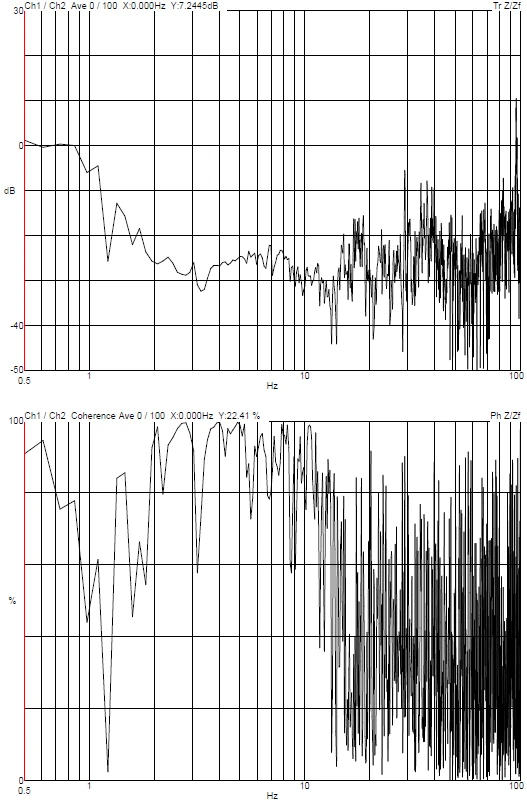

YIMO Zhejiang University Ningbo Institute of Technology Thermo Fisher FIB-SEM Scios 2 DVIA-M1000 (240509R7-2) Installation Report
