Installation Report

DVIA-M Series

06-02-2023

Institute of Modern Physics ZEISS Crossbeam 350 DVIA-M1000 (210809R1) Internal Program — Lanzhou 2023

DVIA-M Series

Installation Report

Institute of Modern Physics

Lanzhou

ZEISS

Crossbeam 350

DVIA-M1000

210809R1

(M1000_ 210809R1 Set up)

Target equipment	Crossbeam 350
Place of installation	LANZHOU
Remark	Good Performance
END USER	Institute of Modern Physics
Operator: Lee, Young Ha	Date of business trip : 17.12.27~17.12.29
Operator: Lee, Young Ha
Date of setup: 23.06.02
Date of reporting: 23.06.13

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Measurement date

2023.06.02 (Friday)

Operator

Operator: DAEIL SYSTEMS, Youngha Lee

Place of measurement

LANZHOU

End User

End User: Institute of Modern Physics

Equipment Model

Equipment Model: Crossbeam 350

Measurement conditions and results

Summary of measurement results

Test condition	Z	X	Y
Floor	C	E	D
Above Active	F	F	F

Good omnidirectional performance.

MB1000 internal program performance measurement result

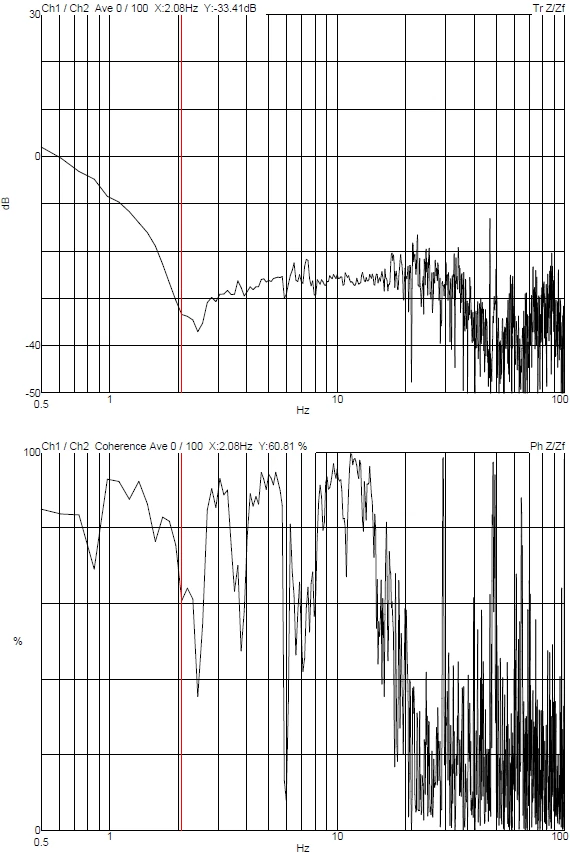

Z axis

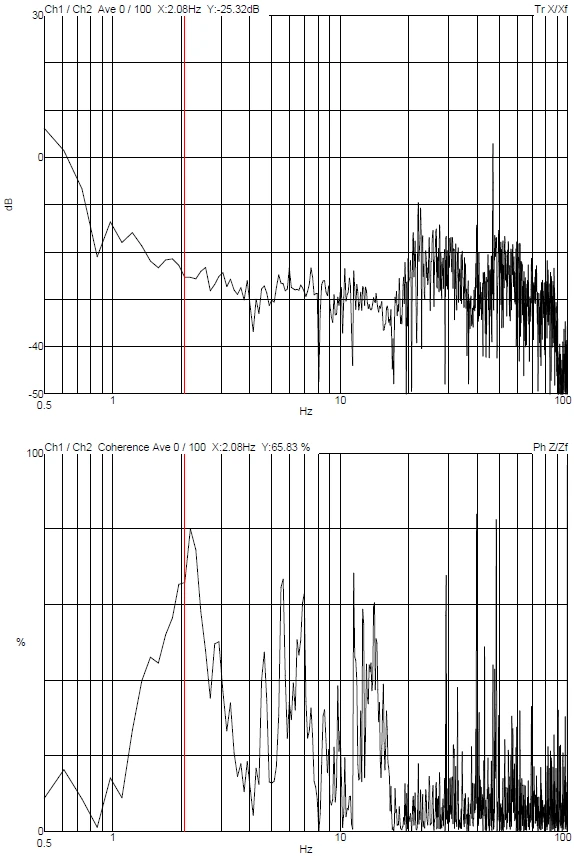

X axis

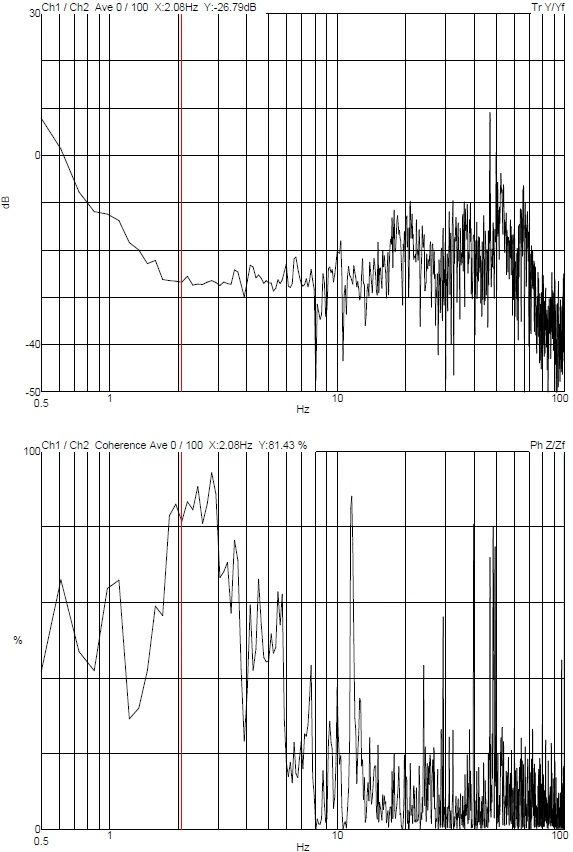

Y axis

Octave Band Result

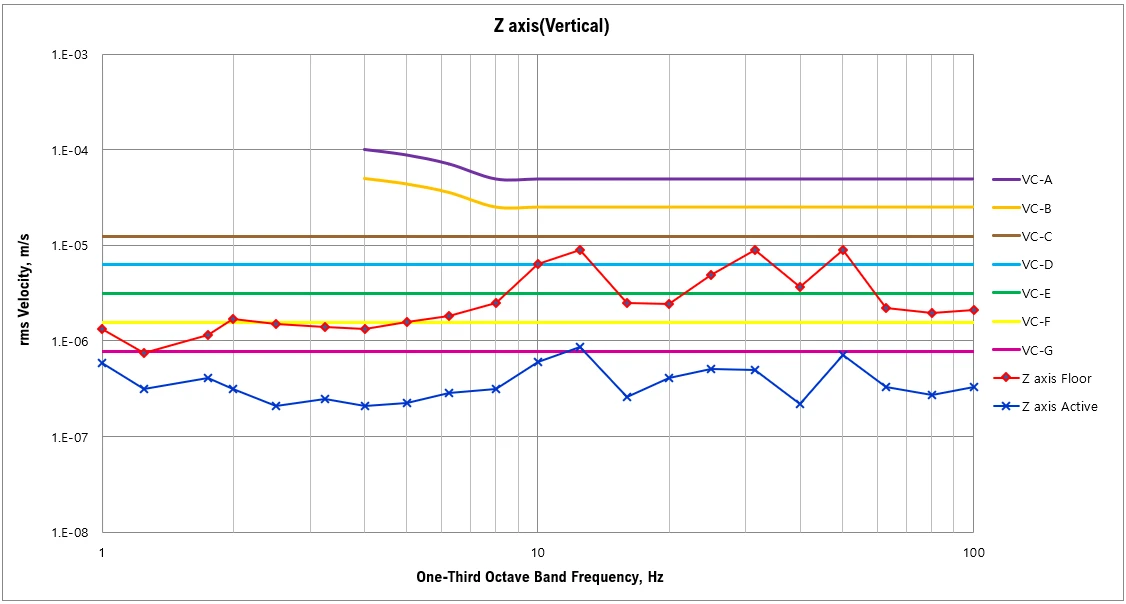

Z axis — octave band result

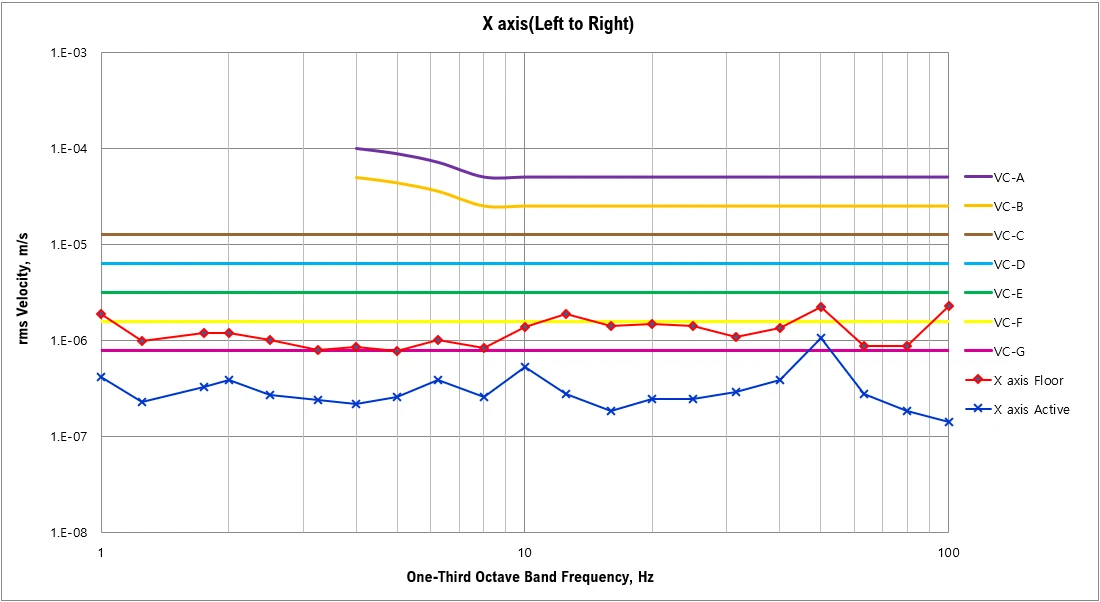

X axis — octave band result

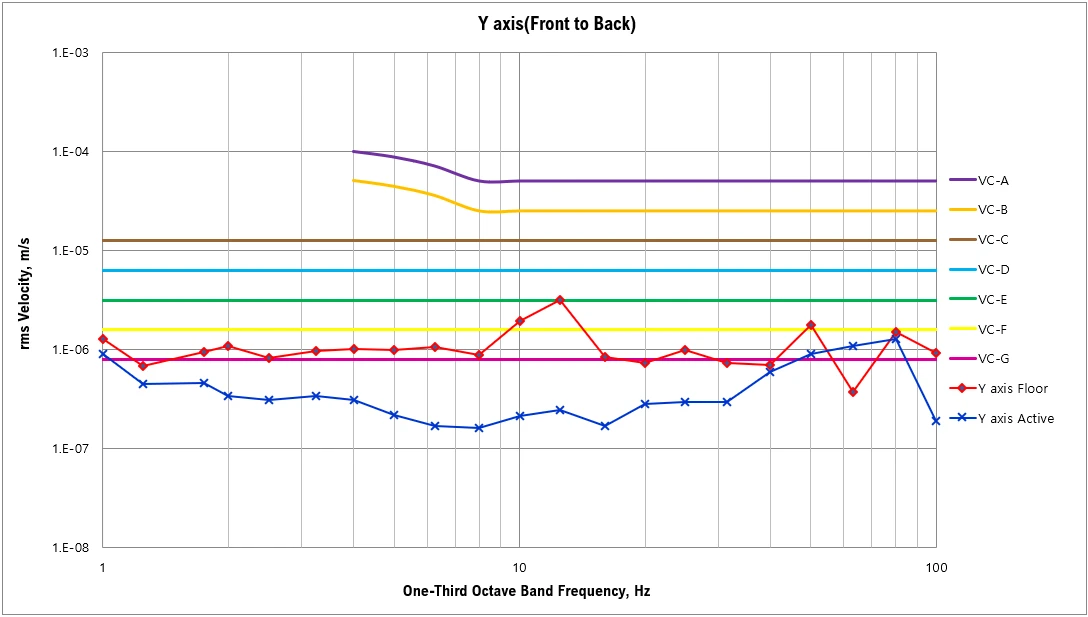

Y axis — octave band result
