Installation Report
DVIA-P Series
05-26-2026
YIMO 深圳维达力 Thermo Scientific Prisma E UB1000 P20 Remote Tuning Report (210302R1)
DVIA-P Series
Installation Report
YIMO
Shenzhen
深圳维达力
Thermo Scientific
Prisma E
UB1000
P20
210302R1
Remote tuning
Contents
Target equipment
Thermo scientific Prisma E
Place of installation
shenzhen
Remark
Good Performance
END USER
深圳维达力
Operator: Munho Noh
Date of setup : 21.04.27
Date of reporting : 21.04.28
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.04.27 (TUE)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : shenzhen
Equipment Model: Thermo scientific Prisma E
Measurement conditions and results
Summary of measurement results
| Category | Detail |
|---|---|
| Test Condition | Transmissibility |
| 10 Hz | |
| Z | -27.91 dB |
| X | -29.64 dB |
| Y | -25.65 dB |
Good omnidirectional performance.
UB1000 internal program performance measurement result

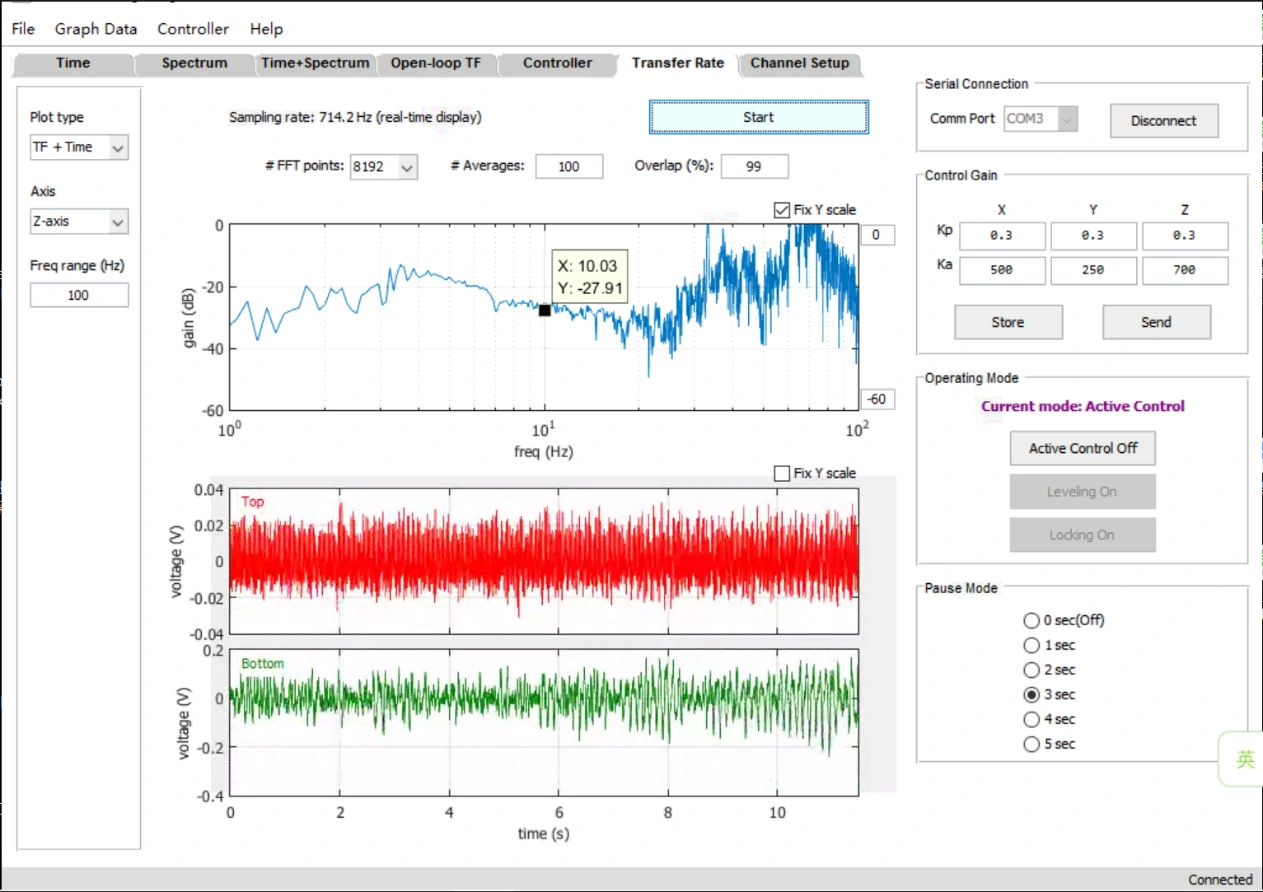

Z axis

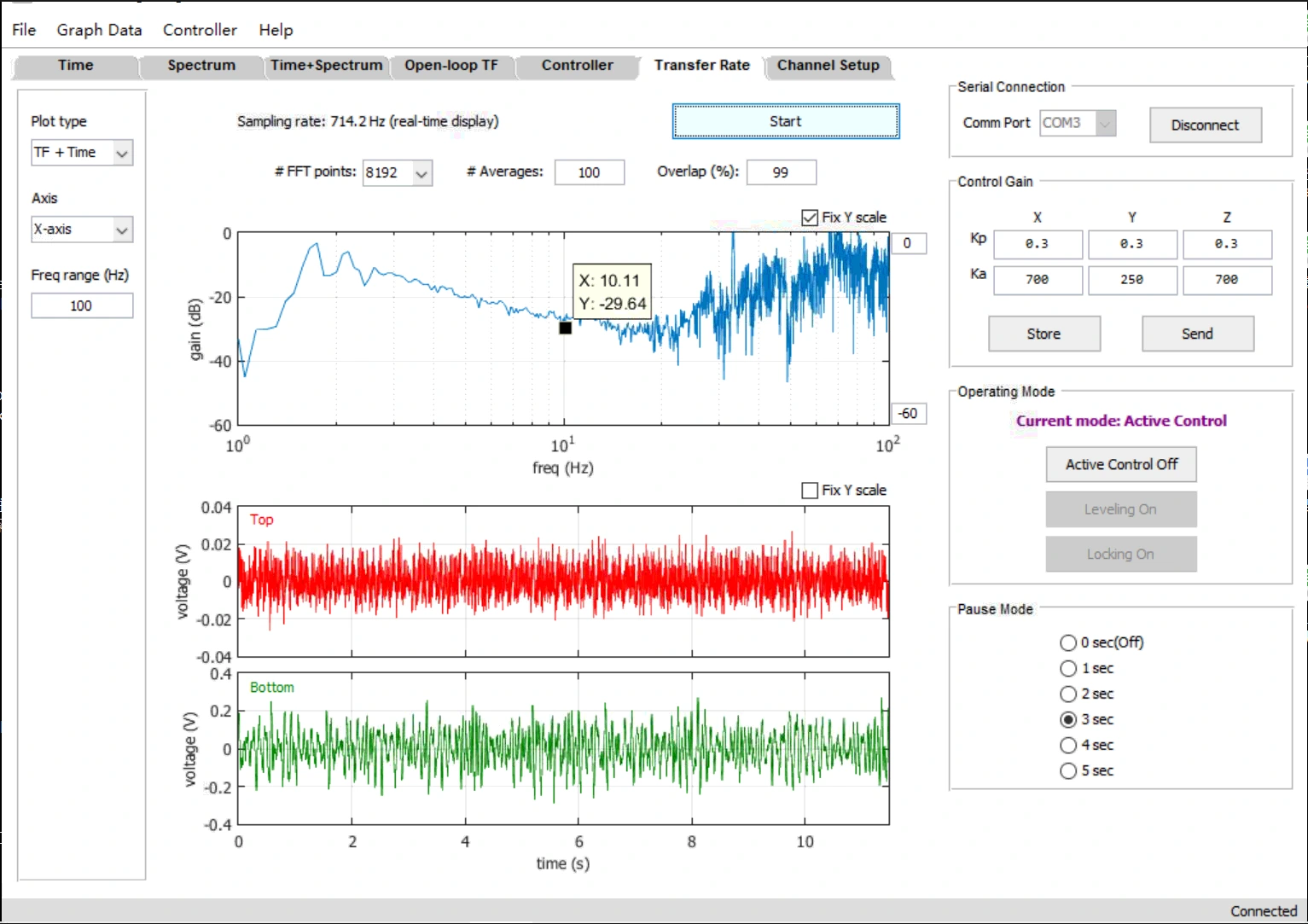

X axis

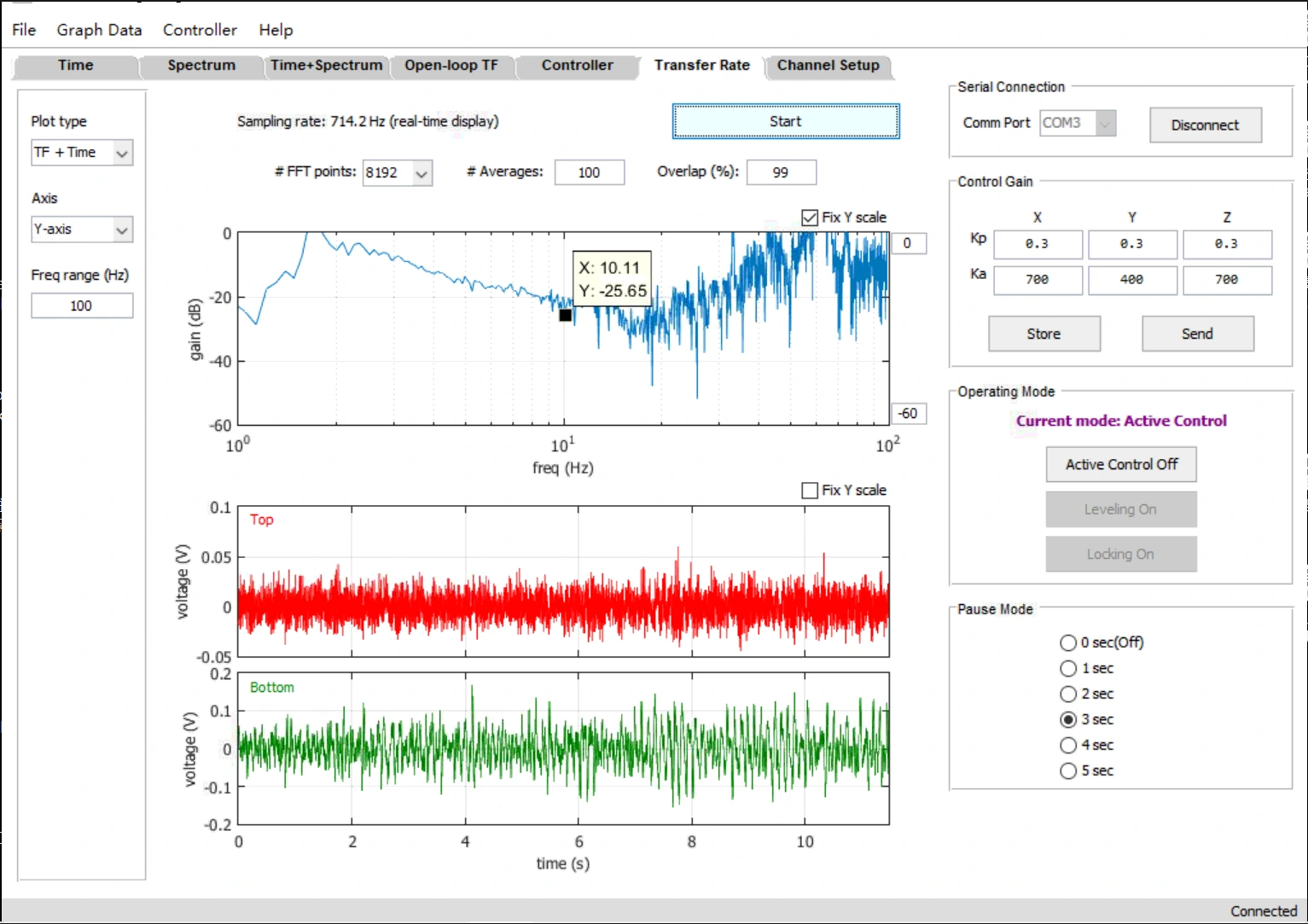

Y axis
