Installation Report
DVIA-ML Series
05-20-2019
Ningbo University of Technology JEOL JEM-2100F DVIA-M3000 MB1000 P126 China trip report — 2019.05.20
DVIA-ML Series
Installation Report
DVIA-M3000
MB1000
P126
JEOL
JEM-2100F
Ningbo
Ningbo University of Technology
Contents
China business trip report (MB1000_P126 Set up)

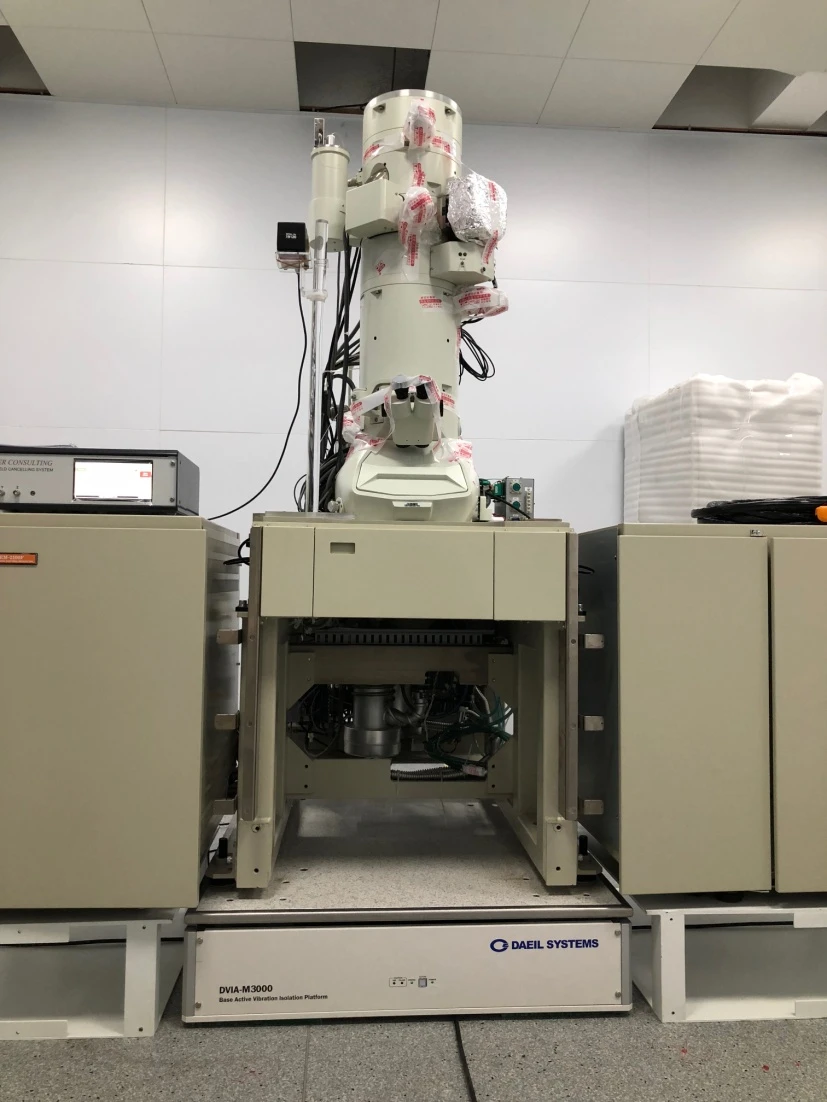

Installation site photograph
Target equipment
JEOL JEM-2100F
Installation site
Ningbo university of technology
Classroom building2 F1 2-101
Remark
Good Performance
END USER
Ningbo university of technology
Date of business trip
출장일 : 19.05.15
Operator
출장자 : 최성원
Report written date
작성일 : 19.05.20
Summary of installation results
| Test Direction | VC-Class Base | VC-Class Top |
|---|---|---|
| ACTIVE | Z | C |
| X | E | |
| Y | F |
Magnetic field [AC]
| Test Direction | Magnetic field [nT] before compensation | Magnetic field [nT] after compensation |
|---|---|---|
| ACTIVE | Z | 73.4 |
| X | 84.2 | |
| Y | 26.5 |
Magnetic field [DC]
| Test Direction | Magnetic field [nT] before compensation | Magnetic field [nT] after compensation |
|---|---|---|
| ACTIVE | Z | 165.6 |
| X | 134.2 | |
| Y | 39.3 |
제진대 전 방향 성능 양호
자기장 상쇄장치 전 방향 성능 양호
MB1000 internal program performance measurement result

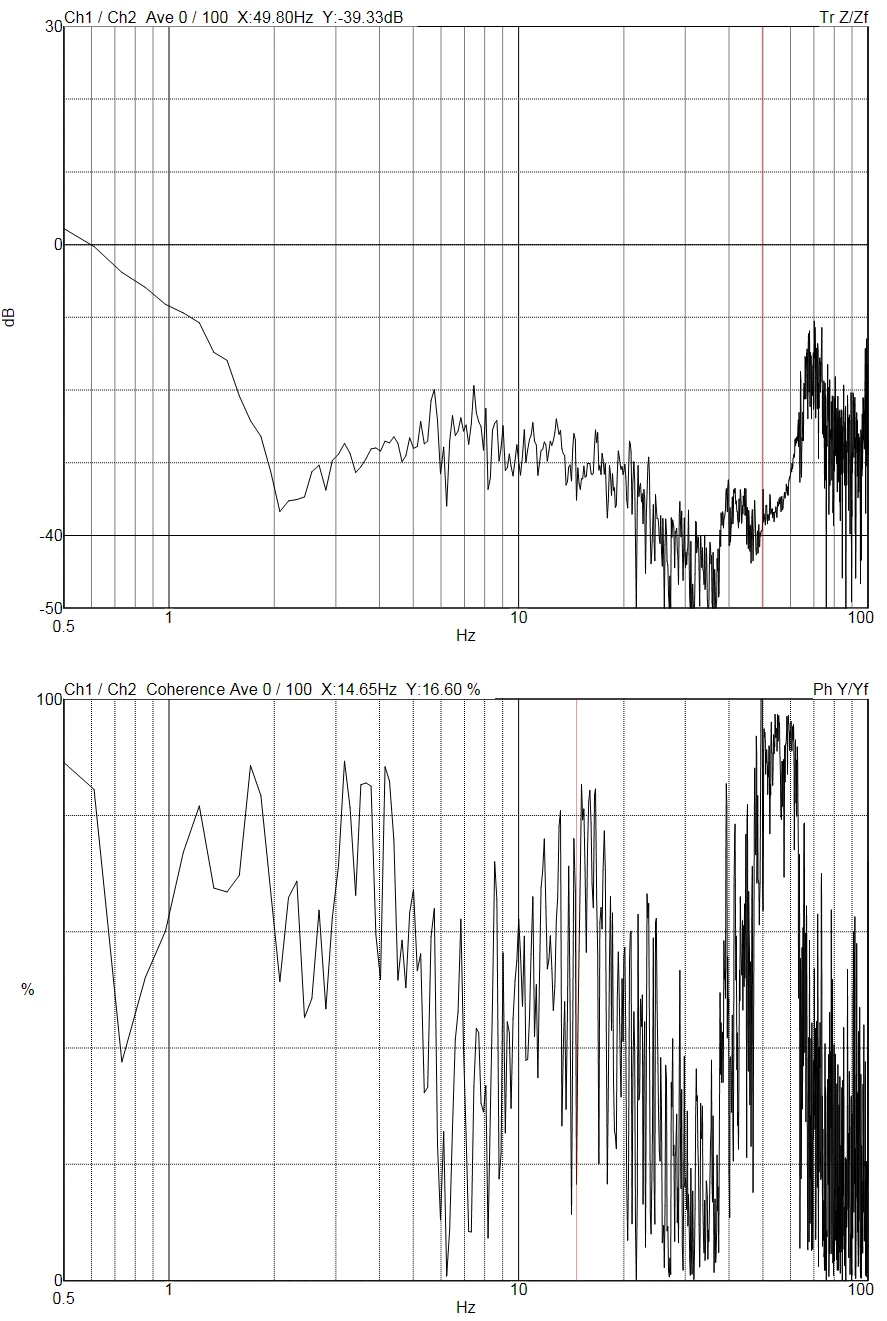

MB1000 internal program — Z axis

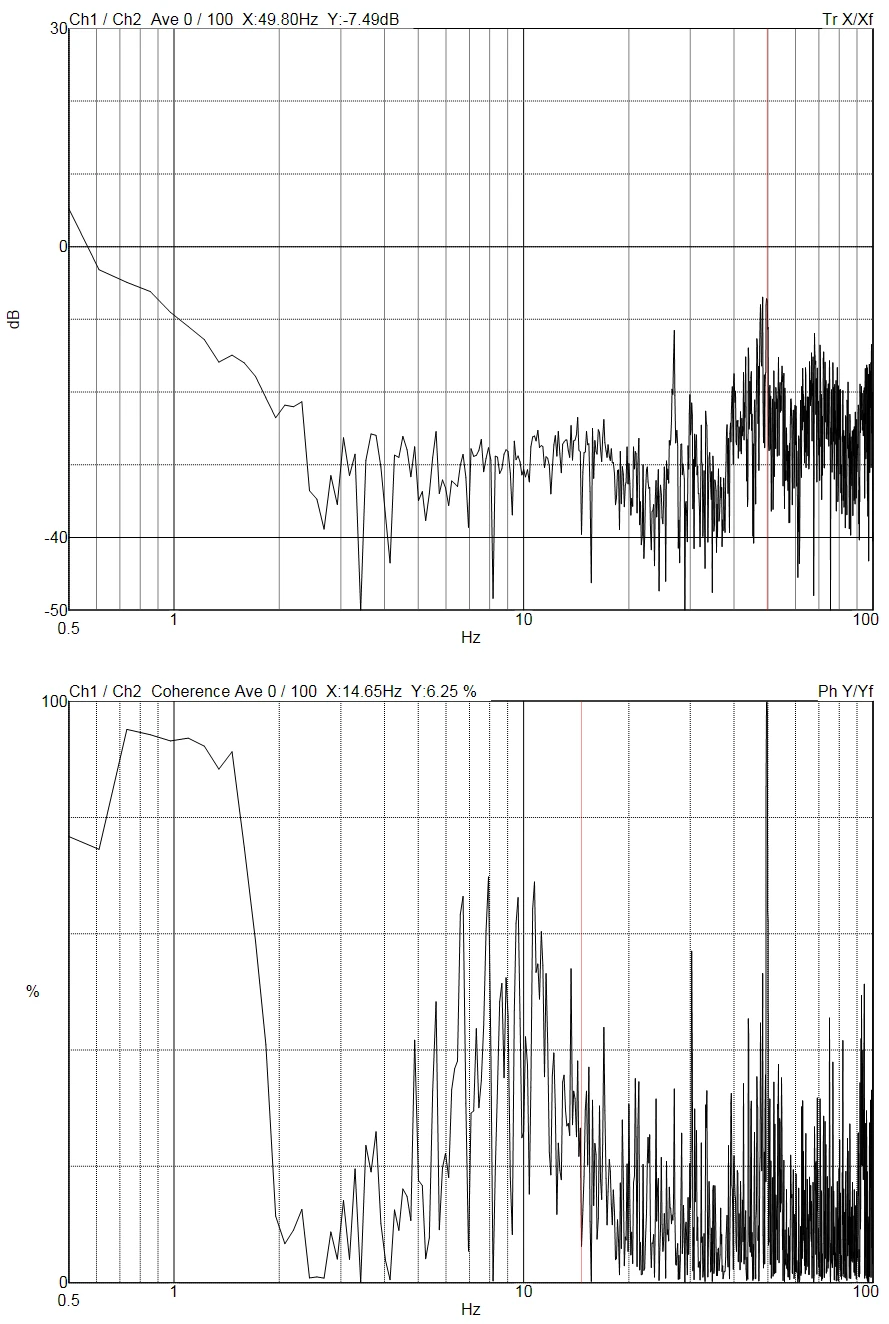

MB1000 internal program — X axis

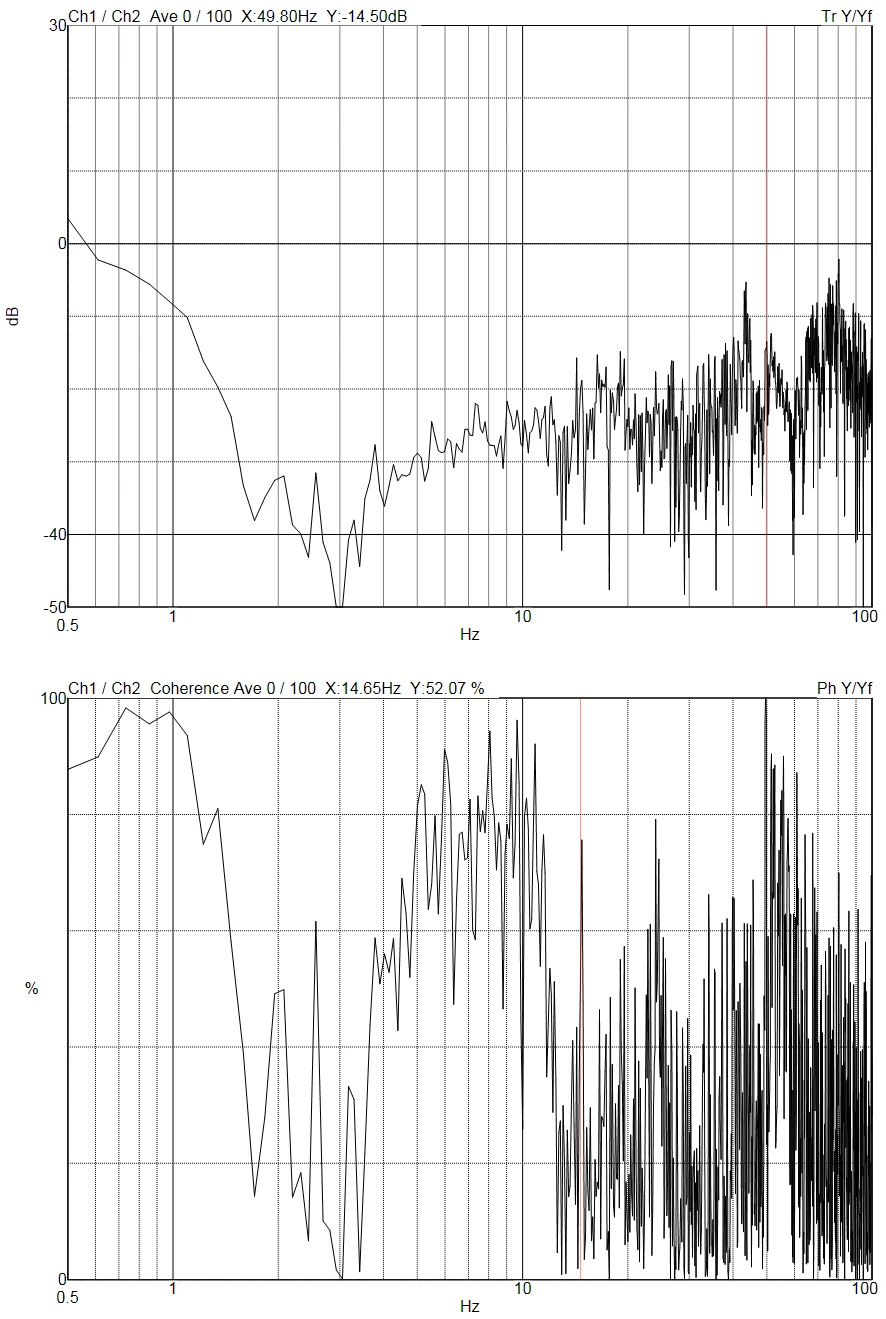

MB1000 internal program — Y axis
Vibration environment measurement results

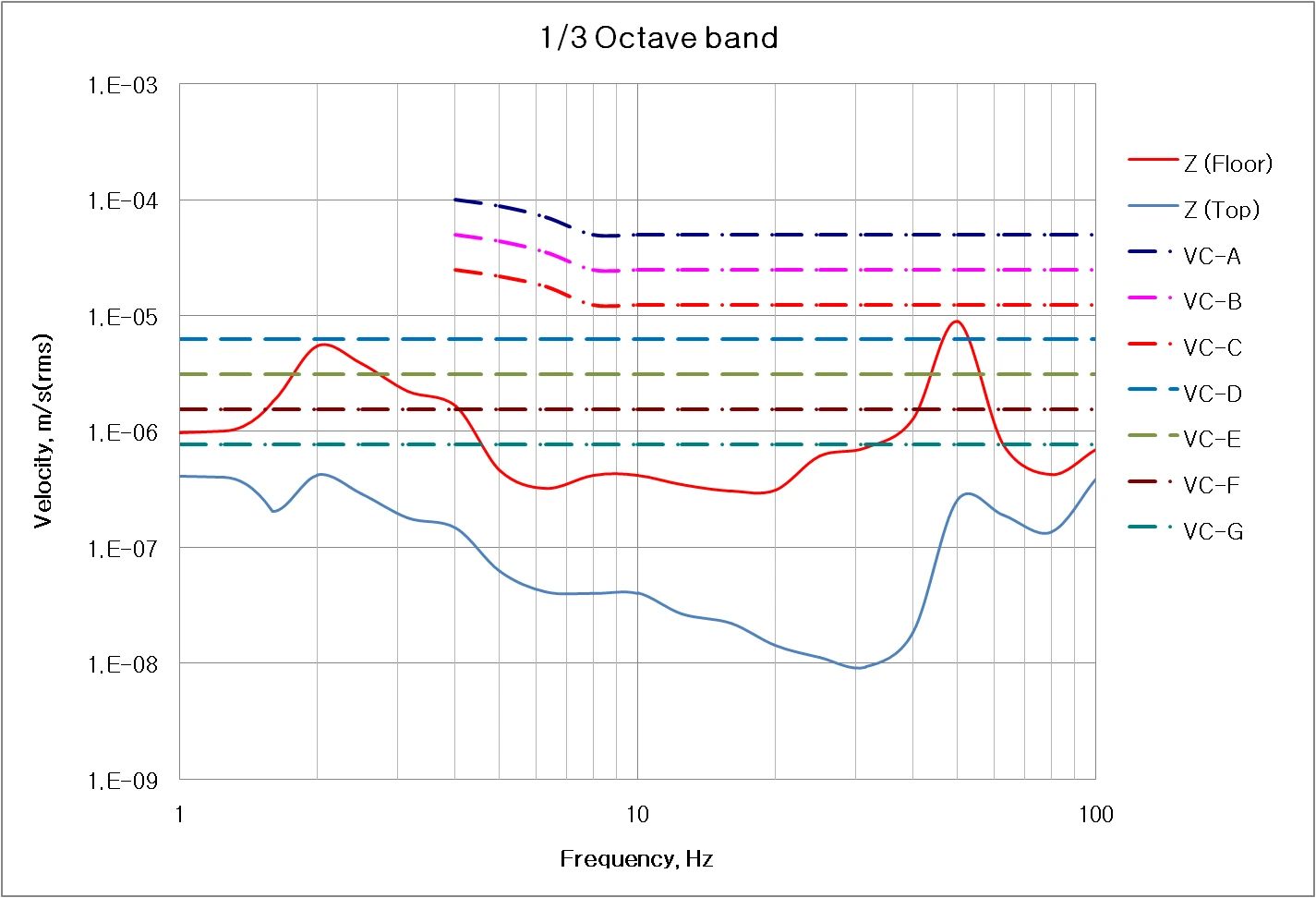

Vibration environment — Z axis

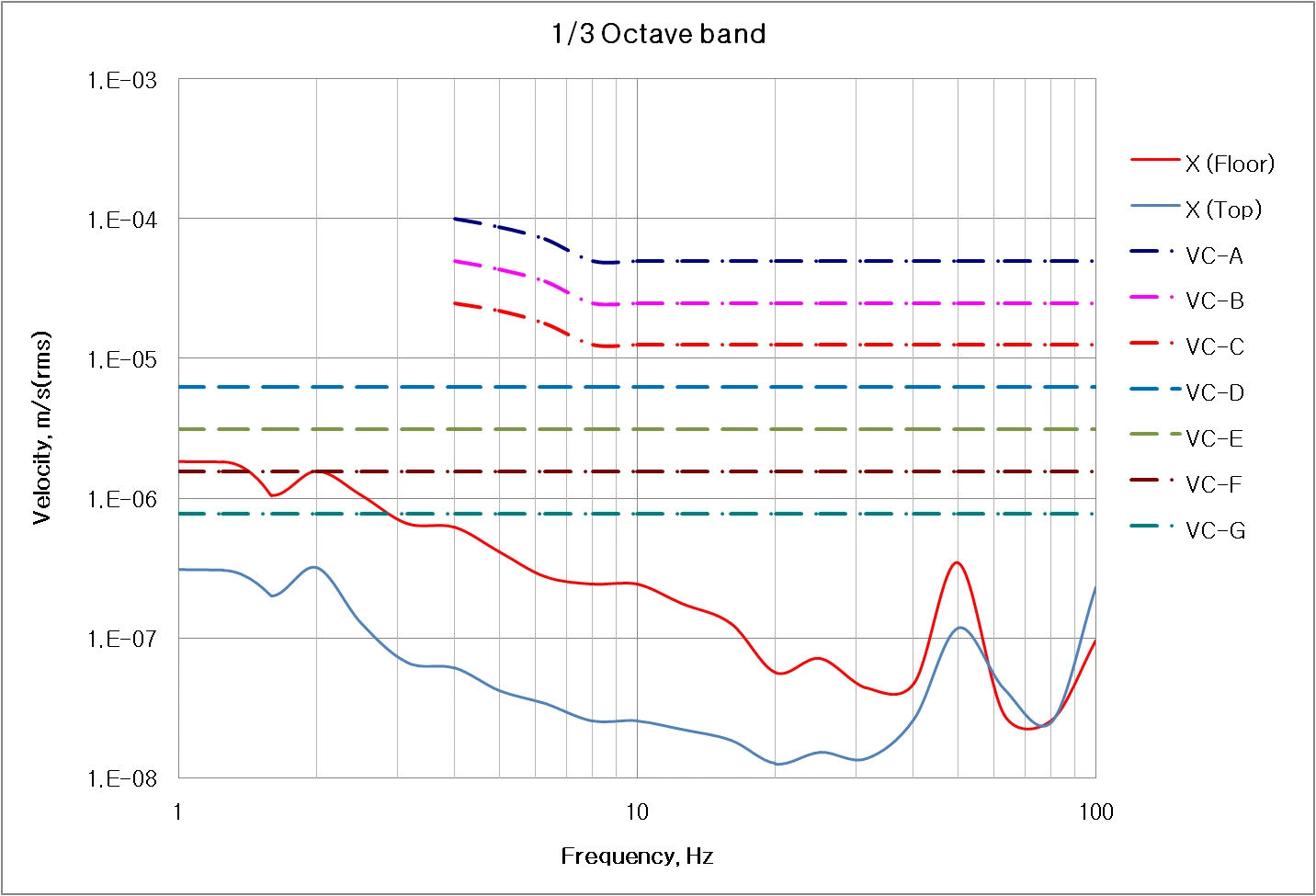

Vibration environment — X axis

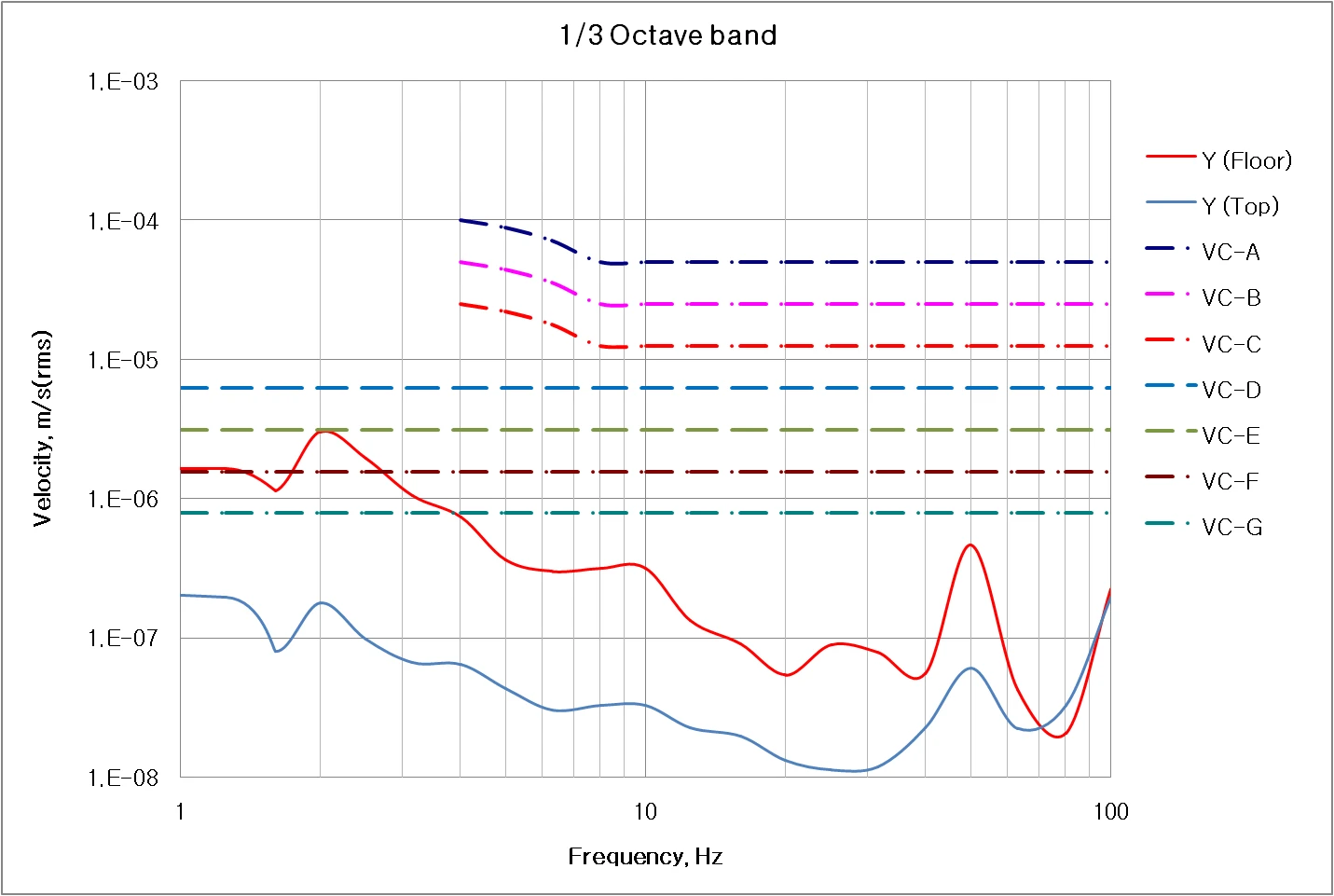

Vibration environment — Y axis
Magnetic field measurement results

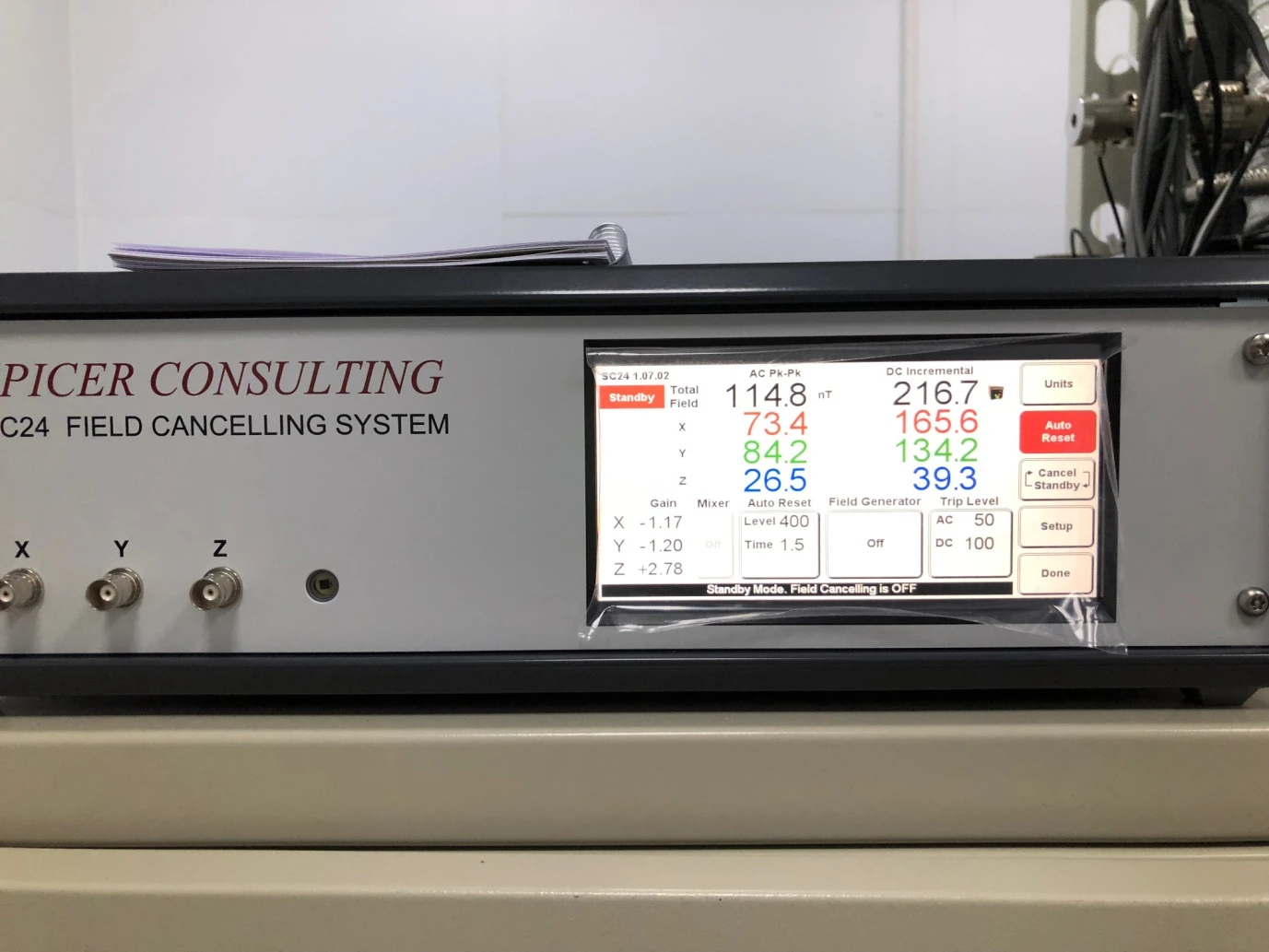

Magnetic field — before compensation

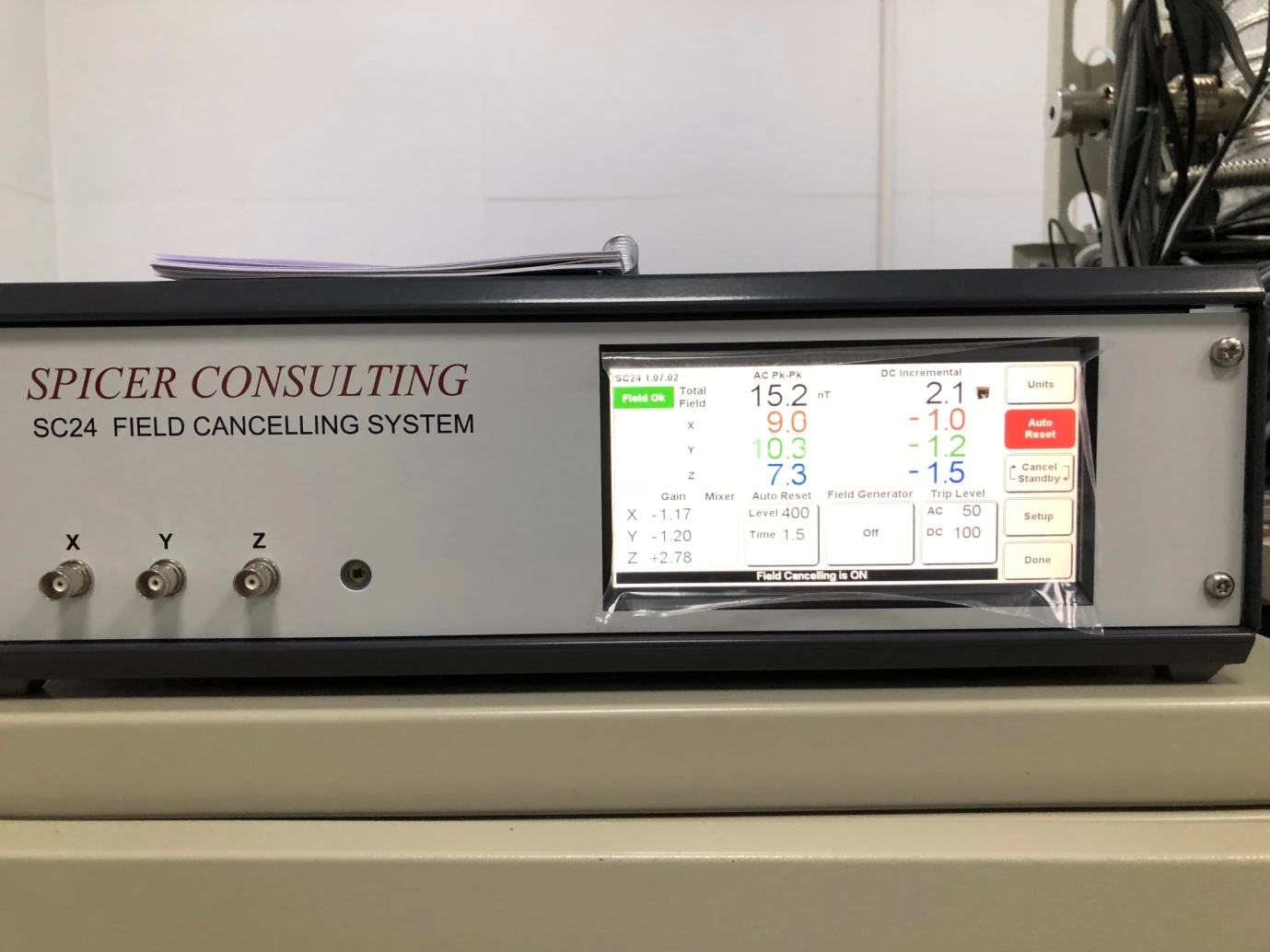

Magnetic field — after compensation
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-ML Series
Date05-20-2019
Tags
DVIA-ML Series
Installation Report
DVIA-M3000
MB1000
P126
JEOL
JEM-2100F
Ningbo
Ningbo University of Technology
