Lab Workstation
The DVID-L Series is an all-in-one laboratory workstation designed to bridge the gap between high-precision stability and operational convenience. Engineered for researchers who require immediate access to sensitive instrumentation, this system integrates a high-performance vibration isolation surface with a rigid, non-isolated workspace. By consolidating these functions into a single unit, the DVID-L optimizes laboratory floor space and streamlines workflow, ensuring that data integrity and user efficiency are never mutually exclusive.
Decoupled Vibration-Free Workspace
The workstation features a structurally separated auxiliary side table (configurable to the left or right). This design completely isolates the workspace from the vibration isolation table, allowing users to place computers, monitors, and power supplies on the frame without transmitting mechanical noise or disturbances to the sensitive experimental zone.
Engineered Durability
The DVID-L workspace utilizes a premium phenolic laminate, a high-density material engineered for the rigorous demands of active laboratory environments. Unlike standard surface treatments, this laminate is manufactured by fusing layers of resin-impregnated kraft paper under extreme heat and pressure. This process induces polymerization, creating a solid, monolithic core with a cross-linked molecular structure that is inherently resistant to delamination and structural fatigue.
Ergonomics for Extended Operation
Designed to reduce operator fatigue, the DVID-L features a specialized front-mounted armrest. This allows users to lean comfortably for stability during delicate manual tasks without transferring vibrations to the isolated work surface. The open-front frame design also maximizes legroom for seated users.
Superior Pneumatic Vibration Isolation

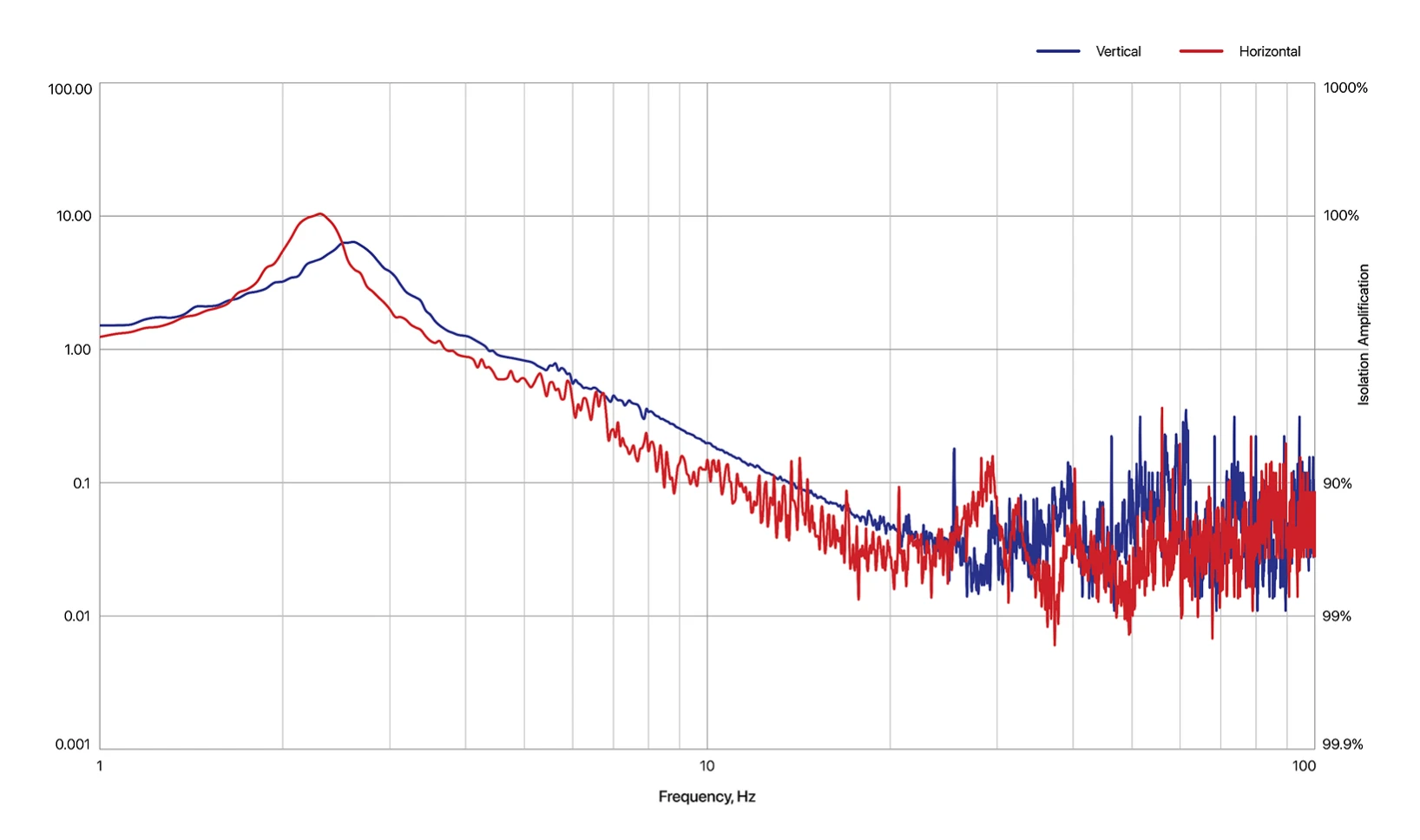

The system utilizes advanced pneumatic isolators to deliver industry-leading stability. It achieves a low resonant frequency of 1.5 Hz – 3.0 Hz and effectively eliminates 80% – 90% of floor vibrations at 10 Hz, ensuring uncompromised precision for sensitive microscopy and optical applications.
Custom-Engineered Specifications
We offer flexible manufacturing to meet unique equipment footprints. The workstation can be custom-built to specific width and depth dimensions, with heavy-duty configuration options available to support equipment with a linear stage loads up to 600 kg.

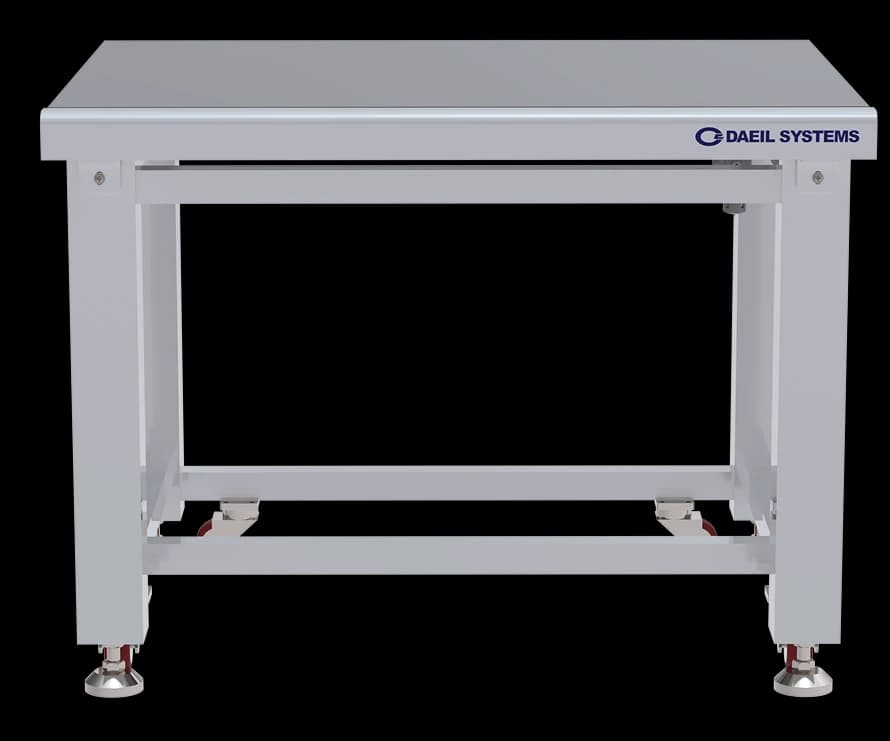

Ergonomic Armrest
Features an integrated armrest design that mitigates user fatigue, optimizing stability and efficiency for extended cleanroom workflows.

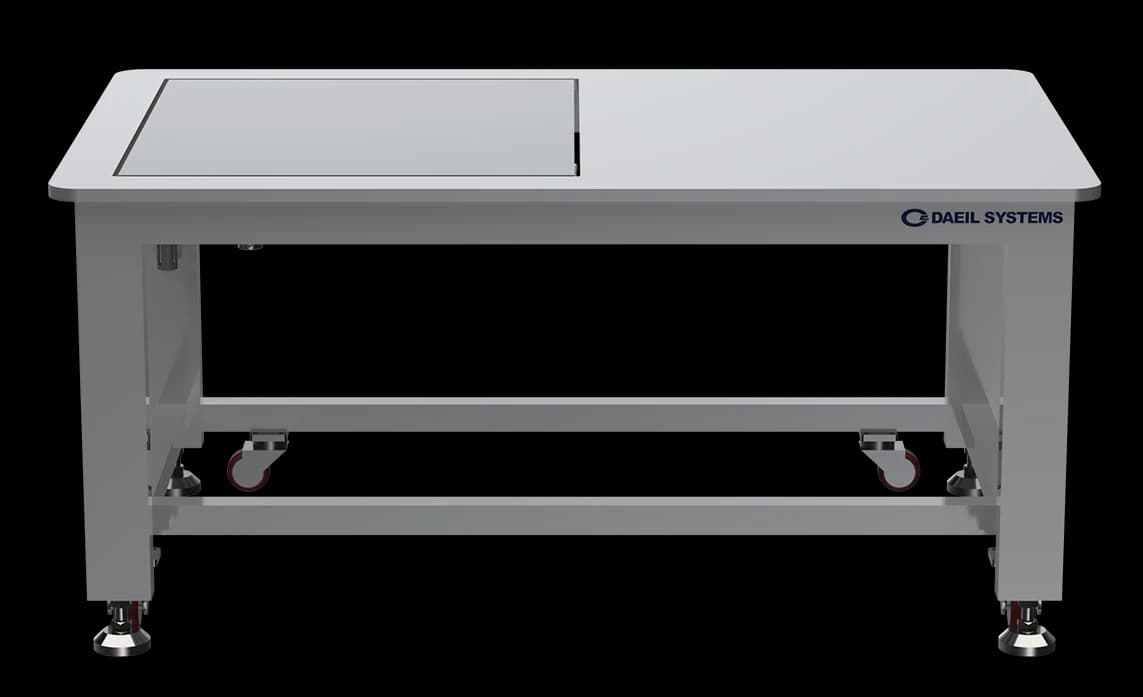

Separated Workspace
Features a side table mechanically separated from the vibration isolator. This allows you to operate computers and peripherals on the same unit without disrupting your sensitive experiments.
Performance
Specifications
Integrated Armrest
INTEGRATED
Separated Workspace
SEPARATED
DESIGN · ARCHITECTURE
PERFORMANCE · ISOLATION
PNEUMATIC · REQUIRED SUPPLY
