Optical Workstation

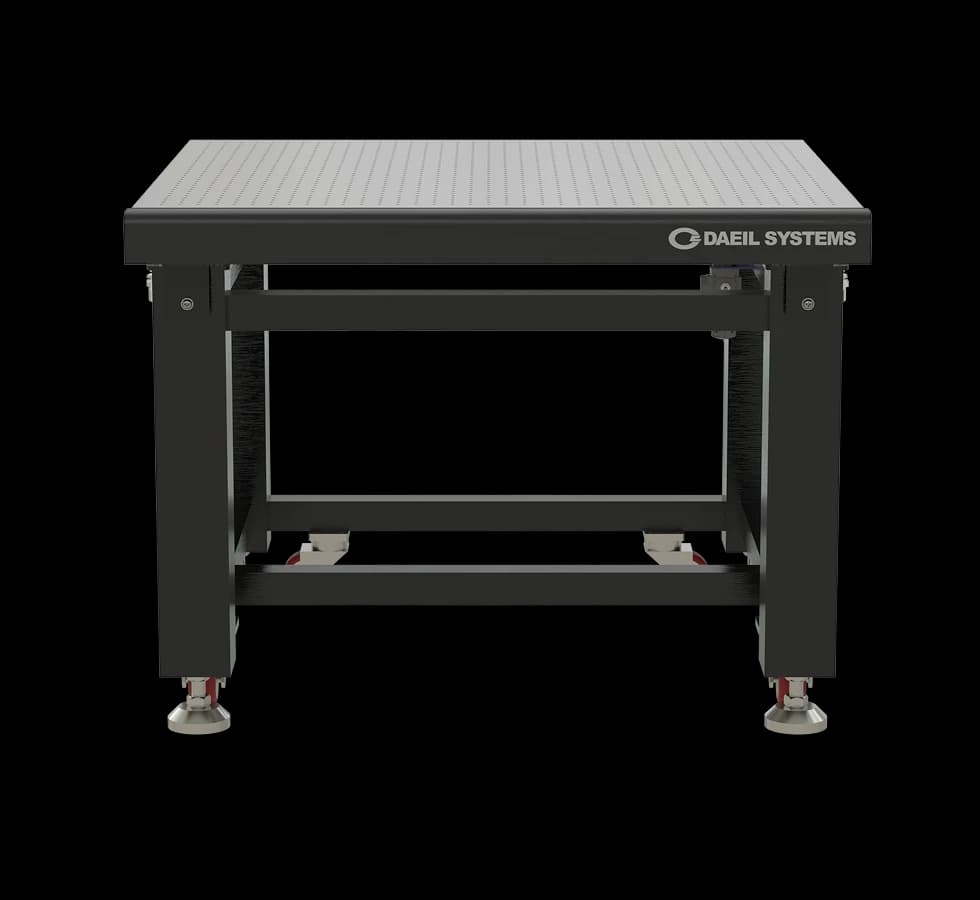

The DVID-H Series is a high-performance optical workstation engineered for applications demanding superior vibration control and rigid component mounting. By integrating a honeycomb breadboard with a pneumatic isolation system, the DVID-H provides a stable, interference-free foundation for sensitive optical experiments, microscopy, and precision inspection. It is the ideal solution for laboratories requiring the performance of a full-sized optical table within a compact, ergonomic desk footprint.
High-Rigidity Honeycomb Core
The workspace surface utilizes a steel honeycomb core structure to maximize the stiffness-to-weight ratio. Encased in a ferromagnetic stainless steel skin with a precision M6 mounting grid, it offers exceptional damping and surface flatness (±0.03mm), ensuring secure magnetic mounting and consistent optical alignment.
Ergonomic Operator Design
Engineered for user comfort, the frame features an open-front tie-bar configuration to accommodate seated researchers. Optional armrests support the operator during fine-adjustment tasks, significantly reducing fatigue during extended periods of microscope usage.
Integrated Accessory Ecosystem
The DVID-H Series is designed as a scalable platform that extends beyond simple vibration isolation. It supports a comprehensive suite of engineered accessories that can be mechanically integrated into the workstation frame. This modular approach allows operators to consolidate peripherals—such as monitor arms, sliding keyboard shelves, overhead equipment racks, and power distribution units—directly onto the station. By organizing instrumentation and cabling, these accessories optimize workflow efficiency and minimize cluttered surfaces that could otherwise introduce parasitic vibration or hinder operation.
Bespoke Engineering & Custom Specification
DAEIL SYSTEMS offers precision custom manufacturing to ensure the DVID-H meets the exact physical and environmental constraints of your research facility. Beyond standard dimensional adjustments, the workstation can be tailored for specific application requirements. This includes modifying the tabletop geometry for unique instrument footprints, integrating laser ports or through-holes for cable routing, and configuring the isolation system for non- standard load distributions. Whether adapting for a cleanroom environment or fitting into a complex optical assembly, the DVID-H can be built to your precise architectural and technical specifications
Performance
Specifications
FRAME · STRUCTURE
Armrest
Front-mounted · Full-perimeter
Frame Material
Steel
Frame Structure
Welded tie-bar frame
Mobility
Integrated casters
WORKSURFACE · TOP PLATE
Type
Optical breadboard
Surface Material
430 Series stainless steel
Surface Flatness
± 0.03 mm
Mounting Holes
M6 × 1.0 (1/4-20)
Hole Grid
25 mm pitch (1.0 in square)
Edge Distance
37.5 mm (1.5 in)
ISOLATION · PERFORMANCE
Isolation Method
Pneumatic
Isolator Type
Option A — High-precision type
Option B — Dynamic stability type
Resonant Frequency
Option A — 1.5 – 3.0 Hz
Option B — 4.0 – 8.0 Hz
Vibration Isolation
Option A — 80 – 99% at 10 Hz
Option B — 80 – 99% at 20 Hz
Maximum Payload
Option A — 500 kg
Option B — 600 kg
Leveling Repeatability
± 1.0 mm (optional ± 0.05 mm)
REQUIRED AIR SUPPLY
Supply Pressure
4 – 6 bar
Flow Rate
10 L/min
Air Connection
Ø 6 mm pneumatic fitting
