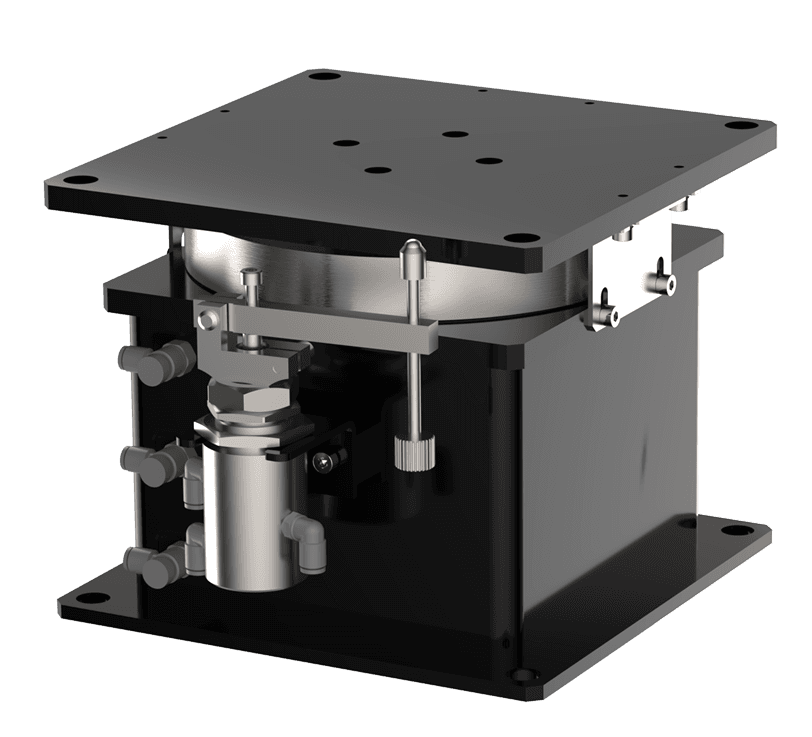

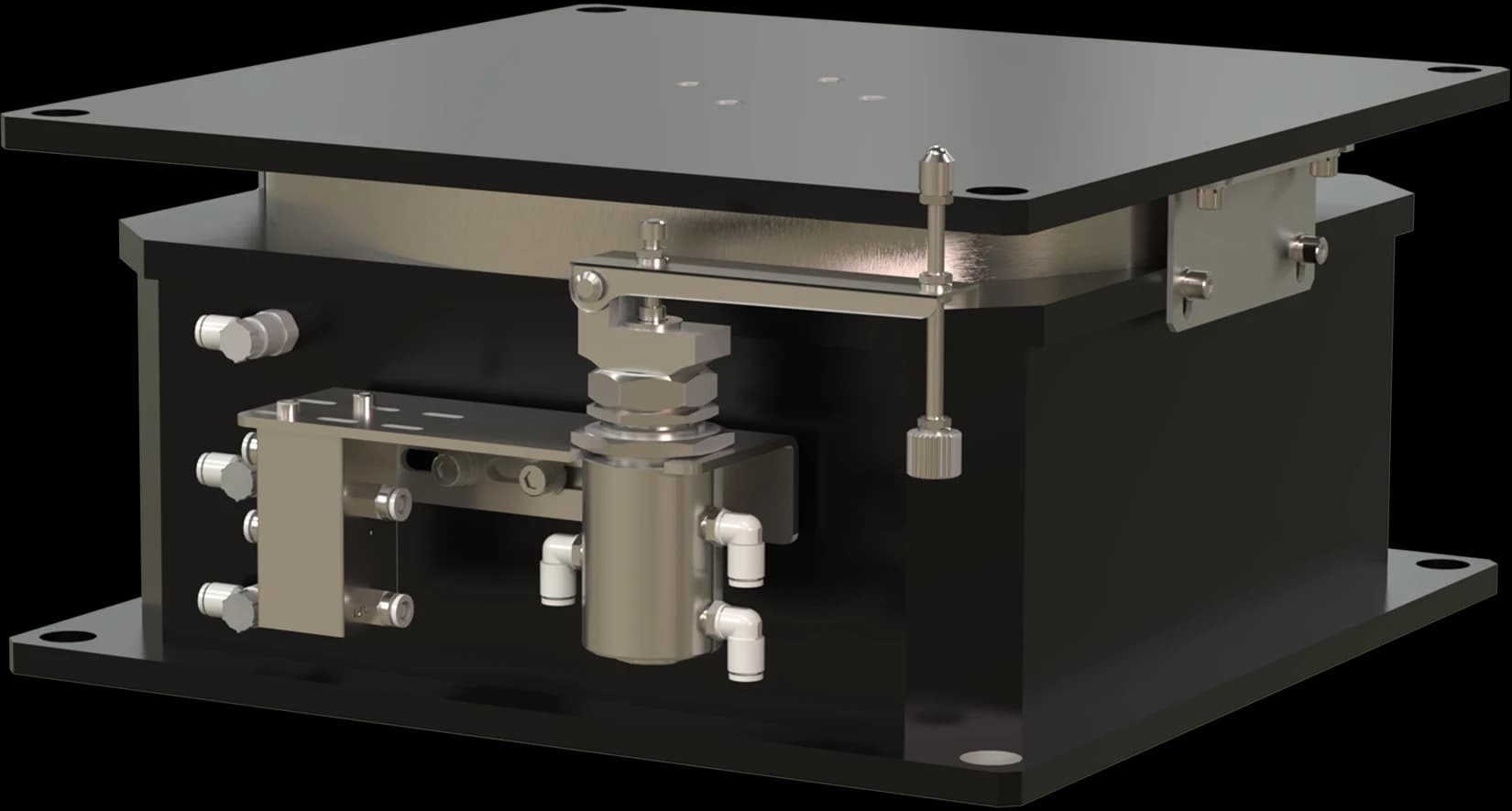

Advanced Vibration Isolator
The DVIM-G Series serves as the flagship pneumatic isolation system within the DVIM lineup. Optimized for high-precision metrology and inspection equipment with moving payloads, it combines superior isolation efficiency with high-damping mechanics. This design drastically minimizes settling time, ensuring maximum throughput and measurement accuracy.
Features

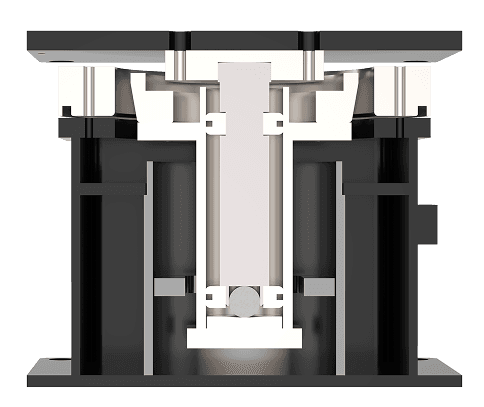

Dual Chamber Damping System
The DVIM-G Series employs a sophisticated Dual Chamber System designed to neutralize the destabilizing effects of moving payloads. By linking distinct air and damping chambers through a precision network of internal and variable external orifices, the system strictly regulates airflow to dissipate kinetic energy generated by stage acceleration. This mechanism creates a rapid restoring force that significantly reduces settling time, while the variable external orifice allows operators to fine-tune the damping response to match specific application requirements.
Gimbal Piston: True Omnidirectional Isolation
Standard pneumatic isolators effectively manage vertical gravity loads but often fail to block horizontal disturbances like traffic or structural sway. The Gimbal Piston overcomes this limitation using a low-friction inverted pendulum mechanism. This design decouples the payload from the ground, allowing the support column to swivel freely. When the floor shifts horizontally, the isolator yields, preventing vibration transfer and ensuring absolute stability for your equipment.
Superior Low-Frequency Isolation
Achieve optimum stillness with our advanced mechanical filter system and proprietary isolator design. The DVIM-G Series effectively lowers the system's resonant frequency, delivering 80-90% vibration isolation at 5 Hz. This capability is critical for eliminating floor vibration noise that compromises high-resolution imaging and measurement.
Designed for Moving Stages
For applications involving moving linear stages, the DVIM-G Series integrates external oil dampers. These dampers are essential for absorbing acceleration forces and minimizing settling time. While higher damping naturally results in a slight increase in resonant frequency, this configuration is deliberately optimized to prioritize dynamic stability and throughput for moving payloads.
High-Precision Leveling for Higher Stability
Maintain exact stability with our high-performance leveling valves. For critical applications, our optional Precision Leveling system delivers ±0.05 mm repeatability. This ultra-tight tolerance minimizes settling time, ensuring your equipment returns to absolute equilibrium instantly after high-speed motion.
Options

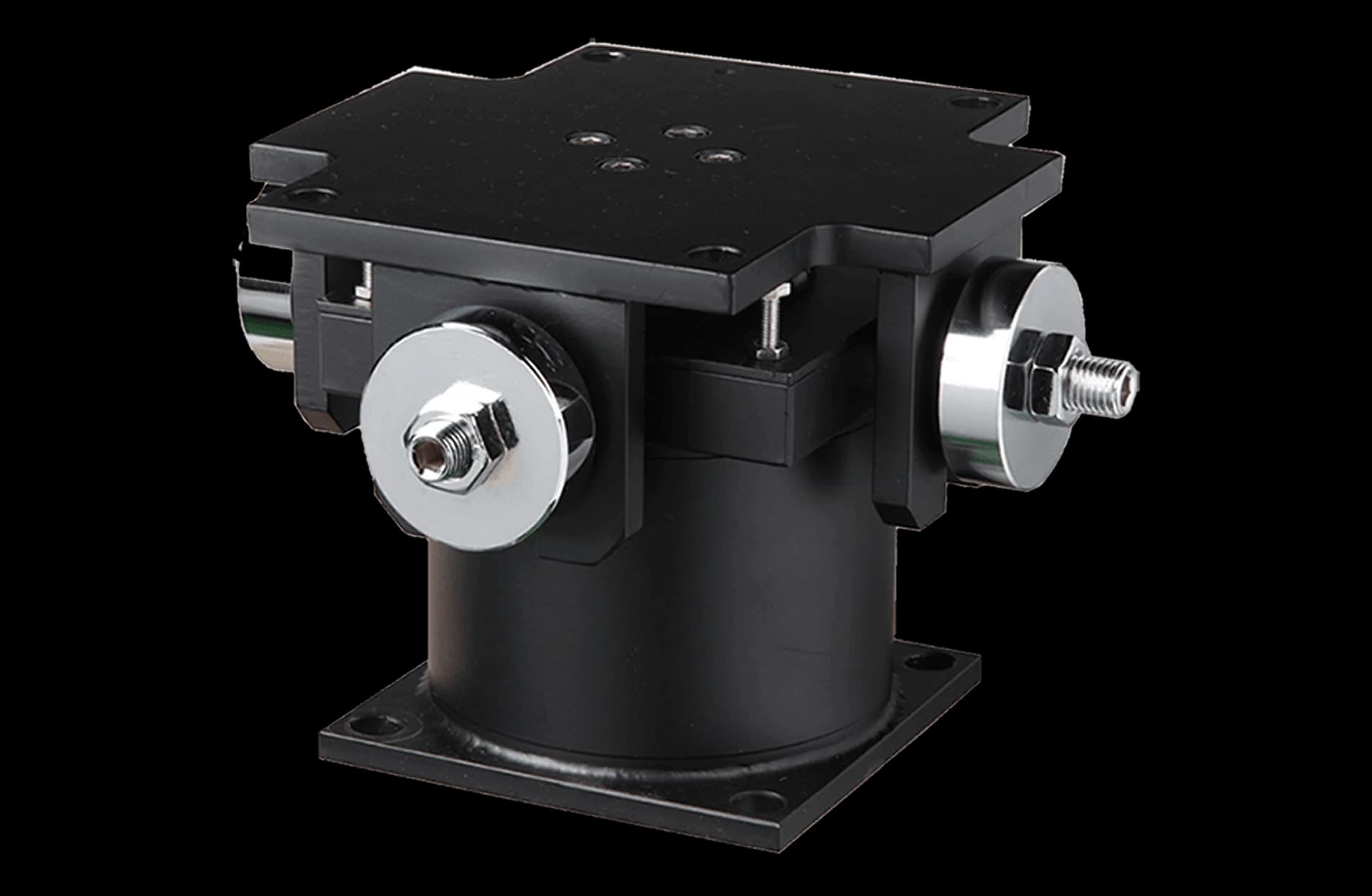

External Oil Damper
This option integrates a viscous oil damping mechanism to counteract the forces generated by moving payloads. It is specifically engineered to minimize stage motion amplitude and shorten settling time. While standard pneumatics isolate floor vibration, the External Oil Damper ensures positional stability during aggressive machine operations.

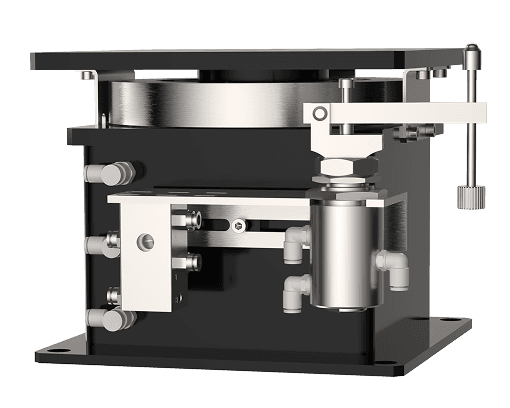

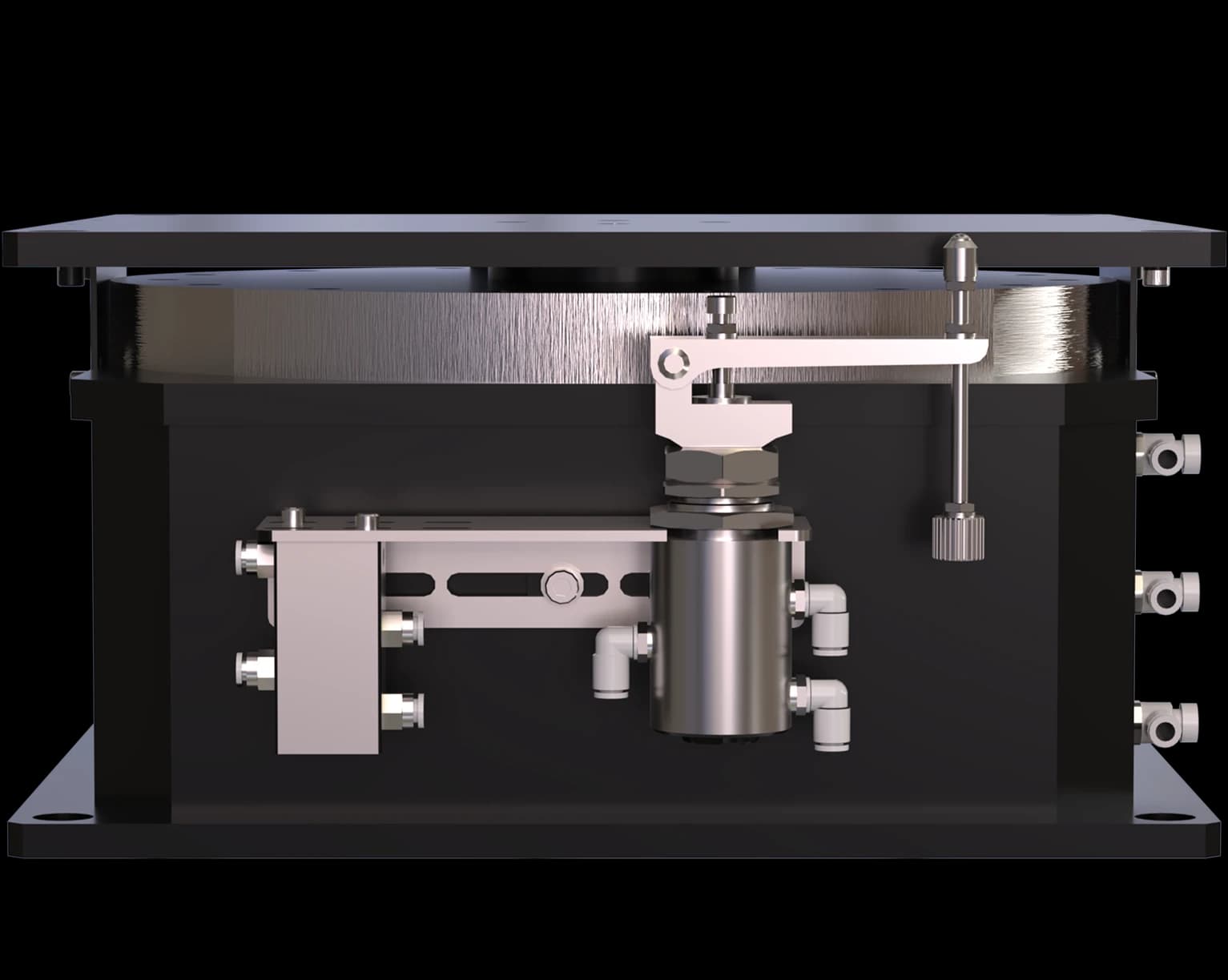

Air Operated Valve
Minimizing settling time requires rapid system reaction. The Air Operated Valve is engineered to regulate airflow significantly faster than standard valves, eliminating latency during dynamic events. By increasing the response speed of the pneumatic isolators and leveling valves, it allows the system to counter linear stage motion instantly, restoring stability and equilibrium with maximum efficiency.

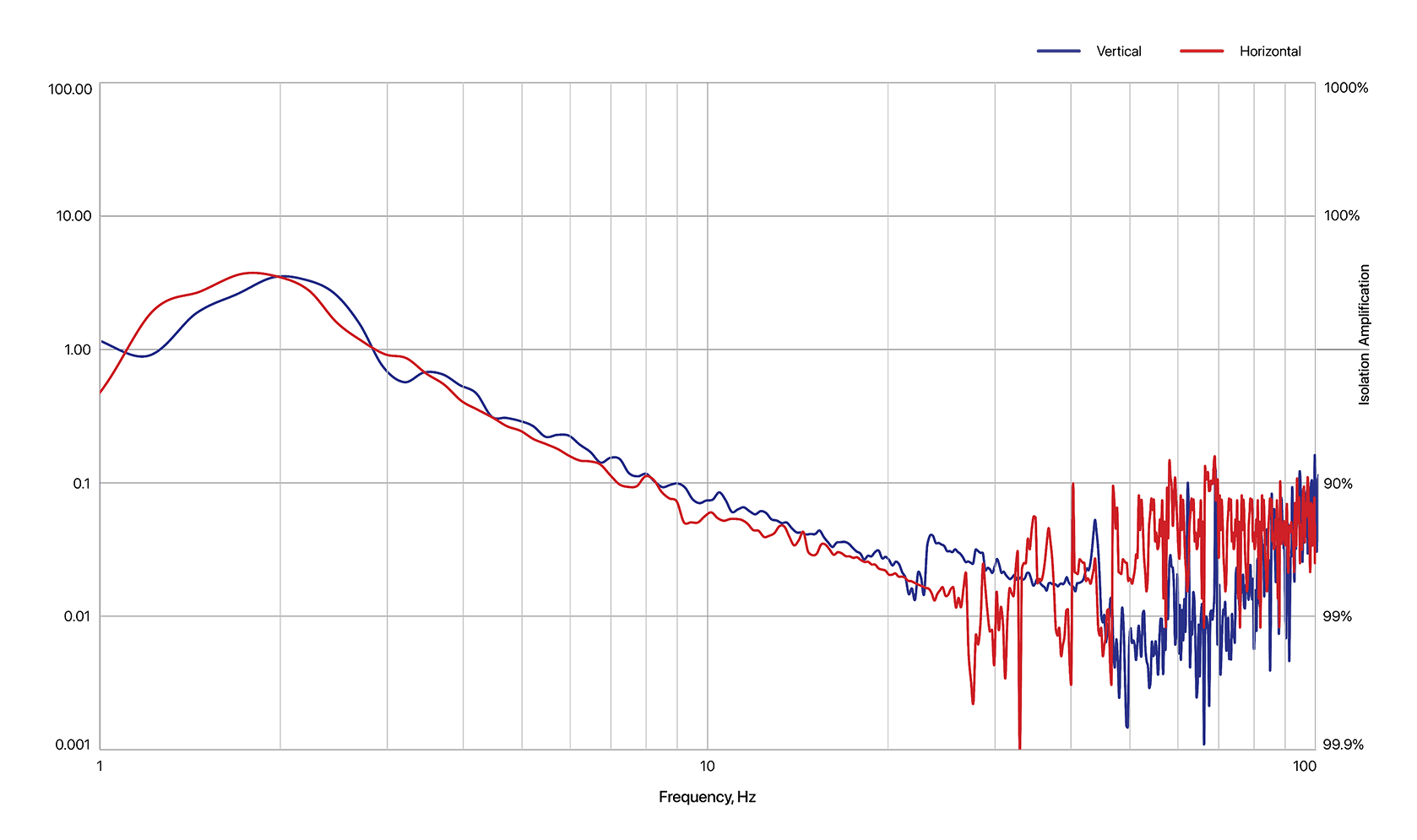

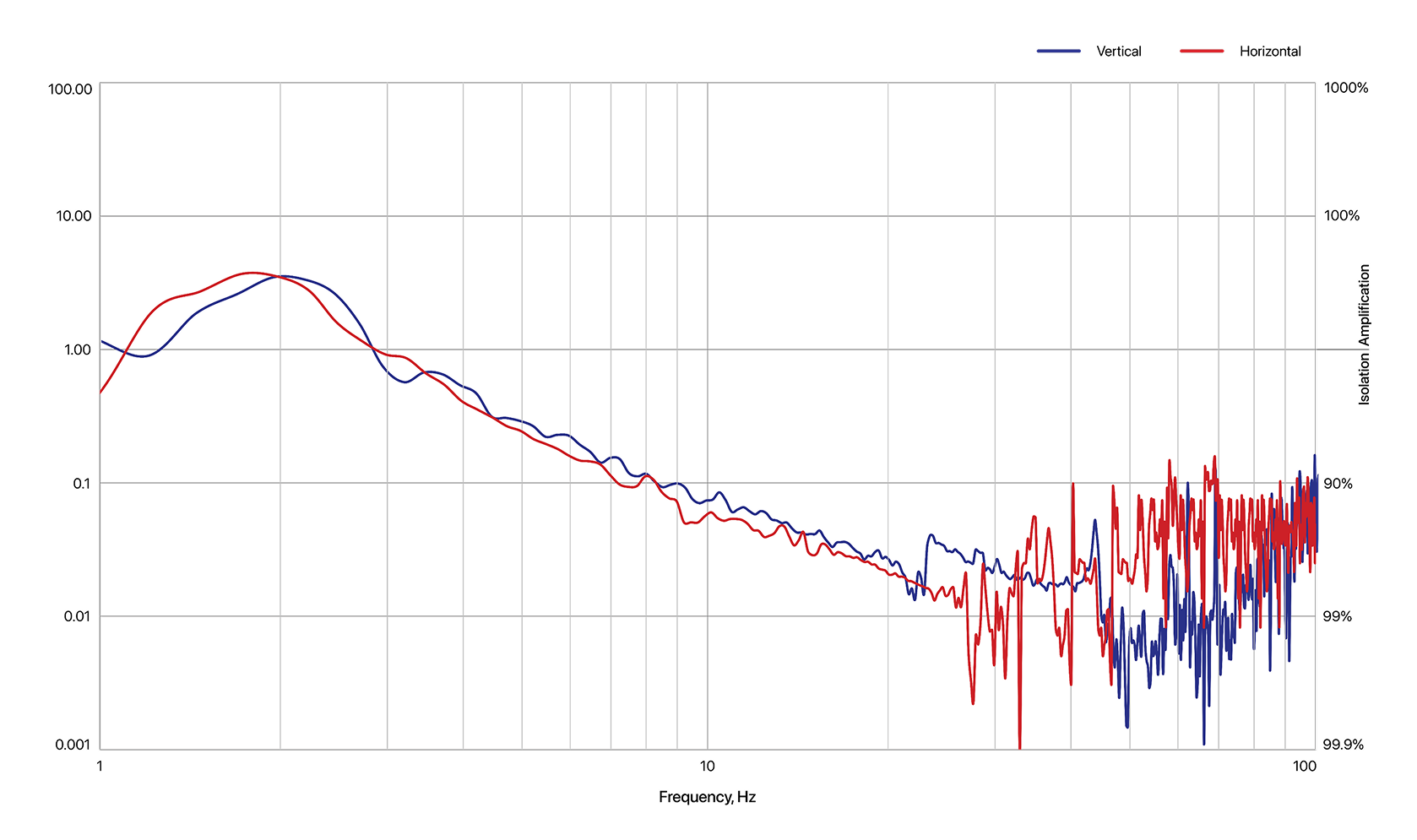

Performance
Specifications
Ordering Information
| Model | W × D × H (Floating Height) | Mounting Hole Spacing | Maximum Payload (Per Isolator) | Mounting Hole Ø | Drawing |
|---|---|---|---|---|---|
| DVIM-G-500 | 220 x 220 x 180 mm | 195 x 195 | 500 kg | 14 | |
| DVIM-G-1000 | 280 x 280 x 180 mm | 250 x 250 | 1000 kg | 14 | |
| DVIM-G-1500 | 320 x 320 x 180 mm | 290 x 290 | 1500 kg | 18 | |
| DVIM-G-2000 | 350 x 350 x 180 mm | 320 x 320 | 2000 kg | 18 | |
| DVIM-G-3000 | 430 x 430 x 185 mm | 400 x 400 | 3000 kg | 18 | |
| DVIM-G-4500 | 488 x 488 x 185 mm | 458 x 458 | 4500 kg | 19 | |
| DVIM-G-6000 | 548 x 548 x 185 mm | 518 x 518 | 6000 kg | 19 |
