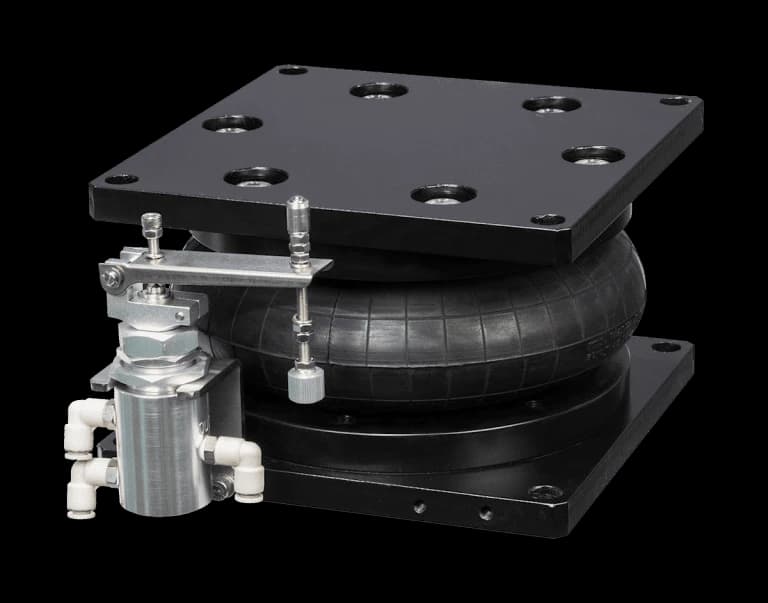

Basic Vibration Isolator
The DVIM-F Series offers a cost-effective vibration isolation solution engineered for durability and long-term reliability. Utilizing a reinforced air spring design, it provides fundamental isolation in both vertical and horizontal axes. This system is the ideal choice for general industrial equipment that requires stable pneumatic support and automatic leveling at an accessible price point.
Exceptional Durability
Built for longevity, the DVIM-F utilizes heavy-duty reinforced air springs designed to withstand rigorous industrial environments. This robust construction extends service life and minimizes maintenance requirements, ensuring a low total cost of ownership.
Integrated Internal Oil Damper for Moving Stages.
For applications involving dynamic loads and linear stage motion, the system can be equipped with an integrated internal oil damper. This built-in design creates a compact form factor while providing the necessary viscous damping to suppress oscillation. It ensures rapid return to equilibrium after high-speed motion, optimizing the system for dynamic performance in limited-space configurations.
Cost-Efficient Performance
Delivers essential vibration control for less sensitive applications. It allows facilities to implement pneumatic isolation across a wider range of equipment without the premium cost of low-frequency metrology isolators.
High-Precision Leveling for Higher Stability
Maintain exact stability with our high-performance leveling valves. For critical applications, our optional Precision Leveling system delivers ±0.05 mm repeatability. This ultra-tight tolerance minimizes settling time, ensuring your equipment returns to absolute equilibrium instantly after high-speed motion.

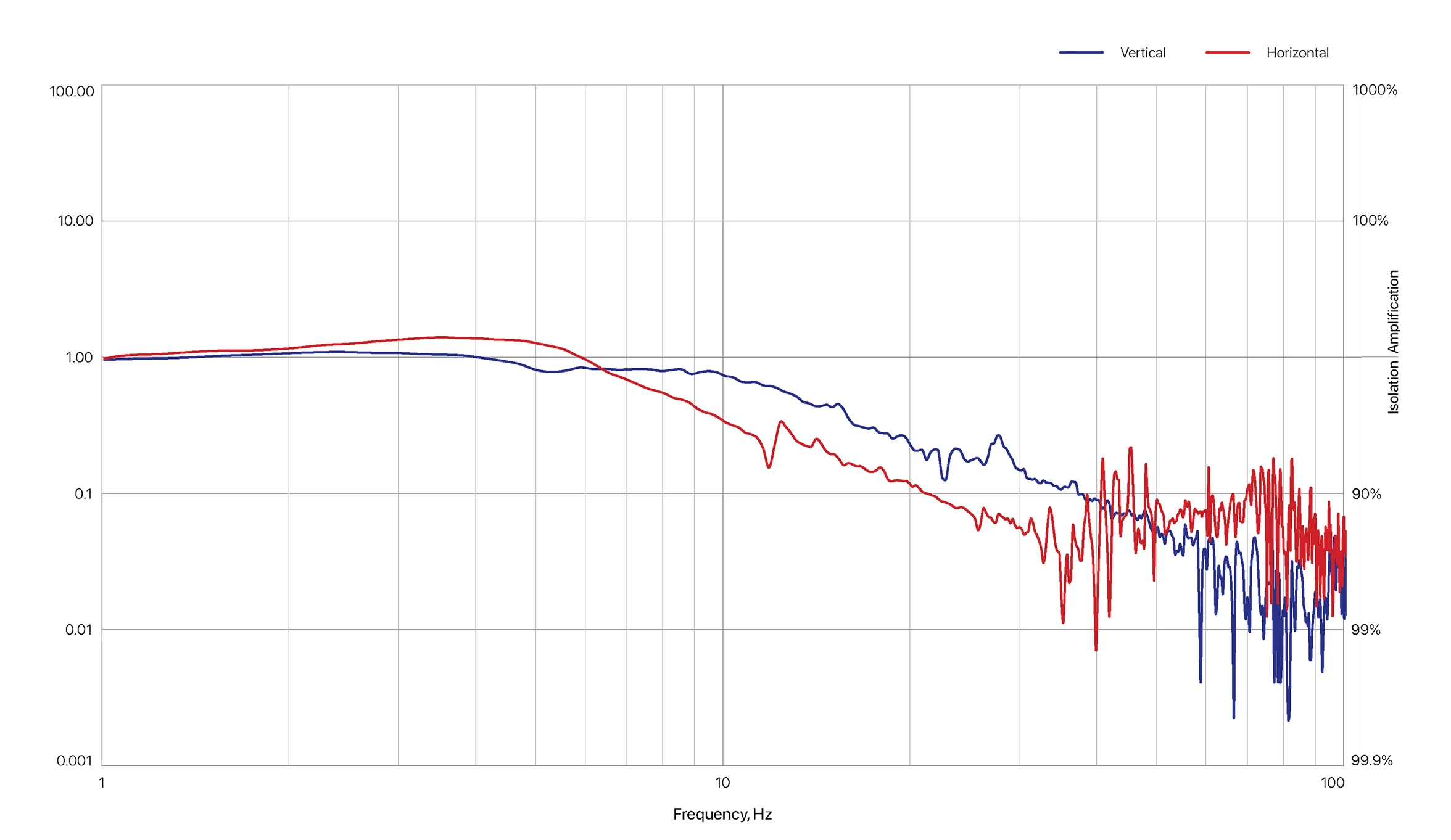

Performance
Specifications
Ordering Information
| Model | W × D × H (Floating Height) | Mounting Hole Spacing | Maximum Payload (Per Isolator) | Mounting Hole Ø | Drawing |
|---|---|---|---|---|---|
| DVIM-F-500 | 220 × 220 × 152 mm | 160 × 160 | 500 kg | 10 | |
| DVIM-F-1000 | 240 × 240 × 152 mm | 180 × 180 | 1000 kg | 10 | |
| DVIM-F-1500 | 300 × 300 × 152 mm | 210 × 210 | 1500 kg | 10 | |
| DVIM-F-2000 | 320 × 320 × 152 mm | 240 × 240 | 2000 kg | 14 | |
| DVIM-F-2500 | 360 × 360 × 172 mm | 260 × 260 | 2500 kg | 14 | |
| DVIM-F-3000 | 380 × 380 × 172 mm | 290 × 290 | 3000 kg | 14 |
