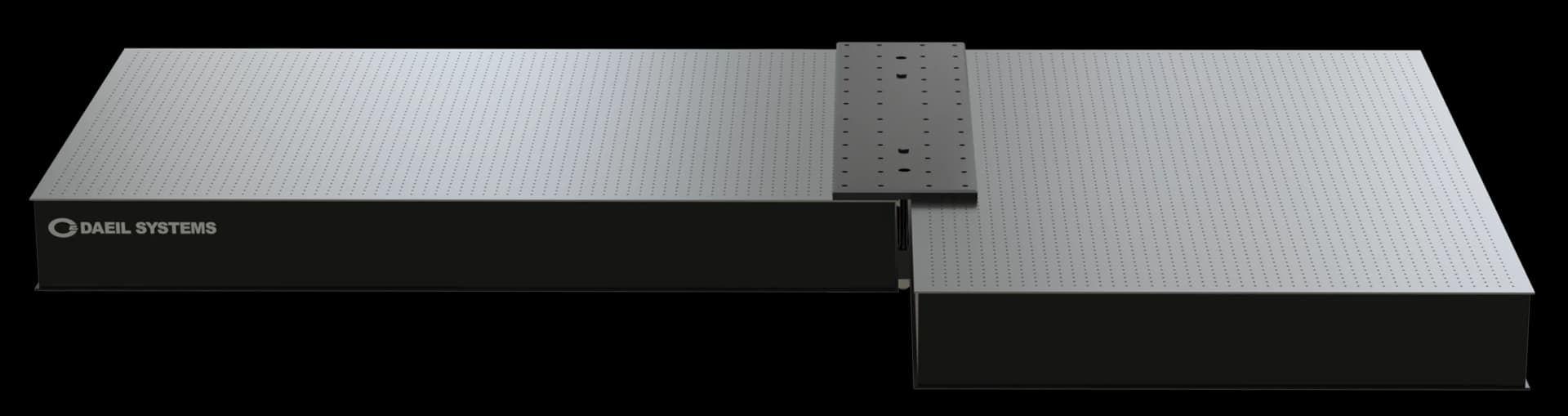

Table Yoke
DOTY Series Table Yoke is a precision-engineered mechanical coupling system designed to rigidly join multiple optical table tops into a singular, expanded workspace. It functions as a high-stiffness structural interface that maintains surface coplanarity across joined tables, ensuring a continuous, flat mounting surface for complex optical setups that span multiple modules.
This system offers a modular alternative to monolithic large-format tables, allowing for cost-effective scalability and layout flexibility. The design facilitates structural continuity, enabling the seamless extension of optical axes while preserving the option for future disassembly or reconfiguration. It is compatible with varying table form factors, with specific models engineered to accommodate optical breadboard and tabletop thicknesses ranging from 100 mm to 400 mm.

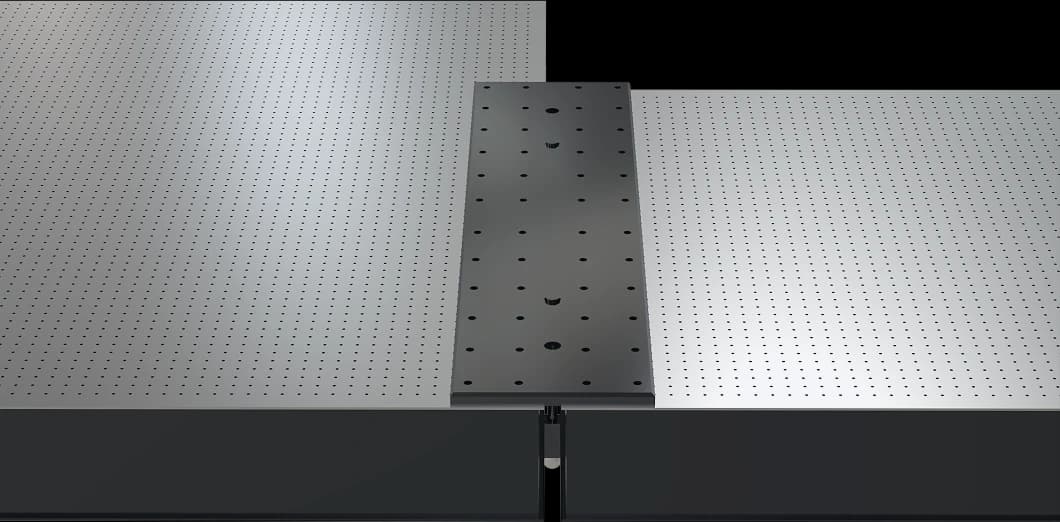

Rigid Structural Coupling
The system utilizes high-stiffness mechanical interfaces to eliminate relative motion between joined modules. By rigidly integrating discrete optical tables, it ensures the entire assembly behaves dynamically as a single, unified platform.

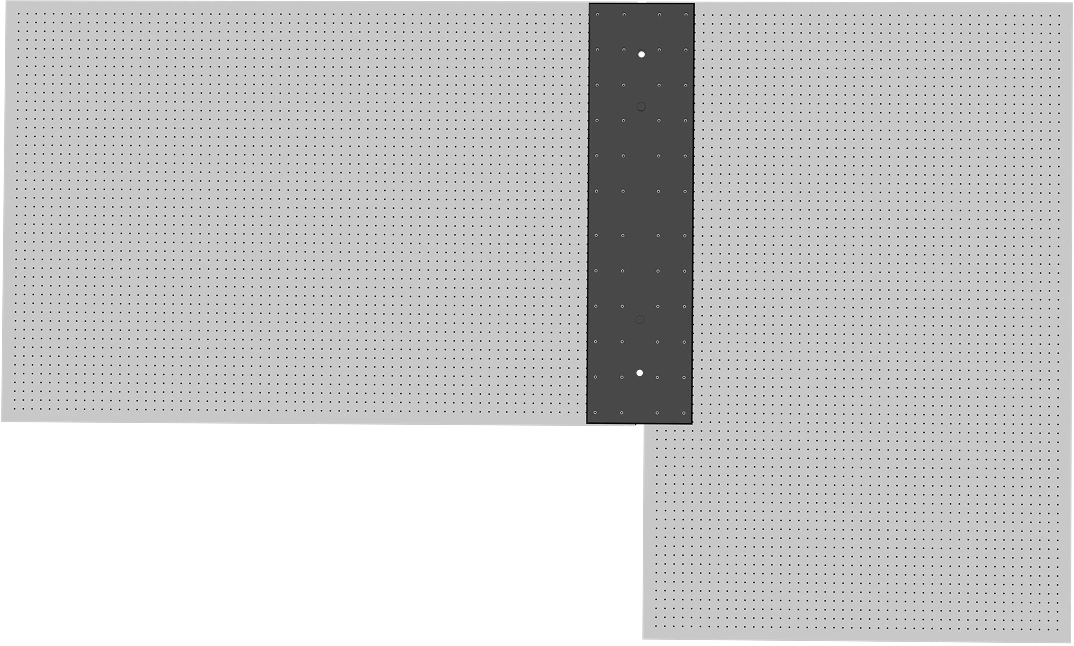

Precision Coplanarity Alignment
Critical design tolerances and precision-machined mating surfaces guarantee exceptional flatness across the junction interface. This coplanarity is essential for complex optical setups, allowing laser beams and optical axes to traverse multiple table modules without experiencing deviation, step-height errors, or alignment loss at the seam.
Modular Scalability
Designed to grow with your research. This feature facilitates the expansion of your optical working envelope without the heavy capital expense of purchasing new, larger monolithic tables. Researchers can simply integrate additional table modules to their existing setup, offering a cost-effective and logistical solution for upgrading laboratory capabilities.
Reconfigurable Architecture
The detachable design supports ultimate layout flexibility. Whether you require a linear extension, an L-shape corner unit, or a T-shape junction, the system allows for rapid reconfiguration. This architecture ensures that your laboratory infrastructure can easily adapt to new experimental requirements or be disassembled for relocation with minimal downtime.
Ordering Information

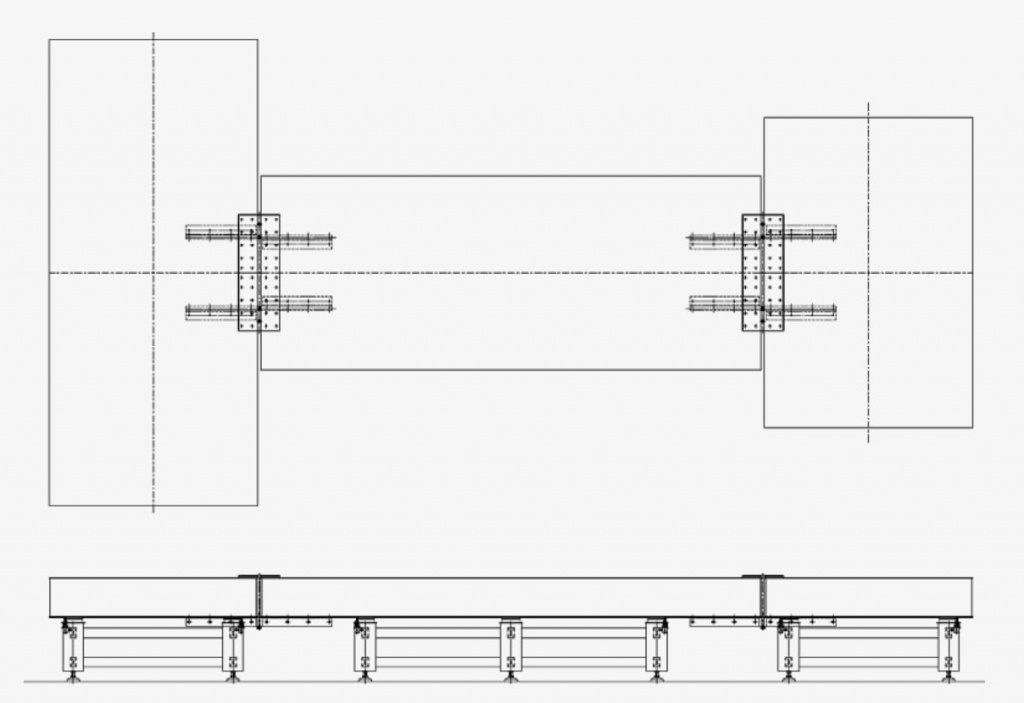

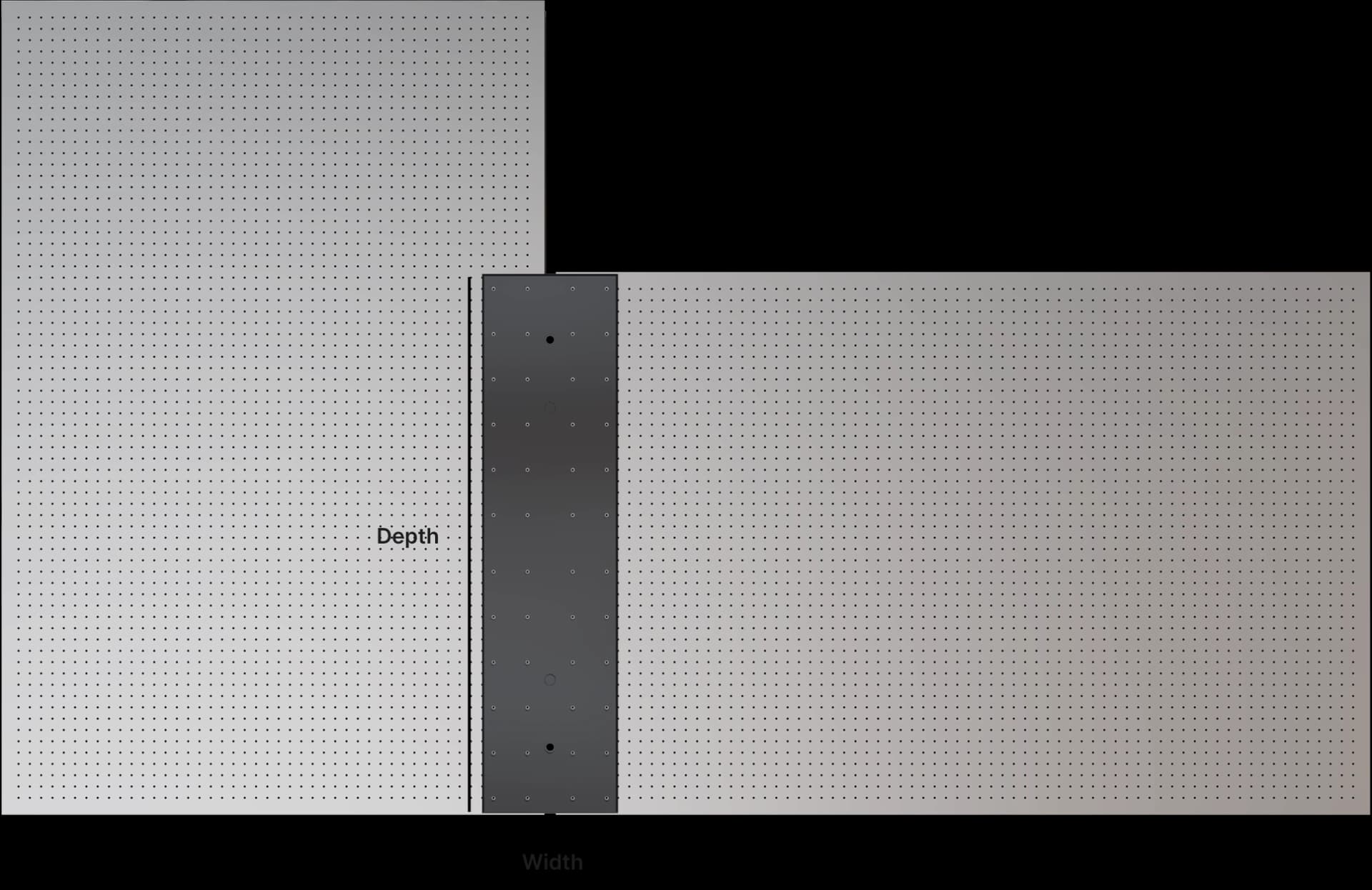

| Model No. | Optical Table Thickness | Yoke Plate Width | Yoke Plate Depth |
|---|---|---|---|
| DOTY-100 | 100 mm | 400 mm | Connection Interface Length |
| DOTY-200 | 200 mm | 400 mm | Connection Interface Length |
| DOTY-300 | 300 mm | 400 mm | Connection Interface Length |
| DOTY-400 | 400 mm | 400 mm | Connection Interface Length |
