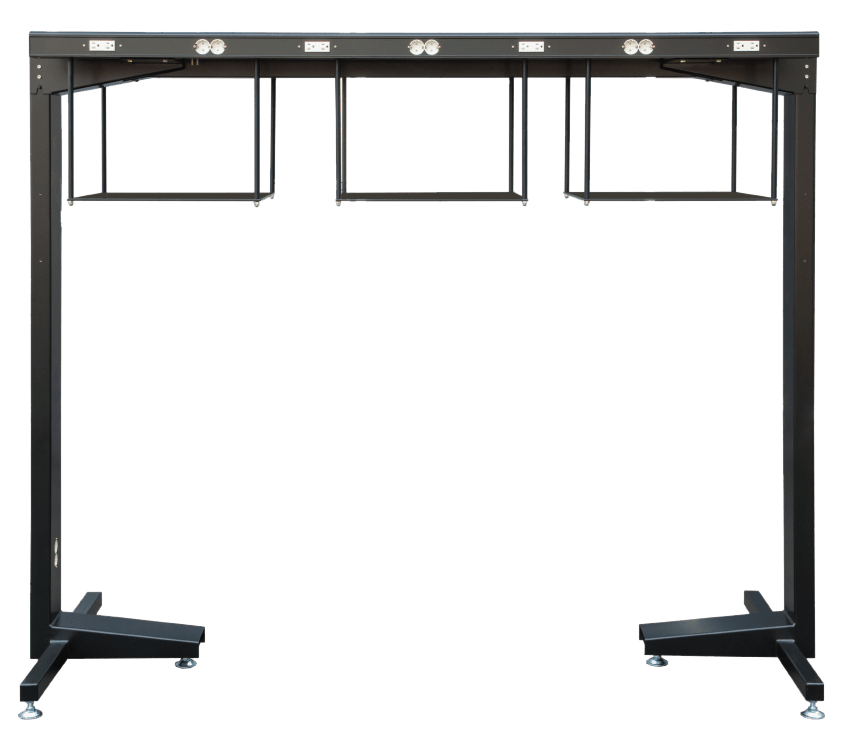

Overhead Shelf System
The Overhead Shelf System is designed to maximize laboratory workspace by providing an elevated platform for essential equipment such as power supplies, controllers, oscilloscopes, and computers. By moving these instruments off the main optical table, users can significantly increase their usable working area while maintaining convenient access to their tools.
Optimized Workspace & Ergonomics

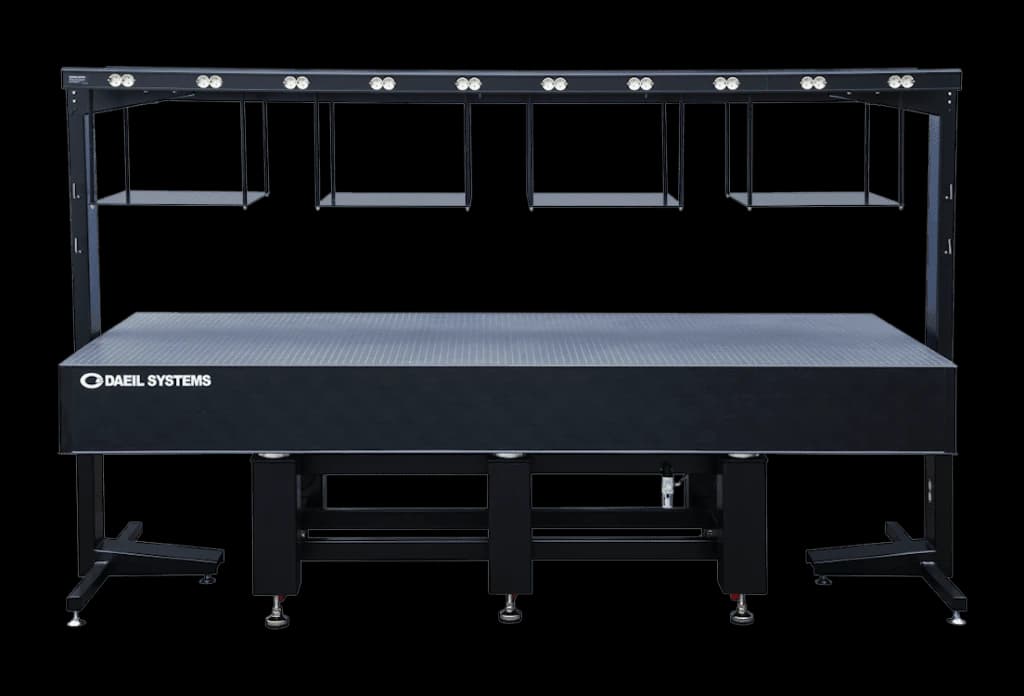

The system is designed to provide increased table space by elevating bulky instrumentation off the main work surface. This allows for a convenient location of instruments, placing controls and displays within the user's line of sight and reach without cluttering the optical breadboard.
Adjustable and Flexible Storage

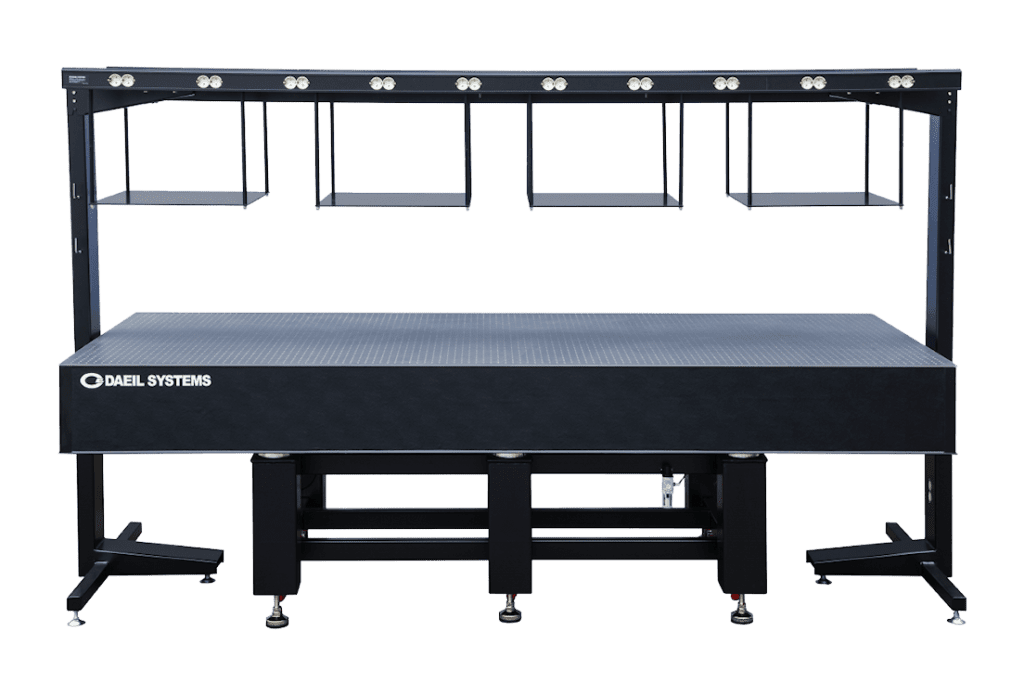

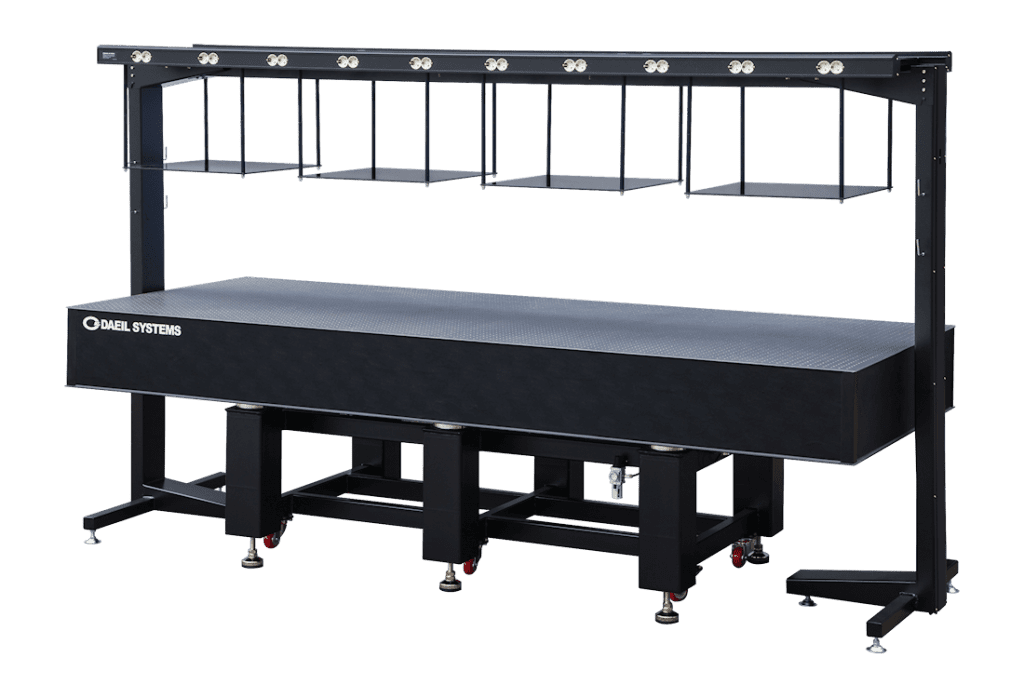

The shelf system includes hanging shelves for extra storage that are adjustable in height. This flexibility allows researchers to customize the shelf spacing to fit equipment of various sizes. Being a free-standing structure, it stands independently over the table, ensuring it does not physically contact or bridge the isolated table top.
Integrated Power Management

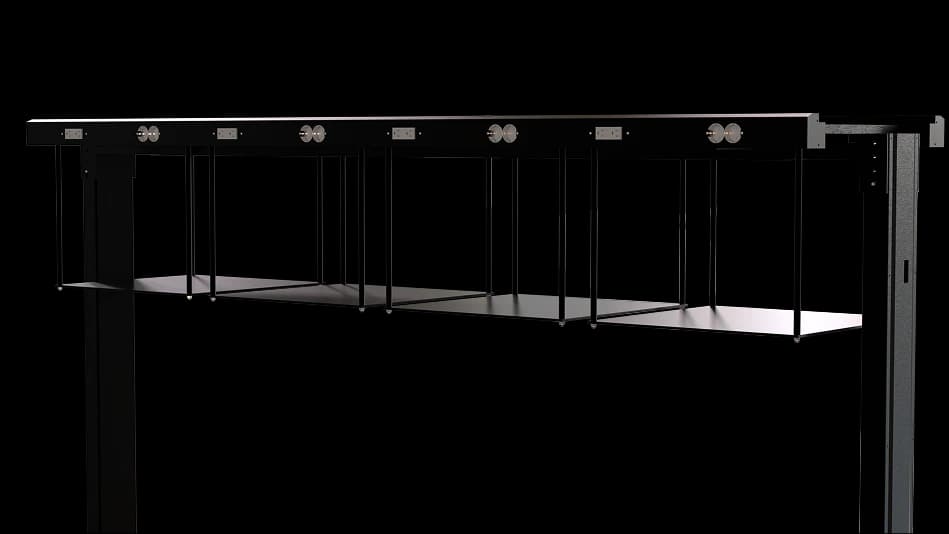

To reduce cable clutter, the shelf features grounded electrical outlets (110 V/220 V/60 Hz) mounted on both sides of the top frame. This allows users to plug instruments directly into the shelf rather than running long cables to wall outlets. It also includes a 30 A earth leakage circuit breaker (ELCB) that protects both equipment and personnel, tripping on overload, short circuit, and earth leakage alike. That last case is what matters most where researchers handle mains-powered instruments around an optical table.
Flexible Positioning
Integrated casters on its base, maximizing mobility and allowing researchers to easily reposition the entire workstation for flexible lab reconfiguration without the need for heavy lifting.
Stability
The frame utilizes a formed steel welded design with a durable black powder coat finish, ensuring long-term durability in a lab environment. It is also equipped with leveling feet, allowing the shelf system to be installed securely and stably even on uneven laboratory floors.
Specifications
| System Dimensions (Outer) | Varies by Model (W) x 661 mm (D) x 1949 mm or 2149 mm (H) |
| System Dimensions (Inner) | Varies by Model (W) x 550 mm (D) x 1828 mm or 2028 mm (H) |
| Frame Structure | Welded Steel Frame |
| Mobility | Leveling Casters |
| Hanging Shelves Quantity | Varies by Model |
| Hanging Shelves Dimensions | 550 x 550 x 6 mm |
| Hanging Shelf Load Capacity | 30 kg per shelf |
| Rod | Φ15-200L, two per position (400 mm standard); Φ15-300L optional |
| Electrical Sockets | Selectable Configuration: All 110V, All 220V, or Mixed (Qty varies by model) |
| Circuit Breaker | ELCB 30 A, 110 V/220 V, 1.5 kA breaking capacity, 30 mA sensitivity |
Overhead Shelf System Configuration
| Model No. | Inner Width | Hanging Shelves Qty (Standard) | Electrical Outlets (Standard) |
|---|---|---|---|
| DOTS-4 | 1500 mm | 2 | 4 x 110V & 4 x 220V |
| DOTS-5 | 1700 mm | 2 | 5 x 110V & 5 x 220V |
| DOTS-6 | 1900 mm | 3 | 6 x 110V & 6 x 220V |
| DOTS-7 | 2200 mm | 3 | 7 x 110V & 7 x 220V |
| DOTS-8 | 2500 mm | 4 | 8 x 110V & 8 x 220V |
| DOTS-10 | 3100 mm | 5 | 10 x 110V & 10 x 220V |
| DOTS-12 | 3700 mm | 6 | 12 x 110V & 12 x 220V |
