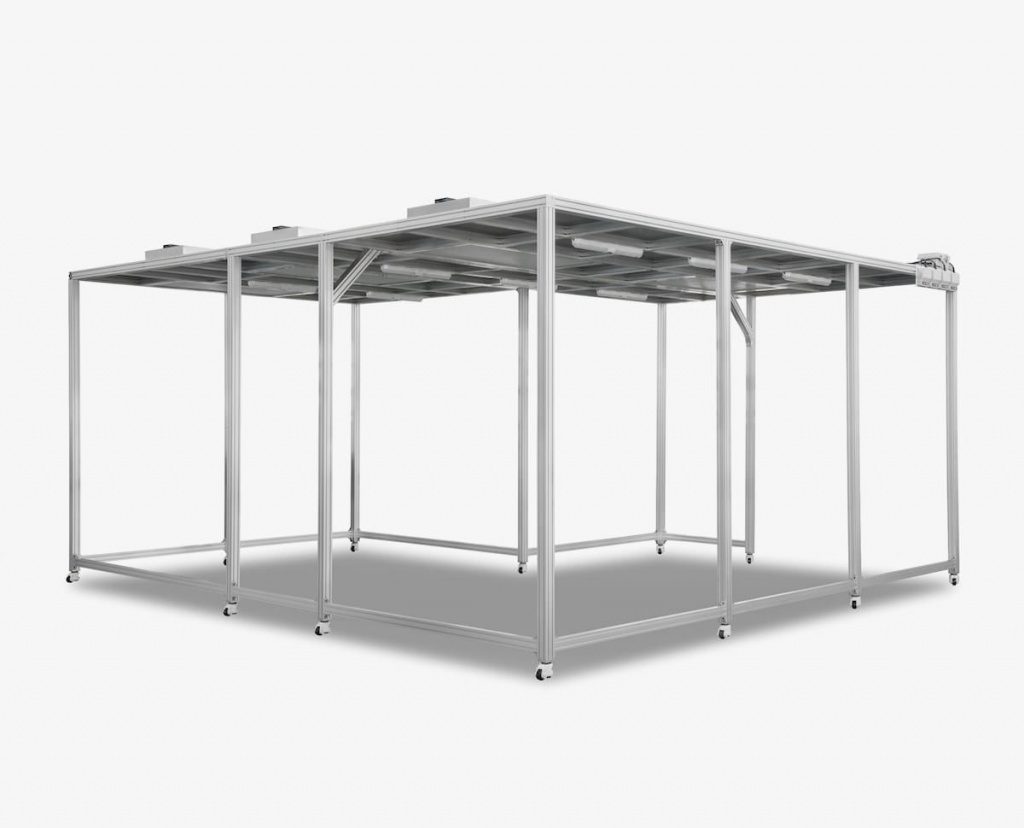

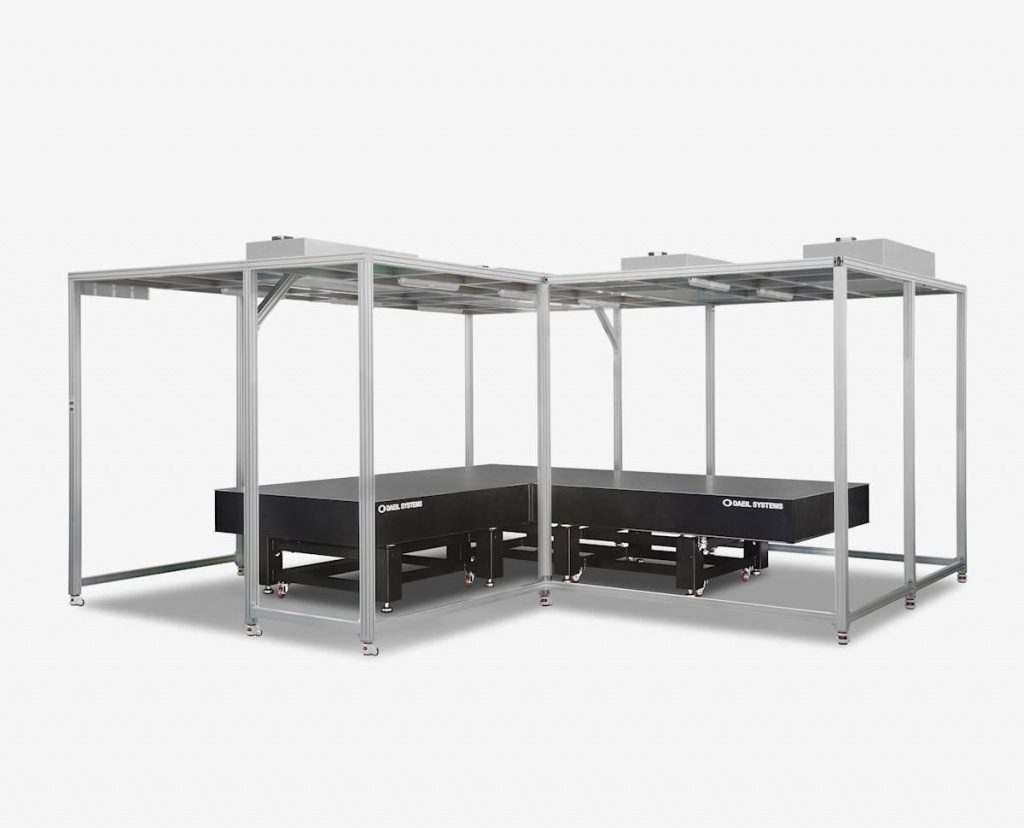

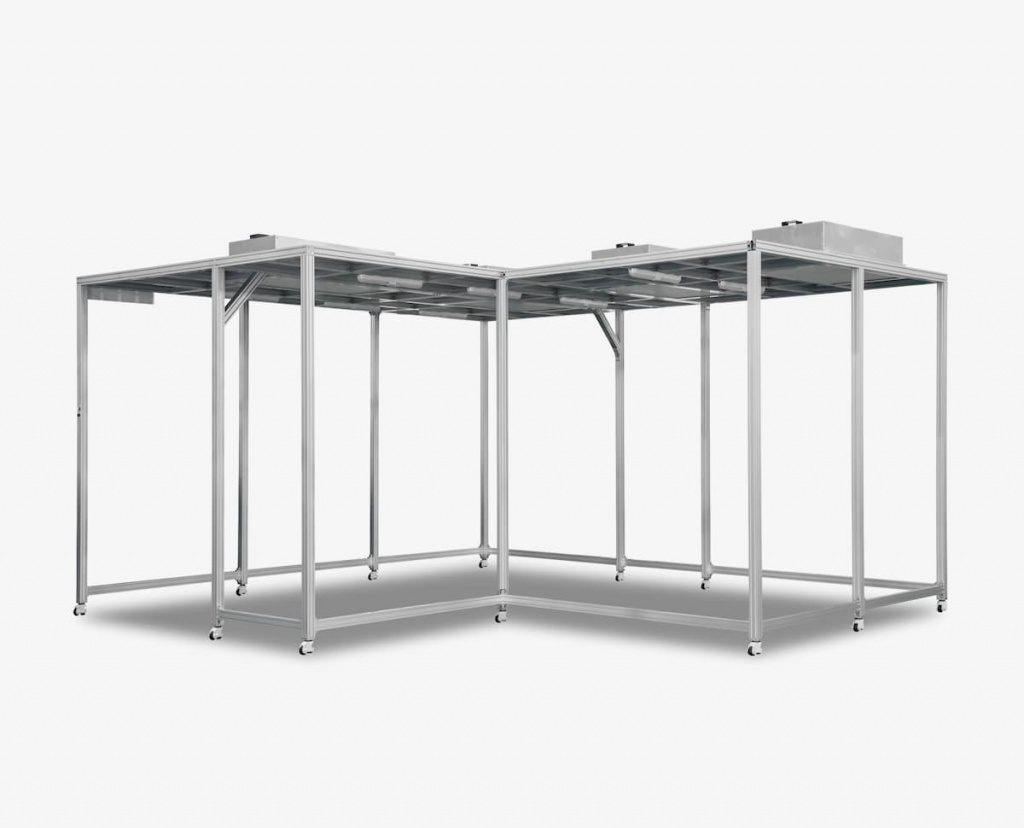

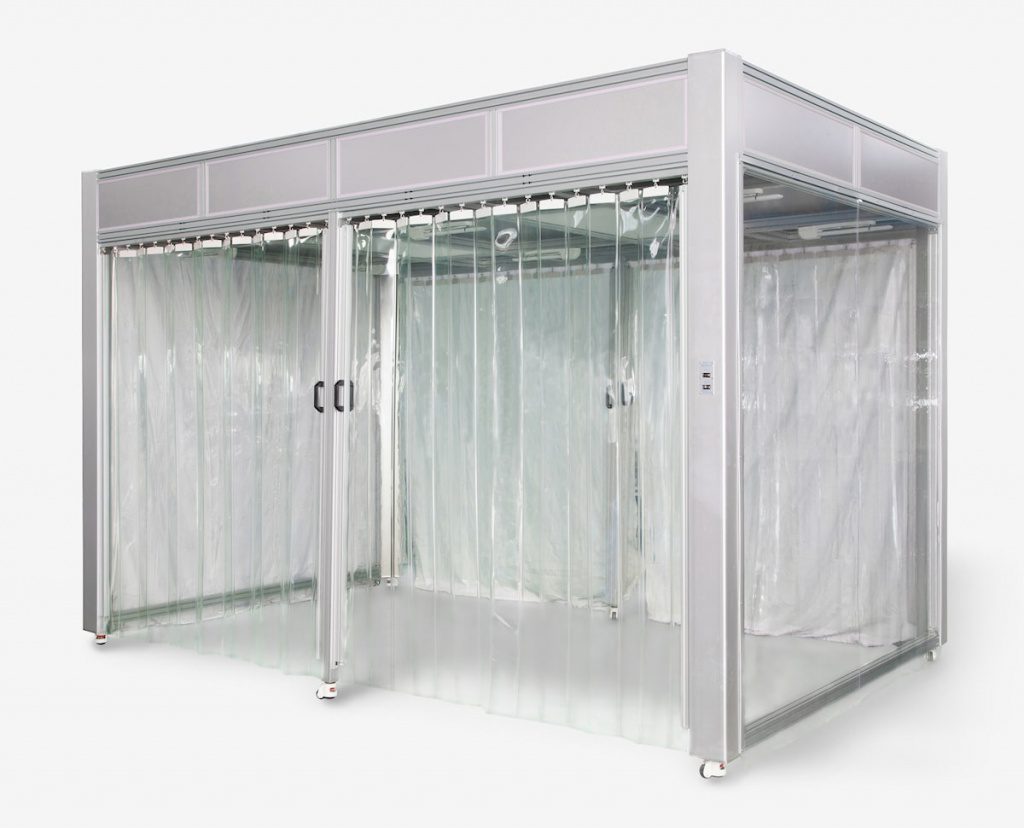

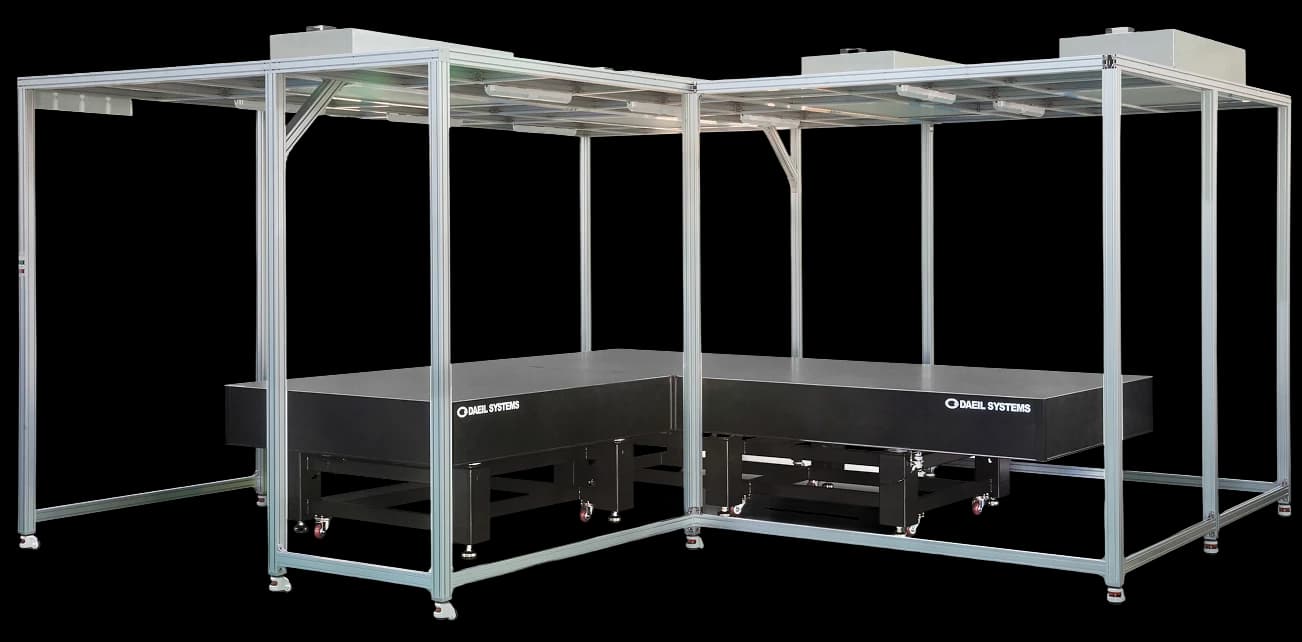

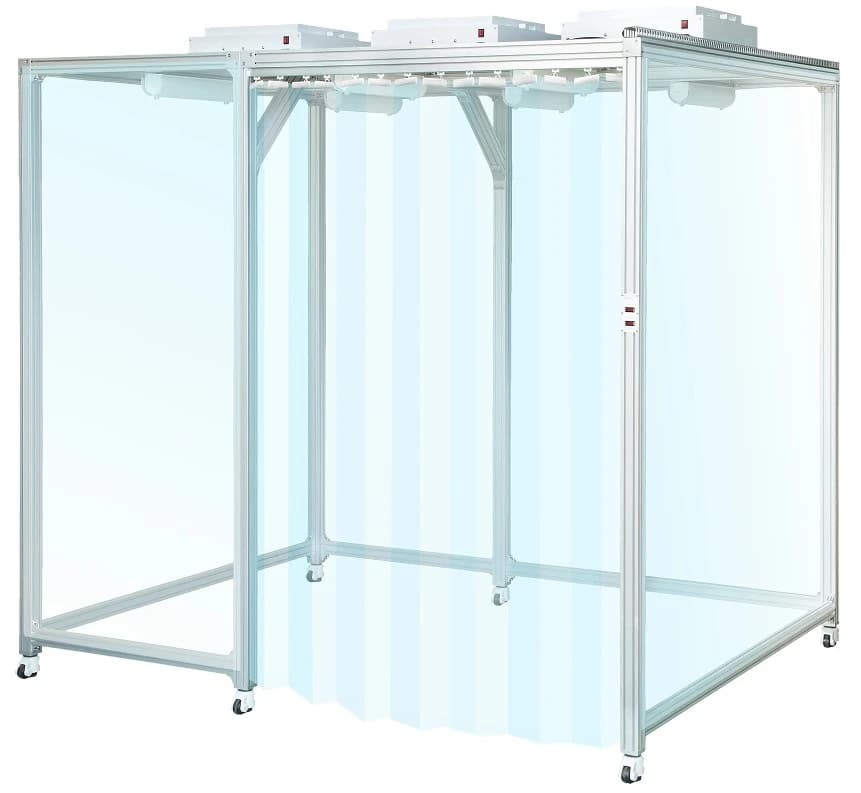

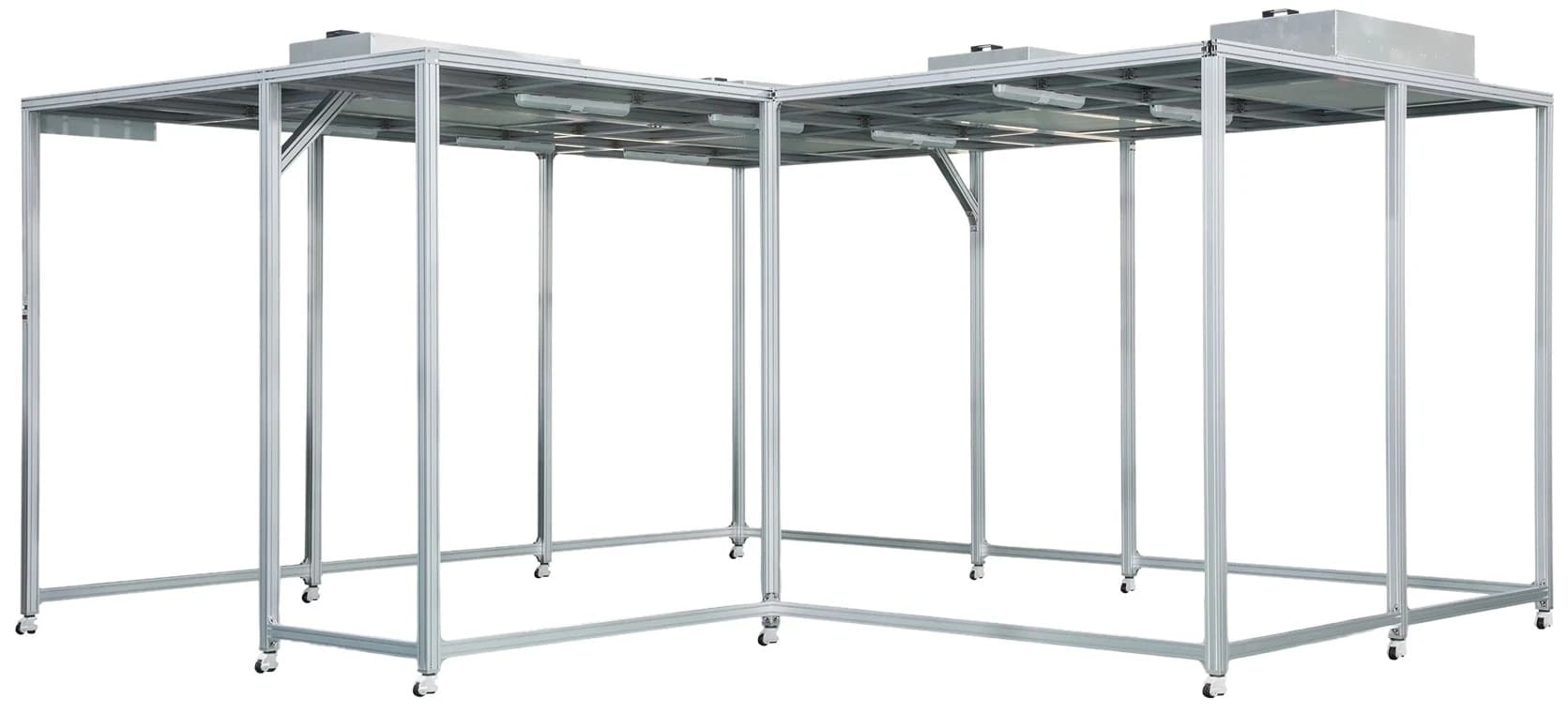

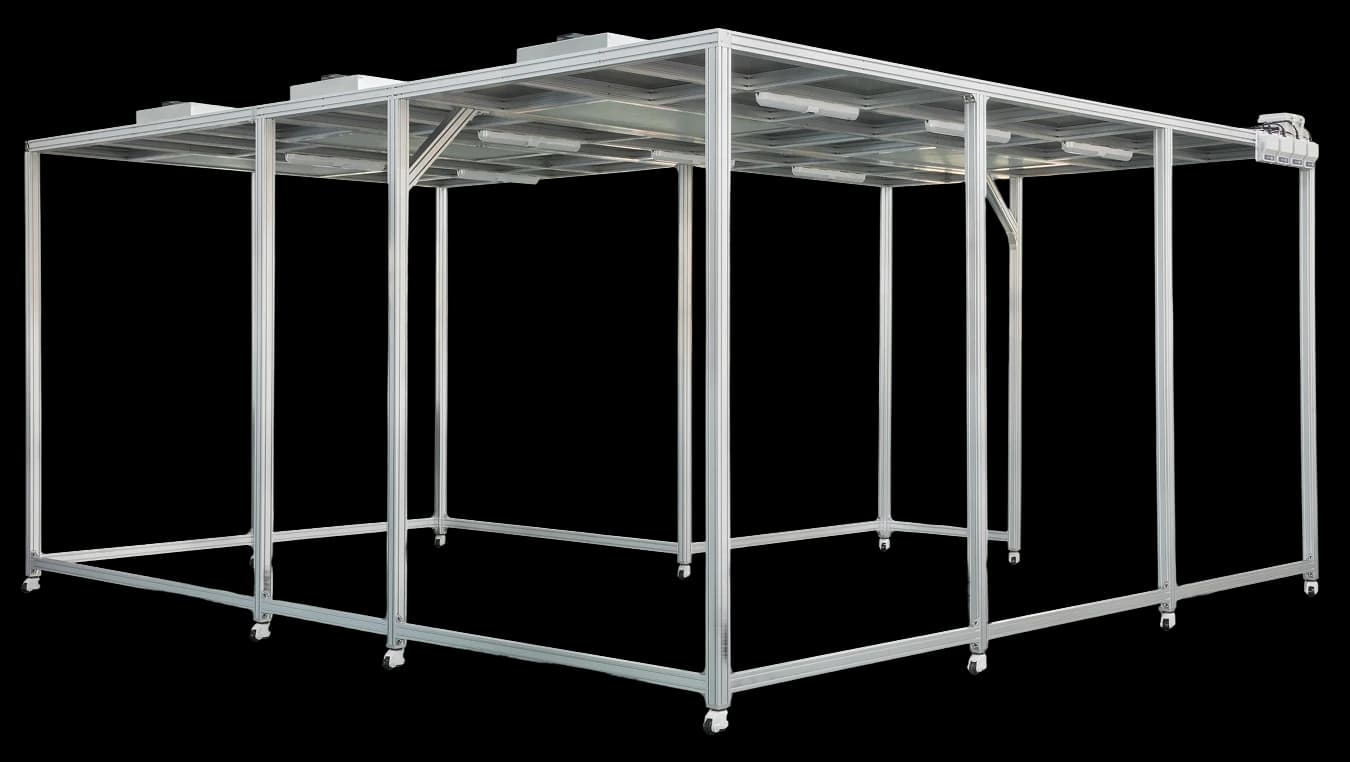

A clean booth is a portable clean room installed with High-Efficiency Particular (HEPA)
filters,removing at least 99.97@ of airborne particles 0.3 micrometers in diameter.
Cleanliness level of the clean booth is defined by the number of particles per cubic
meter at a specificed particle size.
| Construction | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Custom-Made | ||||||||||||
| Frame | Aluminum Profile | ||||||||||||
| Walls | Anti-Static Vinyl Curtain | ||||||||||||
| Doors | Folding / Slding / Strip / Zip | ||||||||||||
| Lighting | LED | ||||||||||||
| Input Voltage | 220 V / 60 Hz | ||||||||||||
| FAN FILTER UNIT | |||||||||||||
| Size | Large | Small | |||||||||||
| Dimensions | 1180 x 580 x 330 mm | 580 x 580 x 330 mm | |||||||||||
| Airflow Capacity (CMM) | High: 18 CMM, Medium: 15 CMM , Low: 10 CMM | High: 9 CMM , Medium: 7 CMM, Low: 5 CMM | |||||||||||
| Average Airflow Velocity (m/s) | High: 0.45 m/s, Medium: 0.35 m/s, Low: 0.25 m/s | ||||||||||||
| HEPA Filter | Remove at least 99.97% of 0.3 μm particles | ||||||||||||
| Noise Level | < 60 dB | ||||||||||||
