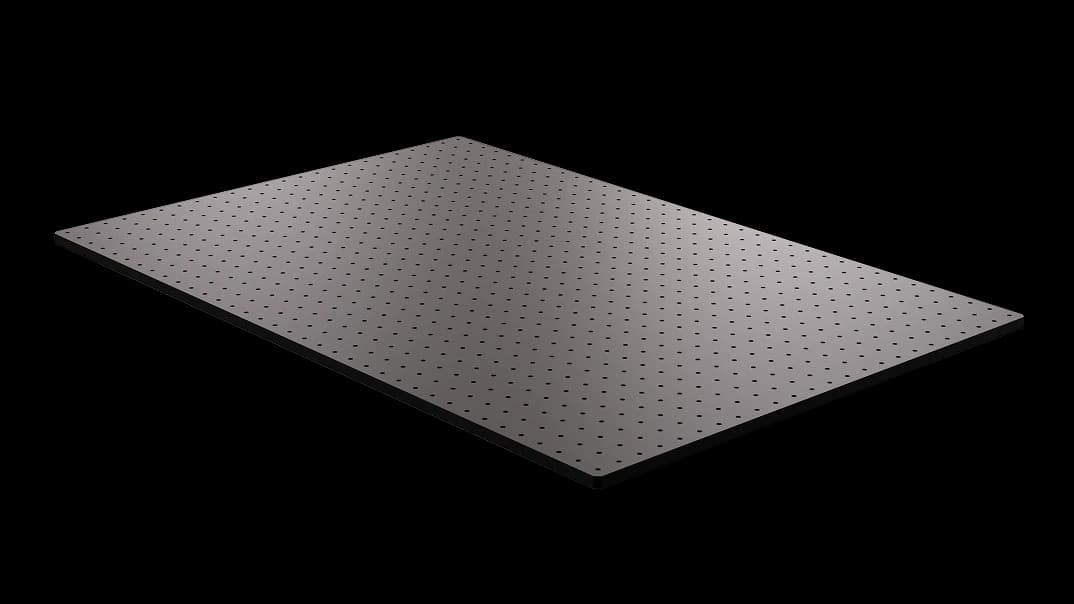

DSAP Series
Optical Aluminum Plates
DAEIL SYSTEMS optical aluminum plates are designed to support general-purpose optical assemblies with stability and ease of use. Each plate features a precision-machined matrix of M6 (or 1/4-20) mounting holes, enabling rapid and secure component integration. The plates are finished with a high-quality black anodized coating, essential for reducing stray light reflections in optical pathways and protecting the substrate from oxidation.
Specifications
| Material | 6061-T6 Aluminum Alloy |
| Surface Finish | Black Anodized (15 µm Thickness) |
| Plate Thickness | 12 mm or 15 mm |
| Thread Type | M6 x 1.0 or 1/4"-20 Tapped Holes |
| Mounting Hole Grid | 25 mm pitch |
| Edge Distance to First Hole | 12.5 mm (Edge to Center) |
Ordering Information
Maximum Width: 2000 mm
Maximum Depth: 720 mm
Thickness: 12 mm, 15 mm
Thread: M6 x 1.0 or 1/4"-20 Tapped Holes
