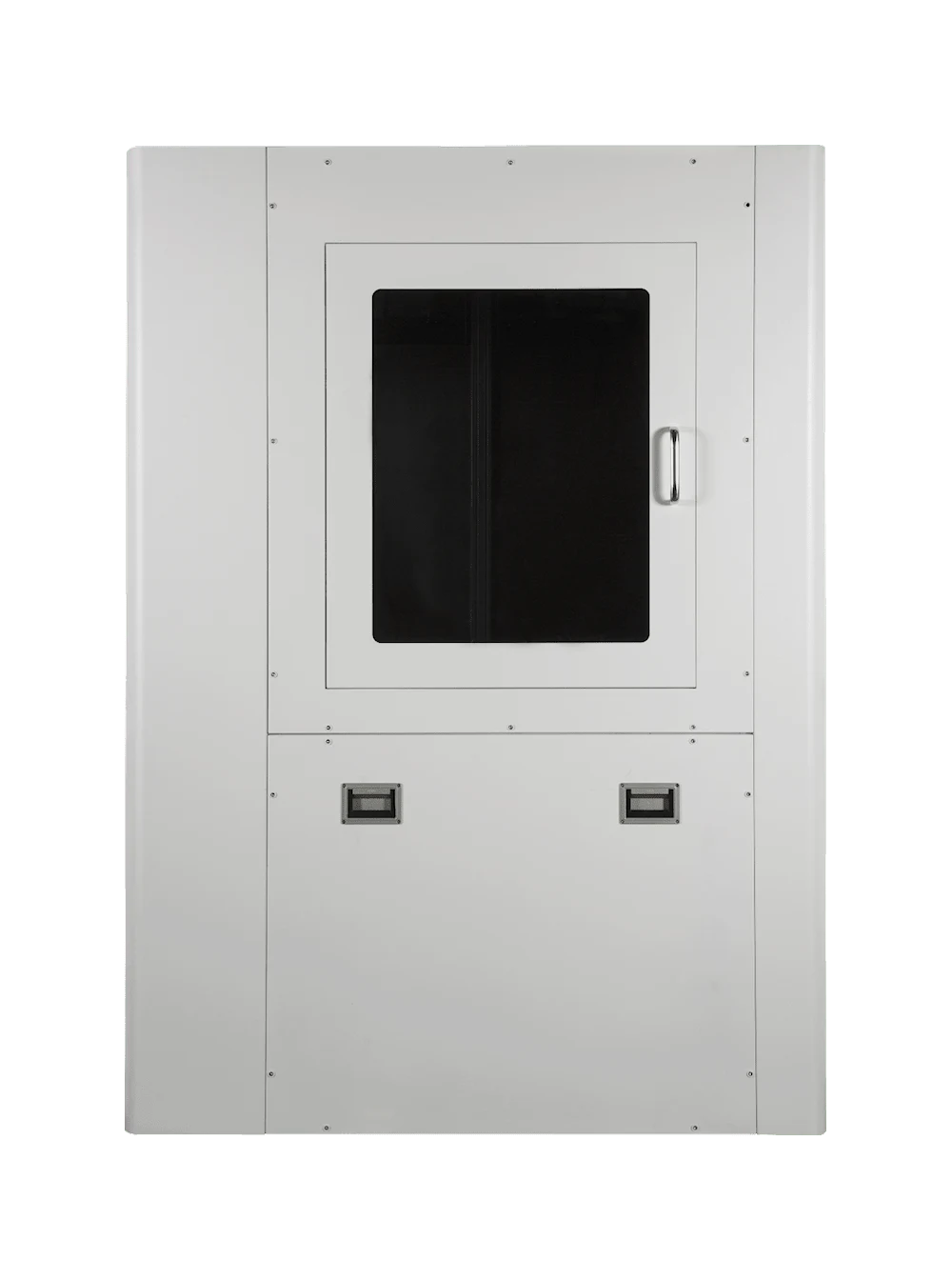

DSE EM Acoustic Enclosure
As electron microscopy advances, a quiet and noise controlled environment is essentially required. Our EM acoustic enclosures are specifically designed for electron microscopes to provide an optimal environment where acoustic noise cannot be transmitted to electron microscopes inside the enclosure. The EM enclosure has a cooling control system to prevent rising temperatures inside the enclosure, and users can add custom configurations and accessories according to specifications and purpose.
Cooling Control System
Built-in cooling control system prevents temperature rise inside the enclosure, maintaining optimal operating conditions for electron microscopes.
Maximum Noise Blocking
Blocks noise from surrounding pumps, coolers, and various sources to the maximum extent, protecting sensitive SEM equipment.
Custom Configurations
Various system configurations and accessories can be added according to customer specifications and requirements.
Integrated Solution Compatibility
Can be combined with DVIA-MB, DVIA-UB series and EMI Magnetic Cancellation System for comprehensive protection from external interference.
Exceptional Acoustic Isolation Performance
Exceptional acoustic isolation performance across a broad frequency spectrum from 3 Hz to 10 KHz.
Triple-Paned Observation Window
Triple-paned window allows monitoring of the electron microscope without opening the door, maintaining acoustic isolation during operation.
Performance
18 dB of noise reduction at 80 Hz
20 dB of noise reduction at 100 Hz
40 dB of noise reduction at 200 Hz
50 dB of noise reduction at 1000 Hz
