DVIA-U type (UB1000) Installation Test Report — Reporting 2016.09.02
DVIA-U Series
DVIA-UB1000
Installation Report
DAEIL SYSTEMS
LIM JONG UK
2016
Contents
DVIA-U type (UB1000) Installation Test Report
Installation & Mesurement Date : 2016.08.31.
Reporting Date : 2016.09.02.
DAEIL SYSTEMS
LIM JONG UK
※ Installation Results Summary
| Test Direction | VC-Class | |
|---|---|---|
| Base | Top | |
| ACTIVE | Z | B |
| X | E | |
| Y | D | |
Good performance in all directions.
Vertical axis Z is B Class, the horizontal axis X is E Class, the horizontal axis Y is D Class. It was measured vibration environment in floor.
Vertical axis Z is E Class, the horizontal axis X is D Class, the horizontal axis Y is E Class. It was measured vibration environment in top of Active state.
It looks X-axis the performance of top than base badly, because the peak of 70Hz.
Used data of internal program to making performance graph, show "Result 1".
conversion unit in 1/3 octave band, Show "Result 2".
Result 1 <Performance graph used data of internal program – Transmissibility >

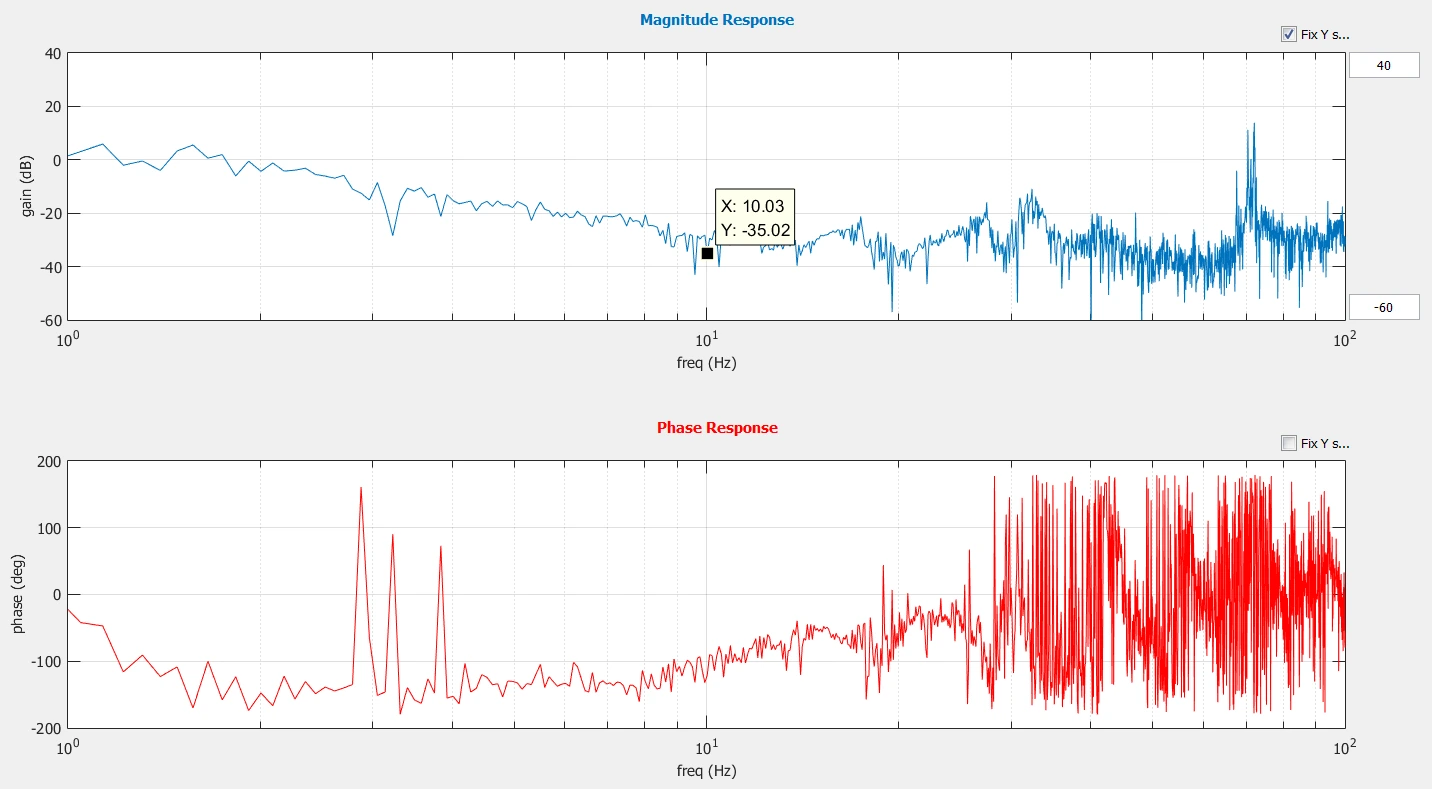

Z axis (ACTIVE)

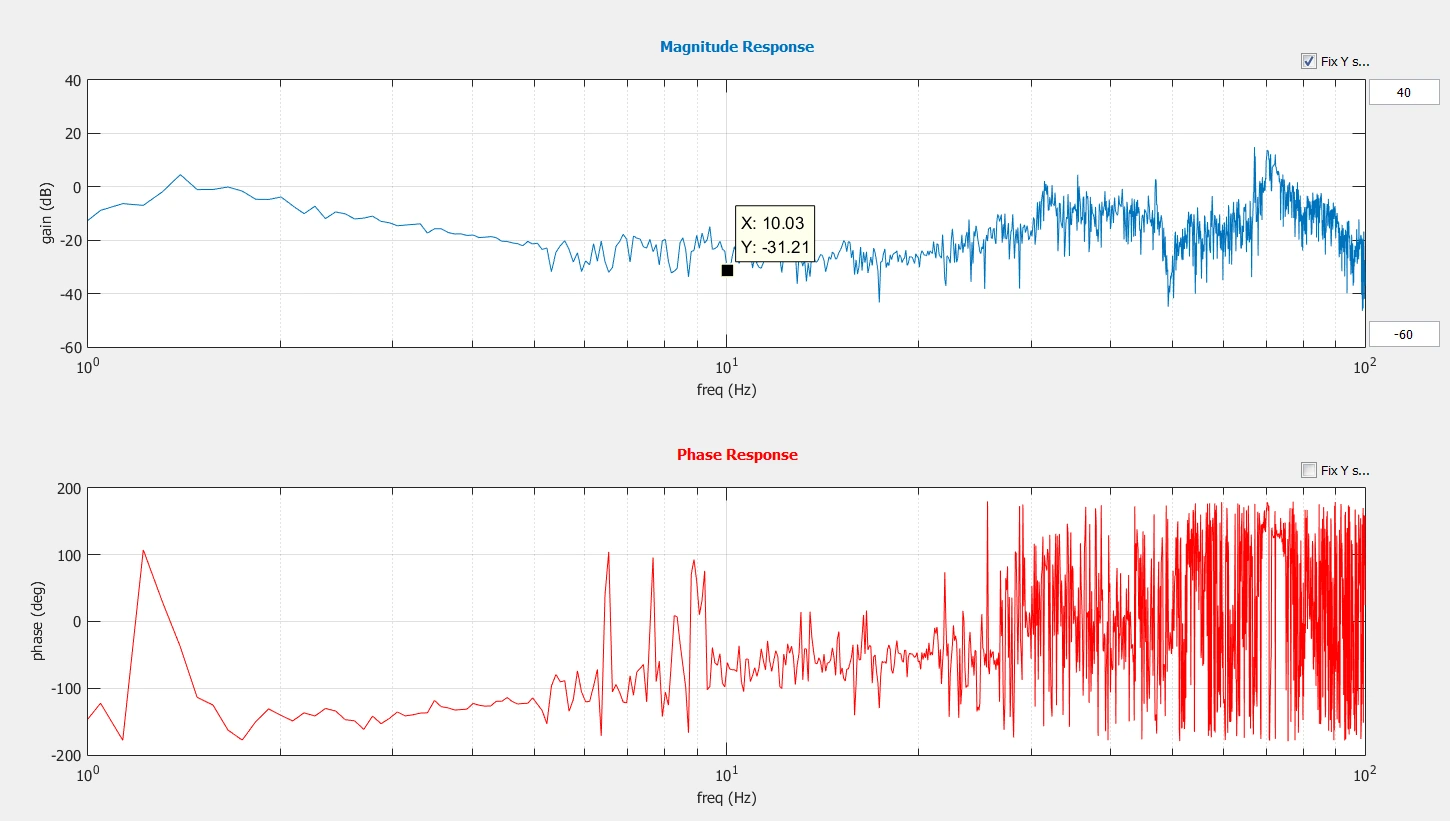

X axis (ACTIVE)

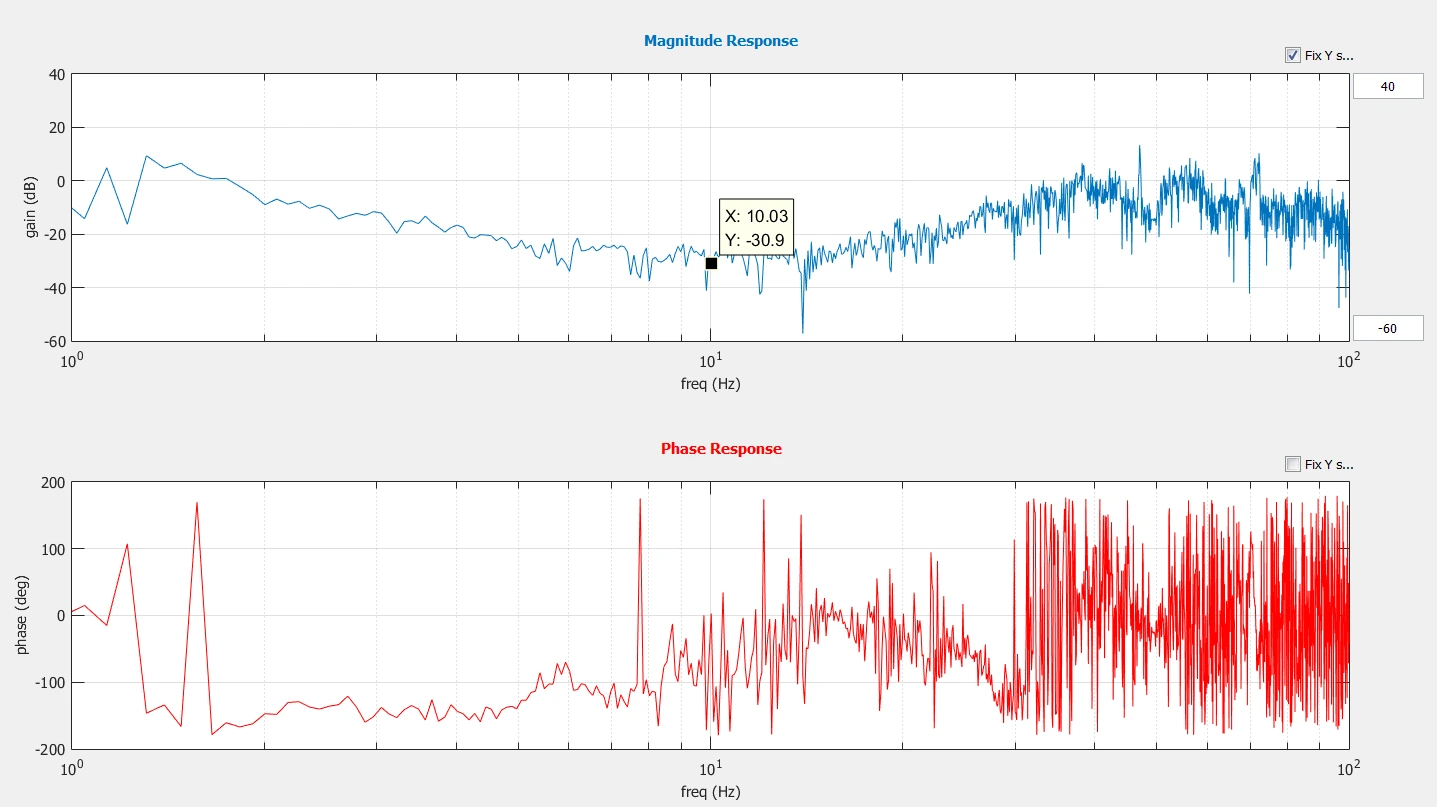

Y axis (ACTIVE)
Result 2 <Performance graph used data of PULSE – 1/3 Octave band>

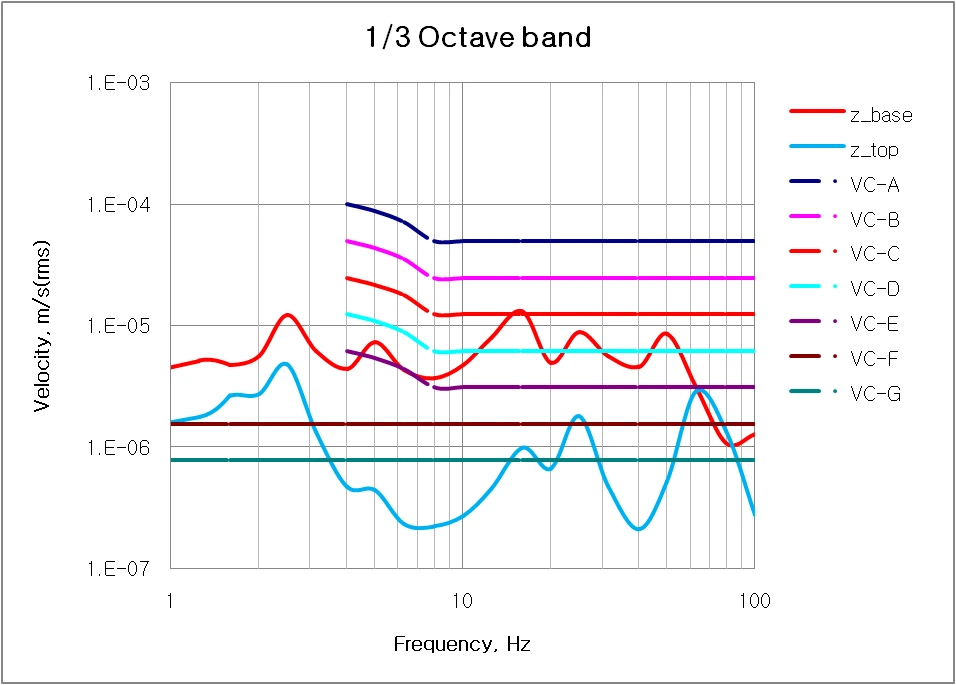

Z axis

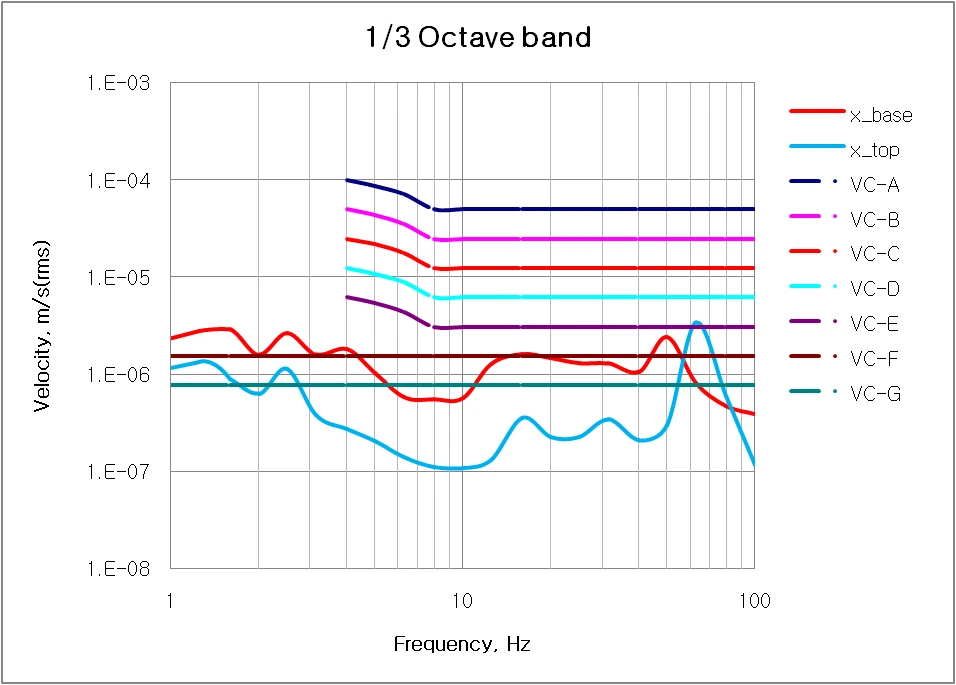

X axis

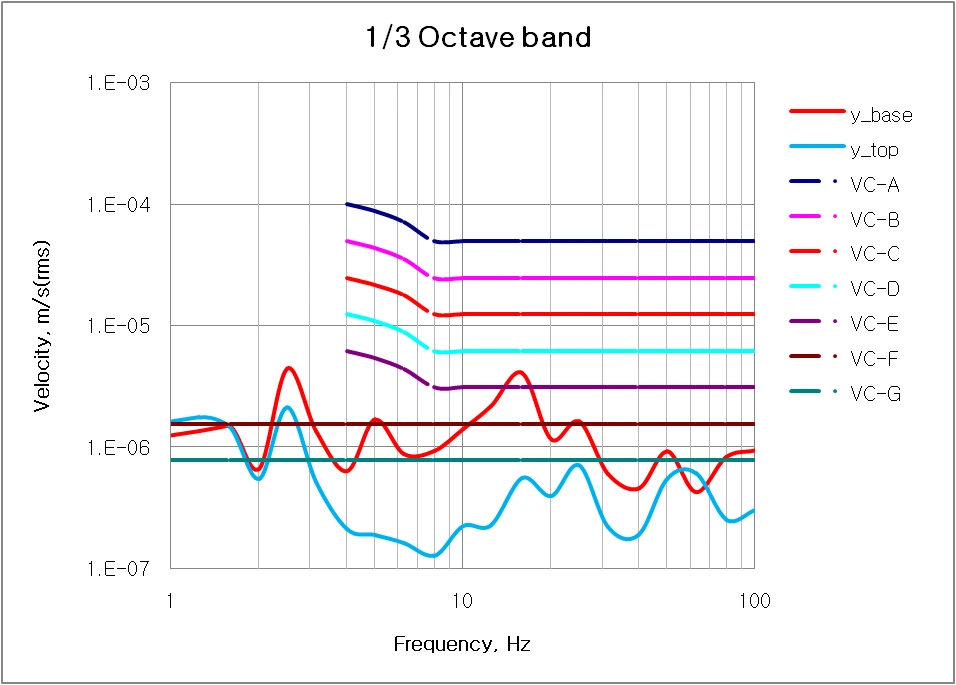

Y axis
