Brigham Young University TFS Apreo MLP 1000 Installation Report
1. Overview
MLP 1000 active vibration isolation platform was installed and tested for the TFS Apreo A 110.
MLP 1000 ON PASSED the Vibration specifications.
2. Vibration Isolation System Information
| Item | Details |
|---|---|
| Model | MLP 1000 |
| Serial Number | 250708R4-2 |
| Software | Site Specific Optimization |
3. Engineer
Director of Installations
4. Tuning Date
September 11, 2025
5. Installation Site
Brigham Young University, Electron Microscopy Facility
A-153 ASB Provo, UT 84602
6. Equipment
Manufacturer: Thermo Fisher Scientific (TFS)
Equipment: Apreo A 110
7. Equipment Status
System in position and operational.
8. Measurement Setup
| Parameter | Value |
|---|---|
| Bandwidth | 200 |
| Lines | 3200 |
| Window | Hanning |
| Coupling | ICP 2mA |
| Average Type | Stable |
| Duration | 60 seconds |
| Engineering Units | m/s (RMS) |
| X Axis Scaling | 1/3 Octave |
9. Vibration Specifications
| Tool | Specification |
|---|---|
| TFS Apreo | Vibration: All Directions-Axis → VC-F |

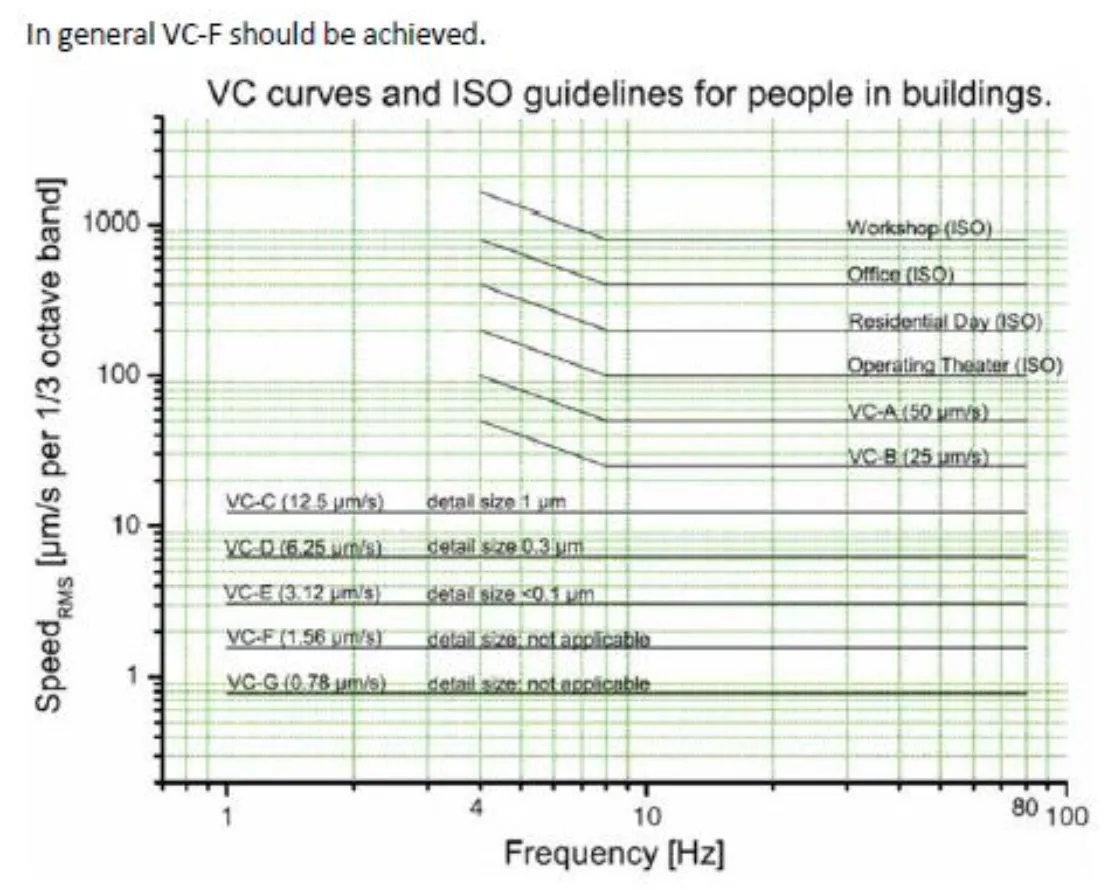

Figure 1: Detail Specification
10. Measurement Summary
| Type | Position | Direction | Specification | Measurement | Result |
|---|---|---|---|---|---|
| Vibration | Floor | Vertical | VC-F | VC-E | ✗ FAIL |
| Left-Right | VC-F | VC-F | ✓ PASS | ||
| Front-Back | VC-F | VC-F | ✓ PASS | ||
| DVIA MLP | Vertical | VC-F | VC-G | ✓ PASS | |
| Left-Right | VC-F | VC-G | ✓ PASS | ||
| Front-Back | VC-F | VC-G | ✓ PASS |
11. Data and Images

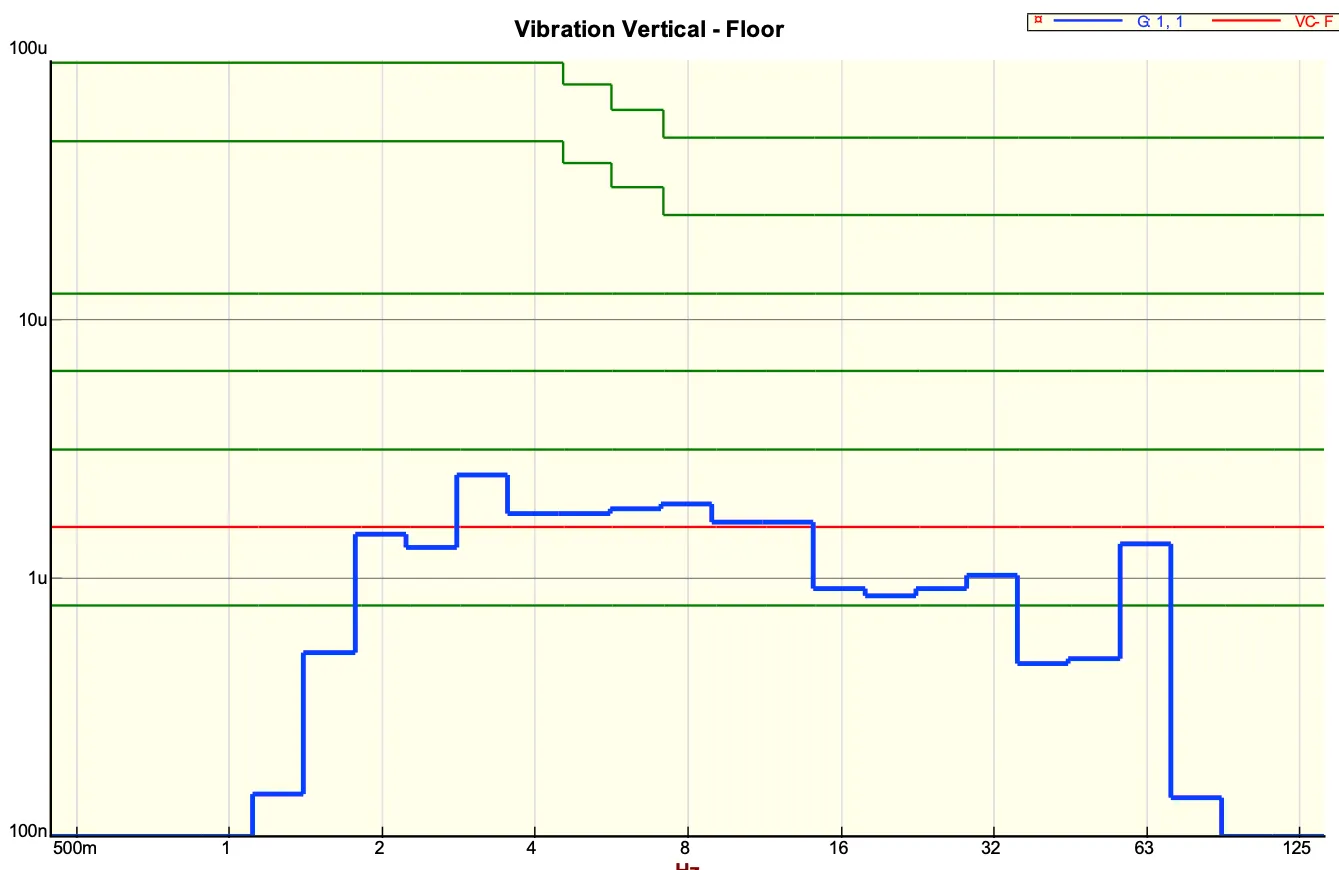

Figure 2: Vibration Vertical Floor
Vertical | Specification: VC-F | Measurement: VC-E | Result: FAIL

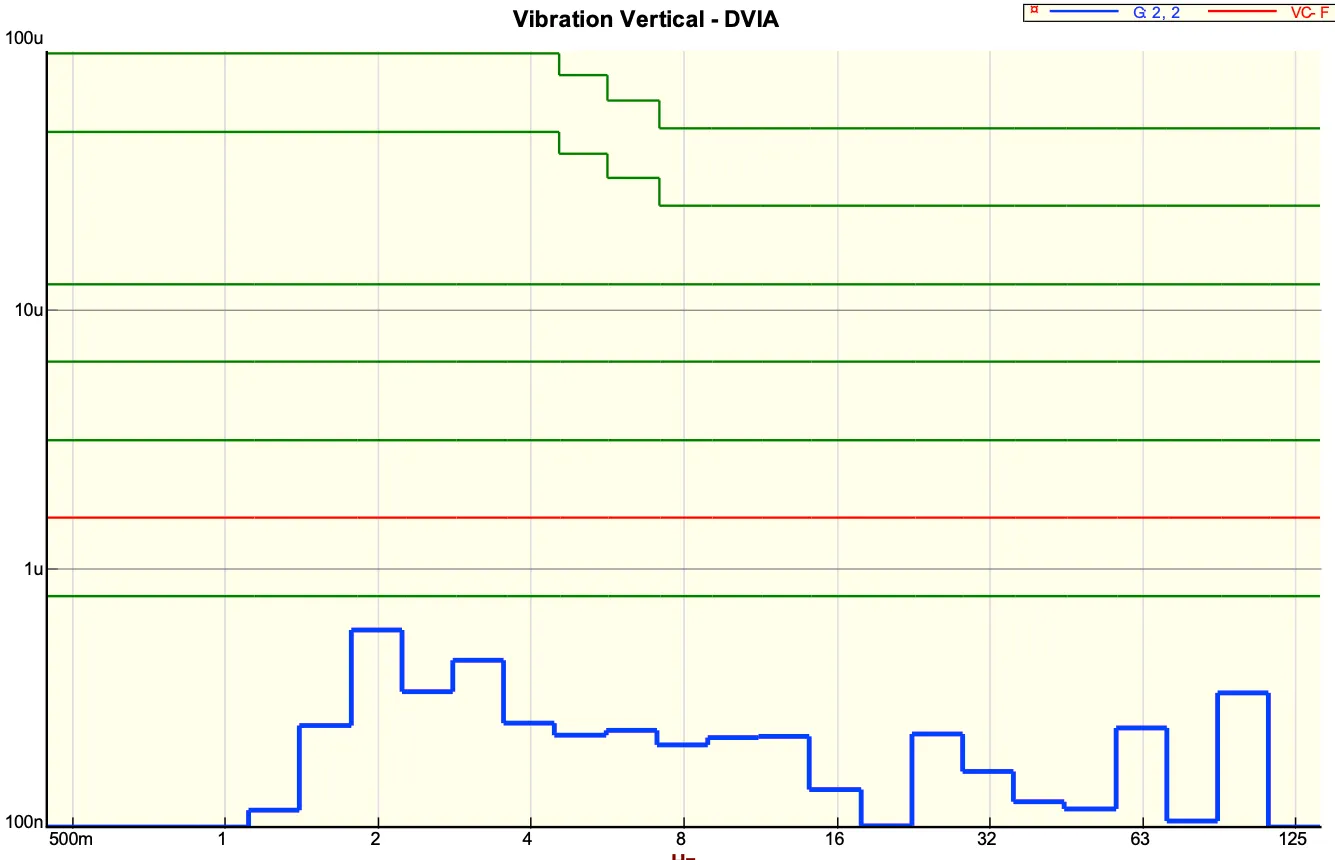

Figure 3: Vibration Vertical DVIA
Vertical | Specification: VC-F | Measurement: VC-G | Result: PASS

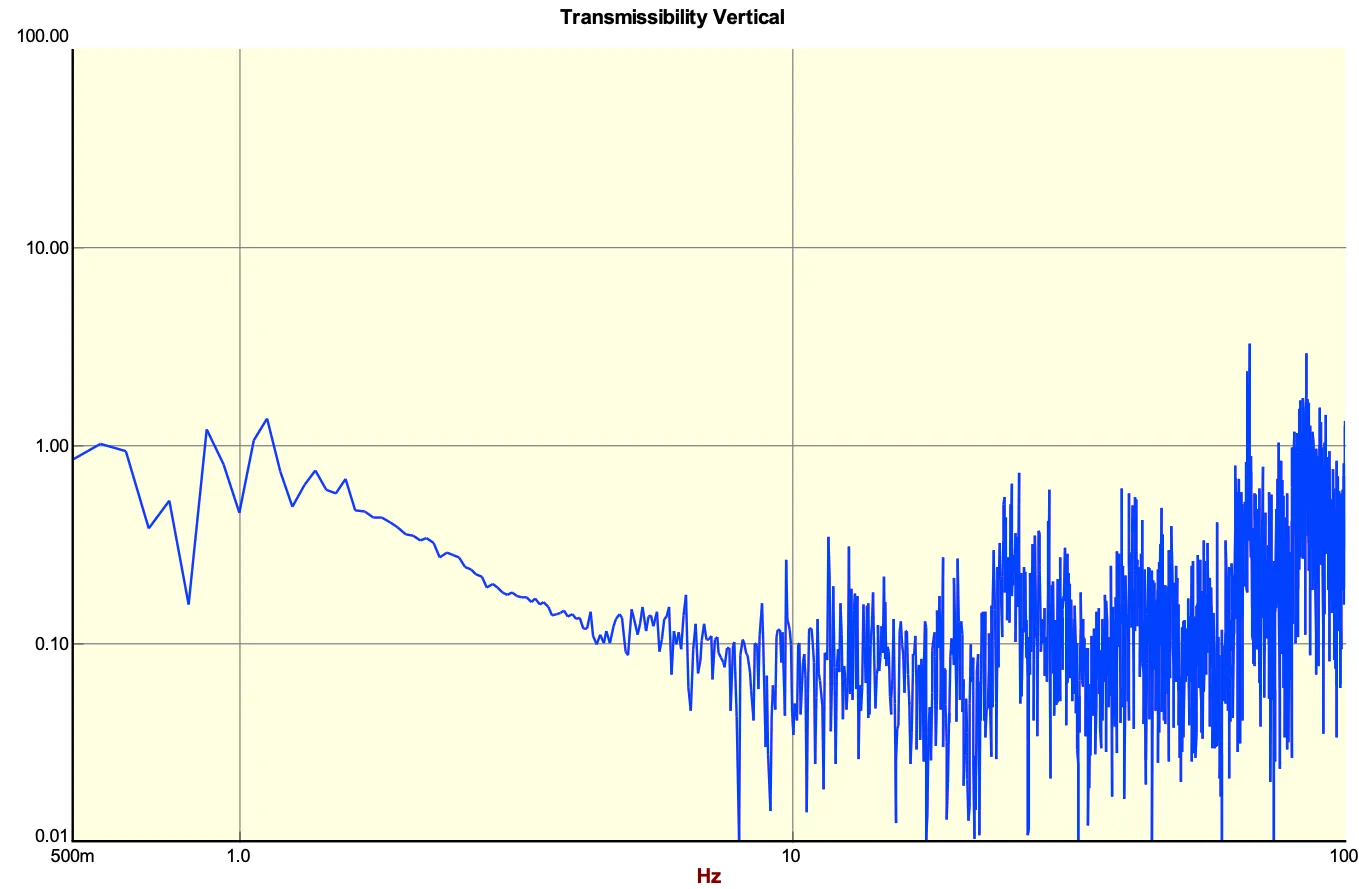

Figure 4: Transmissibility Vertical

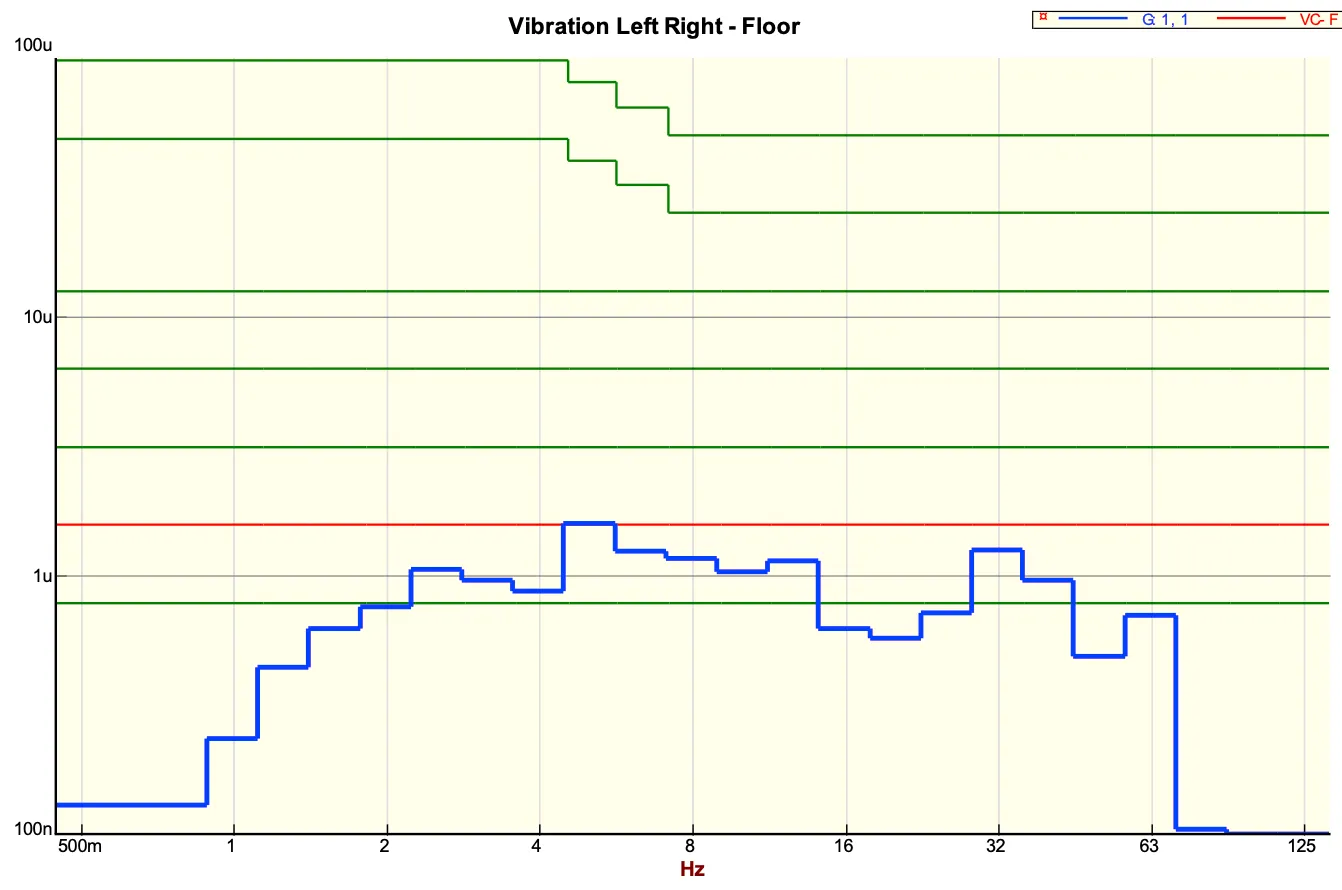

Figure 5: Vibration Left-Right Floor
Left-Right | Specification: VC-F | Measurement: VC-F | Result: PASS

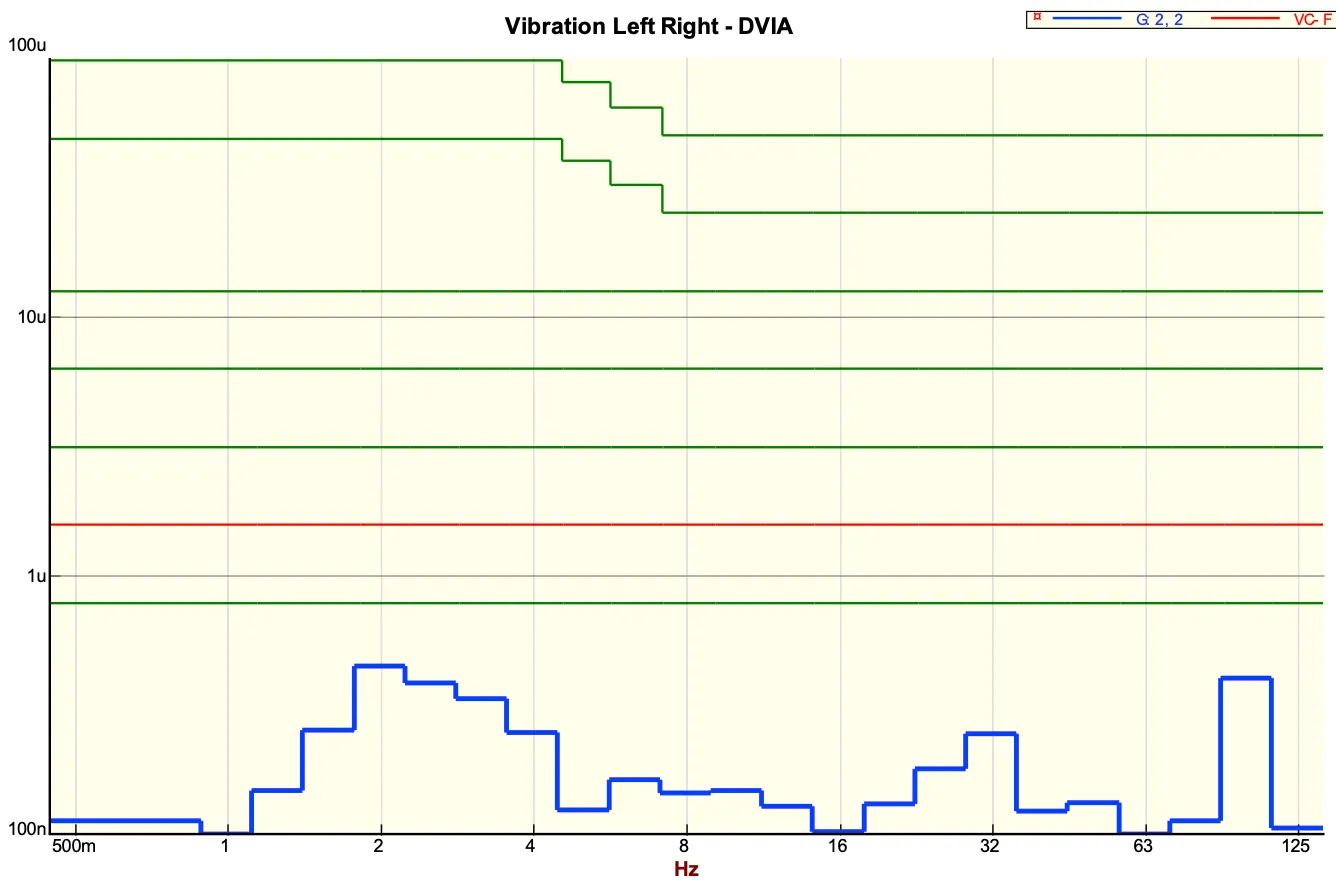

Figure 6: Vibration Left-Right DVIA
Left-Right | Specification: VC-F | Measurement: VC-G | Result: PASS

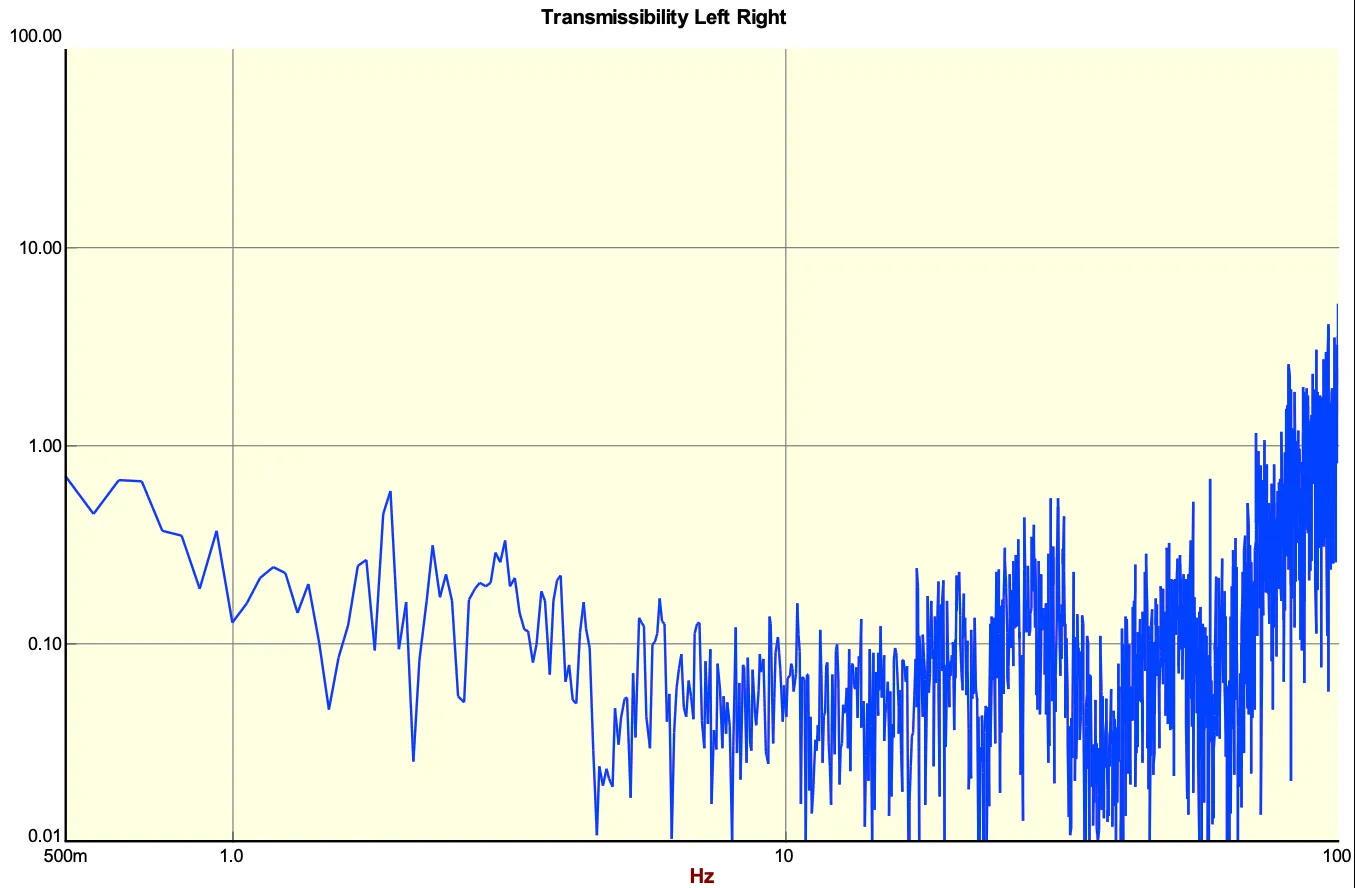

Figure 7: Transmissibility Left-Right

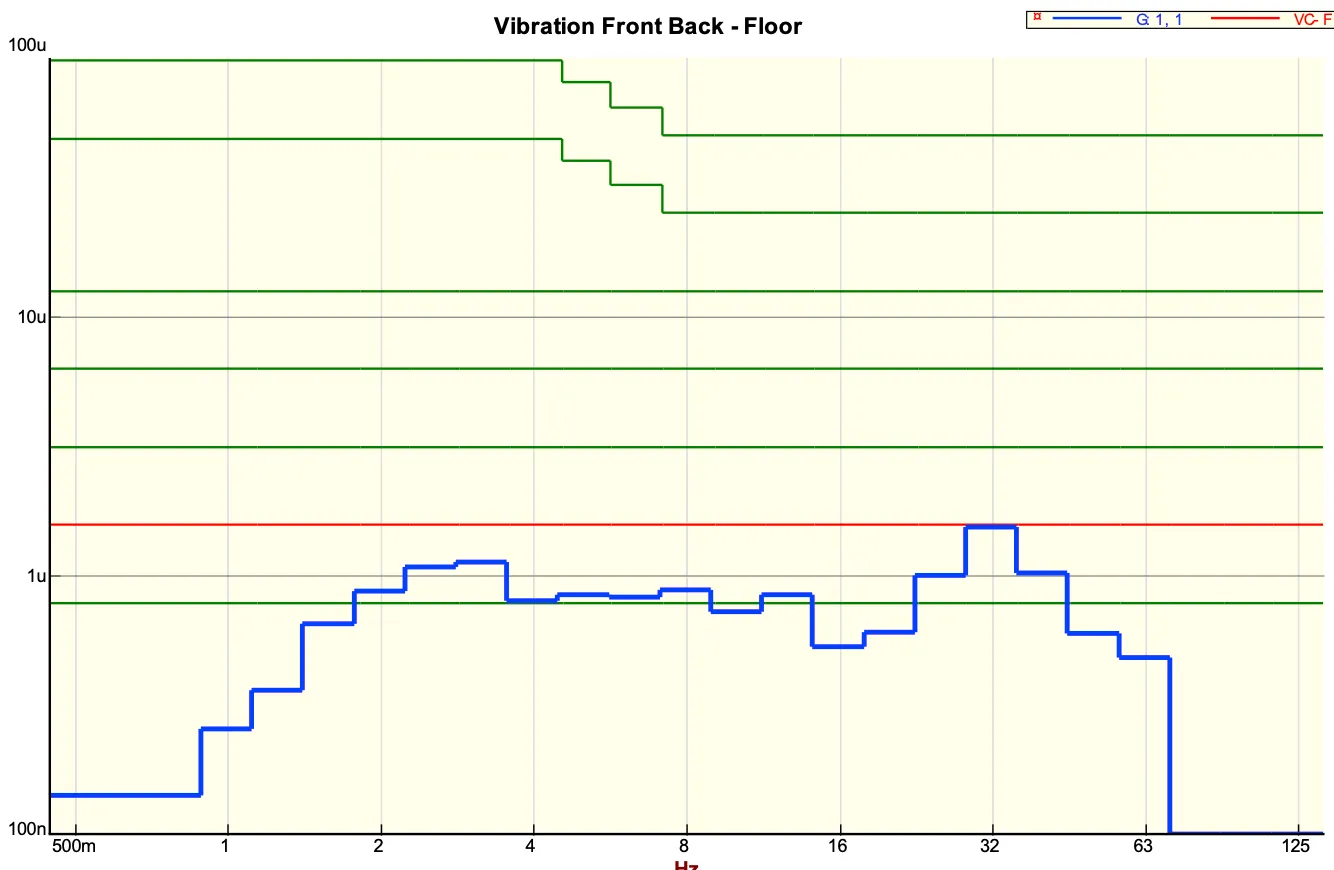

Figure 8: Vibration Front-Back Floor
Front-Back | Specification: VC-F | Measurement: VC-F | Result: PASS

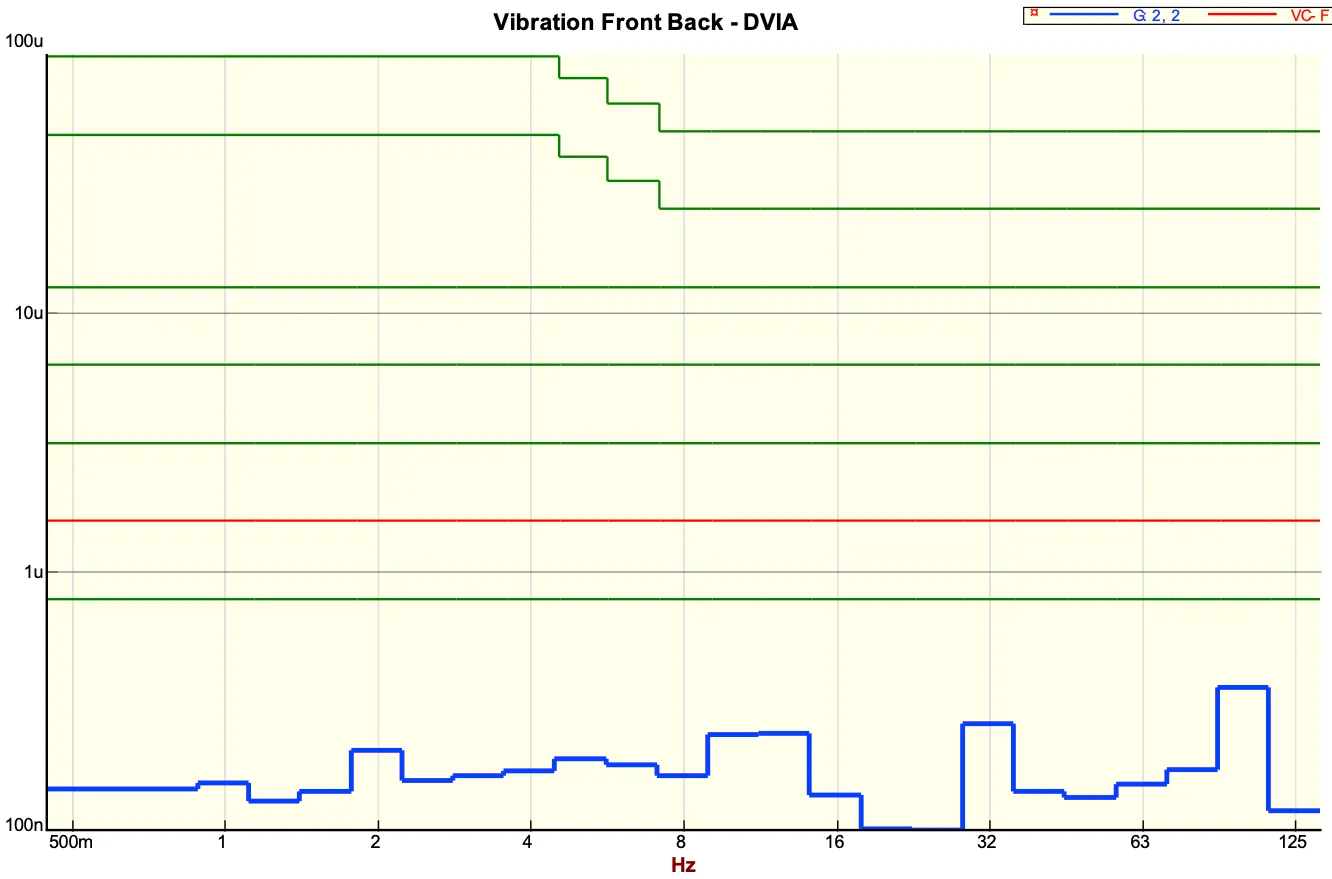

Figure 9: Vibration Front-Back DVIA
Front-Back | Specification: VC-F | Measurement: VC-G | Result: PASS

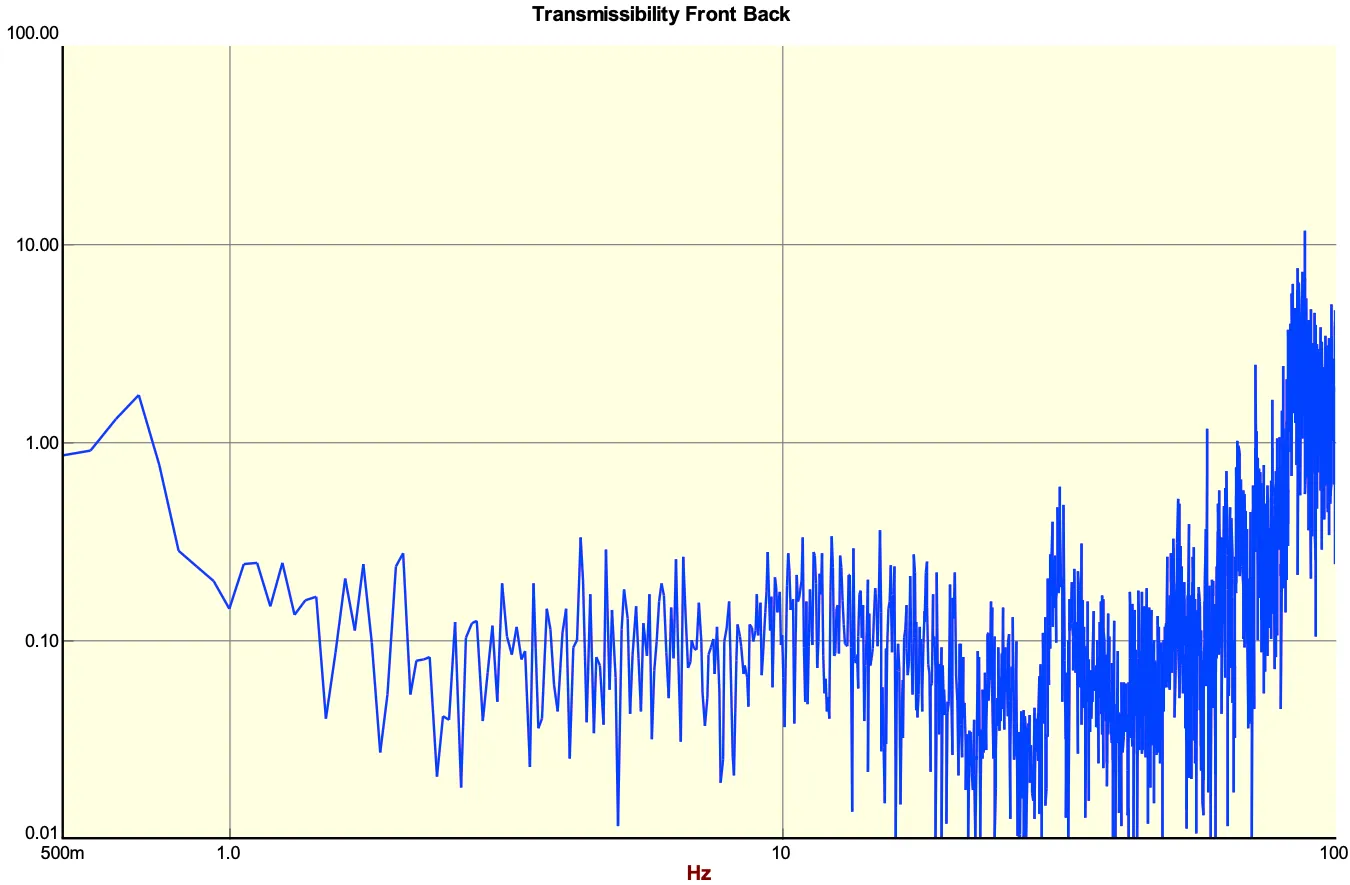

Figure 10: Transmissibility Front-Back

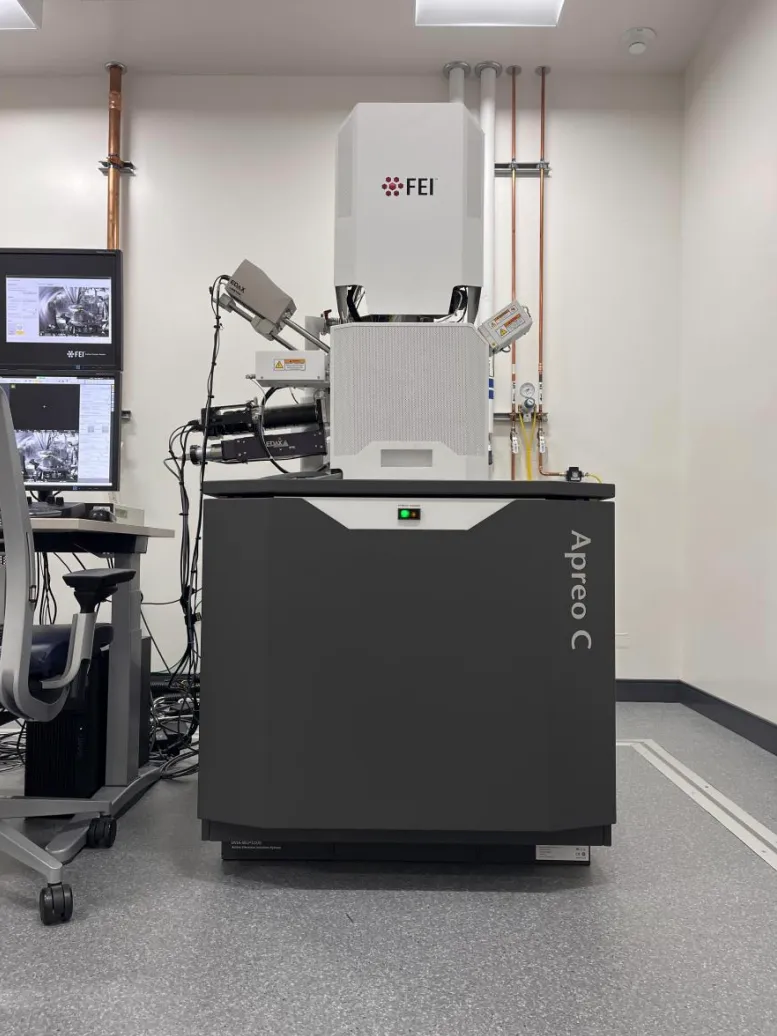

Figure 11: Installation Detail

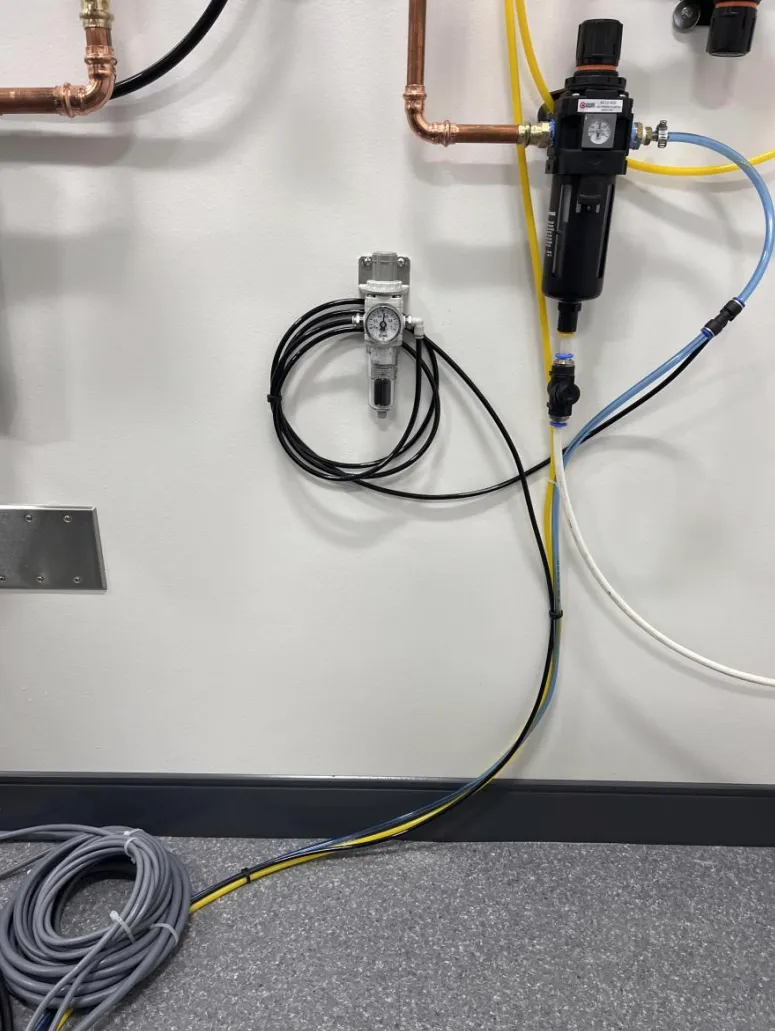

Figure 12: Air Regulator

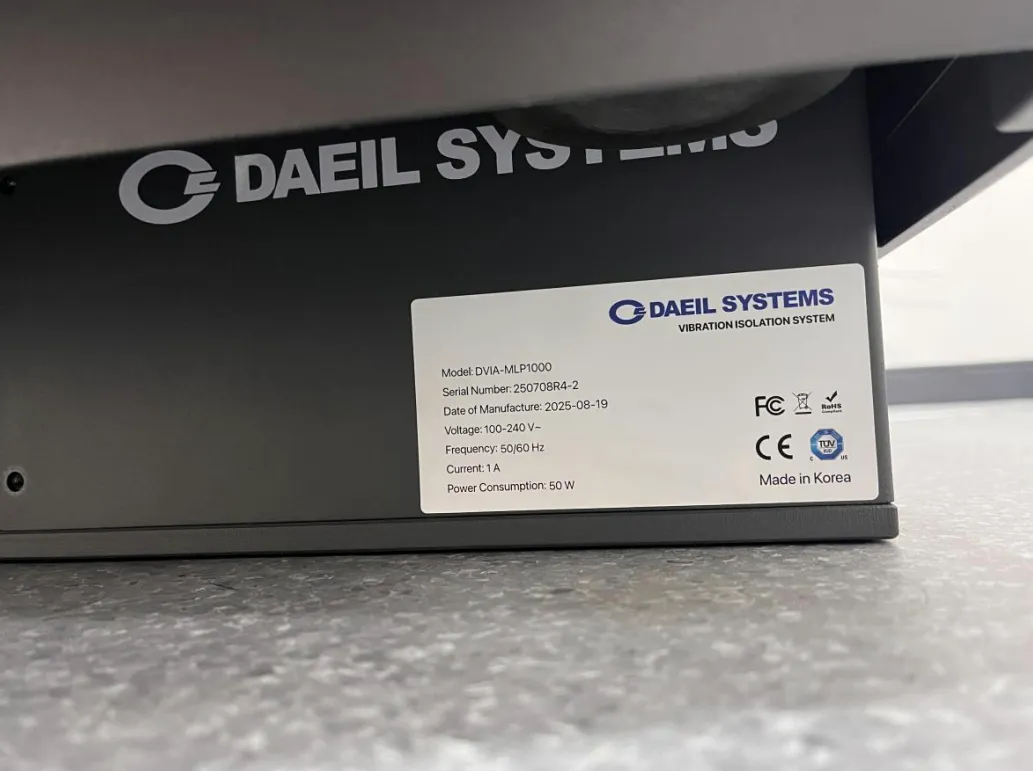

Figure 13: Serial Number

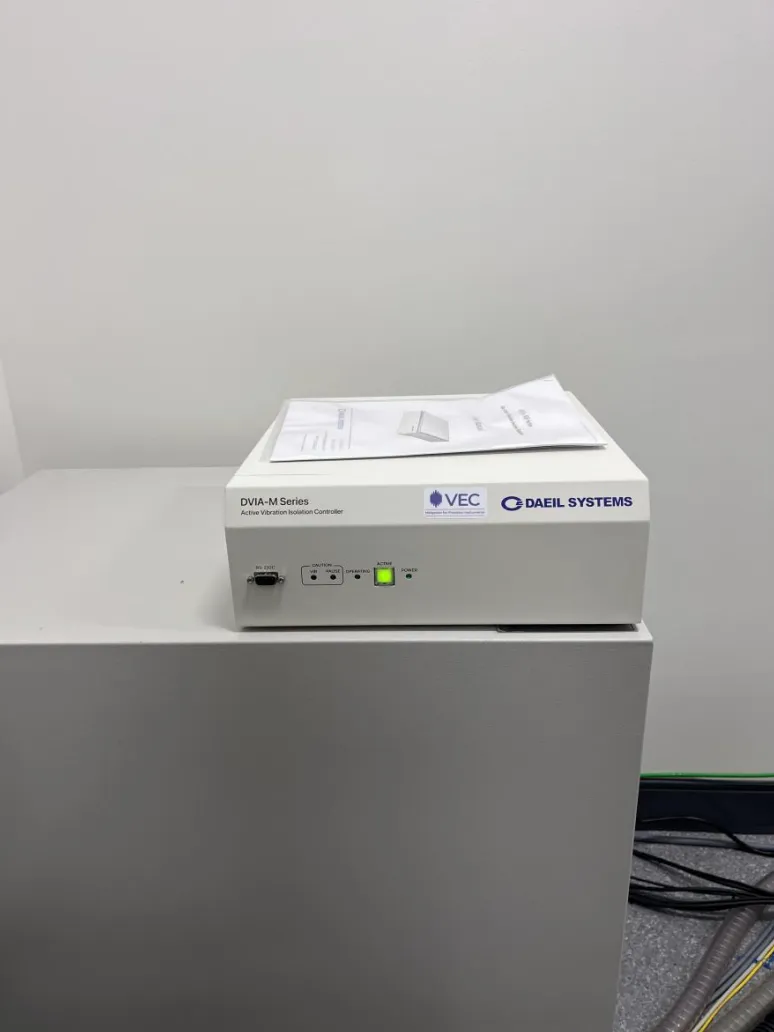

Figure 14: Controller Location

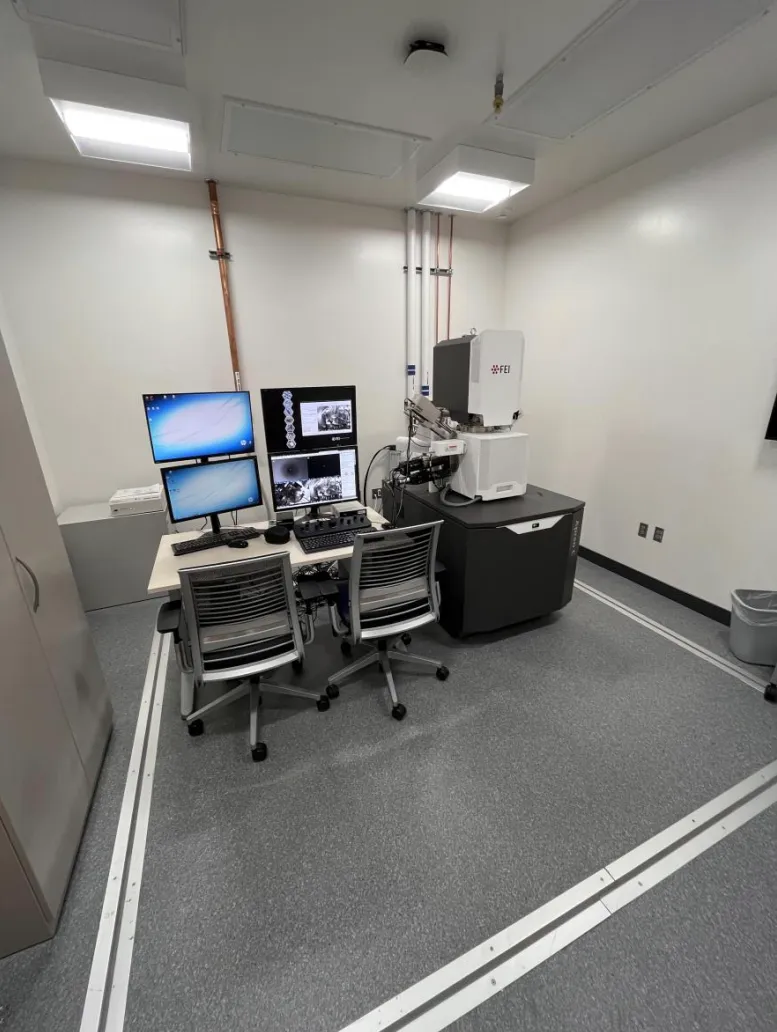

Figure 15: Room Overview
