Installation Report

DVIA-M Series

07-03-2026

China XD Electric Co., Ltd. ZEISS Sigma 360 FE-SEM DVIA-ML1000 Installation Report

DVIA-M Series

Installation Report

China XD Electric

ZEISS

Sigma 360

FE-SEM

DVIA-ML1000

260310R1

Wuxi

Overview

The DVIA-ML1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ML1000

Serial Number: 260310R1

Engineer

Juhyeok Kim, DAEIL SYSTEMS

Installation Date

June 4, 2026

End User

China XD Electric Co., Ltd.

Number of Tuning Trial

1st

Location

Wuxi, China

Equipment

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

Vibration Specification

Vertical

Frequency [Hz]	Limit [mm/s² RMS]
1-8	0.03
8-45	0.15
45-100	2

Horizontal

Frequency [Hz]	Limit [mm/s² RMS]
1-10	0.04
10-20	0.17
20-70	0.3
70-100	2

Measurement Summary

Measurement Point	Vibration Specification	Axis	Floor	DVIA-ML1000
1. Floor 2. DVIA-ML1000	Refer to Vibration Specification	Vertical	✗ FAIL	✓ PASS
		Left to Right	✗ FAIL	✓ PASS
		Front to Back	✗ FAIL	✓ PASS

Data and Image

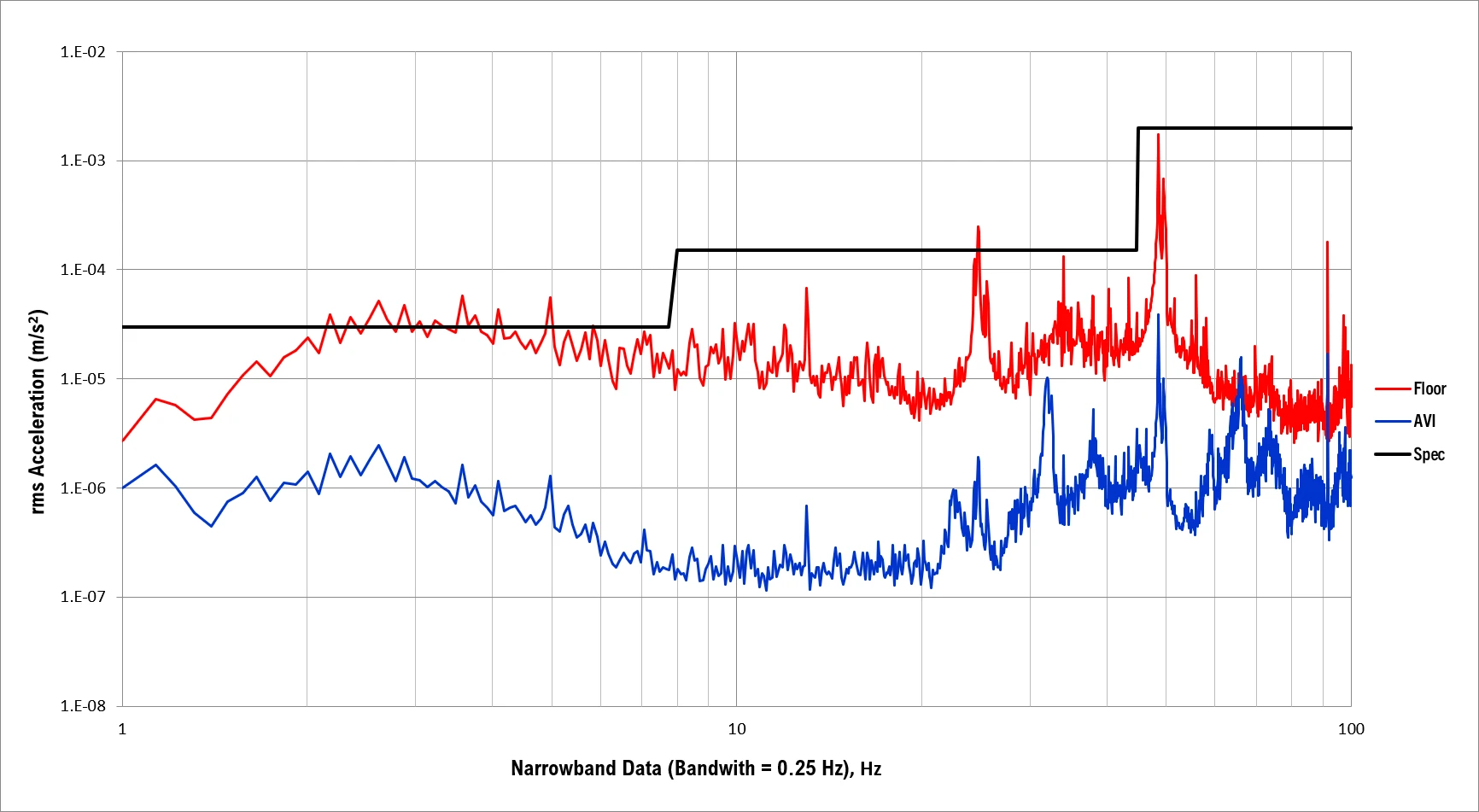

Vertical Autospectrum

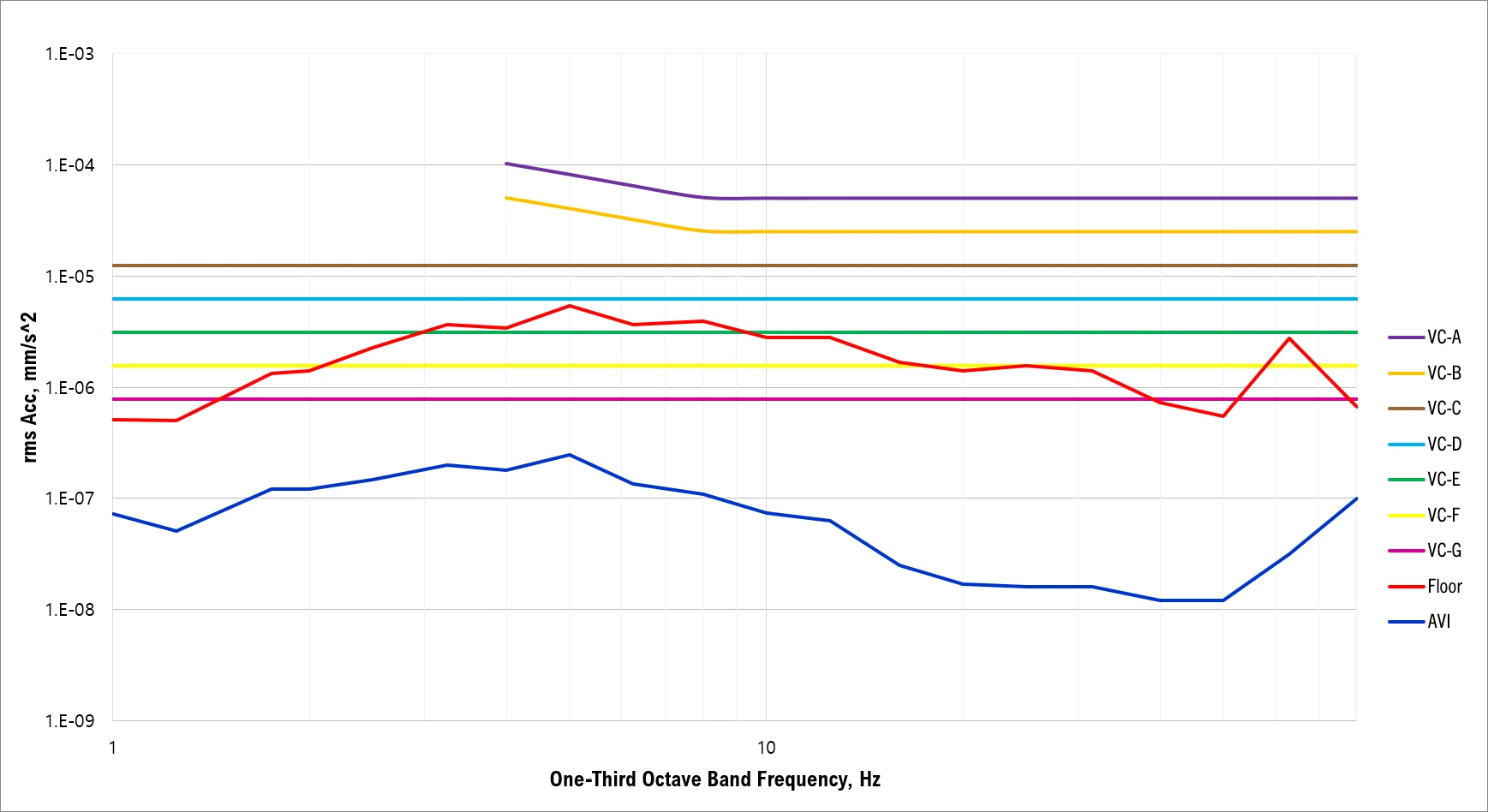

Vertical VC Curves

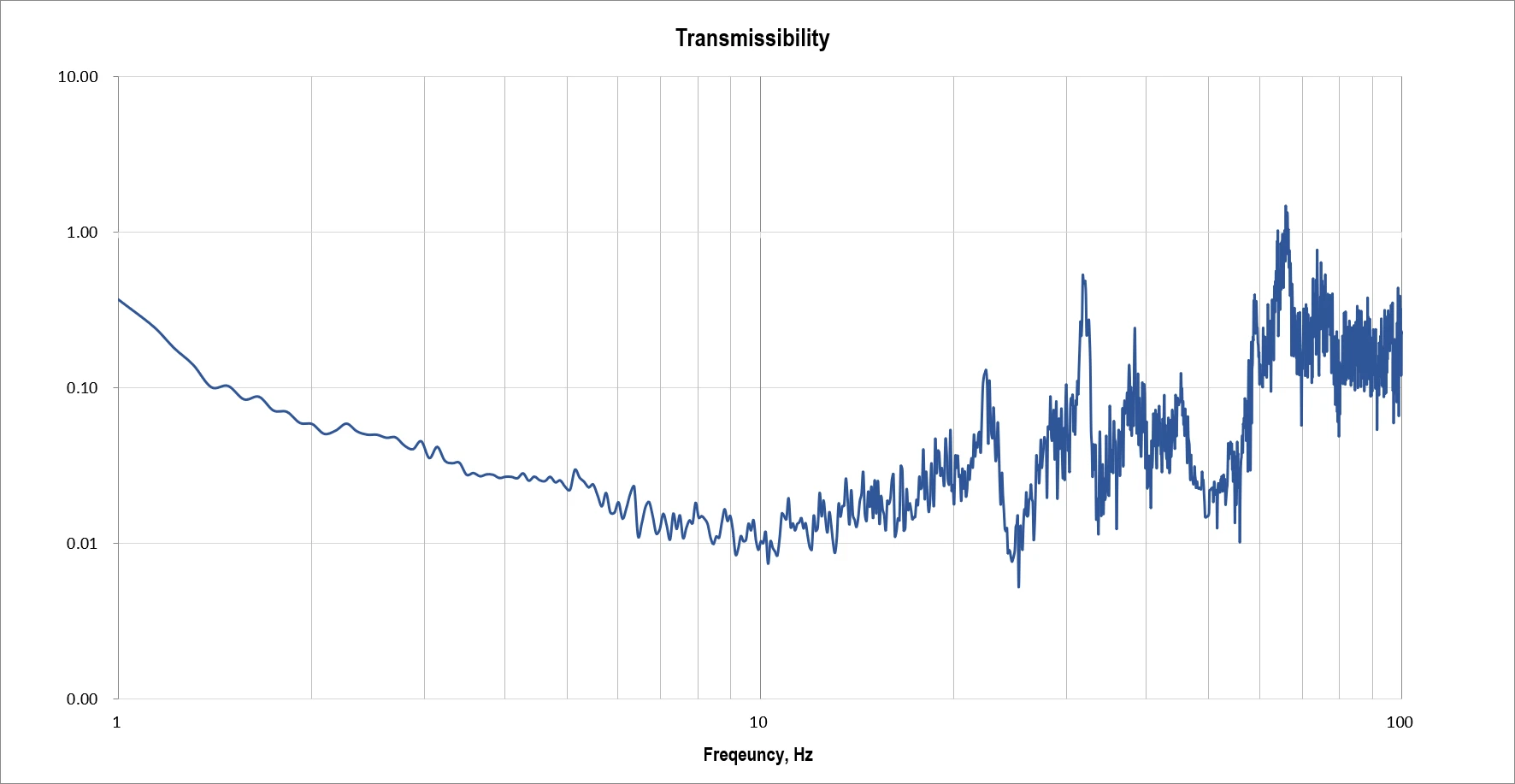

Vertical Transmissibility

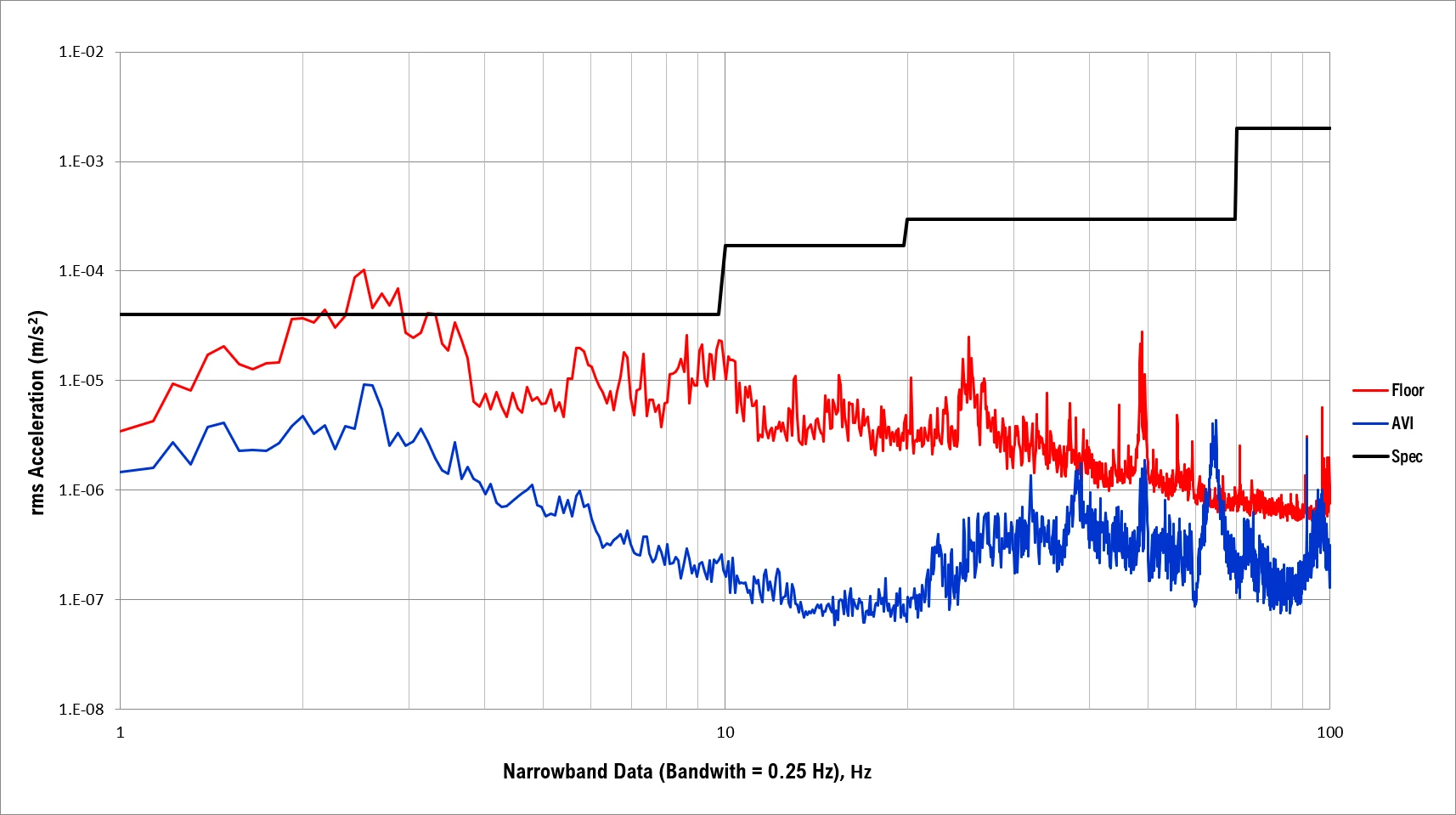

Left to Right Autospectrum

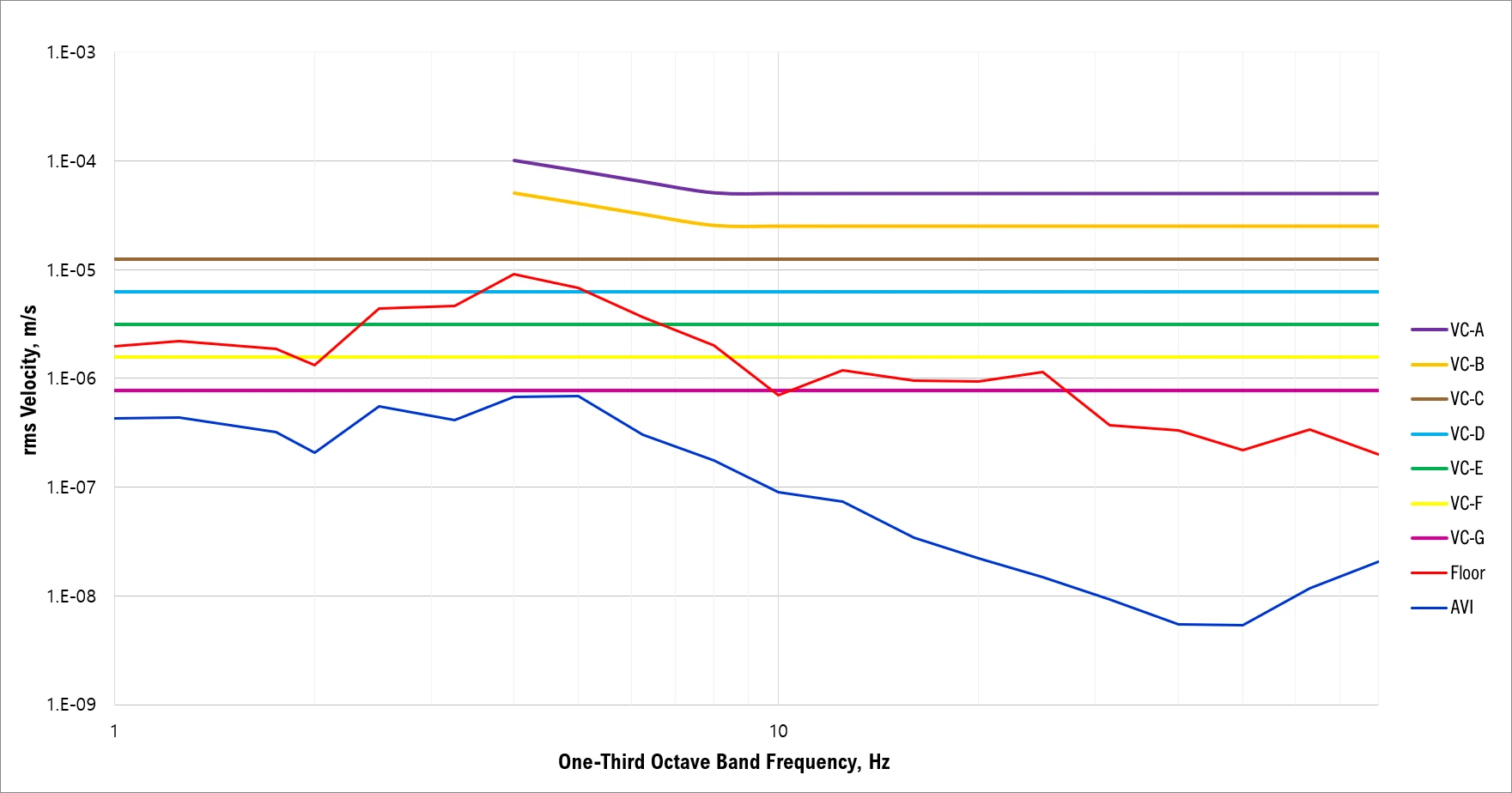

Left to Right VC Curves

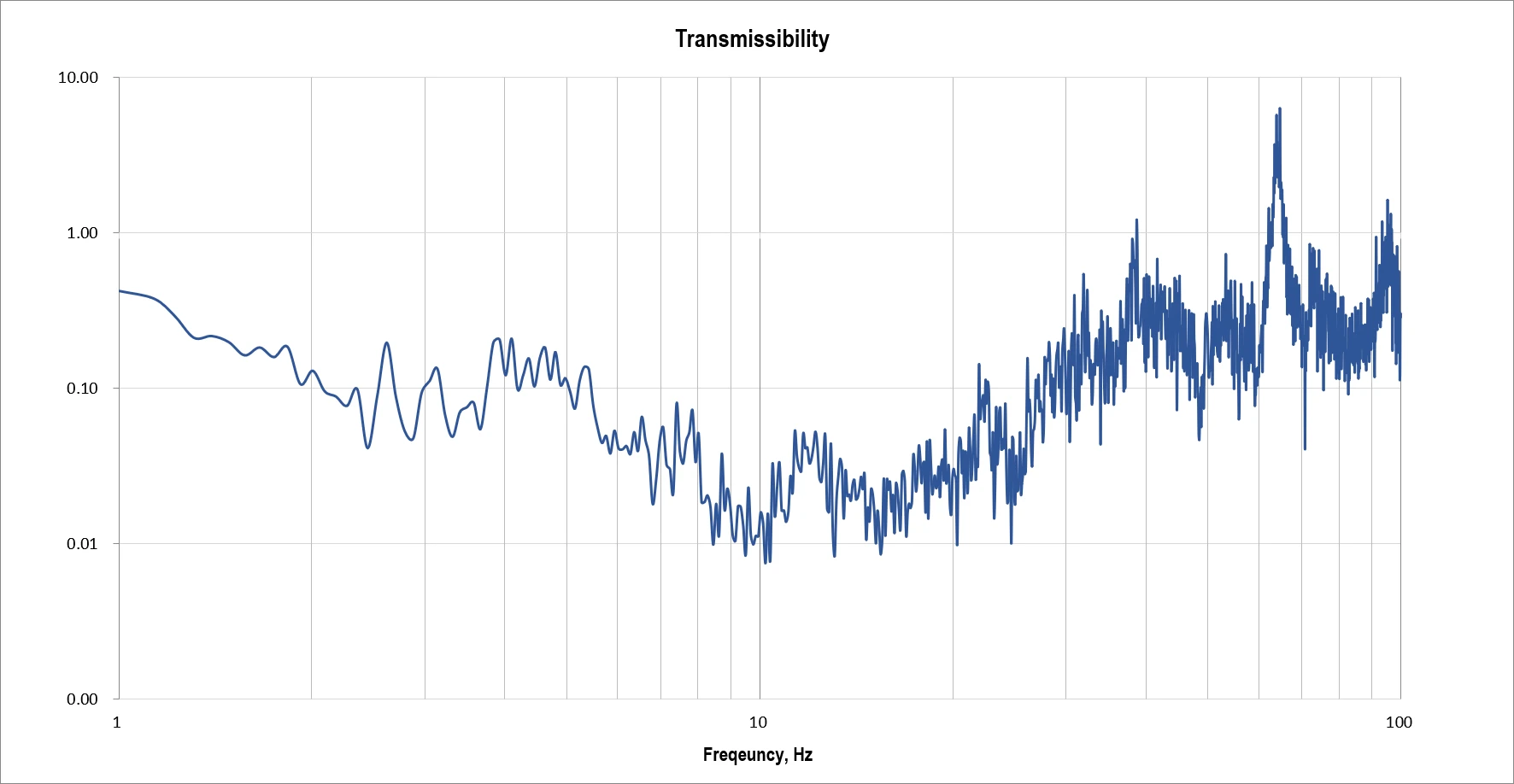

Left to Right Transmissibility

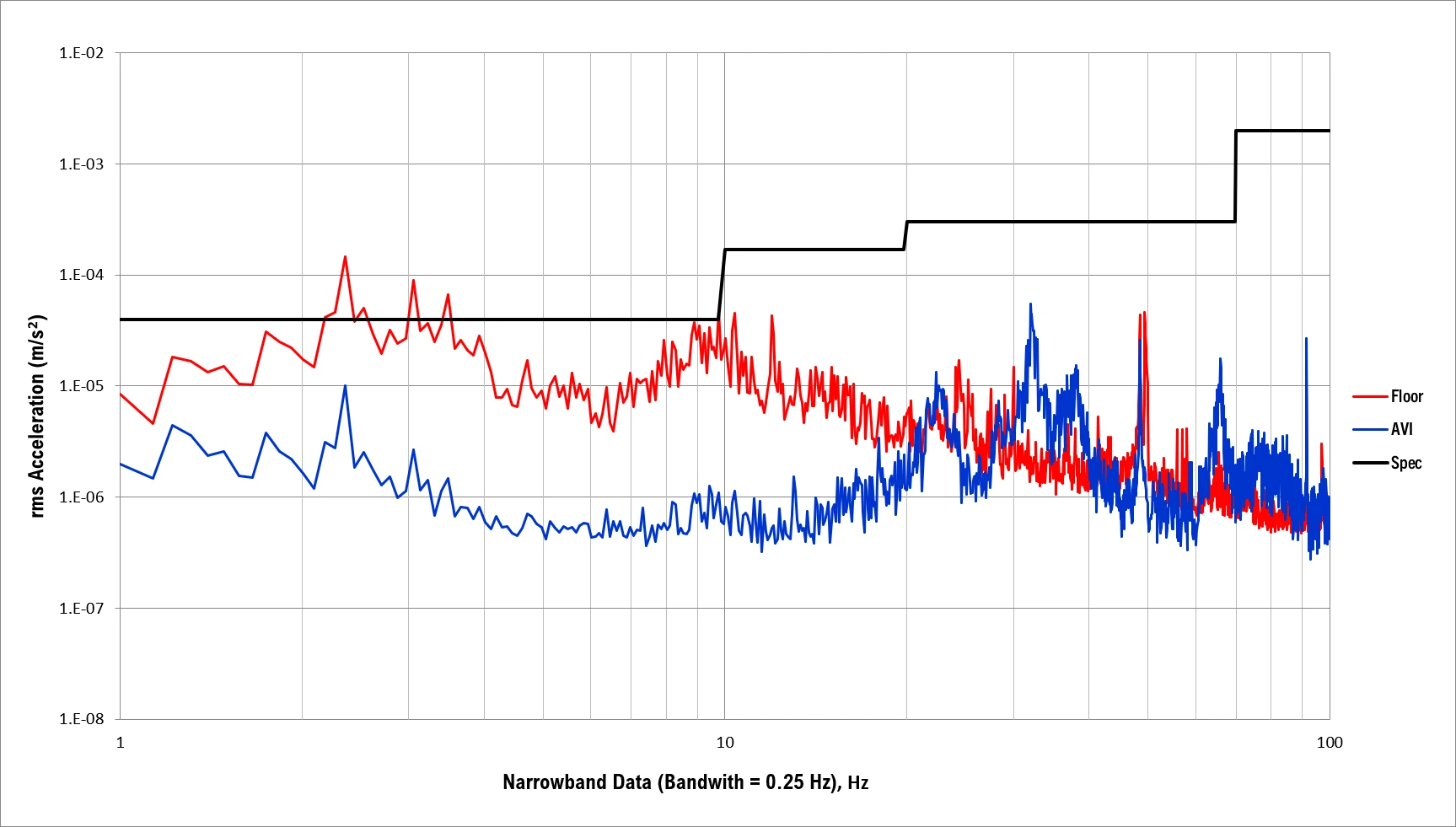

Front to Back Autospectrum

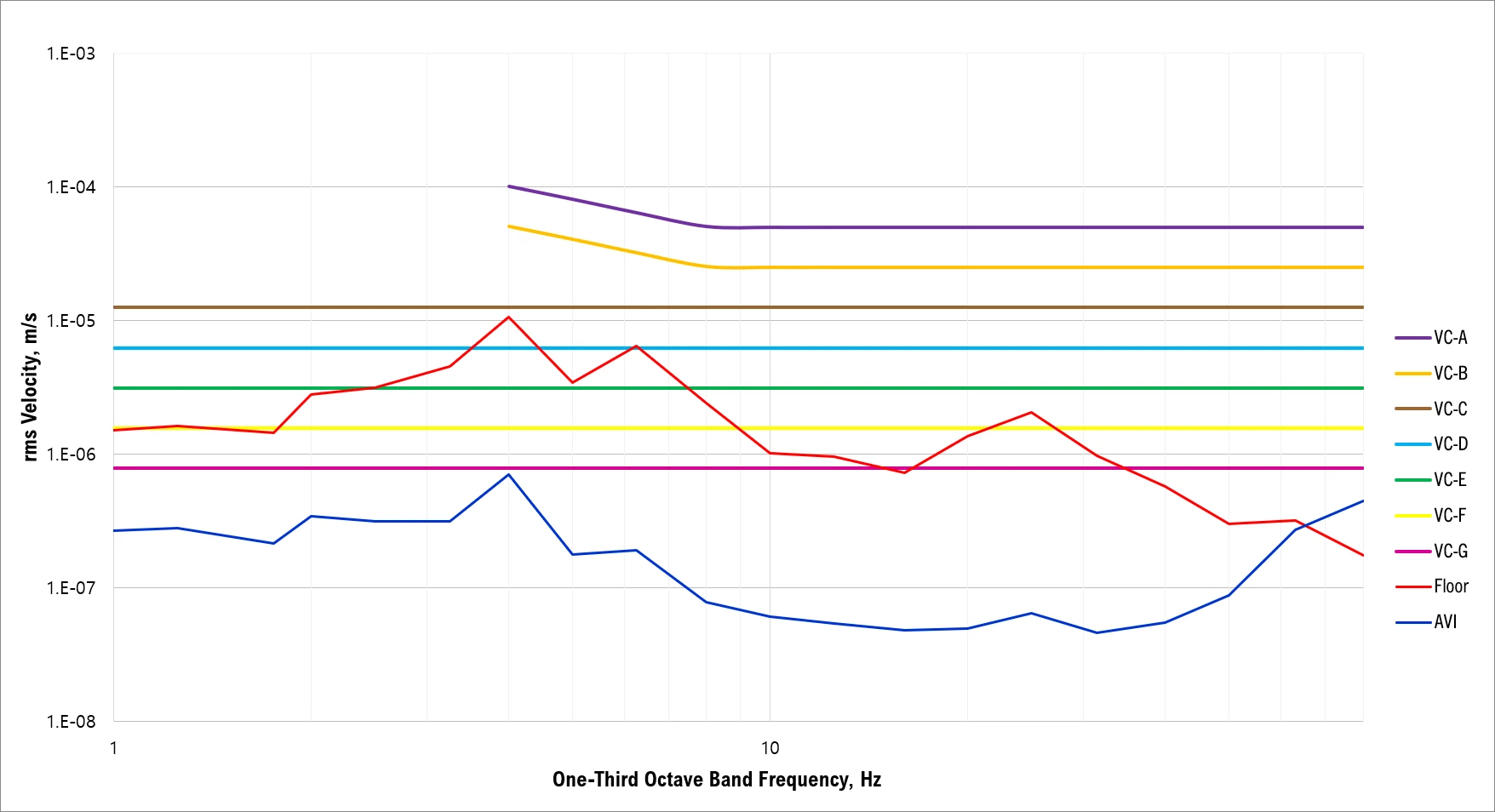

Front to Back VC Curves

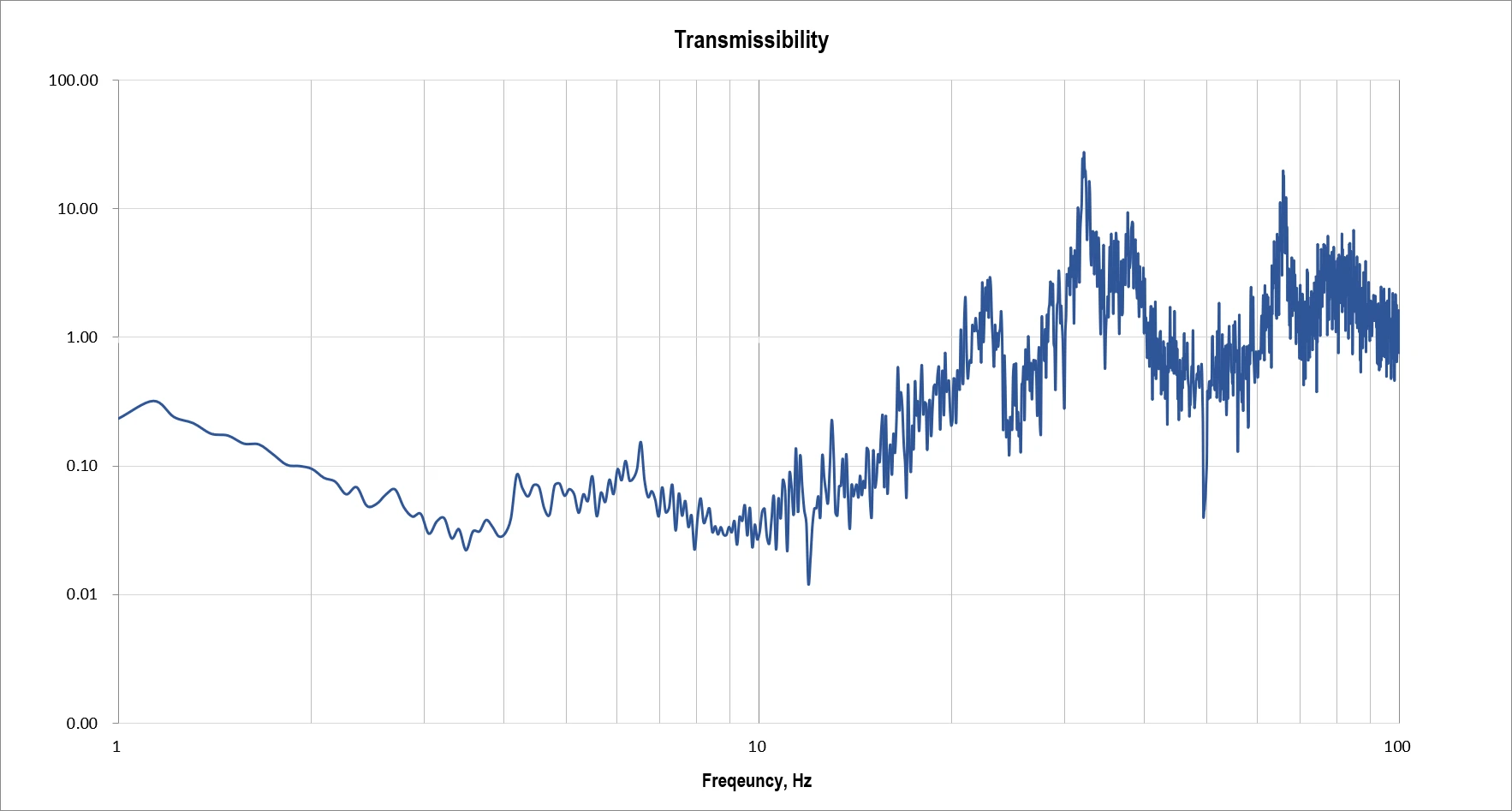

Front to Back Transmissibility

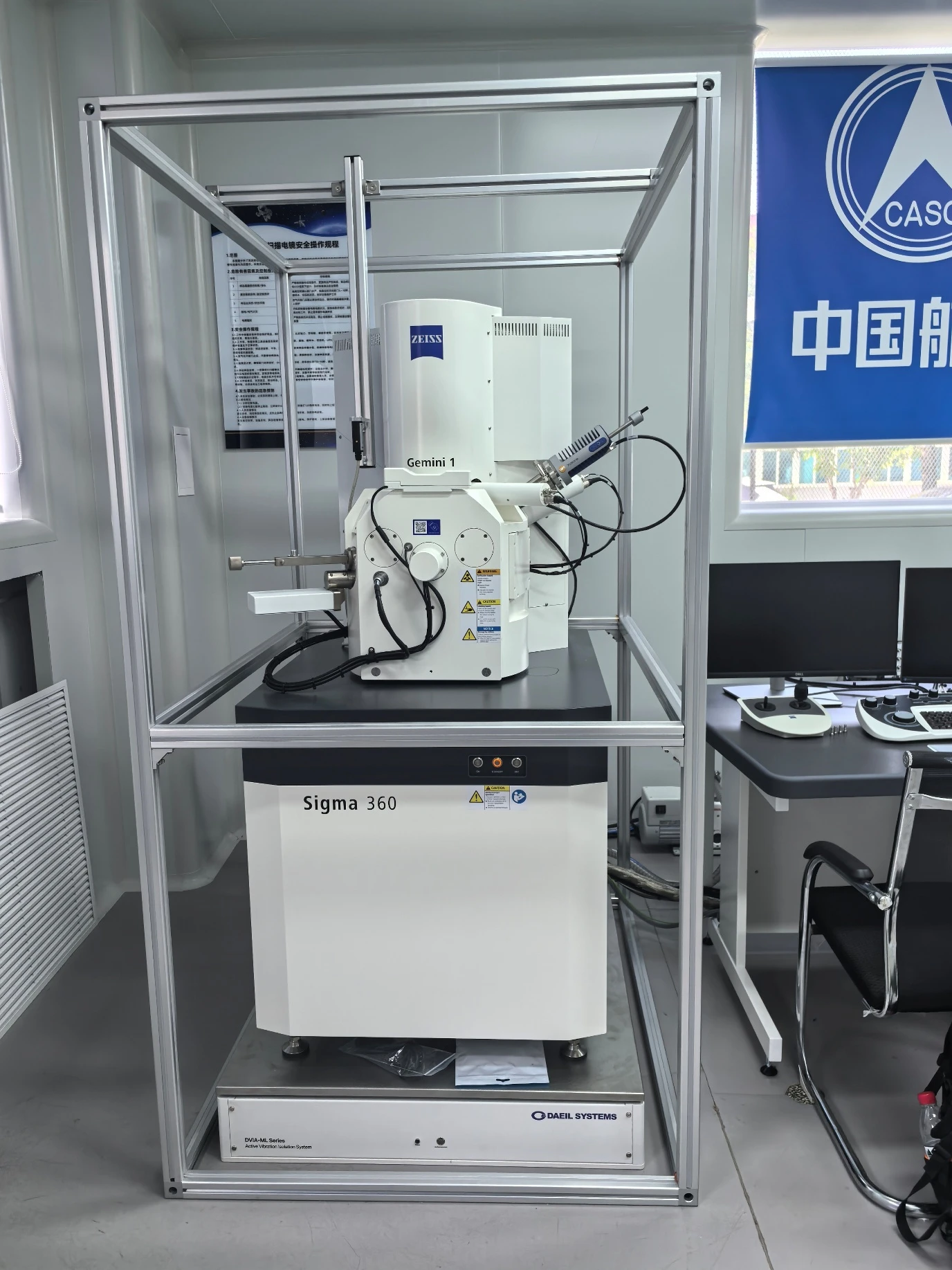

Installation Photo

Reference

The table below classifies vibration levels based on IEST-RP-CC012.2.

Criterion Curve	Description of Use	Amplitude(μm/s RMS)	Detail Size(μm)
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances. Usually adequate for computer equipment, hospital recovery rooms, semiconductor probe test equipment, and microscopes less than 40x.	200	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable in most instances for surgical suites, microscopes to 100x and for other equipment of low sensitivity.	100	25
VC-A	Adequate in most instances for optical microscopes to 400x, microbalances, optical balances, proximity and projection aligners, etc.	50	8
VC-B	Appropriate for inspection and lithography equipment (including steppers) to 3μm line widths.	25	3
VC-C	Appropriate standard for optical microscopes to 1000x, lithography and inspection equipment (including moderately sensitive electron microscopes) to 1μm detail size. TFT-LCD stepper/scanner processes.	12.5	1–3
VC-D	Suitable in most instances for demanding equipment, including many electron microscopes (SEMs and TEMs) and E-Beam systems.	6.25	0.1–0.3
VC-E	A challenging criterion to achieve. Assumed to be adequate for the most demanding of sensitive systems including long path, laser-based, small target systems. E-Beam lithography systems working at nanometer scales and other systems requiring extraordinary dynamic stability.	3.12	< 0.1
VC-F	Appropriate for extremely quiet research spaces; generally difficult to achieve in most instances, especially cleanrooms. Not recommended for use as a design criterion, only for evaluation.	1.56	N/A
VC-G	Appropriate for extremely quiet research spaces; generally difficult to achieve in most instances, especially cleanrooms. Not recommended for use as a design criterion, only for evaluation.	0.78	N/A

Notes:

1. As measured in one-third octave bands of frequency over the frequency 8 to 80 Hz (VC-A and VC-B) or 1 to 80 Hz (VC-C through VC-G).

2. The detail size refers to line width in the case of microelectronics fabrication, the particle (cell) size in the case of medical and pharmaceutical research, etc.
