Installation Report

DVIA-ULF Series

12-31-2025

Tier-1 Semiconductor Fabrication Facility DSR C Tower 3F Research Lab ZEISS VersaXRM 730 DVIA-ULF1500 Installation Report

DVIA-ULF Series

Installation Report

Tier-1 Semiconductor Fabrication Facility

ZEISS

Overview

Tuning and vibration measurements were performed on the DVIA-ULF1500 installed at Tier-1 Semiconductor Fabrication Facility DSR C Tower, 3rd floor research laboratory.

Tuning and vibration measurements were conducted with the equipment Turned on/IDLE.

Data is presented as VC Curves, with reference materials on vibration levels.

Vibration Isolation System Information

Model: DVIA-ULF1500

Serial Number: 250815R2

Engineer

Chaewon Lee from DAEIL SYSTEMS

Measurement Date

December 31, 2025

Installation Site

Tier-1 Semiconductor Fabrication Facility DSR C Tower, 3rd floor research laboratory

End User

Tier-1 Semiconductor Fabrication Facility

Equipment Information

Manufacturer: ZEISS

Equipment: X-ray Microscope

Model: VersaXRM 730

Equipment Specification

VC-C

Equipment Status

Equipment installed and Turned on/IDLE

Measuring Equipment

10.1) Data Physics DAQ

Hardware: QUATTRO, Serial Number: 22436

Software: SignalCalc ACE

10.2) Accelerometer

PCB Accelerometer

Model: 393B05

Measuring Set-up

F Span: 200 Hz

Lines: 3200

Engineering Units: m/s

Window: Hanning

Averaging: FFT Spectrum Averaging

Averaging mode: Exponential, 40

Conclusion

Vibration specifications are satisfied in all directions.

Measurement Data

Measuring point	Status	Vibration spec	Direction	Floor	DVIA-ULF1500	Floor	DVIA-ULF1500
Tier-1 Semiconductor Fabrication Facility DSR C Tower 3F Research Lab 1. Floor vibration 2. DVIA-ULF1500	Turned on/IDLE	VC-C	Vertical	VC-B @ 10 Hz	VC-D @ 10 Hz	✗ FAIL	✓ PASS
			Left to Right	VC-E @ 8 Hz	VC-G @ 8 Hz	✓ PASS	✓ PASS
			Front to Back	VC-D @ 8 Hz	VC-F @ 8 Hz	✓ PASS	✓ PASS

Data and Image

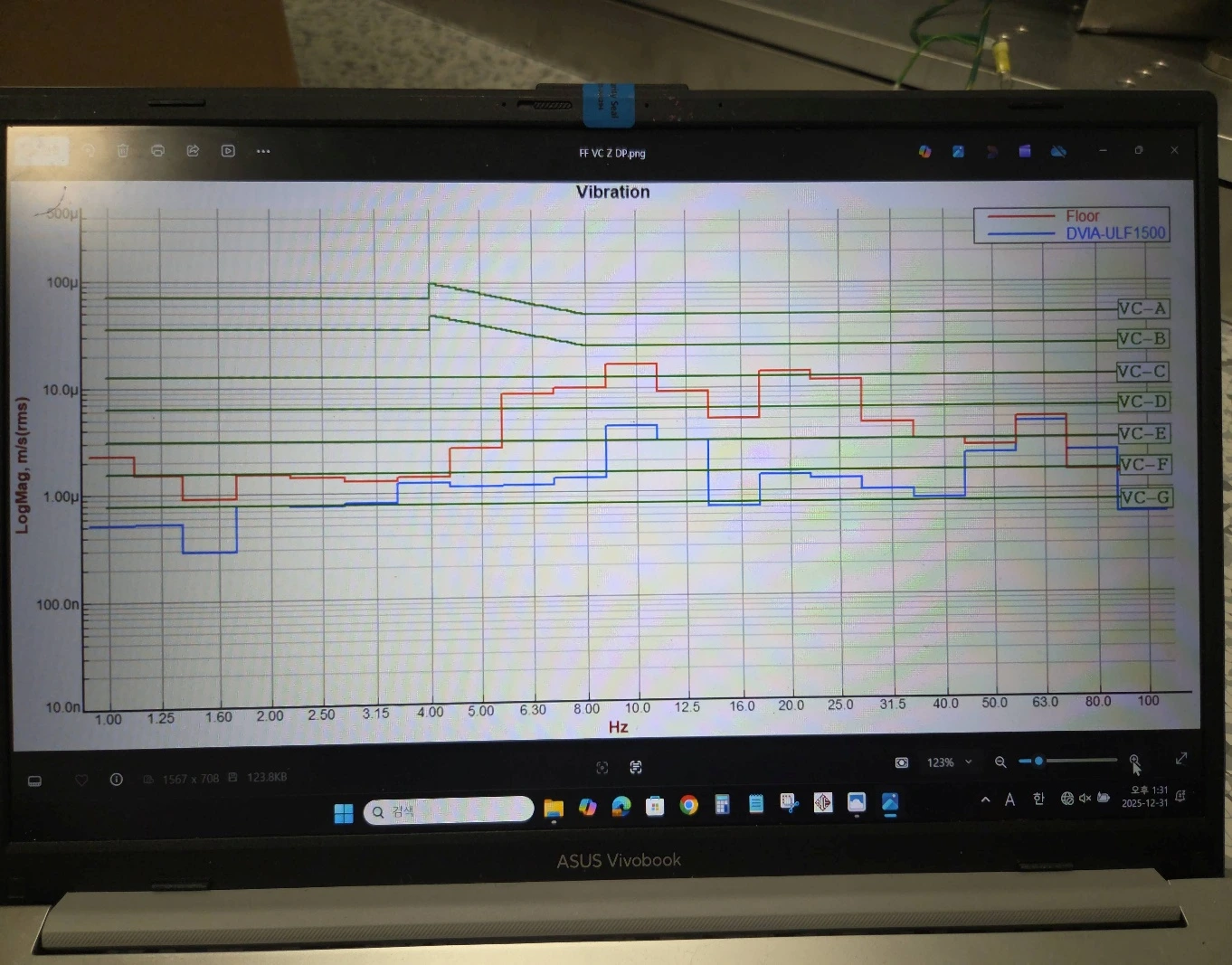

Vertical VC Curves

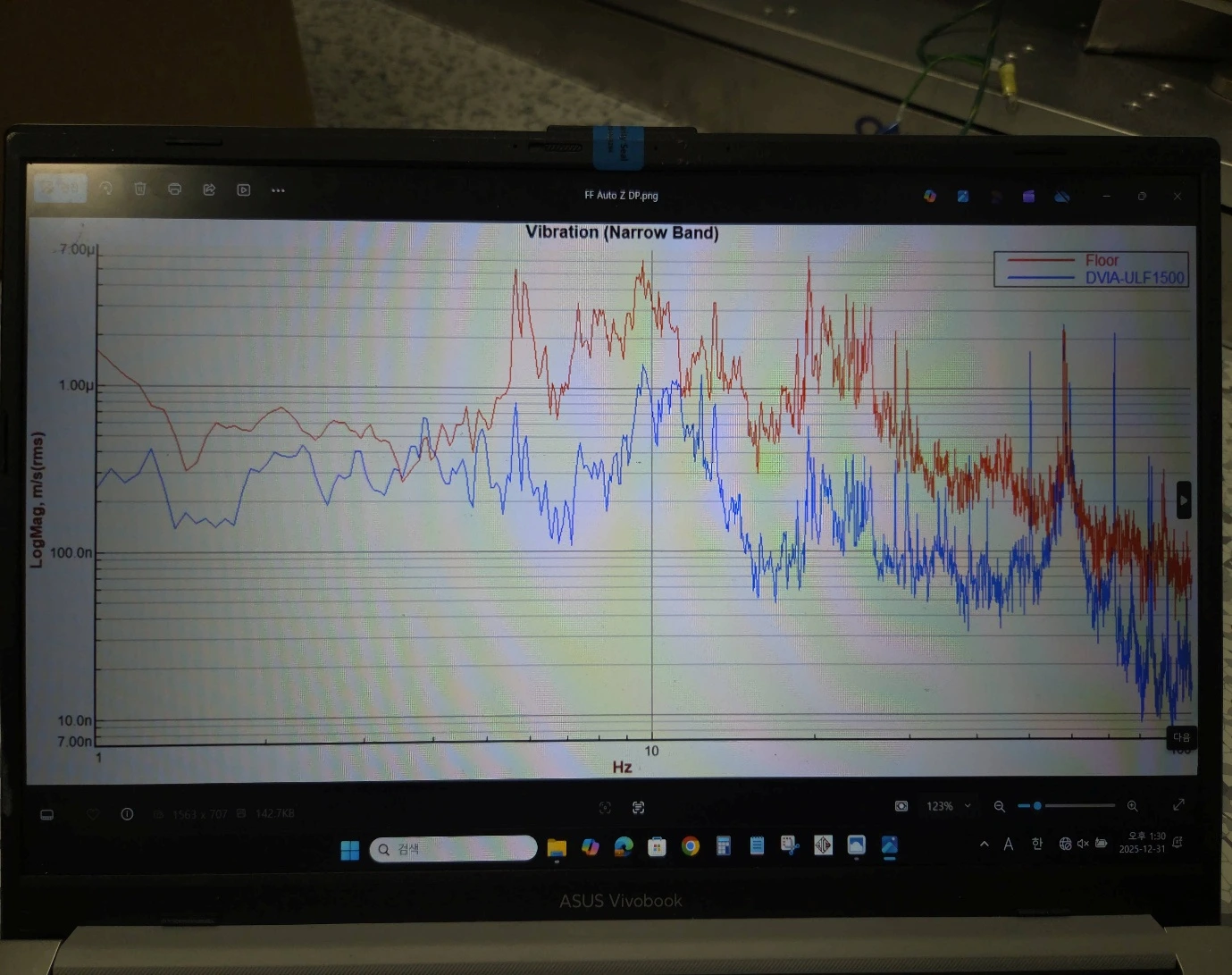

Vertical Autospectrum

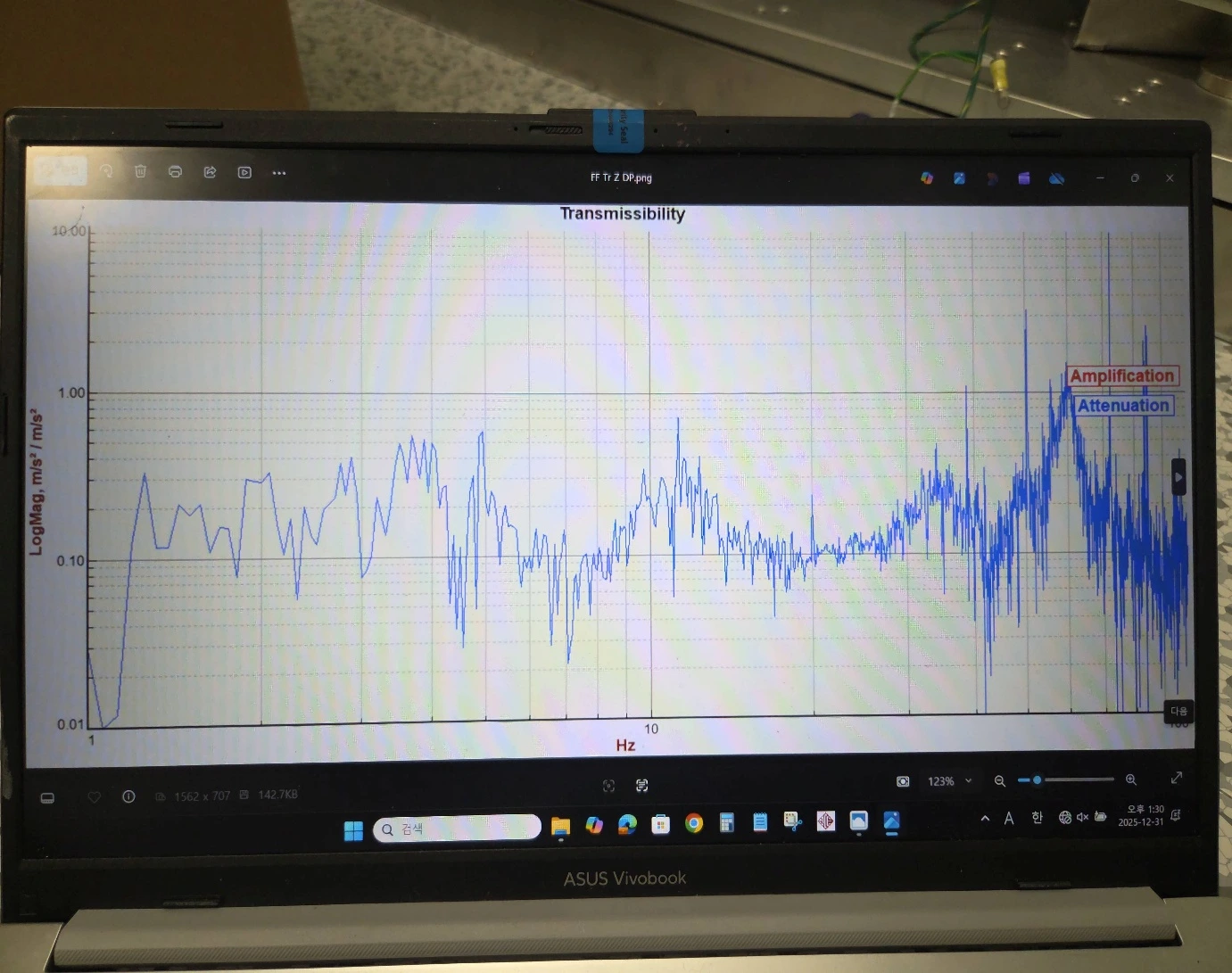

Vertical Transmissibility

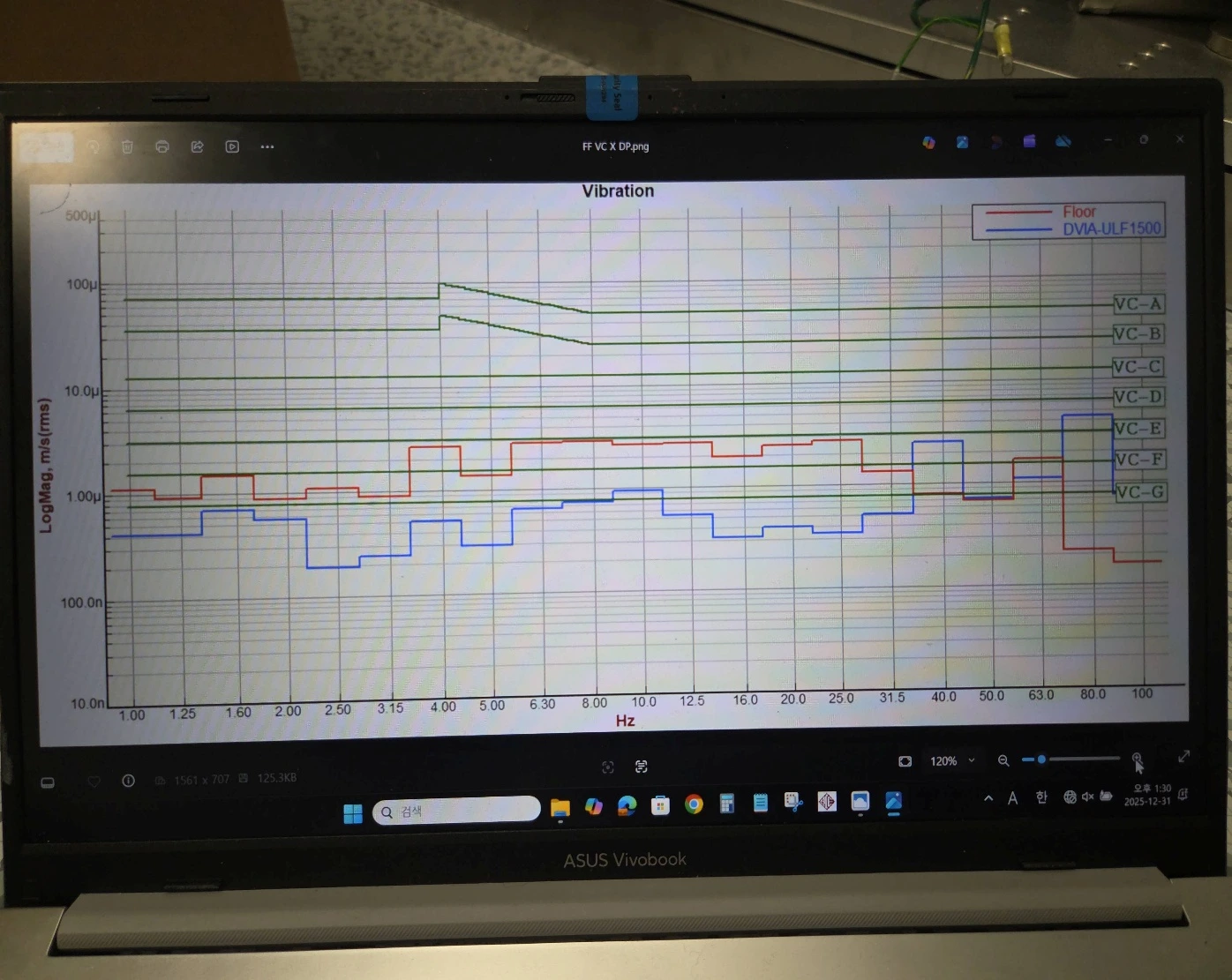

Left to Right VC Curves

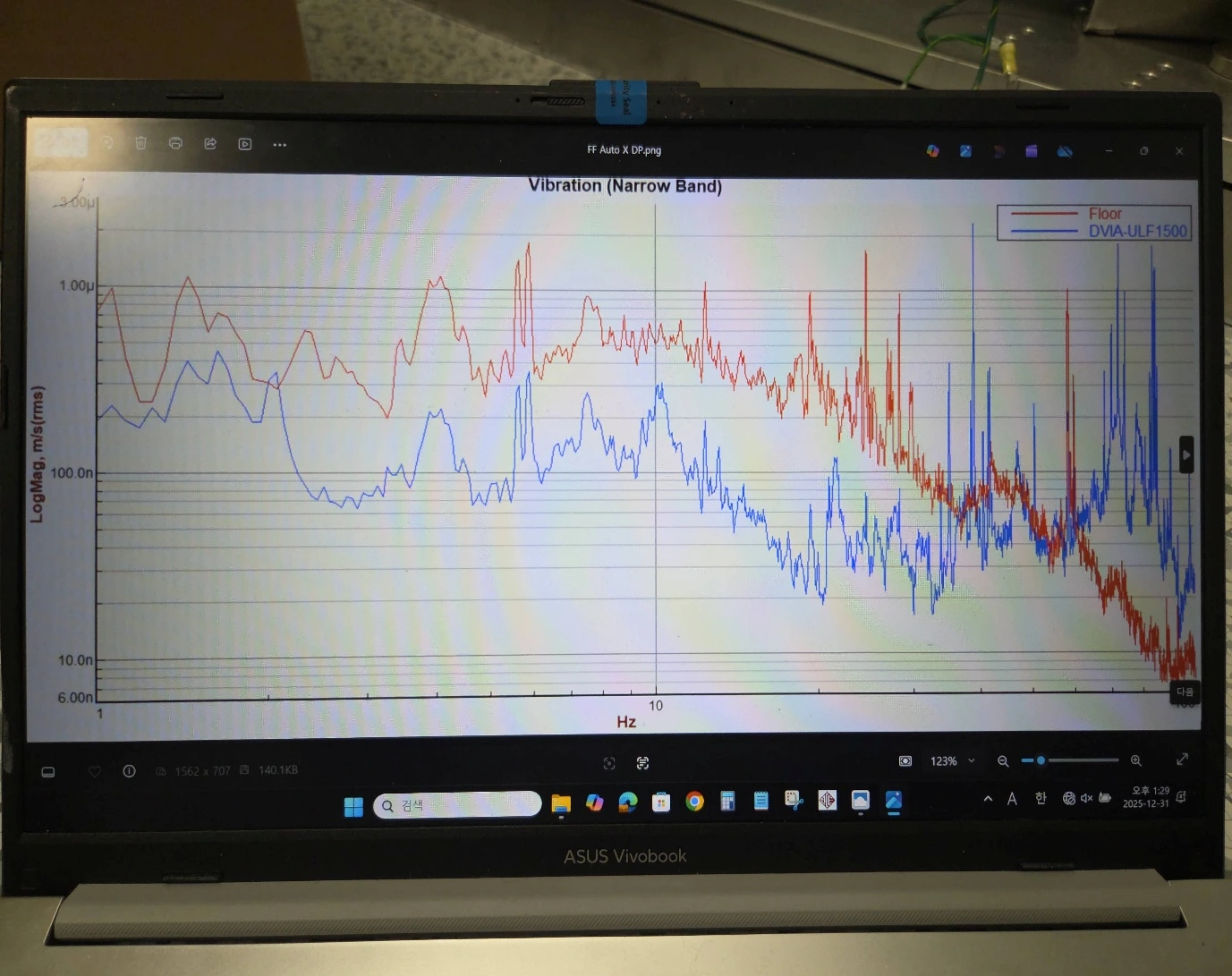

Left to Right Autospectrum

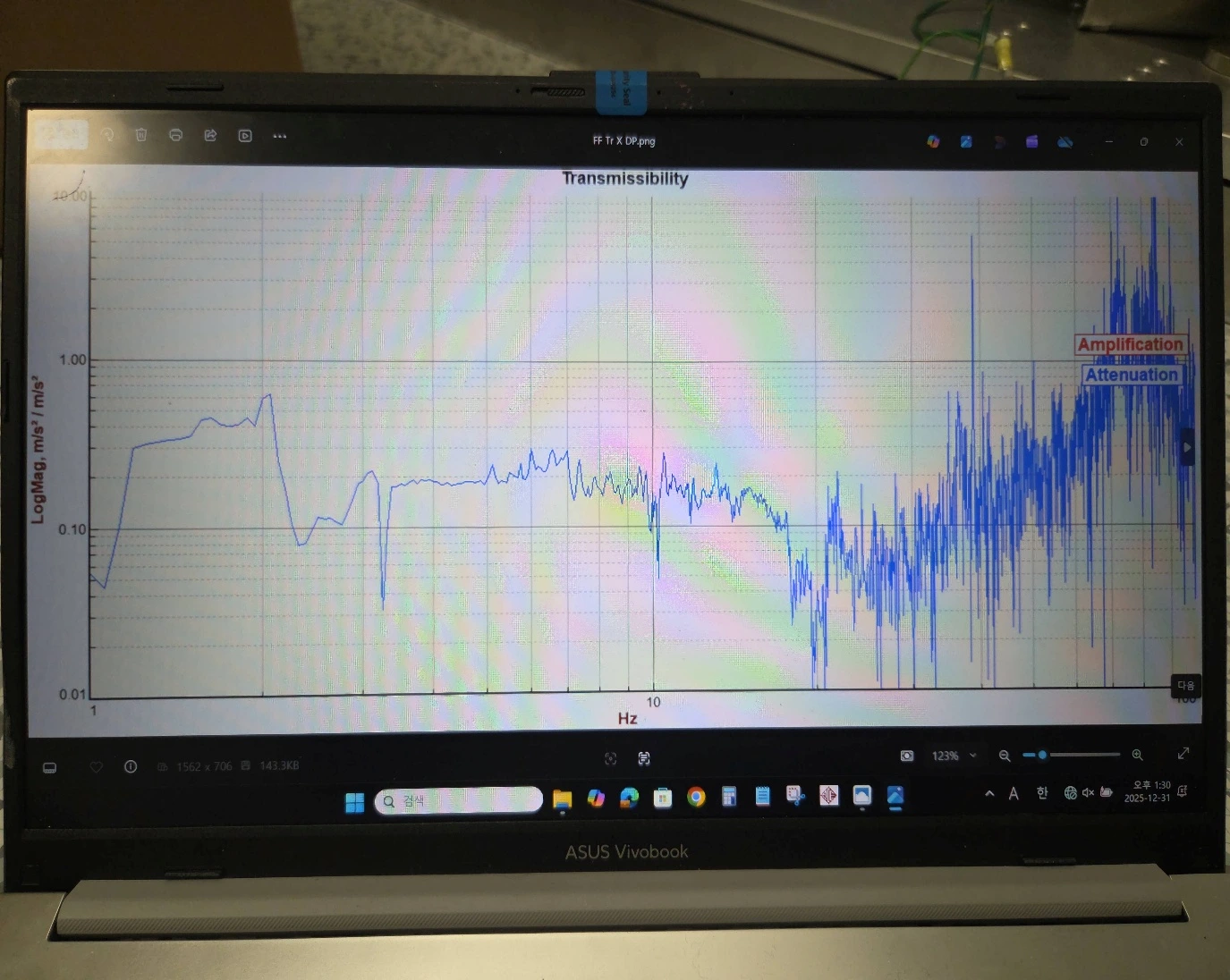

Left to Right Transmissibility

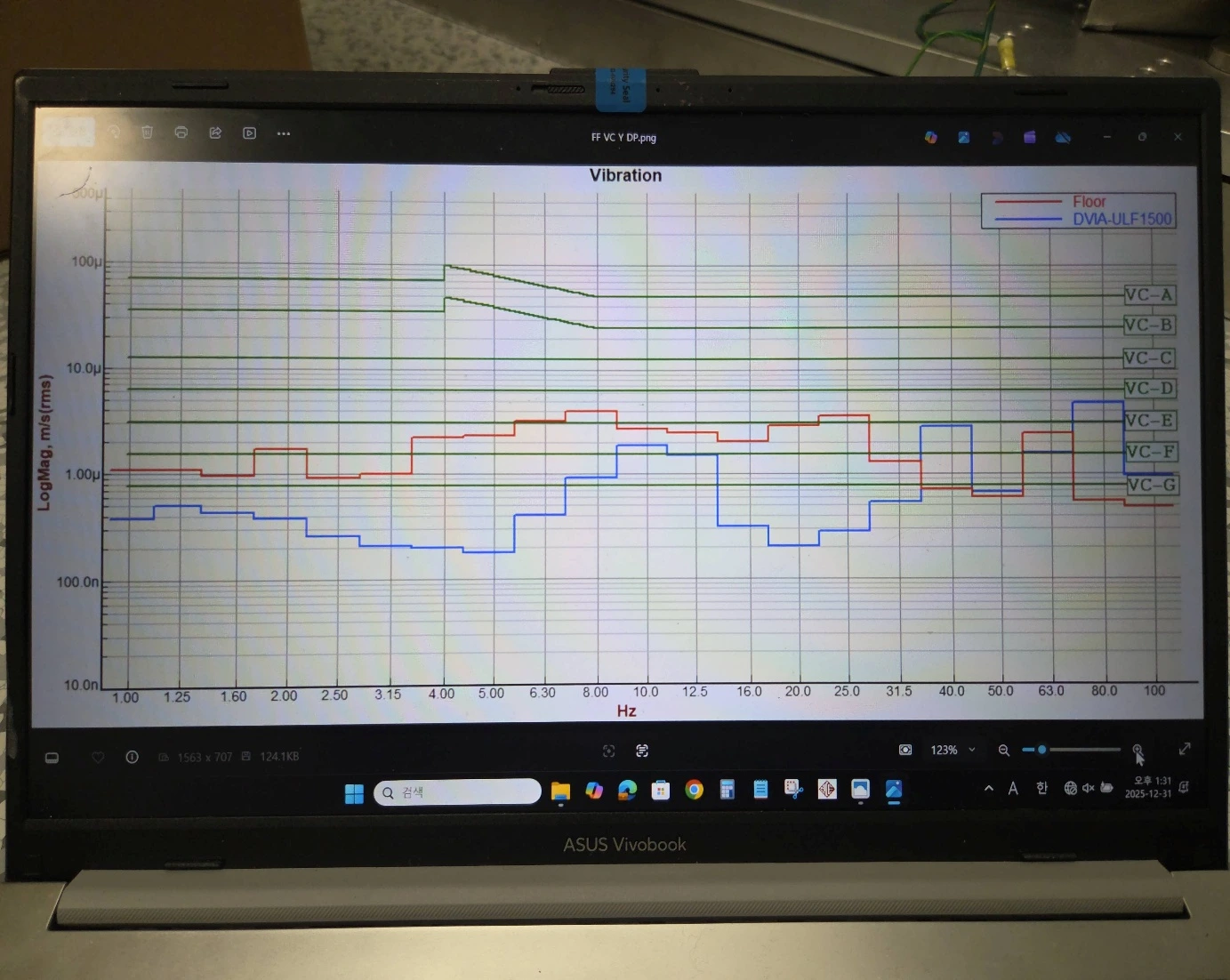

Front to Back VC Curves

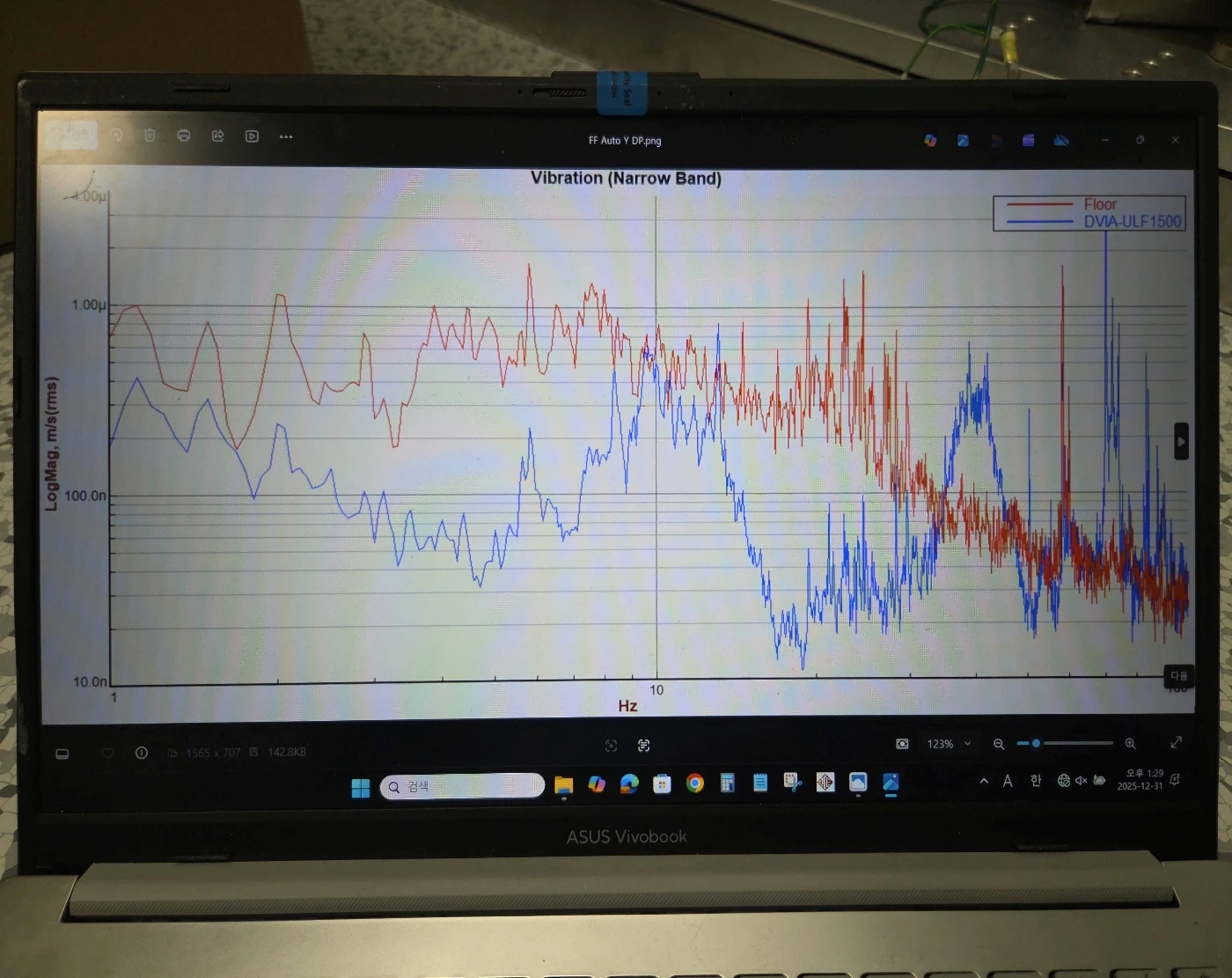

Front to Back Autospectrum

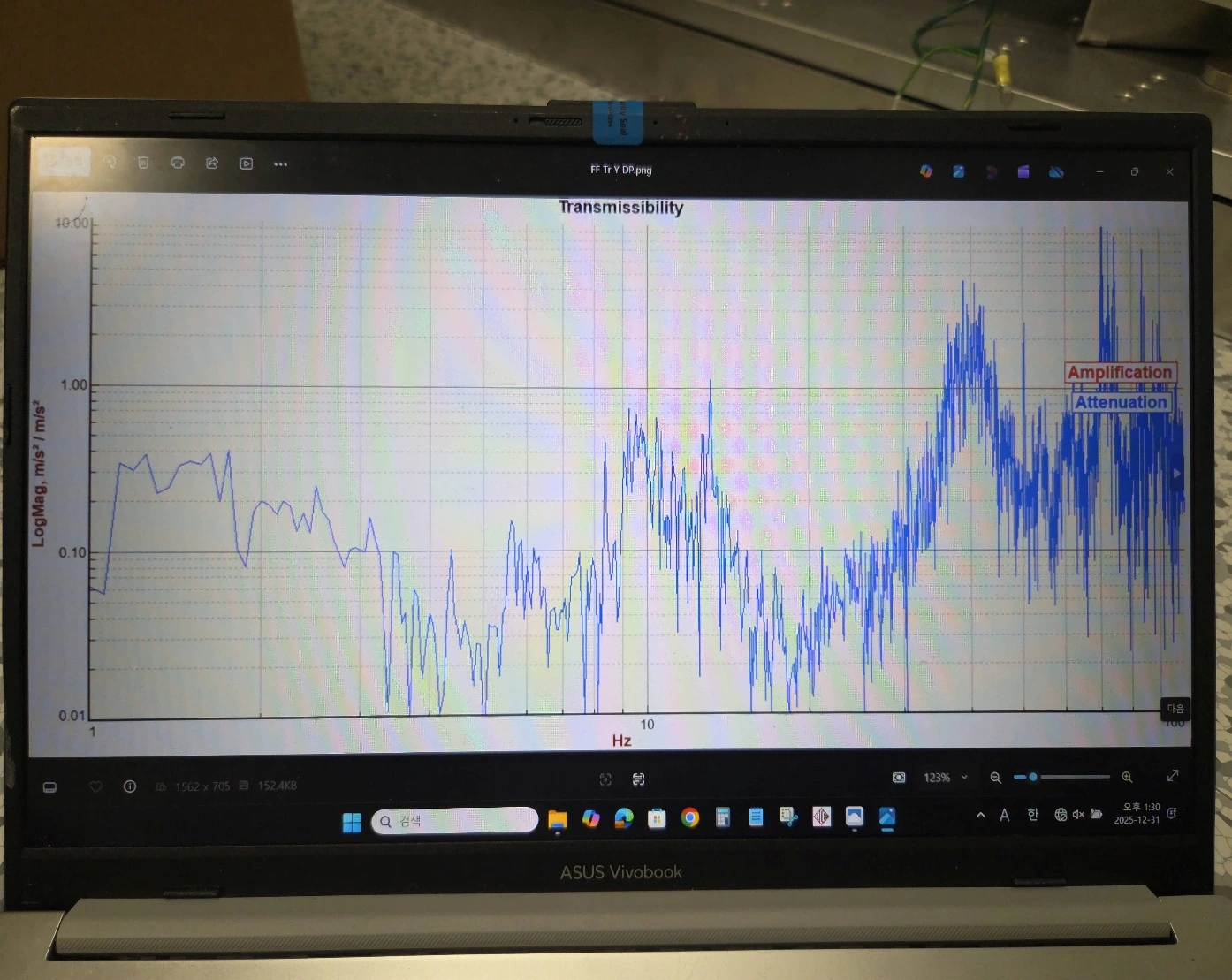

Front to Back Transmissibility

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
