Installation Report
DVIA-ULF Series
05-23-2022
Chengdu Jijia Technology TESCAN MIRA DVIA-U1000 (220221R1) Installation Report — Chengdu
DVIA-U Series
Installation Report
Chengdu Jijia Technology
TESCAN
MIRA
China
DVIA-U1000
220221R1
Contents
Chengdu Jijia Technology
Chengdu Jijia Technology.

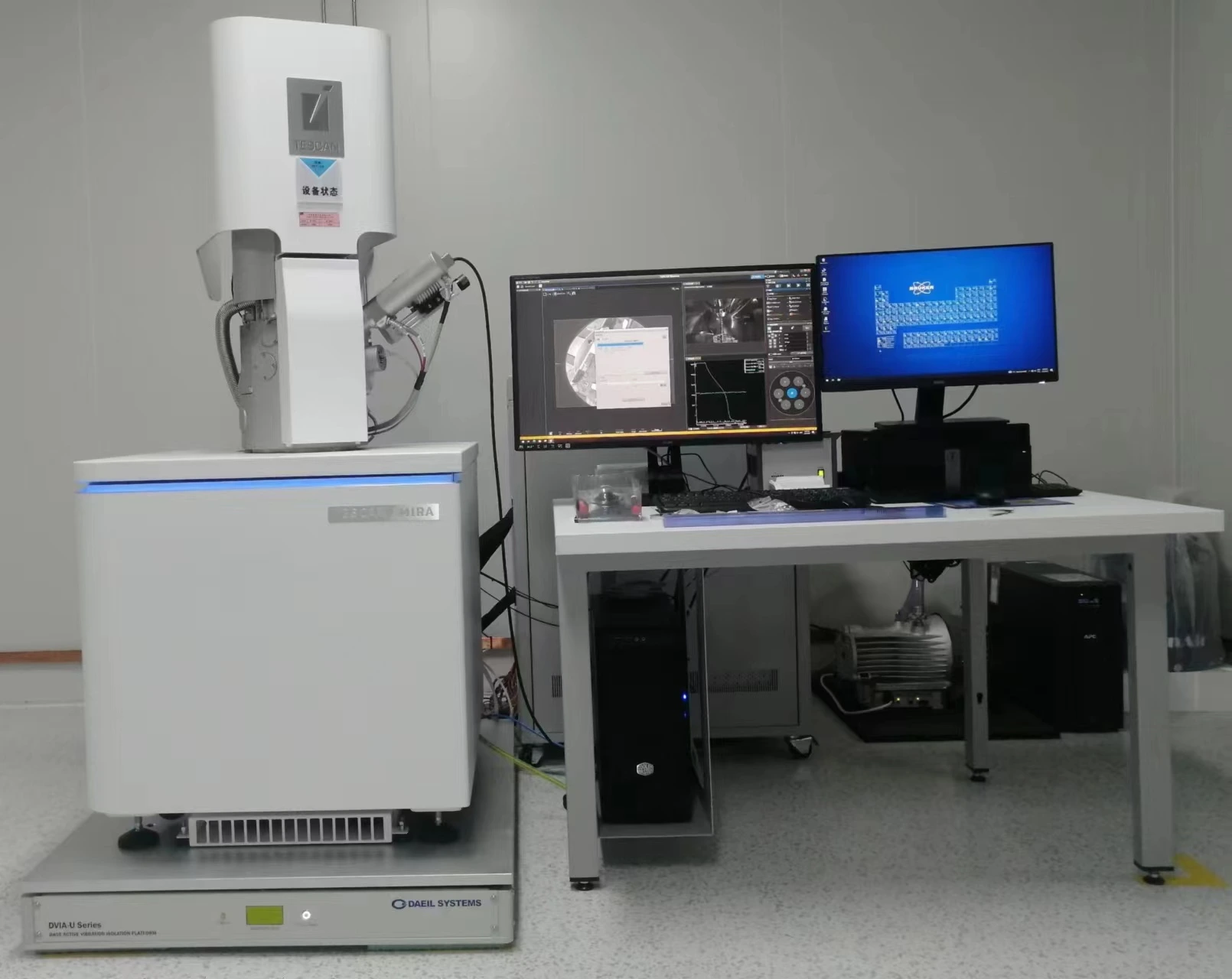

(U1000_ 220221R1 Set up)
Site checklist
| Target equipment | TESCAN MIRA |
|---|---|
| Place of installation | Chendgu, 3F |
| Remark | Good Performance |
| END USER | Chengdu Jijia Technology. |
Operator and dates
| Operator: Yu, Ho Sang Date of setup : 22.05.20 Date of reporting : 22.05.23 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
The DVIA-U1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.05.20 (Friday),
Operator: DAEIL SYSTEMS, HoSang Yu
Place of measurement: Chendgu, 3F
Equipment Model: TESCAN MIRA
Measurement conditions and results
Summary of measurement results
Good omnidirectional performance.
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | B | D | C |
| Above Active | E | F | F |
U1000 internal program performance measurement result

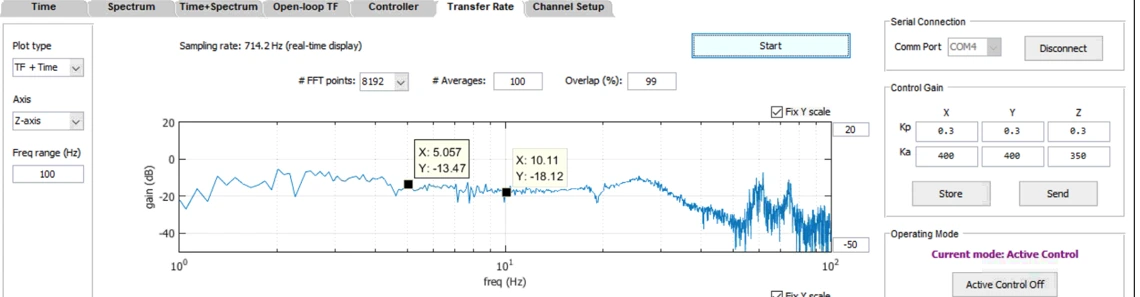

Z axis — Transfer rate

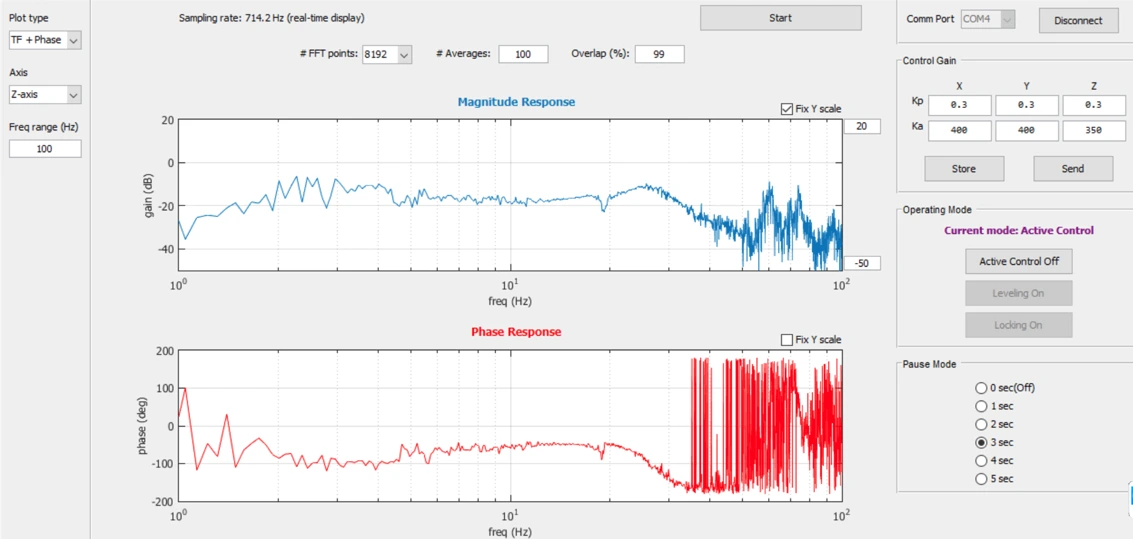

Z axis — Transfer function and phase

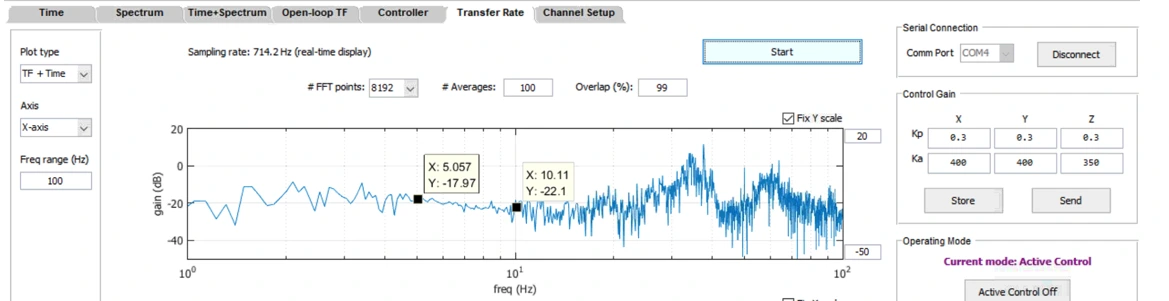

X axis — Transfer rate

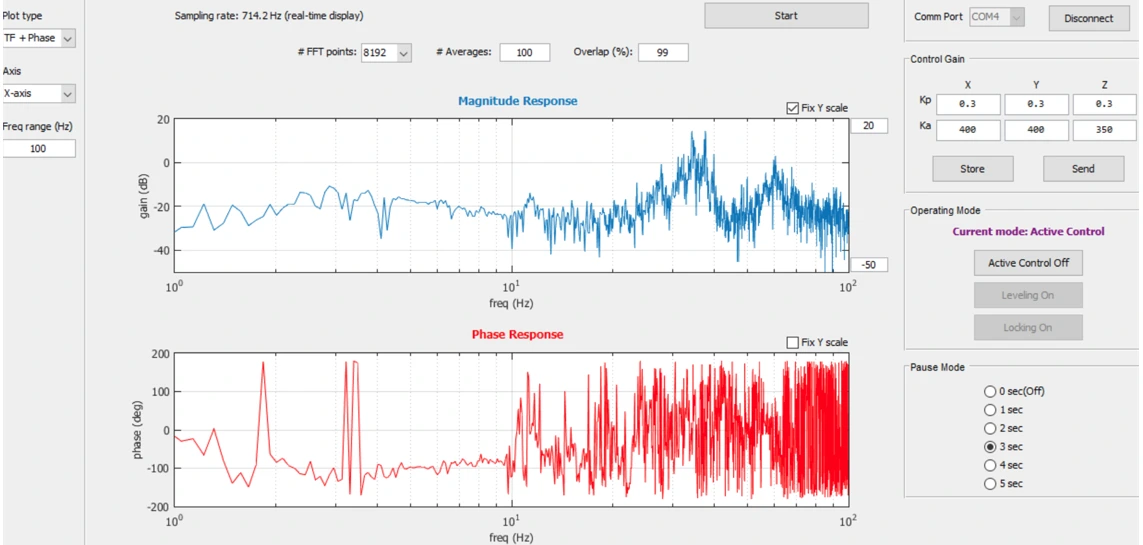

X axis — Transfer function and phase

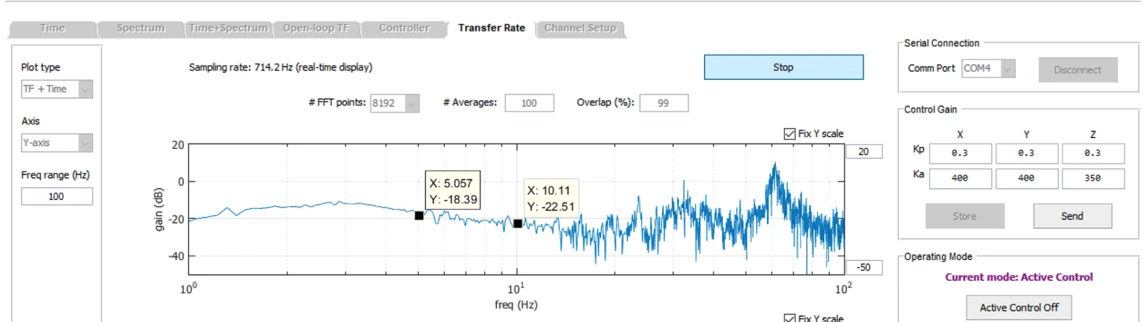

Y axis — Transfer rate

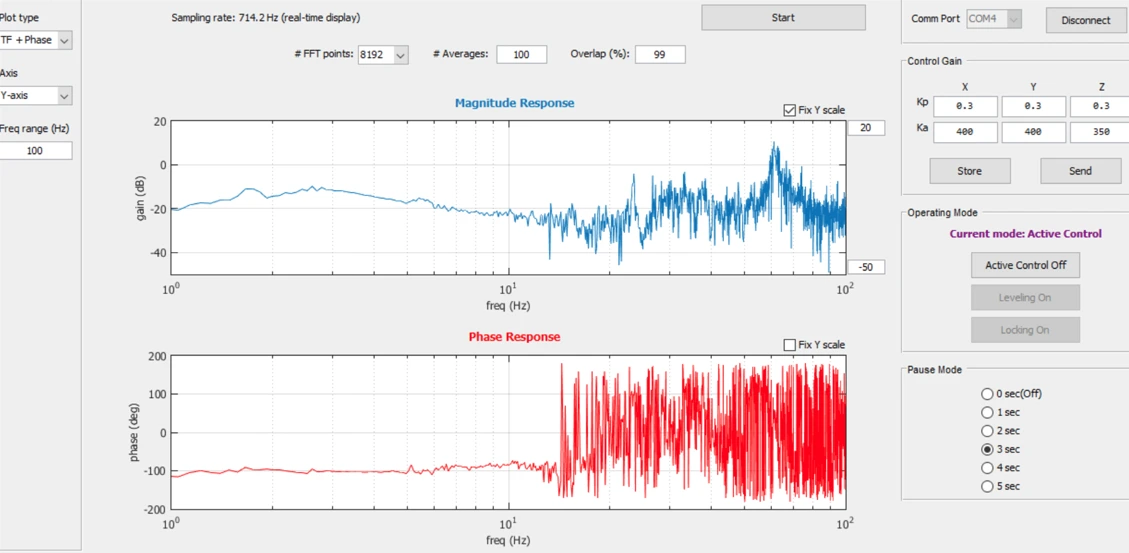

Y axis — Transfer function and phase
Octave Band Result

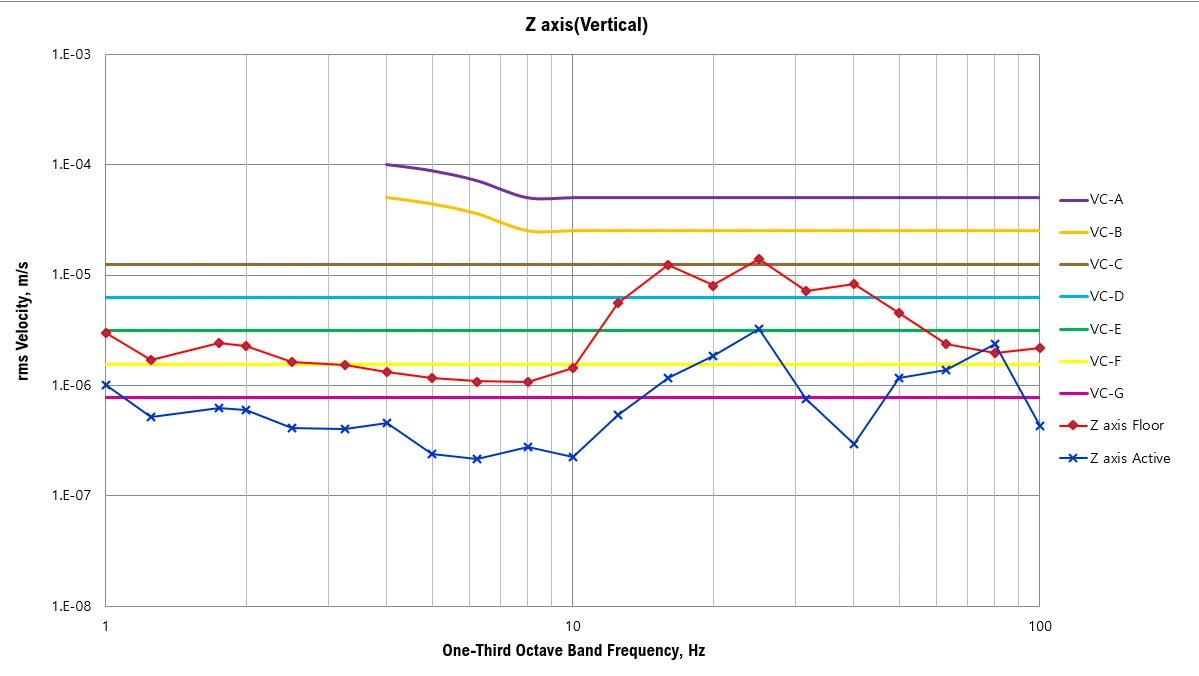

Z axis

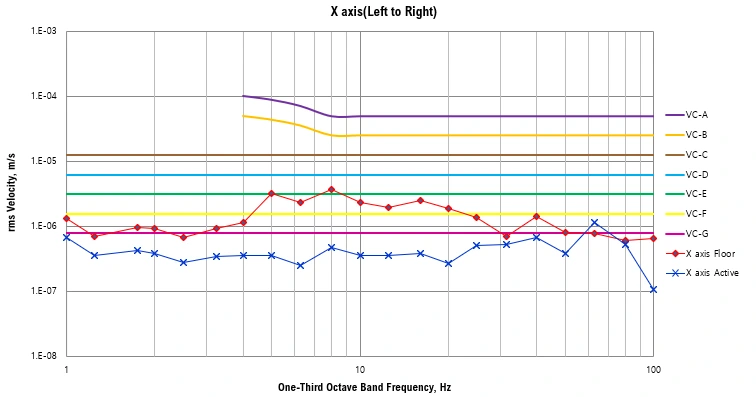

X axis

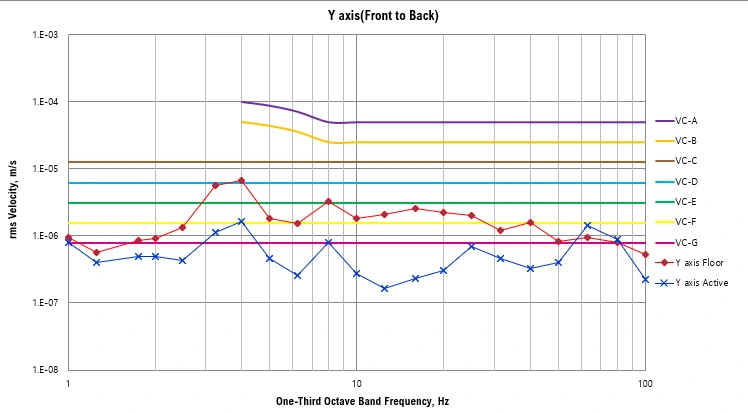

Y axis
