Xiamen University of Technology Zeiss Sigma 500 DVIA-UB700 (P9) China trip installation report — 2019.01.07
DVIA-ULF Series
Installation Report
DVIA-UB700
P9
Zeiss
Sigma 500
Xiamen University of Technology
Xiamen
China
Contents
중국 출장 보고서 (UB700_P9 Set up)
| Target equipment | Zeiss Sigma 500 |
|---|---|
| Installation site | SEM Lab, 1F, Xiamen University of Technology |
| Notes | 성능 양호 |
| END USER | Xiamen University of Technology |
출장자 : 최성원
출장일 : 19.01.03
작성일 : 19.01.07
Installation result summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | C | C |
| X | D | F | |
| Y | D | E |
전 방향 성능 양호
전 방향 100Hz에서 강한 진동이 측정됨. 소음이나 외력의 영향으로 보임.
MB1000 internal program performance measurement result

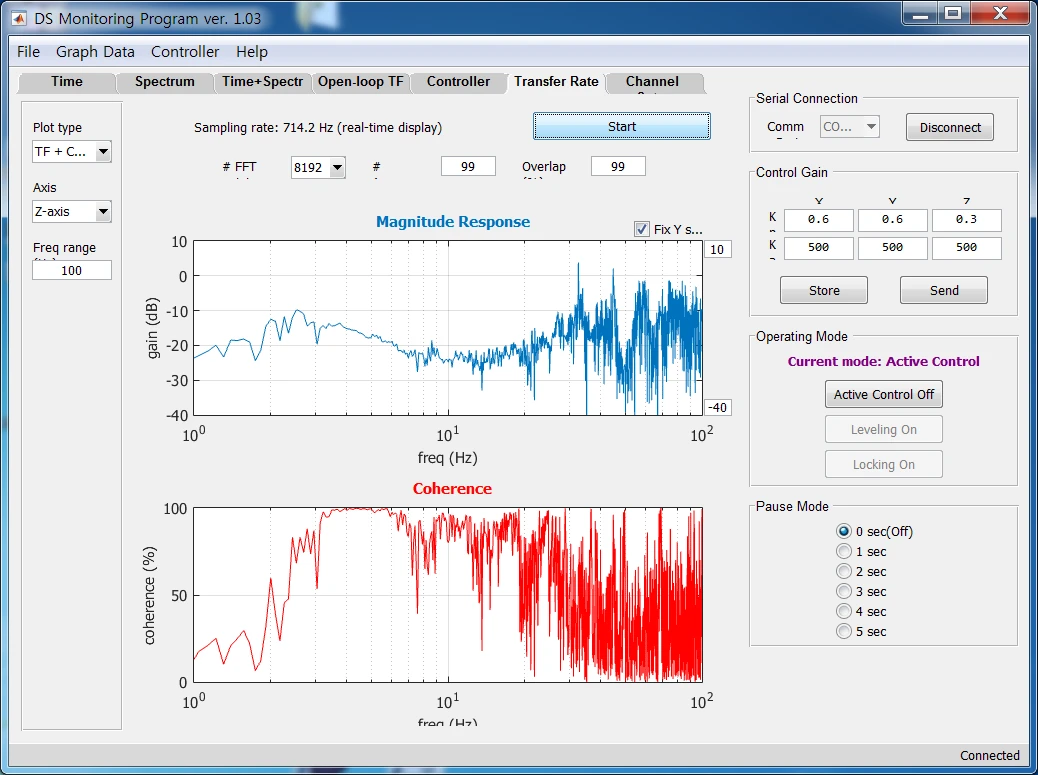

Z axis (MB1000 internal program)

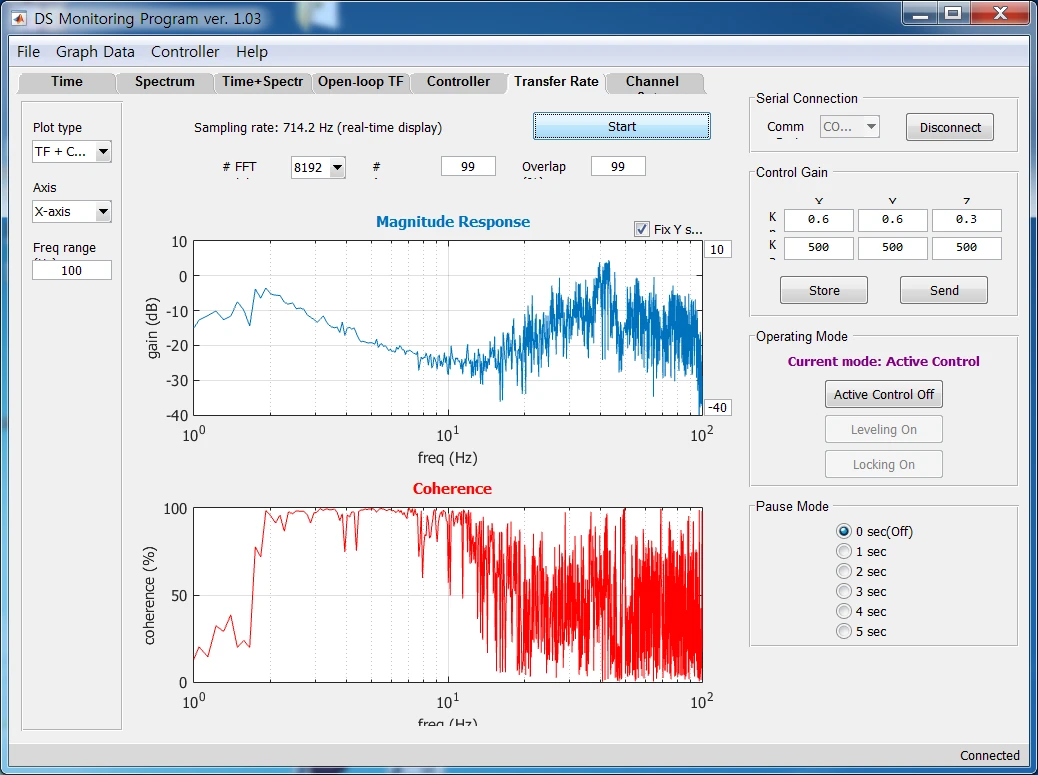

X axis (MB1000 internal program)

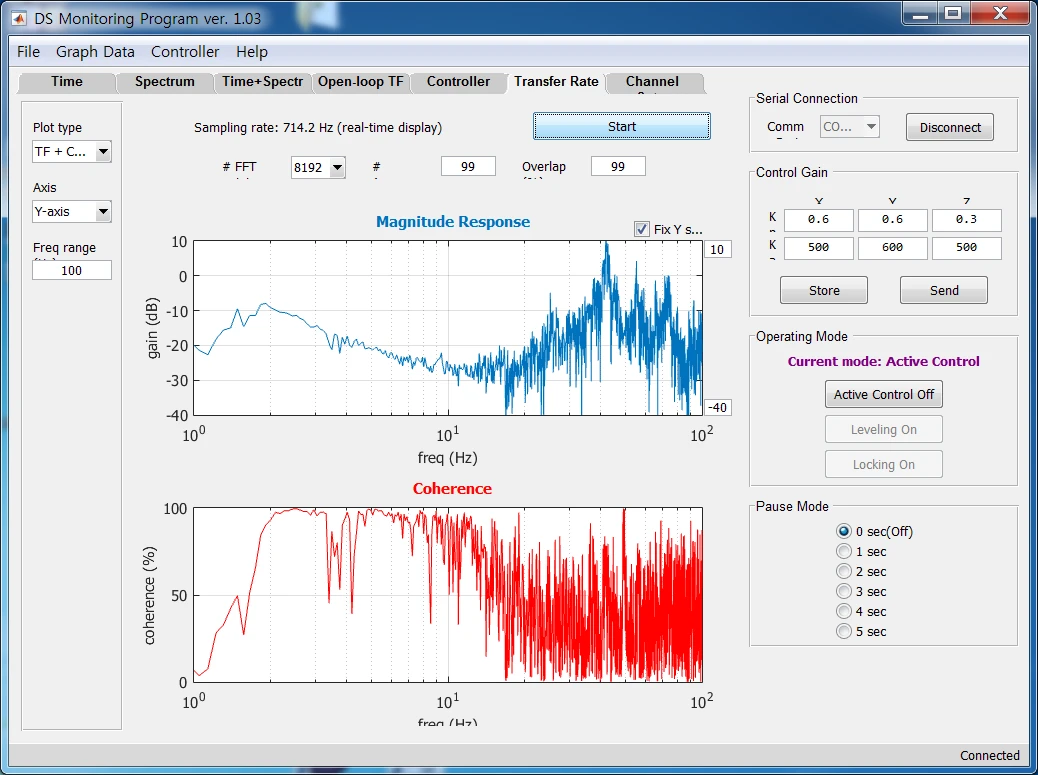

Y axis (MB1000 internal program)
Vibration environment measurement results

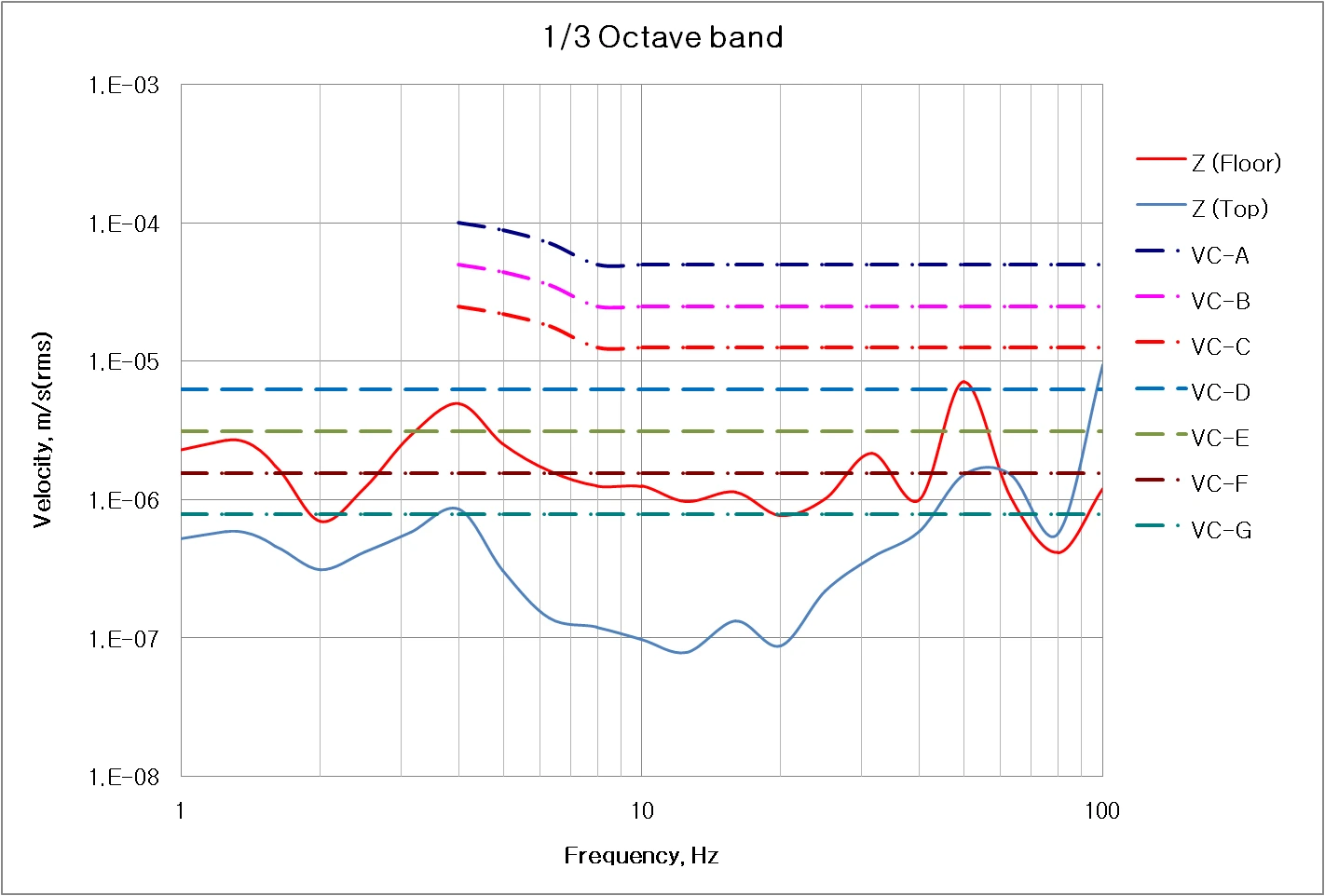

Z axis (vibration environment)
X axis (vibration environment)
Y axis (vibration environment)
