Tier-1 Semiconductor Pyeongtaek P2 ZEISS Crossbeam 550 DVIA-MB1000 Installation Report (220902R5)
Contents
Overview
The DVIA-MB1000 active vibration isolation platform is appropriately installed and functioning as intended.
Vibration Isolation System Information

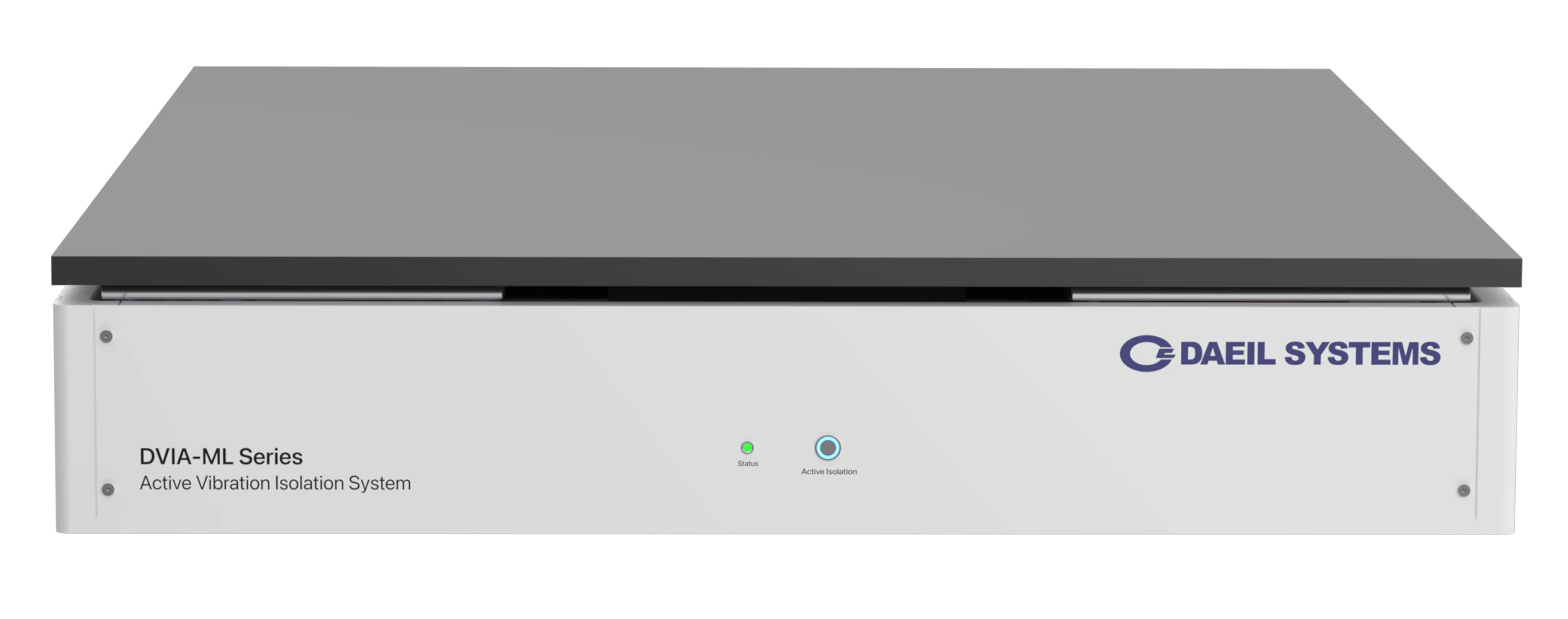

Model: DVIA-MB1000
Serial Number: 220902R5
Engineer
Sangjae Lee, Youngha Lee from DAEIL SYSTEMS
Tuning Date
February 01, 2023
Report written date
February 01, 2023
Date of business trip
17.12.27~17.12.29
Location
Tier-1 Semiconductor Pyeongtaek P2 3F FA analysis lab
Equipment
Crossbeam 550
Setup Summary
Data export was not permitted due to circumstances on the Tier-1 Semiconductor contact side.
Entries were recorded in the requested information format from the ZEISS contact.
Public case: no measurement curves or report imagery are published here.
Z-axis (Vertical) Transmissibility
Approximately 26 dB at 2 Hz; no notable issues.
X-axis (Left to Right) Transmissibility
Approximately 30 dB at 2 Hz; no notable issues.
Y-axis (Front to Back) Transmissibility
Approximately 33 dB at 2 Hz; no notable issues.
Z-axis (Vertical) Vibration measurement
VC-C to VC-G
X-axis (Left to Right) Vibration measurement
VC-D to VC-G
Y-axis (Front to Back) Vibration measurement
VC-C to VC-F
Reference
Generic Vibration Criteria
