Tier-1 Semiconductor Pyeongtaek P3 E5610 DVIA-P4000 Installation Report

DVIA-P Series

Installation Report

Tier-1 Semiconductor

E5610

Written by

Engineer: Hosang Yu, Youngha Lee

Tuning date: 23.05.12

Report written date: 23.06.28

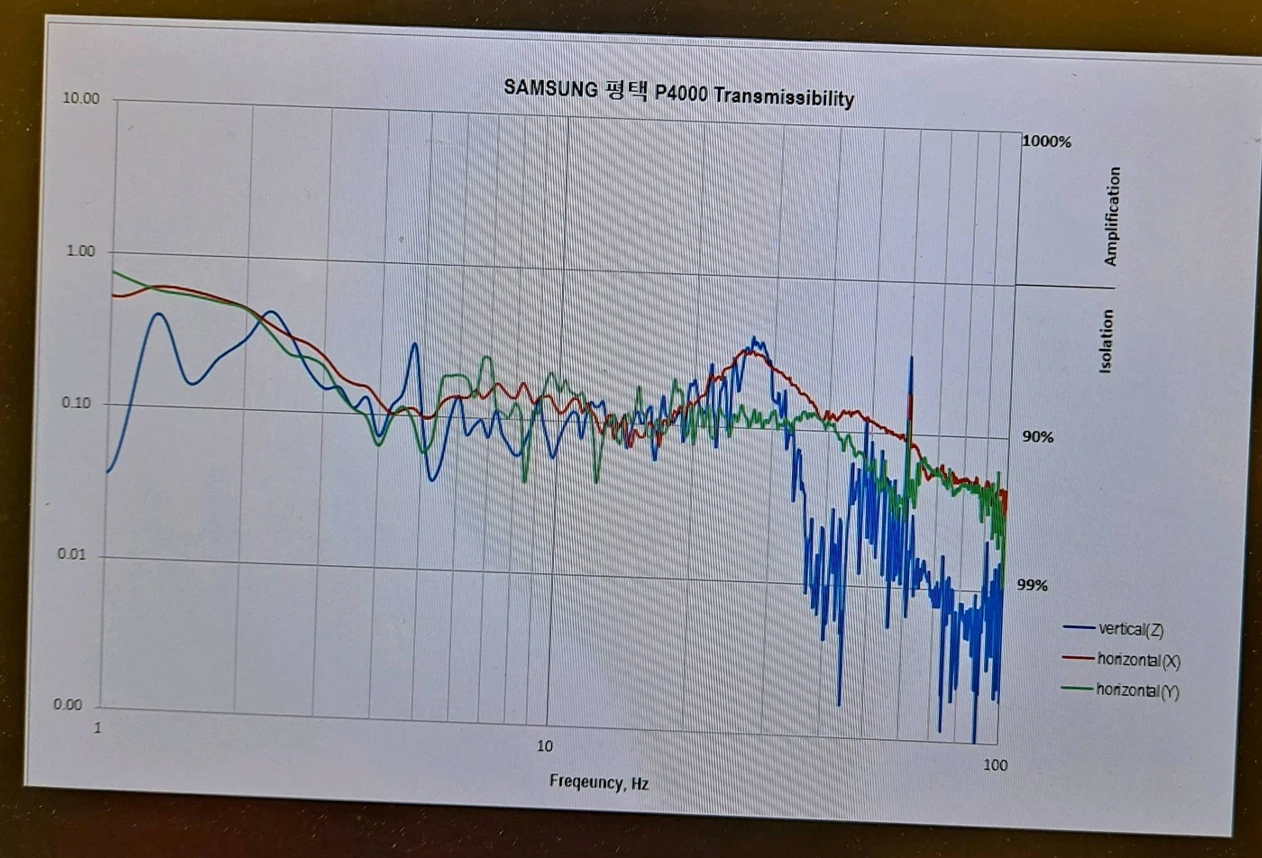

The DVIA-P4000 active vibration isolation platform is appropriately installed and functioning as intended.

Model: DVIA-P4000

Serial Number: 220617R2

Hosang Yu, Younga Lee from DAEIL SYSTEMS

May 12, 2023

Tier-1 Semiconductor Pyeongtaek P3 Line

E5610

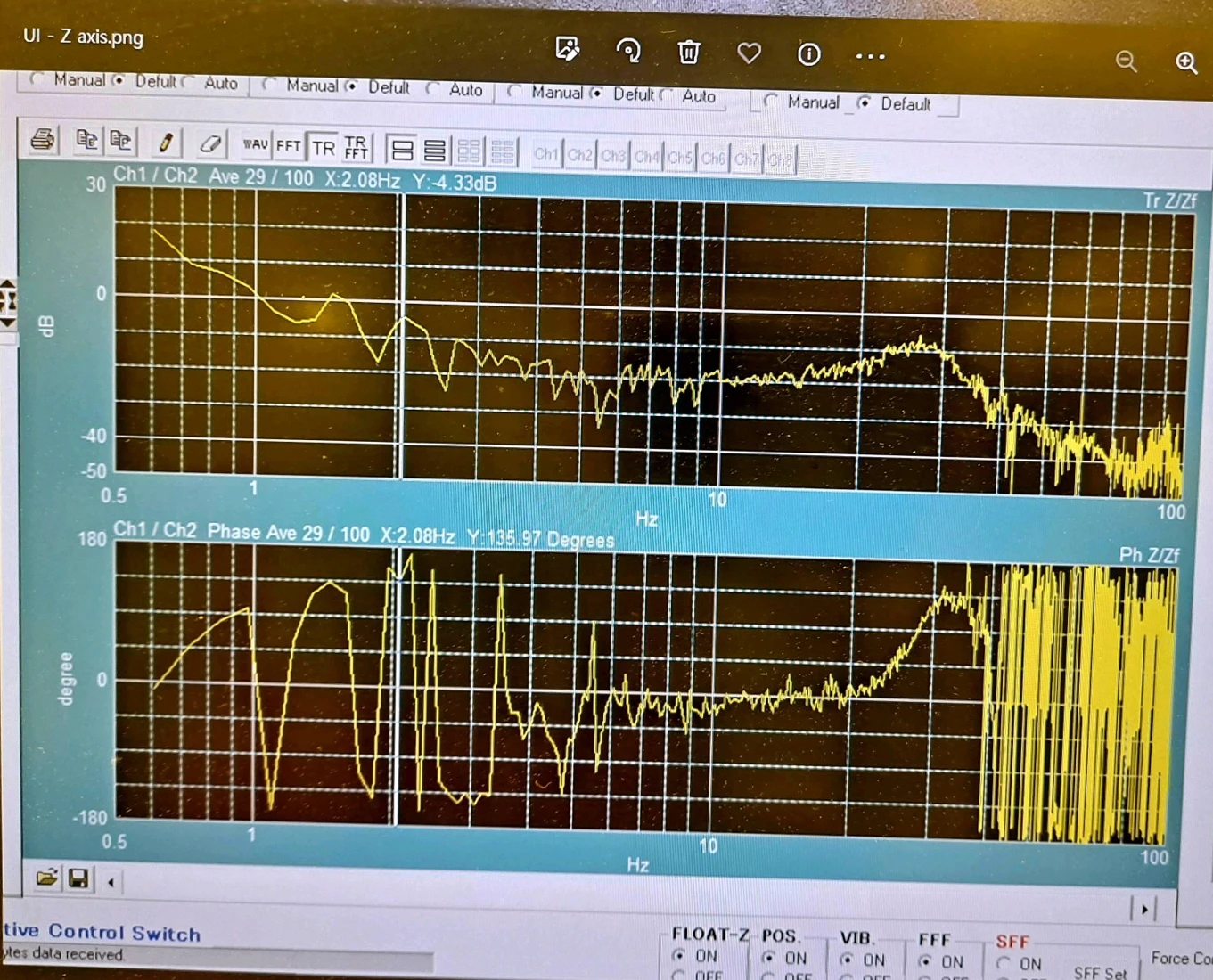

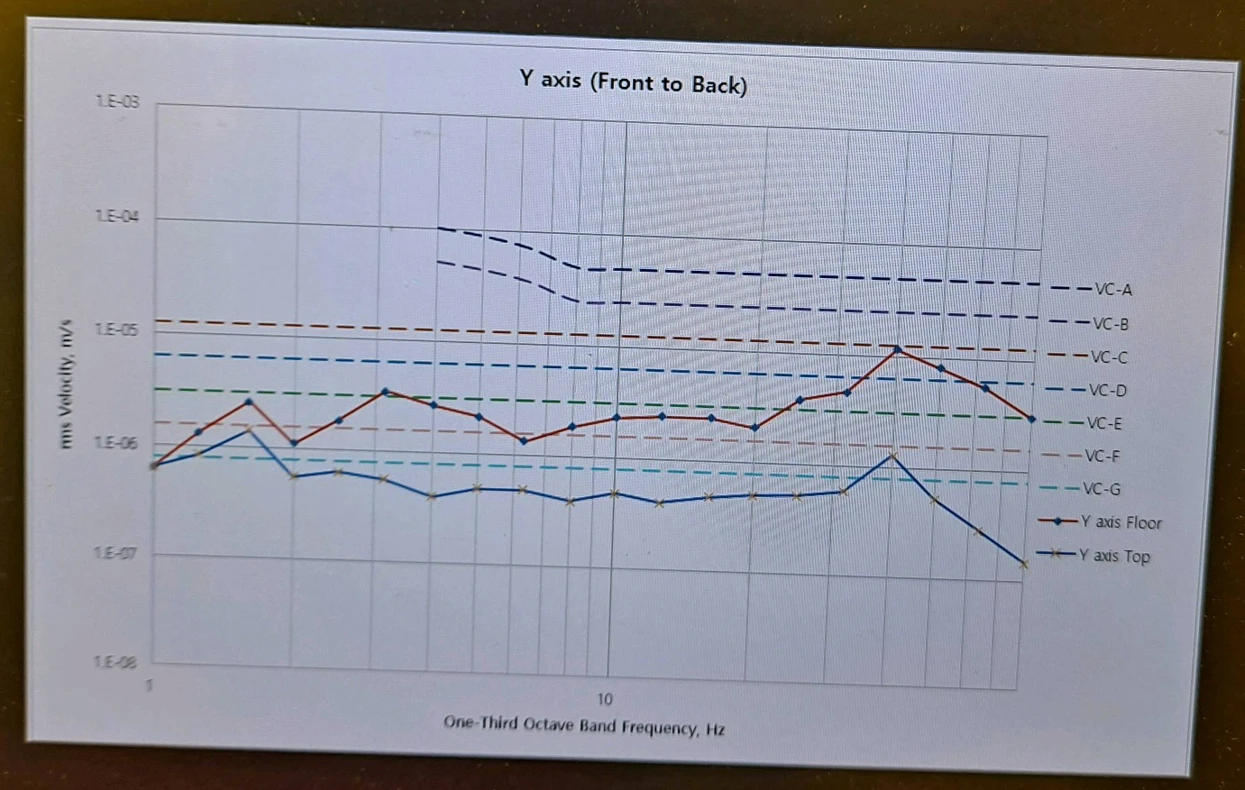

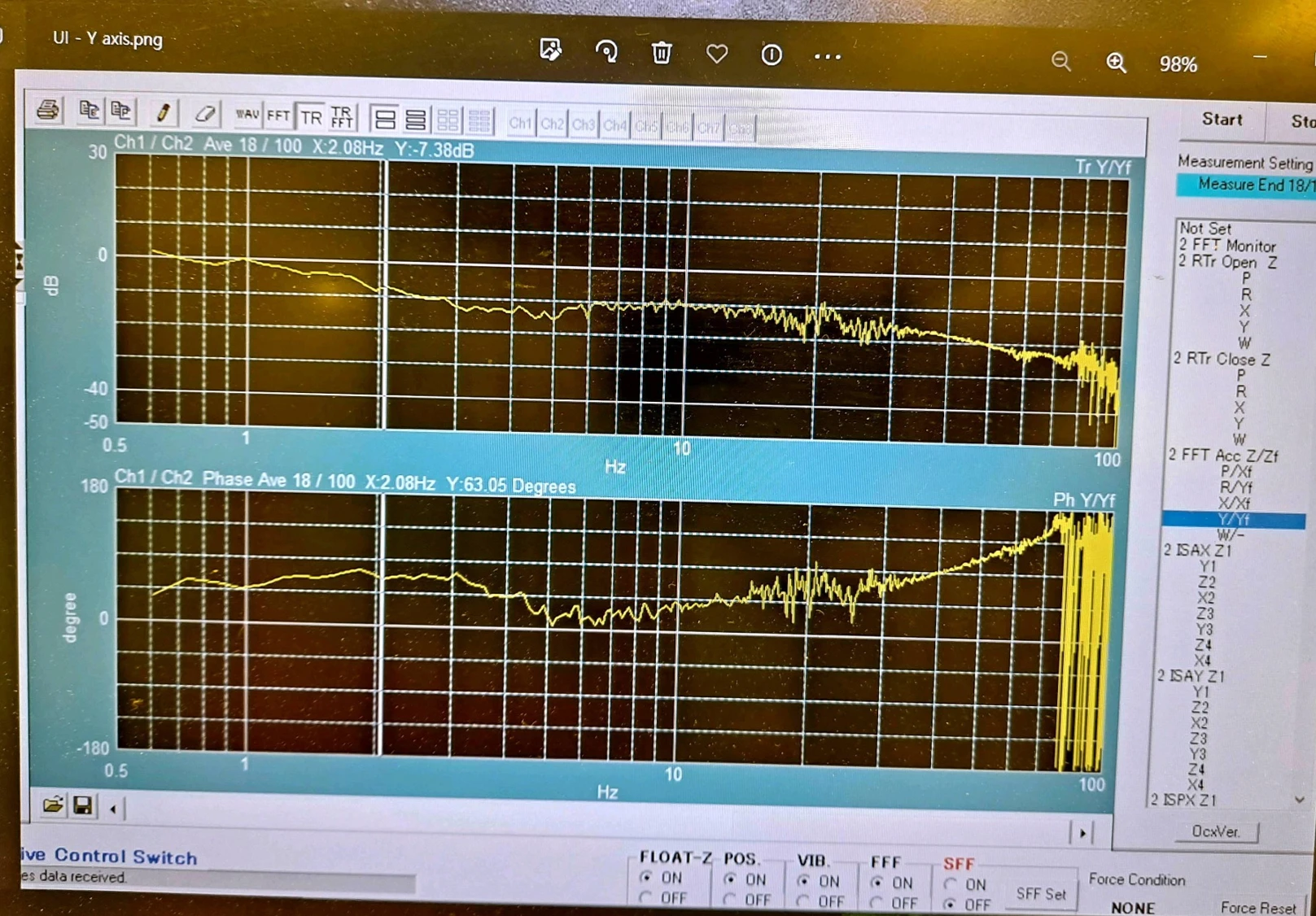

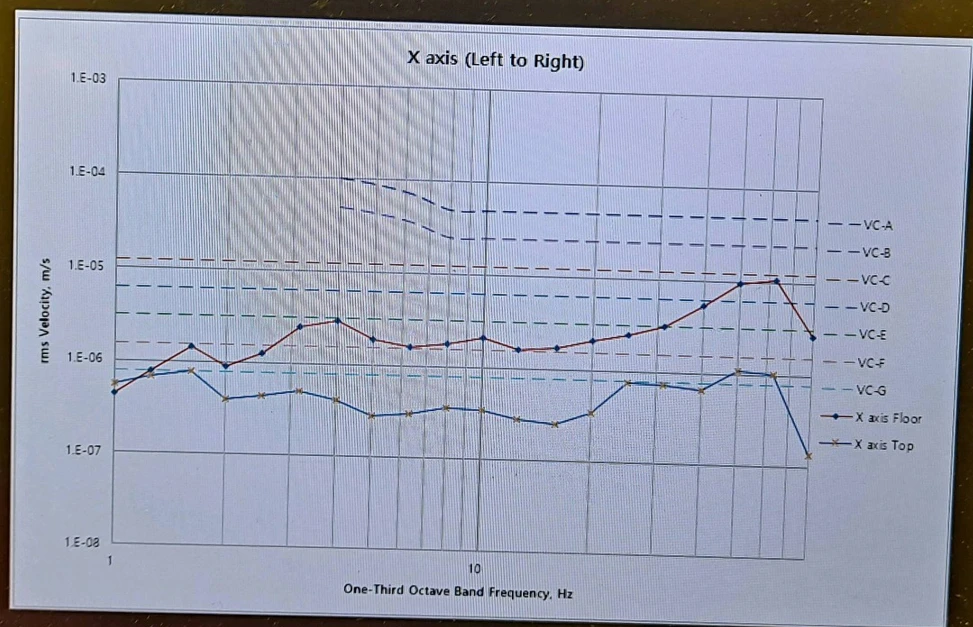

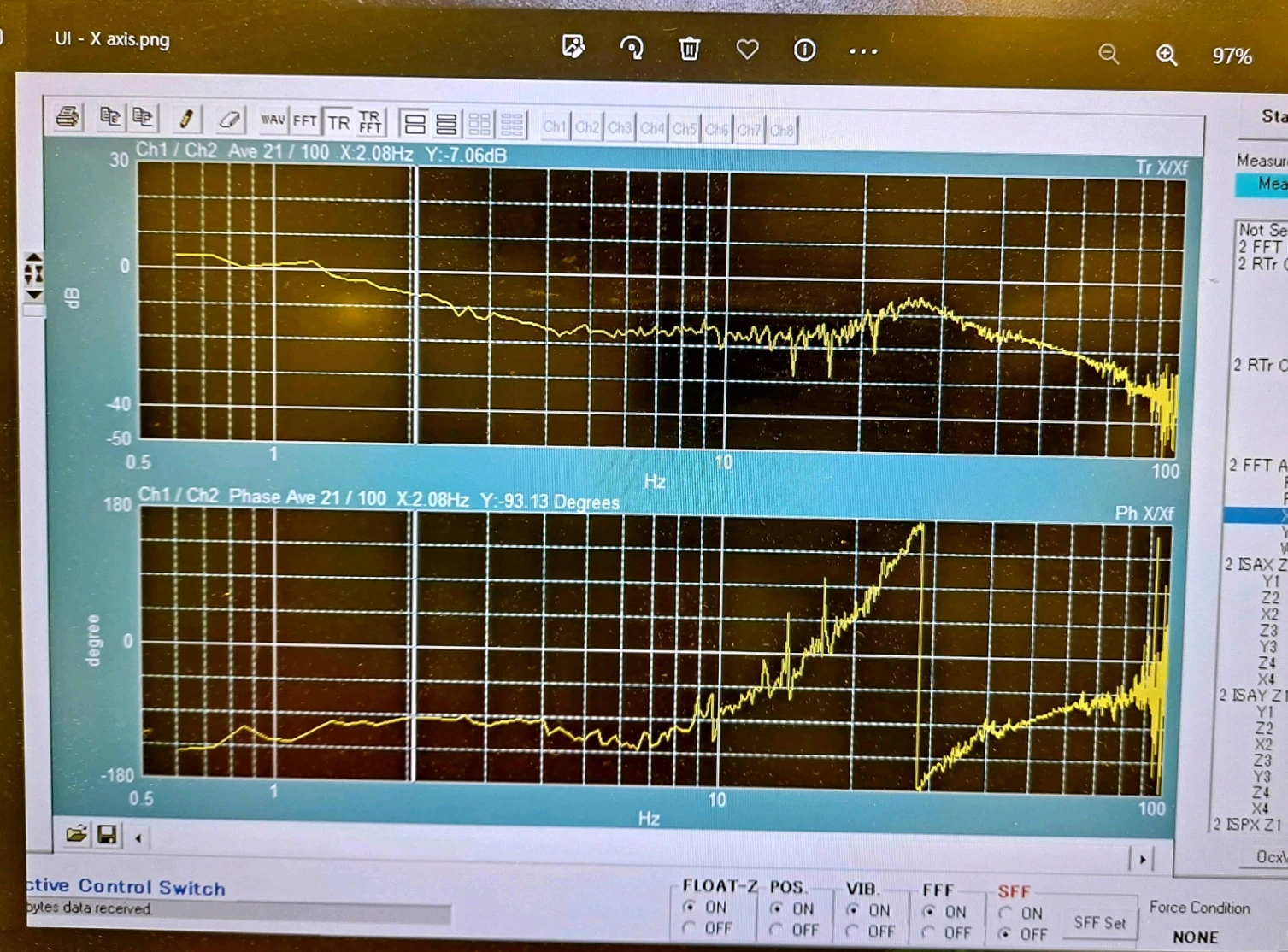

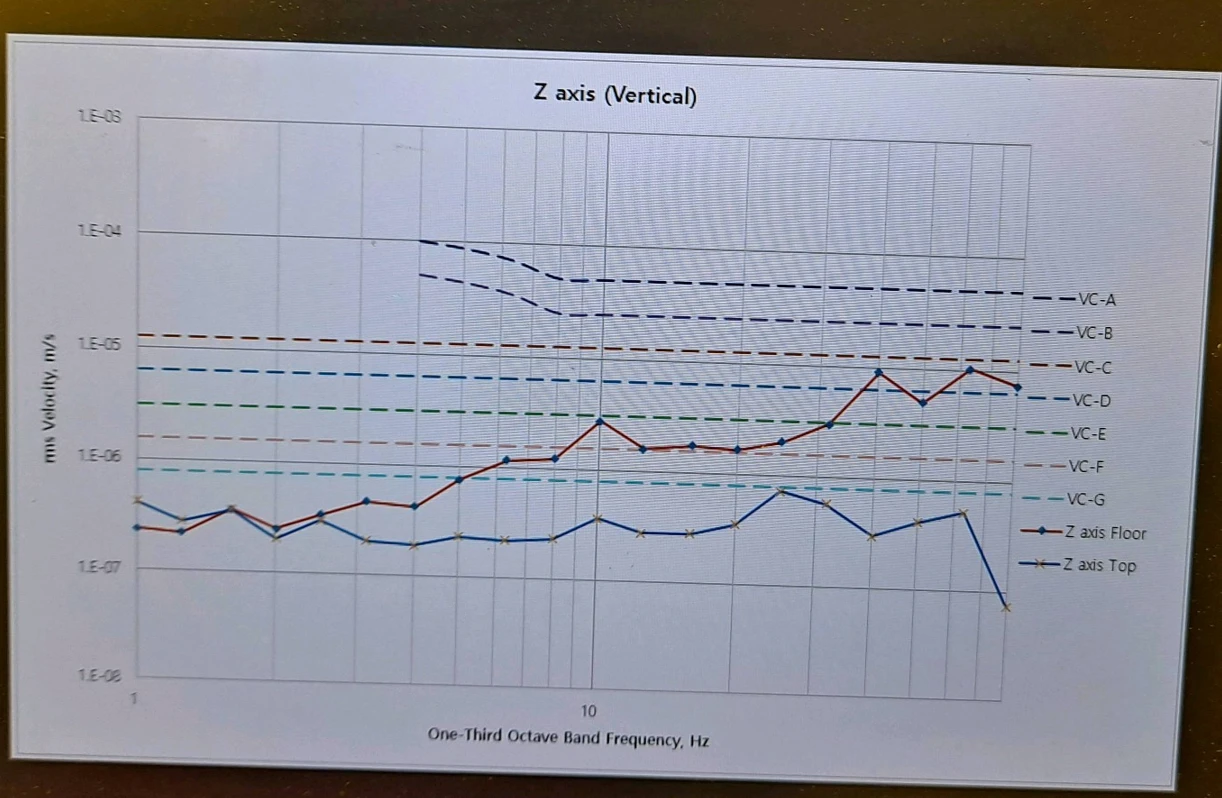

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
