Tier-1 Semiconductor Hwasung ZEISS AIMs 32 DVIA-P4000 (180306R4) Inspection Report

DVIA-P Series
Inspection Report
Tier-1 Semiconductor
ZEISS
AIMs 32
DVIA-P4000
180306R4

Overview

Inspection was performed following a request to inspect three DVIA-P units installed at the Tier-1 Semiconductor Hwasung site.

Daeil UI Program Transmissibility and vibration measurement results show normal performance.

Equipment On/Off comparison inspection allows assessment of vibration impact from equipment IDLE state.

System Information

Model: DVIA-P4000

Serial Number: 180306R4

Serial Number (SAC-07): 016147

Engineer

Youngha Lee from DAEIL SYSTEMS

Inspection Date

December 14, 2023

Report written date

23.12.18

Location

Tier-1 Semiconductor Hwasung NRD line 8F

End User

Tier-1 Semiconductor

Equipment

ZEISS AIMs 32

Summary of Vibration Results

AIMs IDLE Condition

Measurement PointZ-axis (Vertical) 1-10 HzZ-axis (Vertical) 12.5-80 HzX-axis (Left to Right) 1-10 HzX-axis (Left to Right) 12.5-80 HzY-axis (Front to Back) 1-10 HzY-axis (Front to Back) 12.5-80 Hz
FloorCCCDCD
ActiveDBDCCB

When the equipment is in IDLE state, amplification occurs mainly in the 10–15 Hz and 20–40 Hz bands.

AIMs Power off

Measurement PointZ-axis (Vertical) 1-10 HzZ-axis (Vertical) 12.5-80 HzX-axis (Left to Right) 1-10 HzX-axis (Left to Right) 12.5-80 HzY-axis (Front to Back) 1-10 HzY-axis (Front to Back) 12.5-80 Hz
FloorCCCDDC
ActiveDEDEDE

When the equipment is in Power off state, ground vibration is attenuated in all bands.

Data and Image

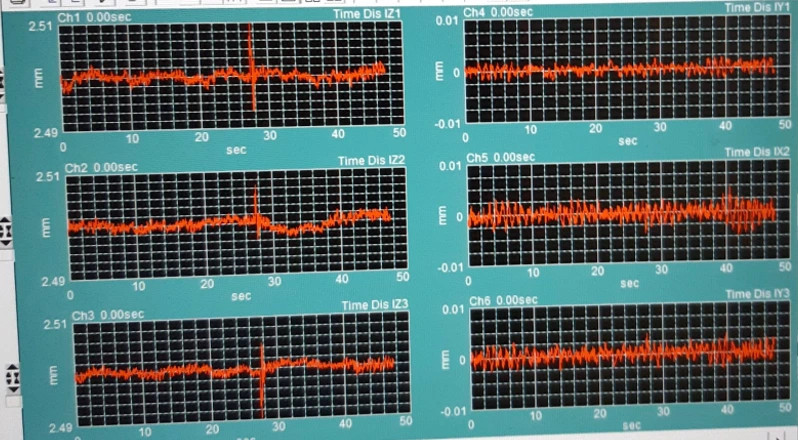

Displacement Sensor Graph

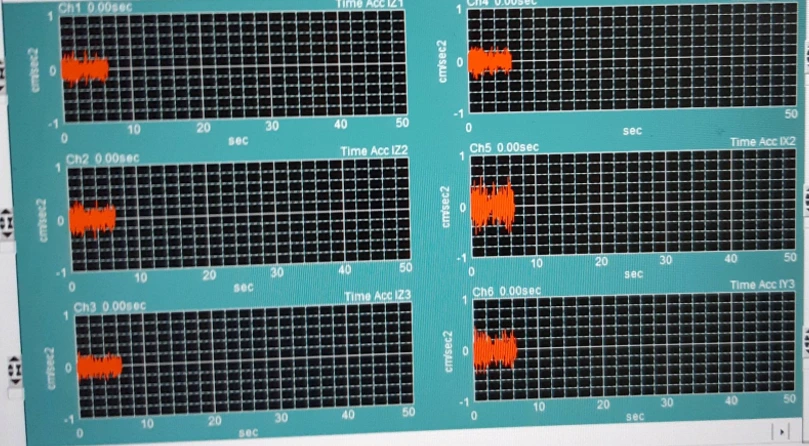

Accelerometer Graph

The accelerometer and displacement sensors correctly sense vibration changes and operate normally.

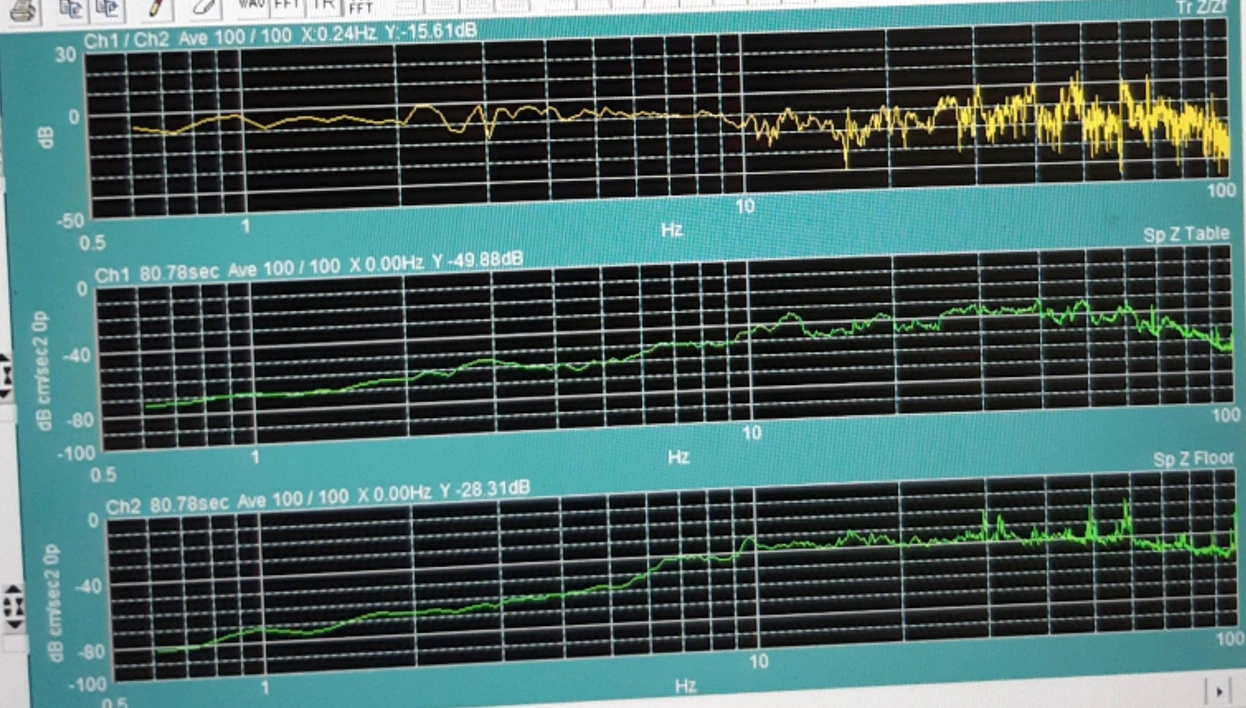

Z-axis (Vertical) Transmissibility (AIMs Power on)

With floor excitation, Active Transmissibility Graph measurement via the Daeil UI Program shows attenuation of −10 dB or more at 3 Hz. Resonance peaks rising to 0 dB exist in the 30, 40, and 50 Hz bands. This output is presumed to be from equipment IDLE-state vibration.

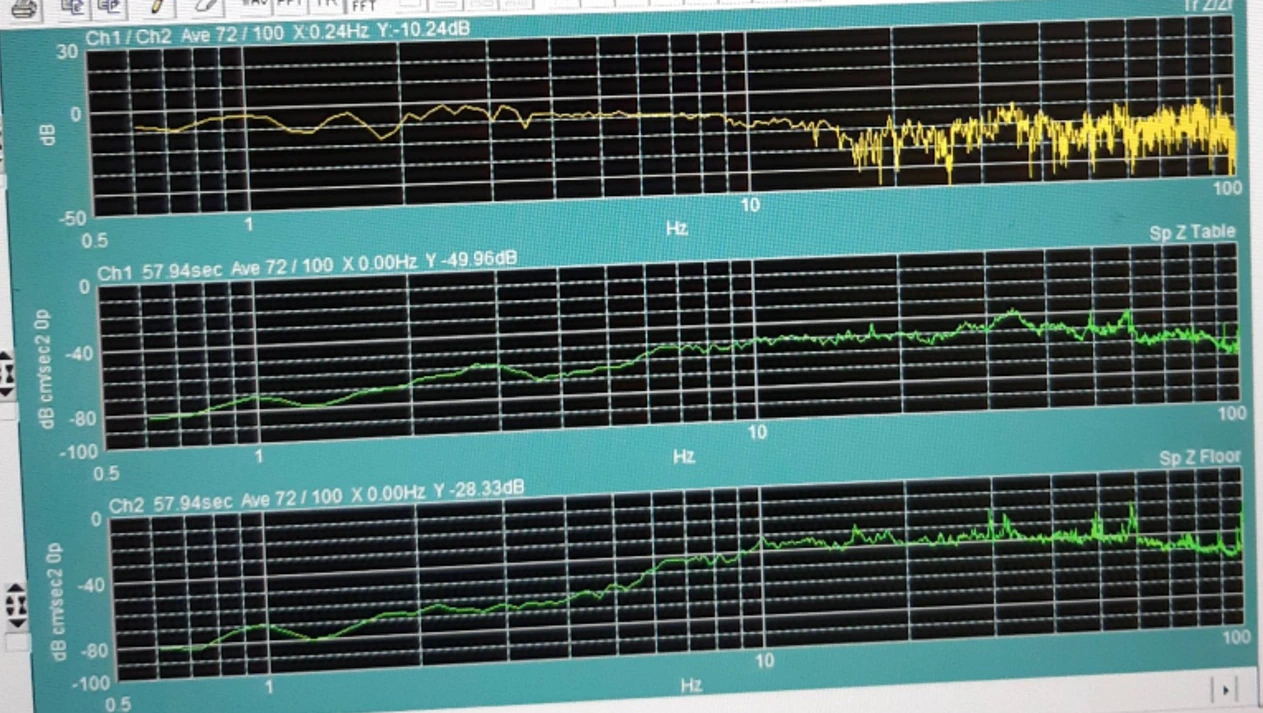

Z-axis (Vertical) Transmissibility (AIMs Power off)

With floor excitation, Active Transmissibility Graph measurement via the Daeil UI Program similarly shows attenuation of −10 dB or more at 3 Hz. No resonance peaks appear above −10 dB in the high-frequency bands. Resonance peaks in the Power on state are judged to be output from equipment IDLE-state vibration.

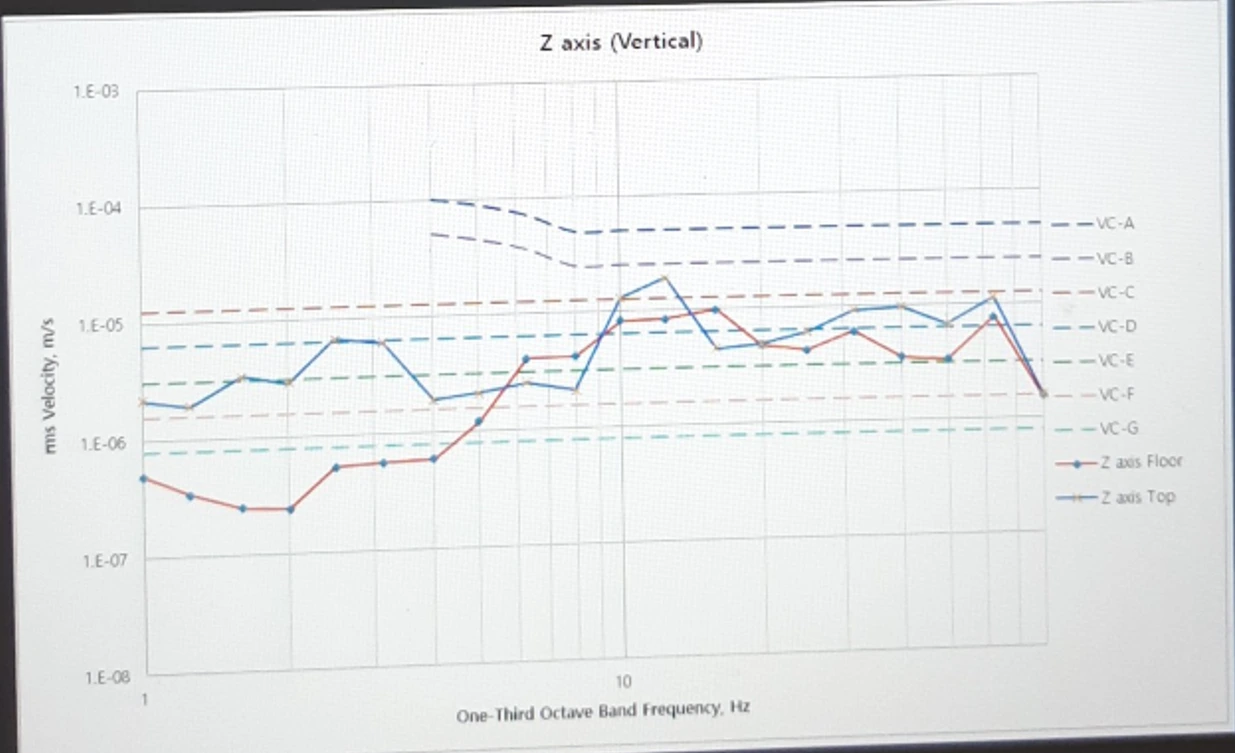

Z-axis (Vertical) VC curves (AIMs Power on)

In the 3 Hz band, top-plate vibration is measured high at VC-C and VC-D. In the 10–15 Hz and 20–80 Hz bands, top-plate vibration is measured larger than bottom-plate vibration. These vibrations are presumed to be from equipment IDLE-state vibration.

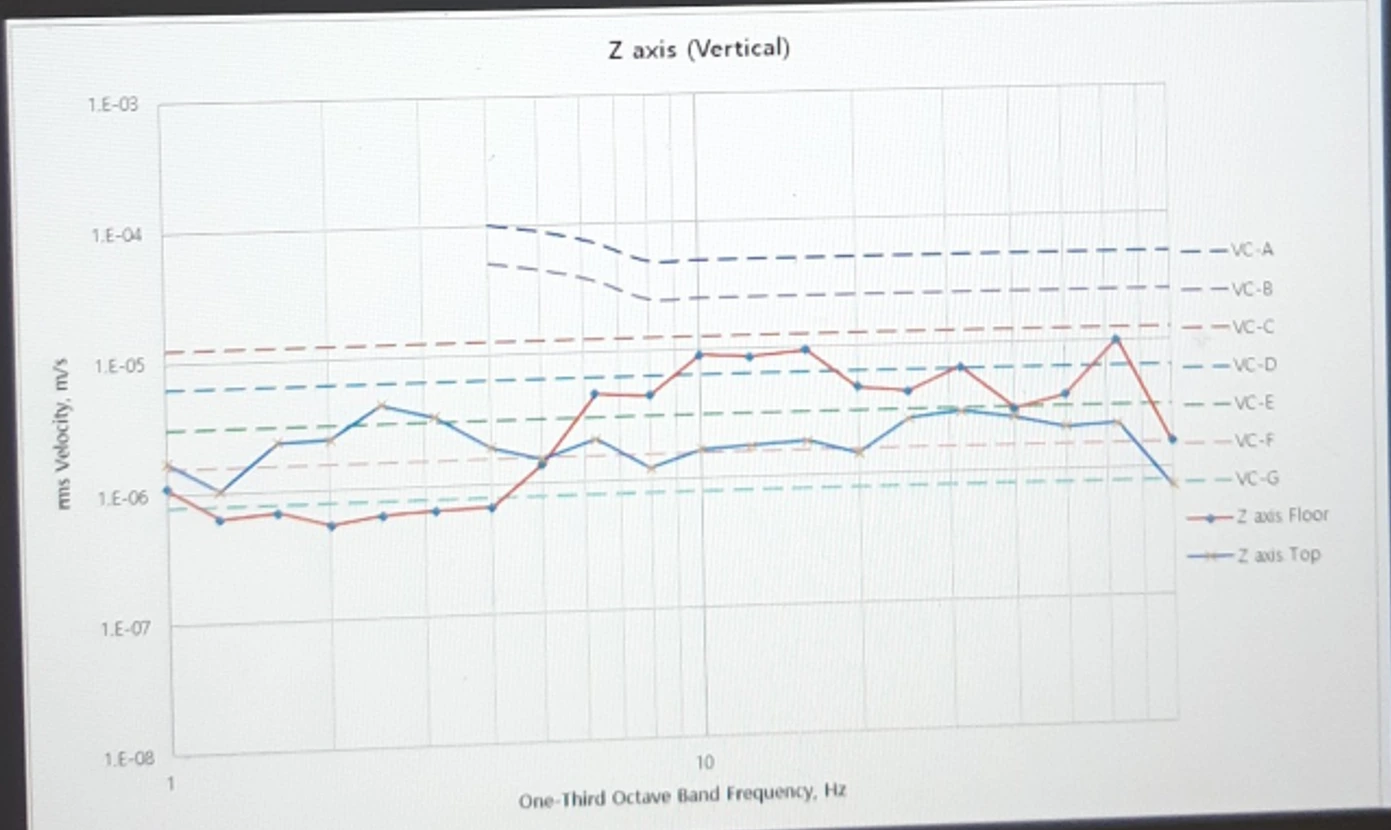

Z-axis (Vertical) VC curves (AIMs Power off)

In the 3 Hz band, top-plate vibration decreased to VC-D. Compared with Power on measurement, top-plate vibration in the 10–15 Hz and 20–80 Hz bands decreased significantly. This supports judging those vibrations as equipment IDLE-state vibration.

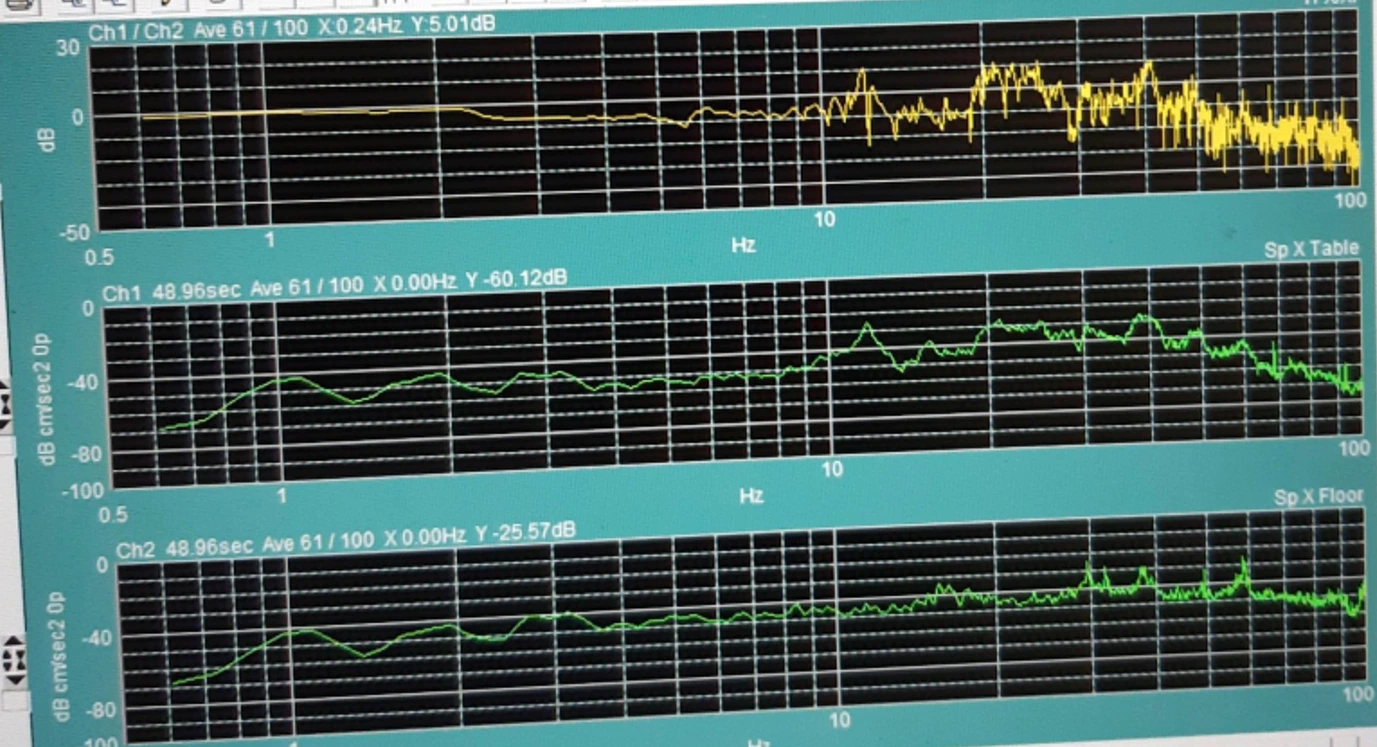

X-axis (Left to Right) Transmissibility (AIMs Power on)

Active Transmissibility Graph measurement via the Daeil UI Program shows attenuation of −10 dB or more from 3 Hz. Resonance peaks rising above 0 dB exist in the 15, 27, and 40 Hz bands; these may be vibration from equipment IDLE state, but horizontal-axis excitation is not possible so that vibration cannot be confirmed. For accurate isolator performance evaluation, inspection with upper equipment Turned off is required, and performance may improve with additional tuning.

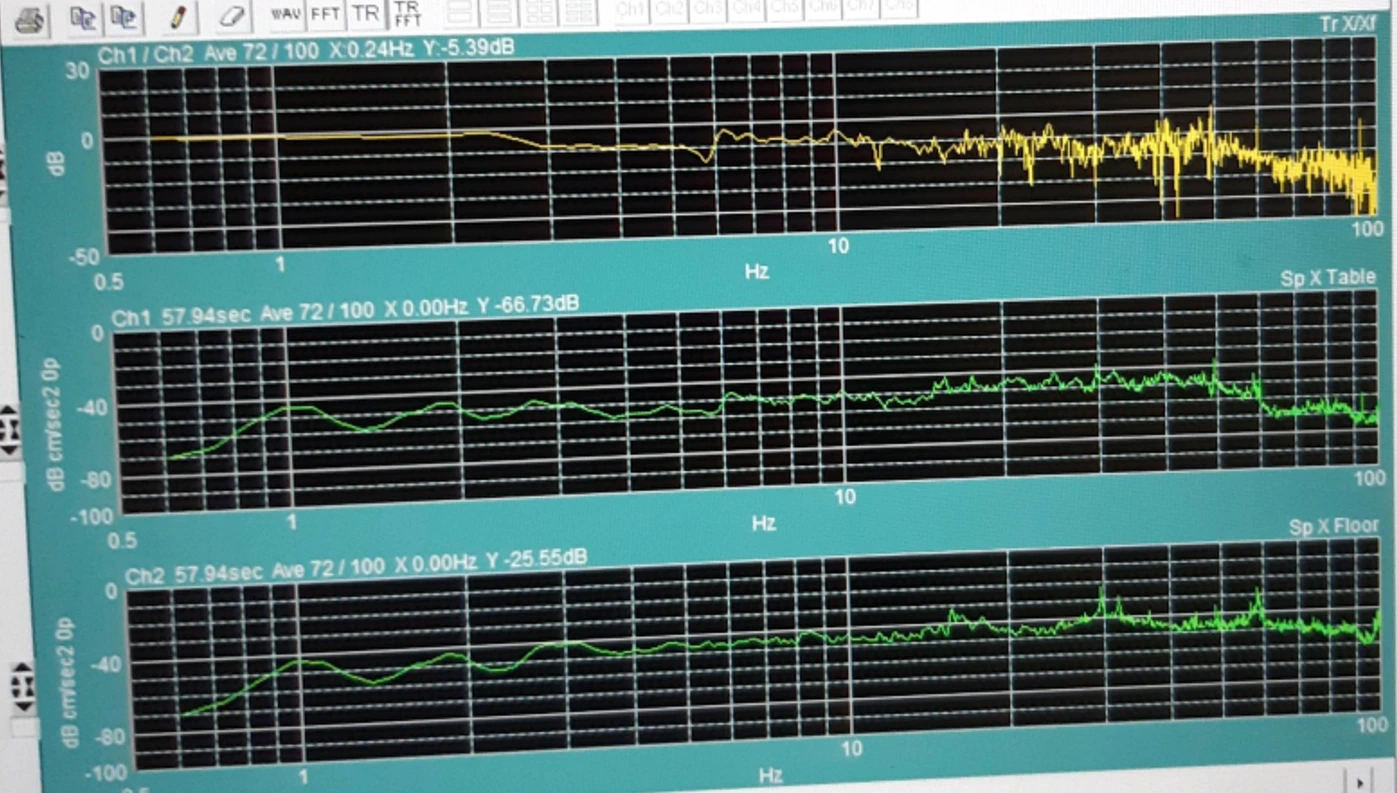

X-axis (Left to Right) Transmissibility (AIMs Power off)

With equipment Turned off, Active Transmissibility Graph measurement via the Daeil UI Program similarly shows attenuation of −10 dB or more at 3 Hz. No resonance peaks appear above −10 dB in the high-frequency bands. Resonance peaks in the Power on state are judged to be output from equipment IDLE-state vibration.

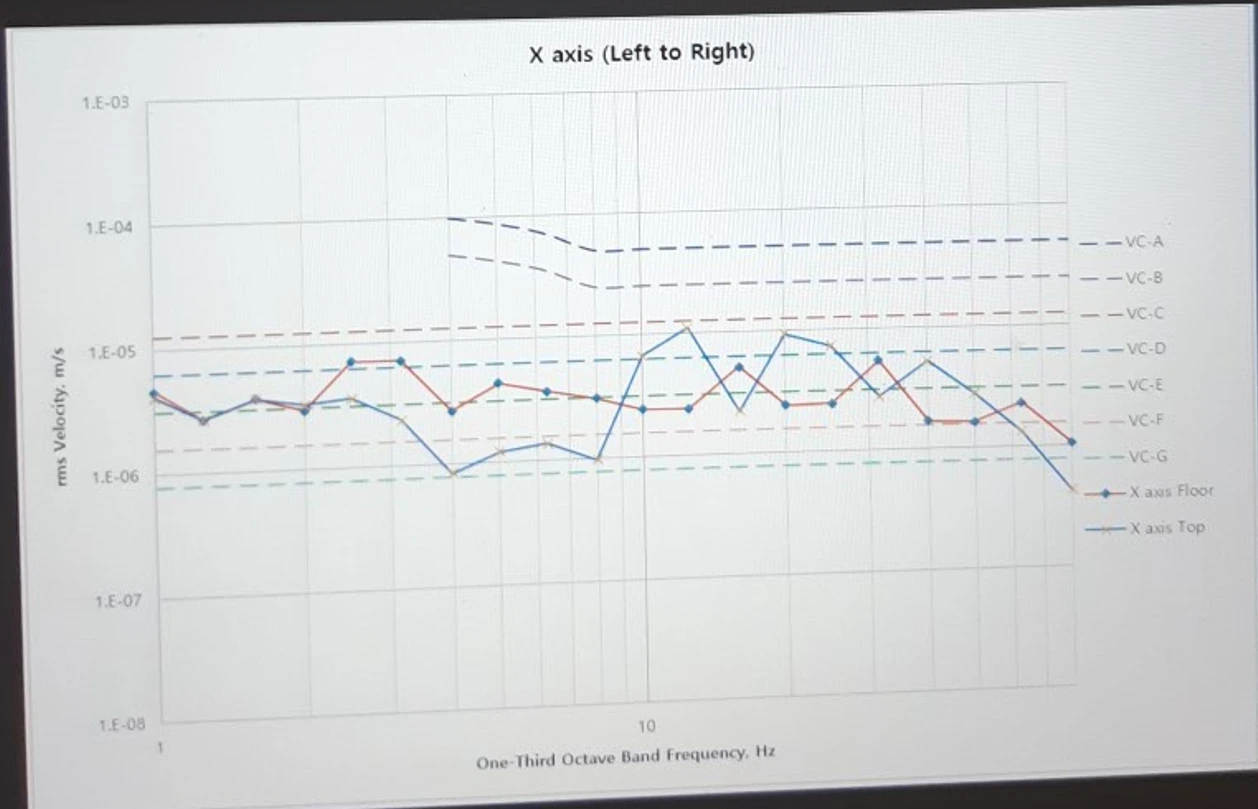

X-axis (Left to Right) VC curves (AIMs Power on)

In low-frequency bands, top-plate vibration is lower than bottom-plate vibration, but in the 10–15 Hz, 20–25 Hz, and 40–50 Hz bands, top-plate vibration is measured larger than bottom-plate vibration. These vibrations are presumed to be from equipment IDLE-state vibration.

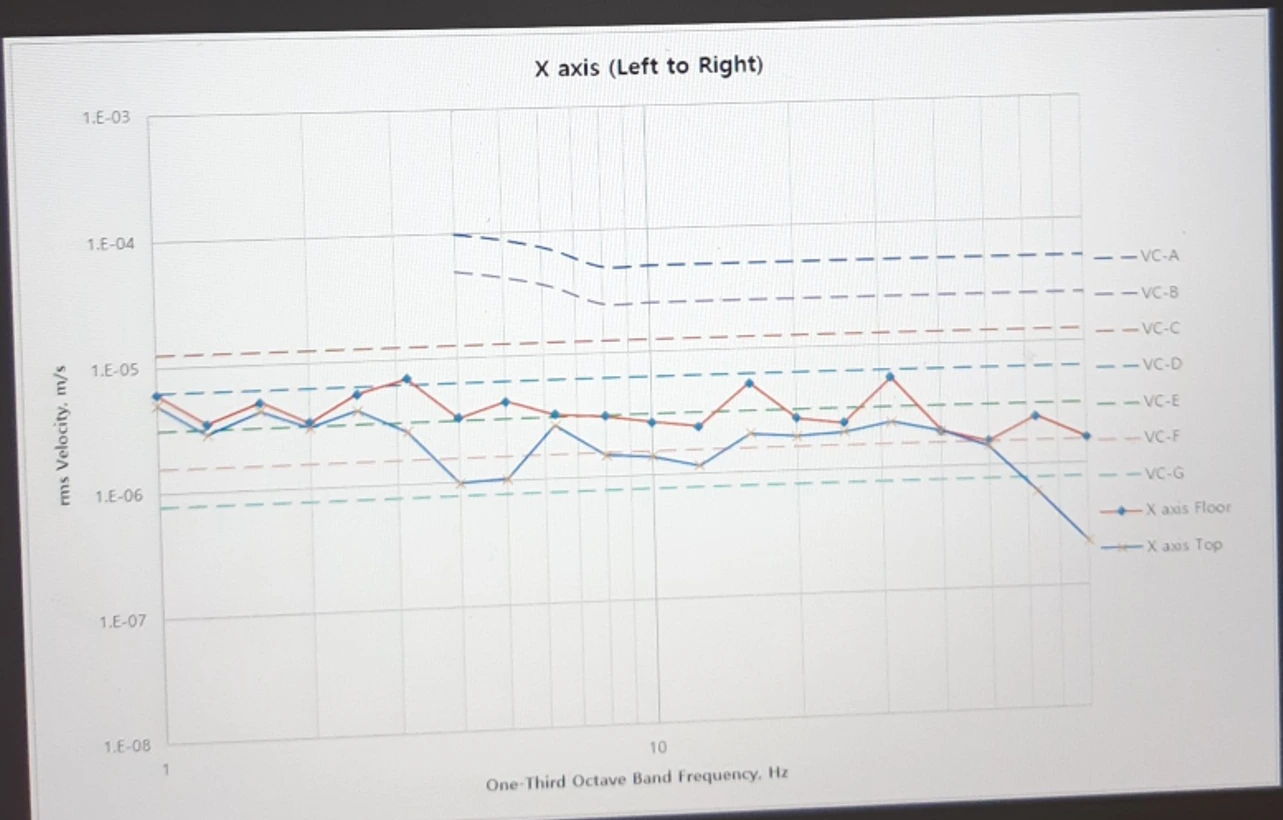

X-axis (Left to Right) VC curves (AIMs Power off)

Compared with Power on measurement, top-plate vibration in the 10–15 Hz, 20–25 Hz, and 40–50 Hz bands decreased significantly. This supports judging those vibrations as equipment IDLE-state vibration. Performance is somewhat lower than the Y-axis; additional tuning may improve performance.

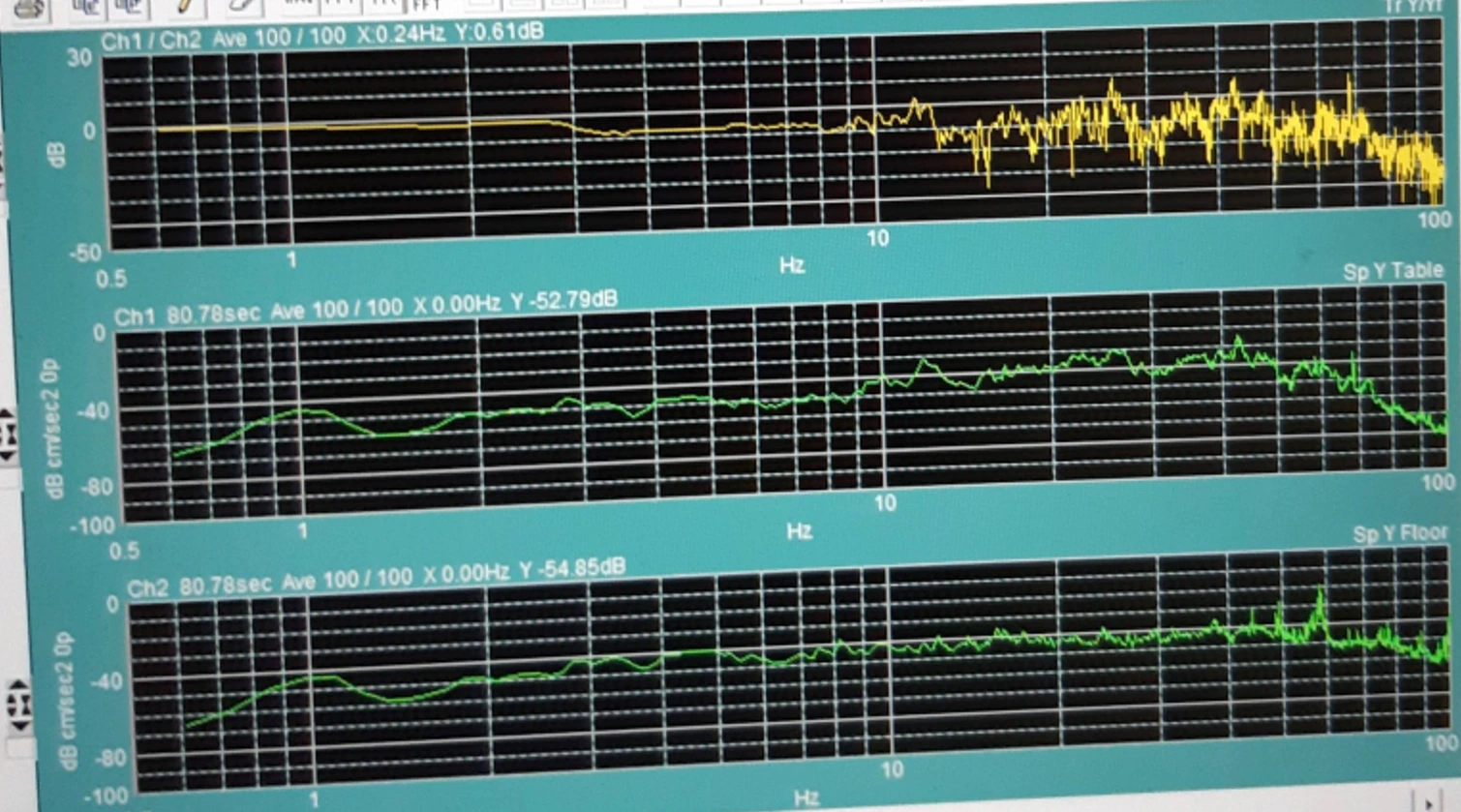

Y-axis (Front to Back) Transmissibility (AIMs Power on)

Active Transmissibility Graph measurement via the Daeil UI Program shows attenuation of −10 dB or more from 3 Hz. Resonance peaks rising above 0 dB exist in the 15, 27, and 43 Hz bands; these may be vibration from equipment IDLE state, but horizontal-axis excitation is not possible so that vibration cannot be confirmed. For accurate isolator performance evaluation, inspection with upper equipment Turned off is required, and performance may improve with additional tuning.

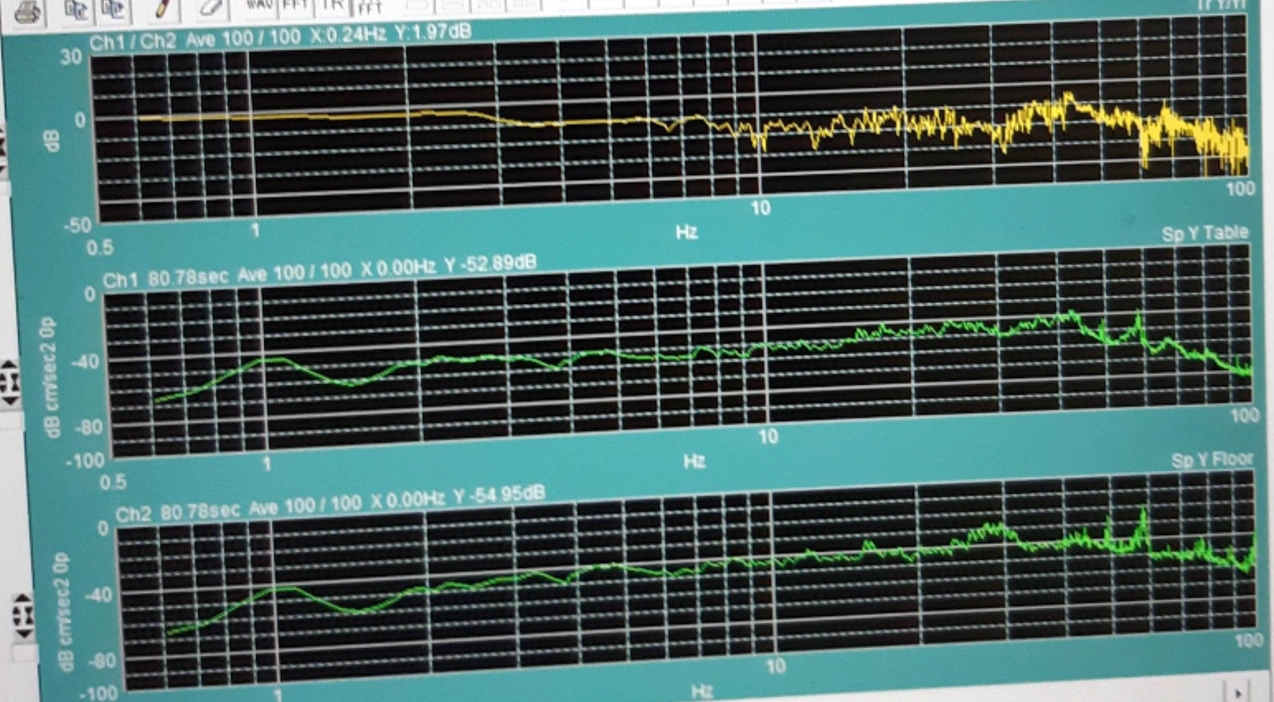

Y-axis (Front to Back) Transmissibility (AIMs Power off)

With equipment Turned off, Active Transmissibility Graph measurement via the Daeil UI Program similarly shows attenuation of −10 dB or more at 3 Hz. No resonance peaks appear above −10 dB in the high-frequency bands. Resonance peaks in the Power on state are judged to be output from equipment IDLE-state vibration.

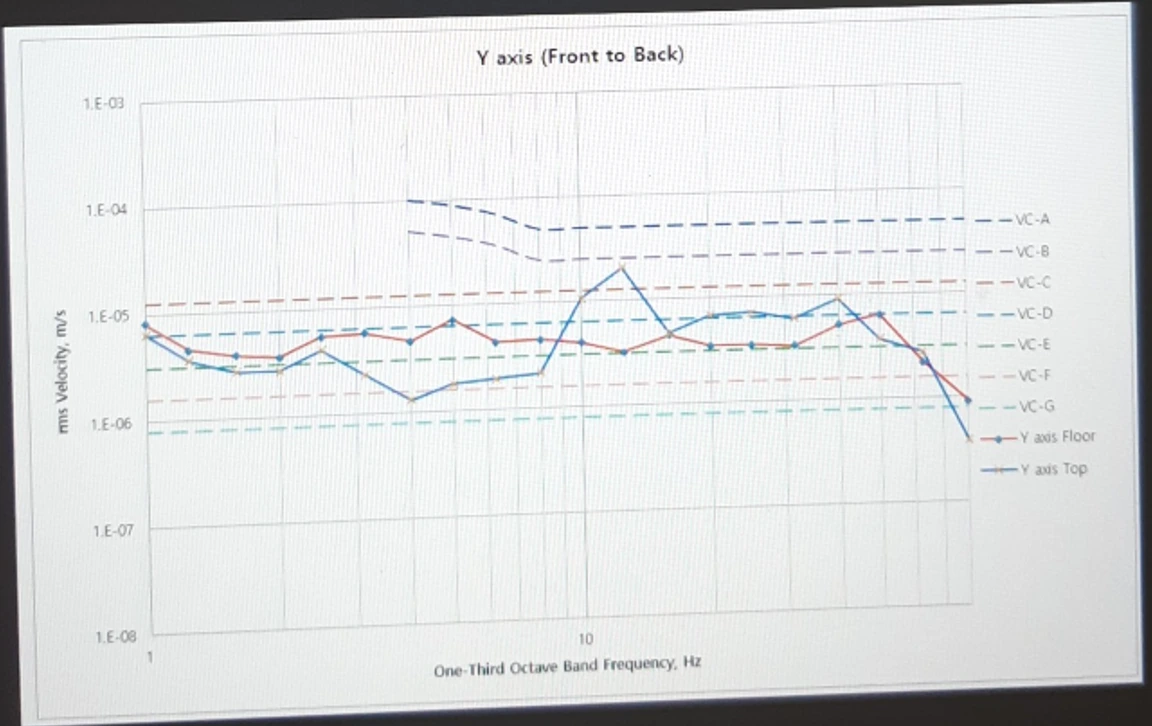

Y-axis (Front to Back) VC curves (AIMs Power on)

In low-frequency bands, top-plate vibration is lower than bottom-plate vibration, but in the 10–15 Hz and 20–40 Hz bands, top-plate vibration is measured larger than bottom-plate vibration. These vibrations are presumed to be from equipment IDLE-state vibration.

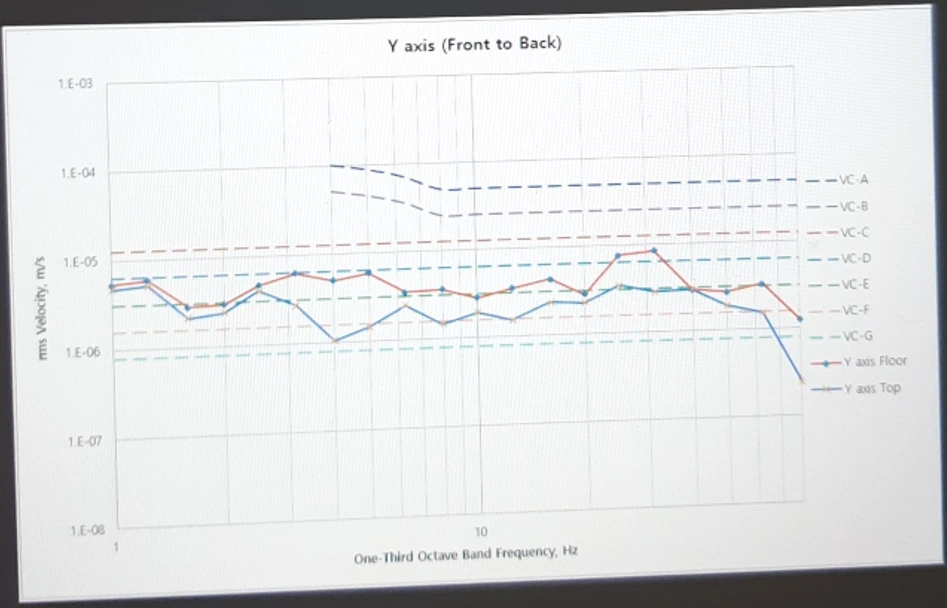

Y-axis (Front to Back) VC curves (AIMs Power off)

Compared with Power on measurement, top-plate vibration in the 10–15 Hz, 20–25 Hz, and 40–50 Hz bands decreased significantly. This supports judging those vibrations as equipment IDLE-state vibration.

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)
Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
