Xi'an Jiaotong University ZEISS Crossbeam 550 FIB-SEM DVIA-M1000 (220614R7) Installation Report
Contents
Overview
XI'AN JIAOTONG UNIVERSITY
(M1000_ 220614R7 Set up)
| Target equipment | Crossbeam 550 |
|---|---|
| Place of installation | XI'AN |
| Remark | Good Performance |
| END USER | XI'AN JIAOTONG UNIVERSITY |
Operator: Lee, Young Ha
Date of setup: 23.02.13
Date of reporting: 23.02.21
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2023.02.13 (Monday), Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement: XI'AN
Equipment Model: Crossbeam 550
Measurement conditions and results
Summary of measurement results
Test Condition VC-Class Z X Y
Floor B E E
Above Active E D E
Good omnidirectional performance.
5.

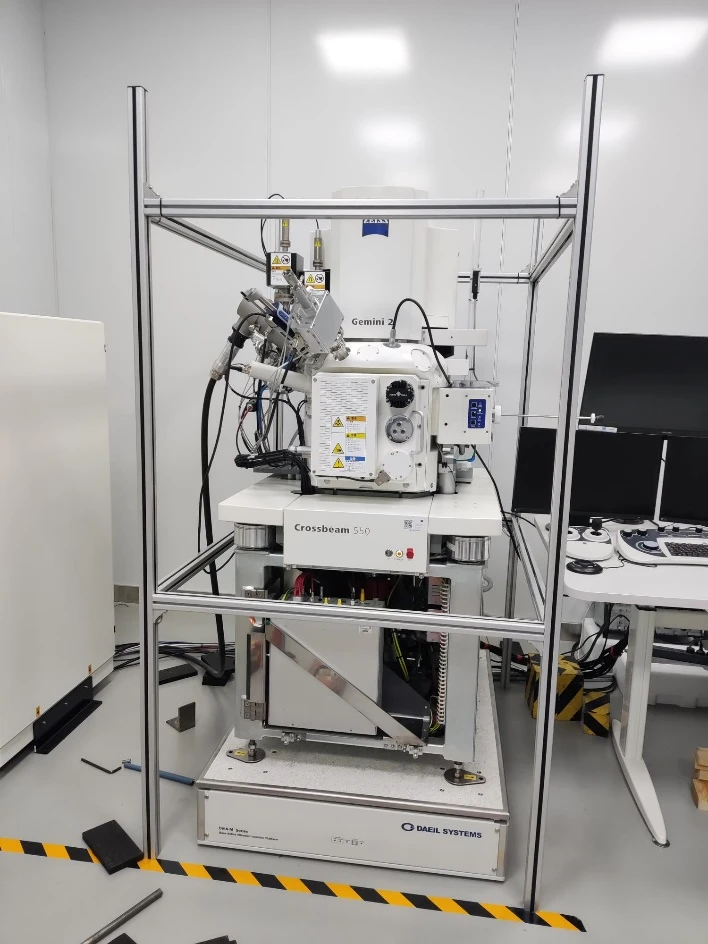

Equipment
M1000 internal program performance measurement result

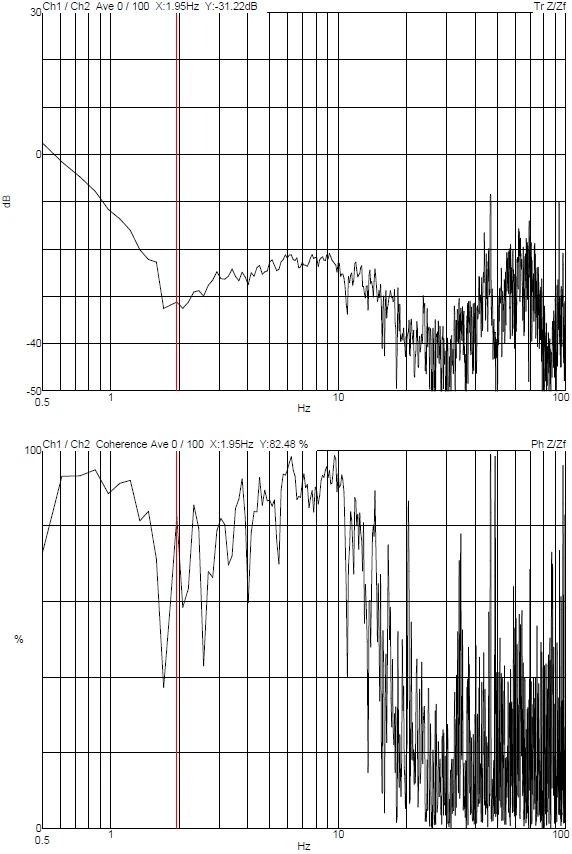

Vertical transmissibility and coherence

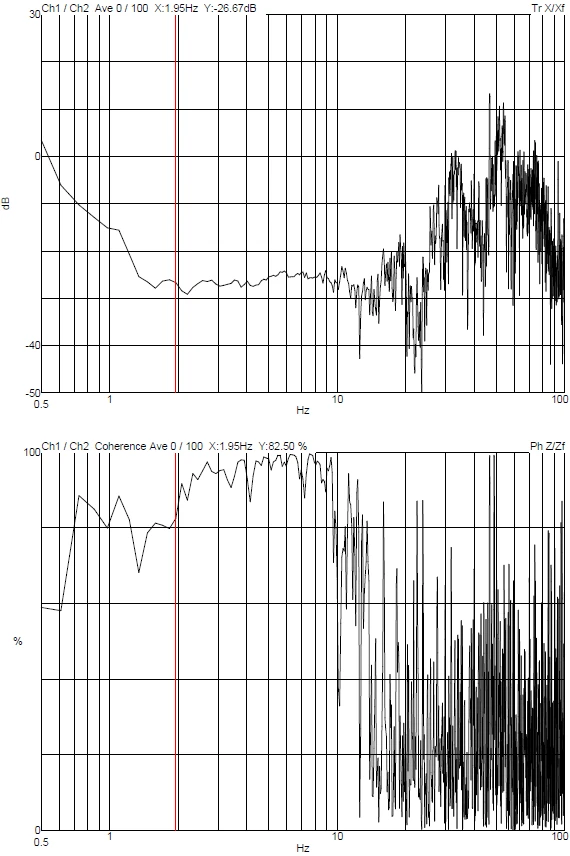

Left to right transmissibility and coherence

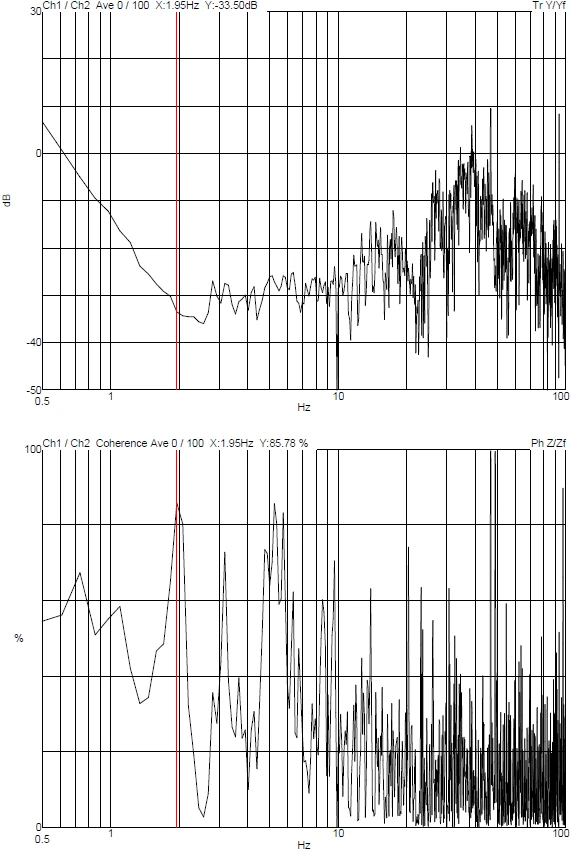

Front to back transmissibility and coherence
Octave band result
Vertical octave band result

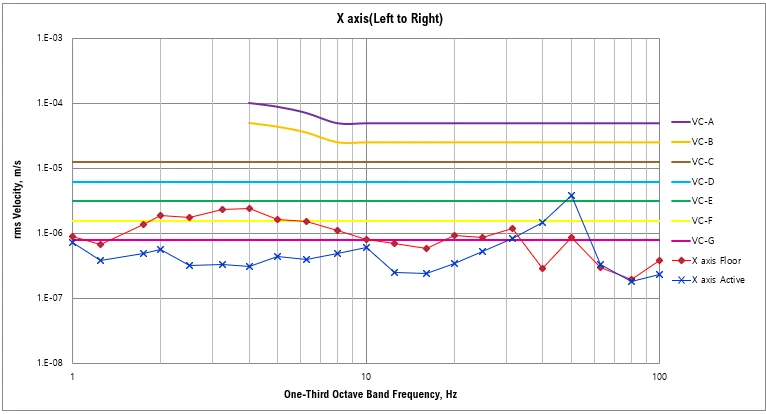

Left to right octave band result

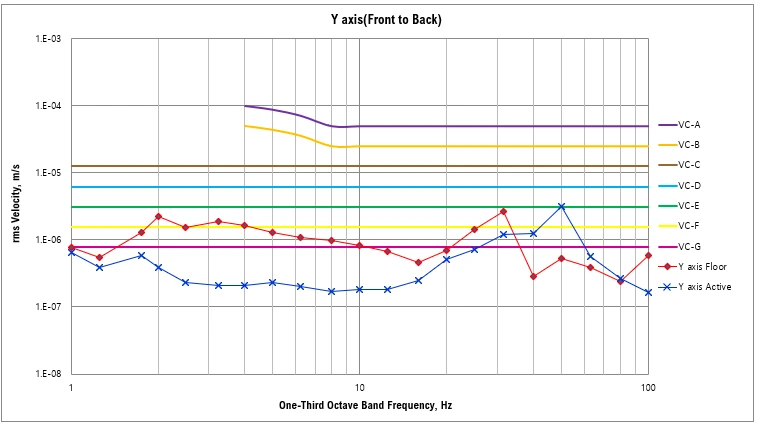

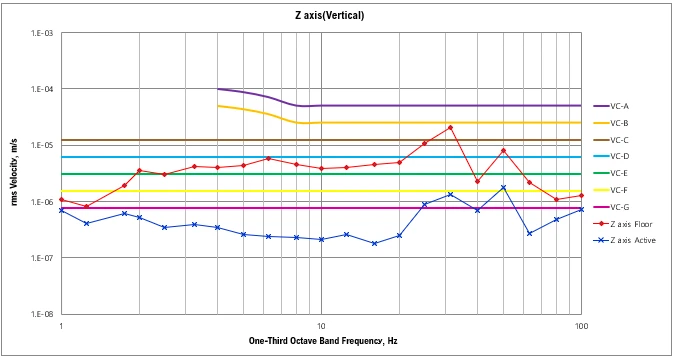

Front to back octave band result
Reference
Generic Vibration Criteria
Notes:
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
Share this Case Study
Case Study Information
Related Case Studies

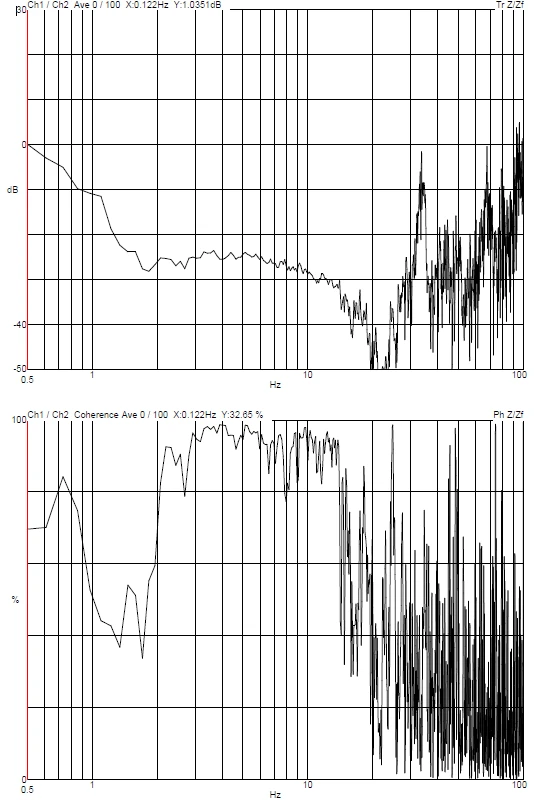

YIMO Sun Yat-sen University Hospital of Traditional Chinese Medicine ZEISS FIB-SEM Crossbeam 550 DVIA-M1000 (240517R7) Installation Report
