YIMO JEOL JEM 1400 Flash DVIA-M1000 (220126R7-3) Installation Report — Sun Yat-Sen University

DVIA-M Series

Installation Report

YIMO

JEOL

TEM

JEM 1400 Flash

DVIA-M1000

220126R7-3

Sun Yat-Sen University

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Model: DVIA-M1000

Serial Number: 220126R7-3

Youngha Lee DAEIL SYSTEMS

March 09, 2023

23.05.22

SUN YAT-SEN UNIVERSITY

1st

Guangdong, China

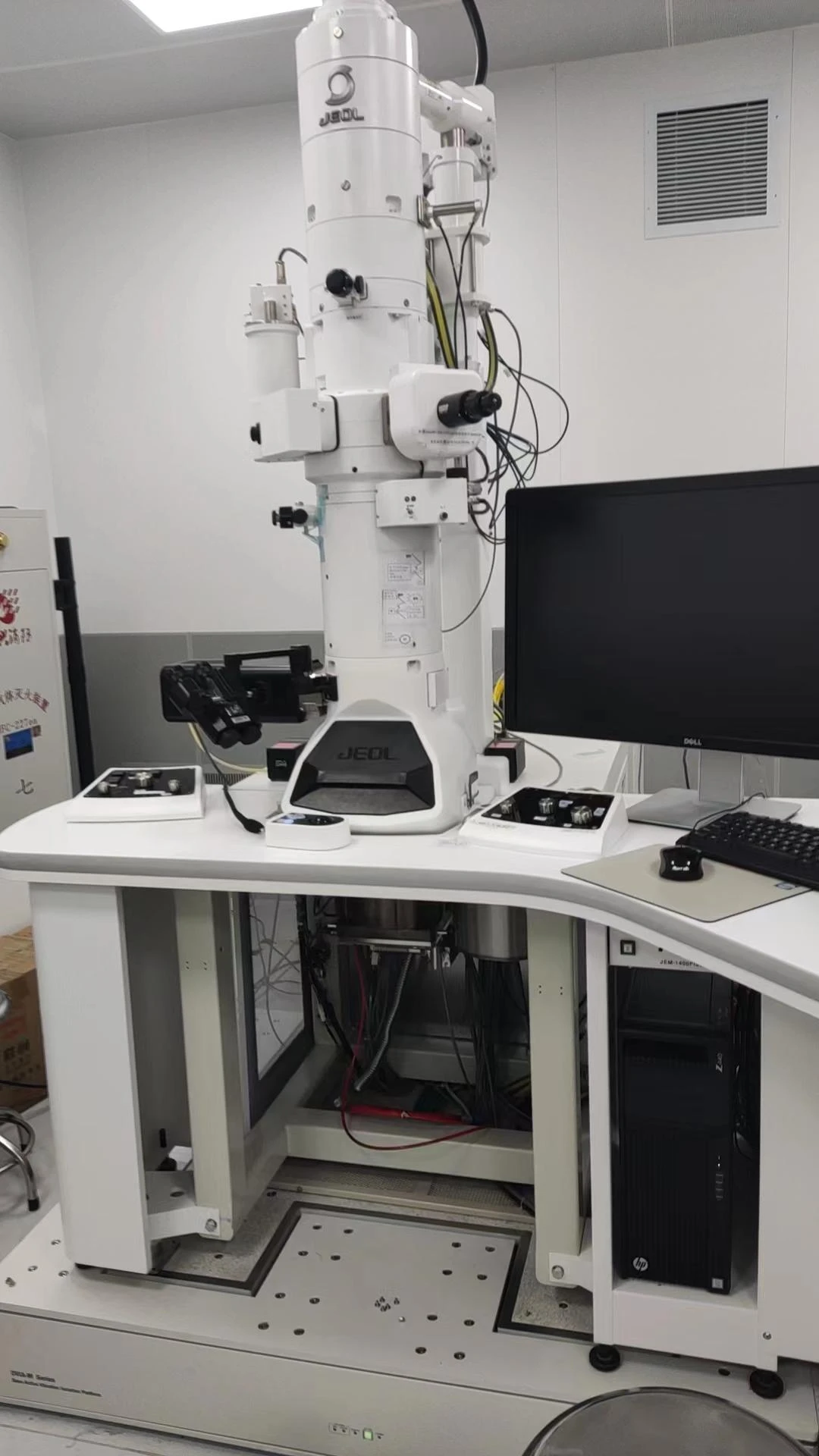

Manufacturer: JEOL

Equipment: TEM

Model: JEM 1400 Flash

The equipment is installed/Turned off

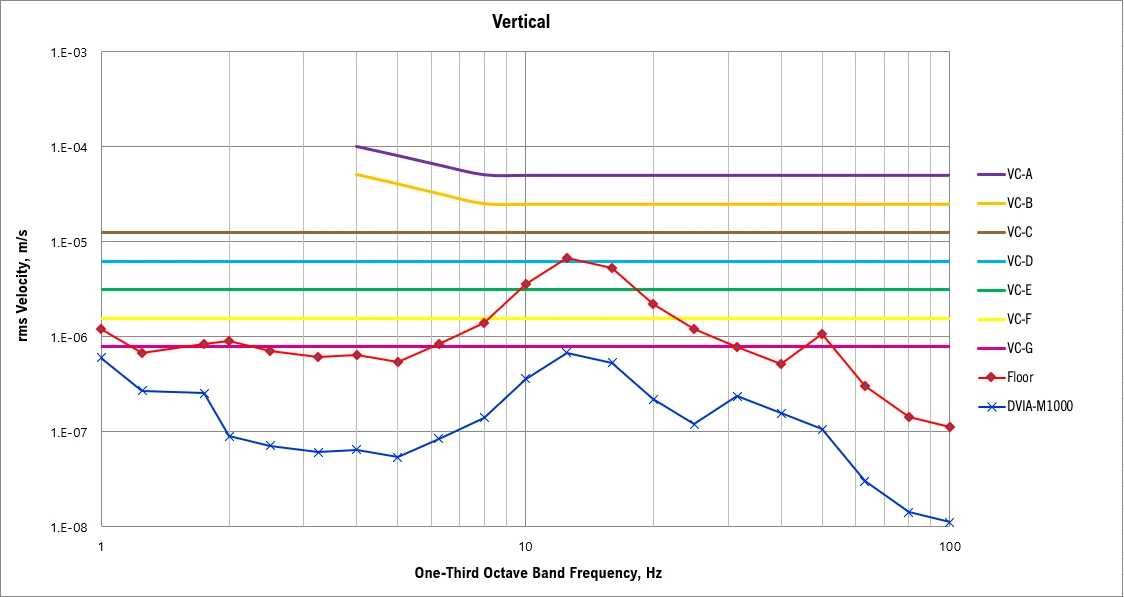

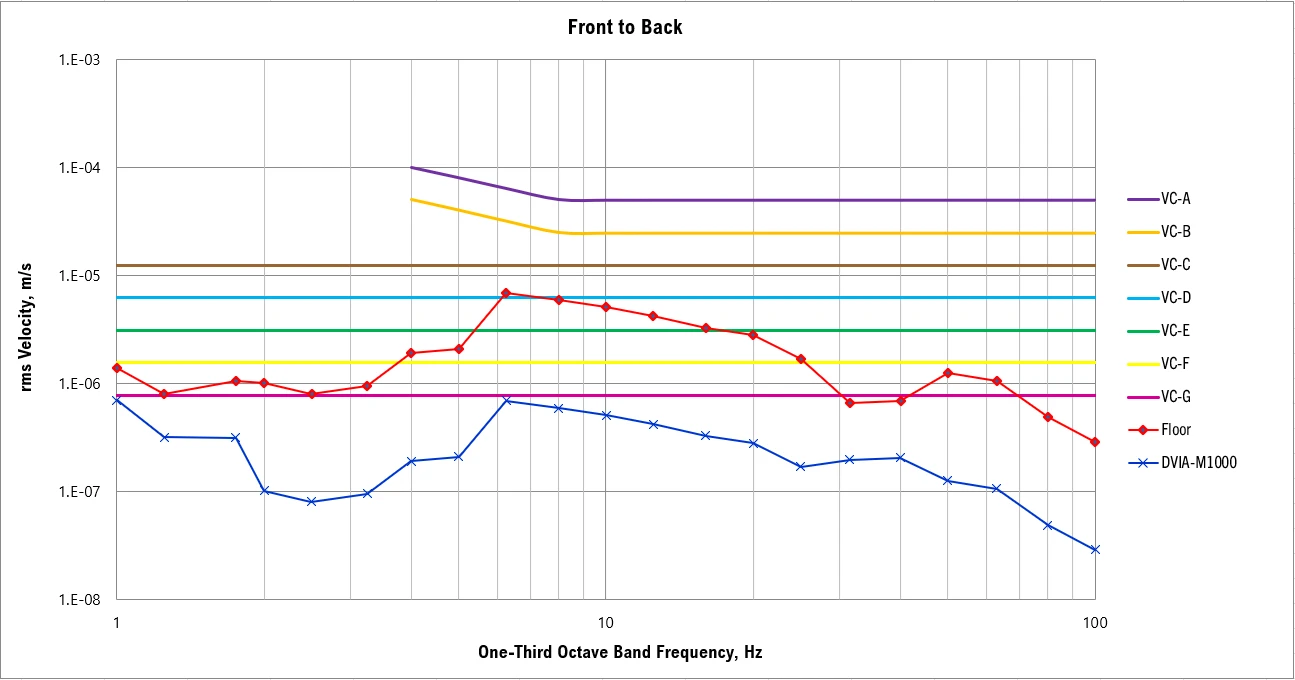

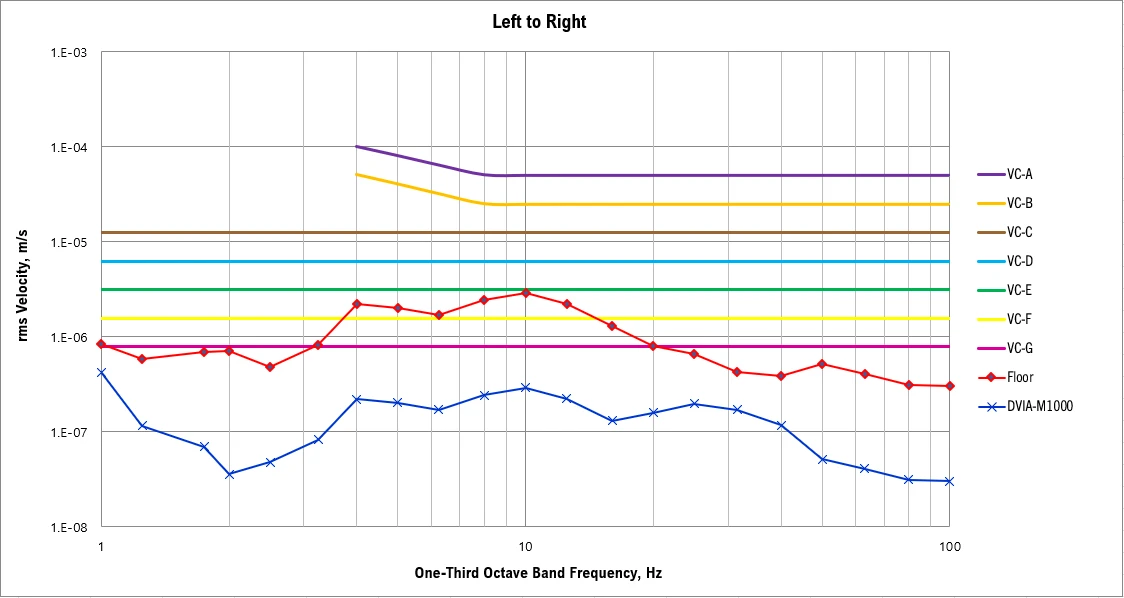

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
