East China University of Science and Technology STM DVIA-ML3000 (211119R4) Internal Program Performance — 2022.09.01

DVIA-ML Series

Installation Report

East China University of Science and Technology

STM

Shanghai

DVIA-ML3000

211119R4

(M3000_ 211119R4 Set up)

Target equipment	STM
Place of installation	SHANGHAI
Remark	Good Performance
END USER	East China University of Science and Technology
Operator: Yu, Ho Sang Date of setup: 22.09.01 Date of reporting: 22.09.01	Date of business trip : 17.12.27~17.12.29

Overview

The DVIA-M3000 active vibration isolation platform is appropriately installed and functioning as intended.

Measurement date

2022.09.01 (Thursday)

Operator

Operator: DAEIL SYSTEMS, Hosang Yu

Place of measurement

SHANGHAI

Equipment Model

Equipment Model: STM

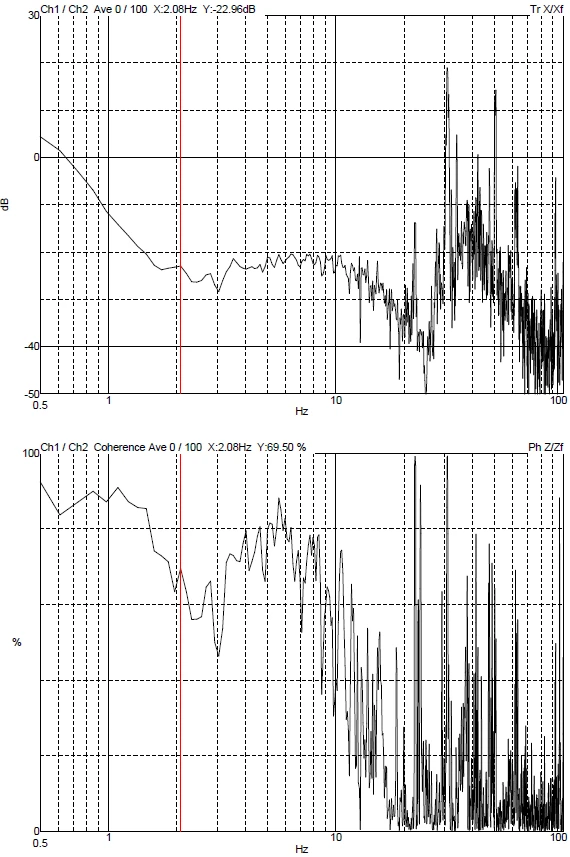

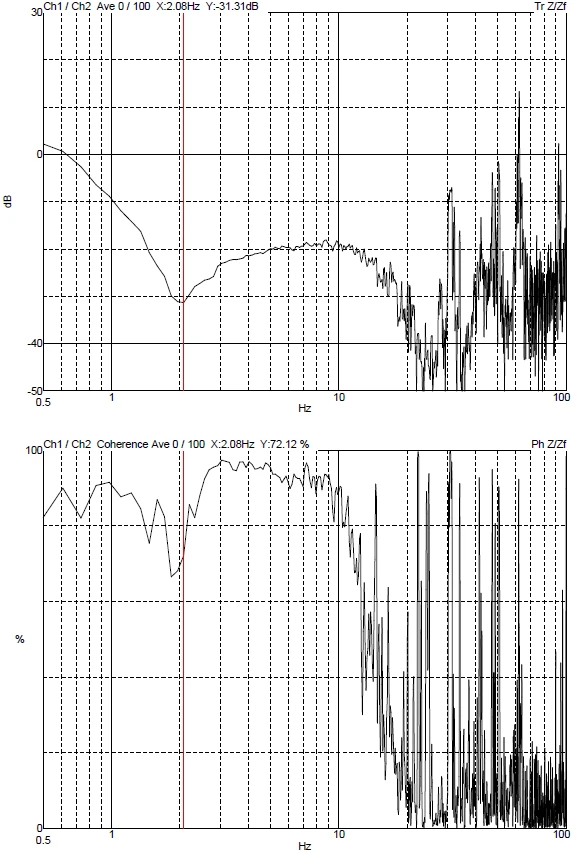

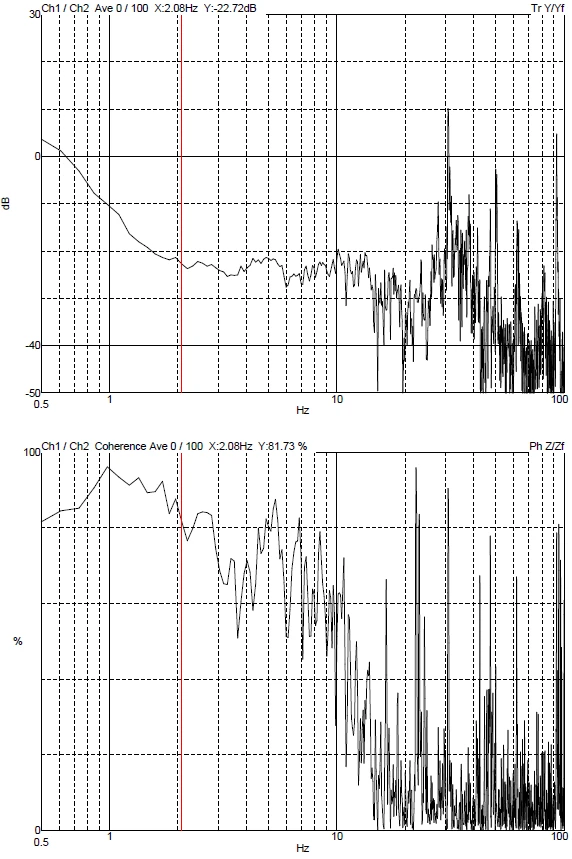

Measurement conditions and results

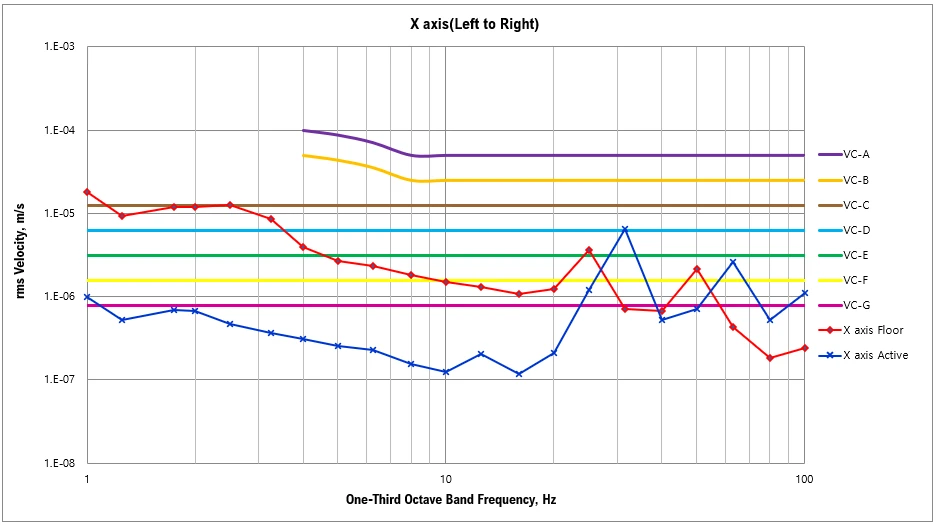

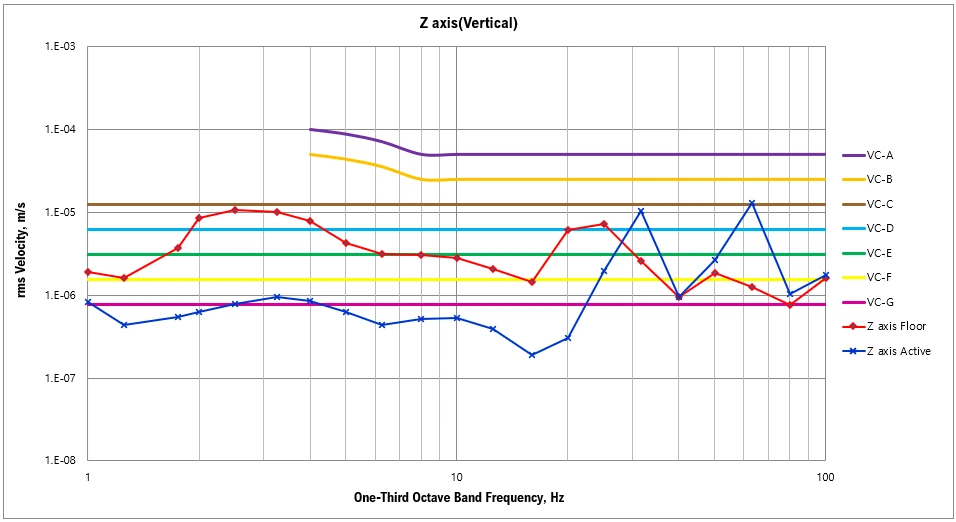

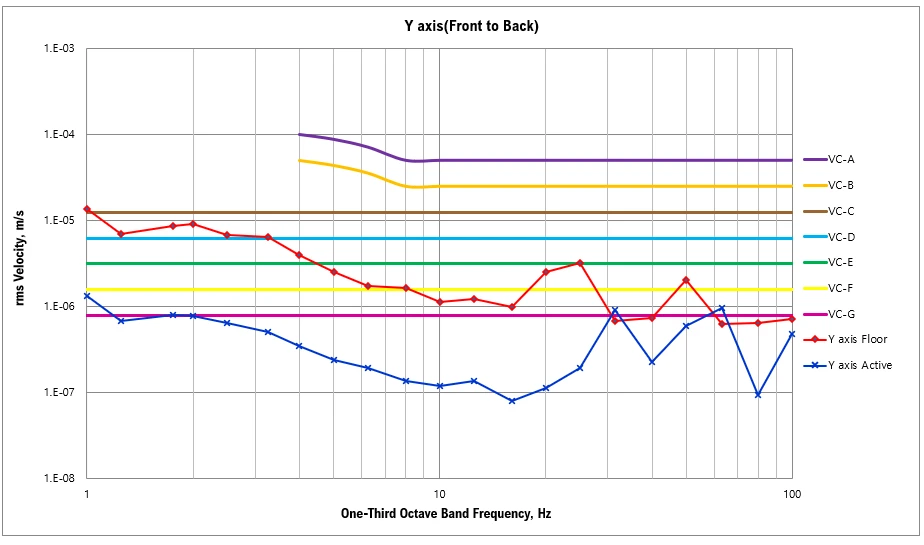

Measurement conditions and results Summary of measurement results Test Condition VC-Class Z X Y Floor C B B Above Active C C F Good omnidirectional performance.
