Tier-1 Semiconductor Bruker VERTEX 80 DVIA-U1000 (UO1000_P5) Installation Report — Seoul
Contents
Tier-1 Semiconductor (UO1000_P5 Set up)

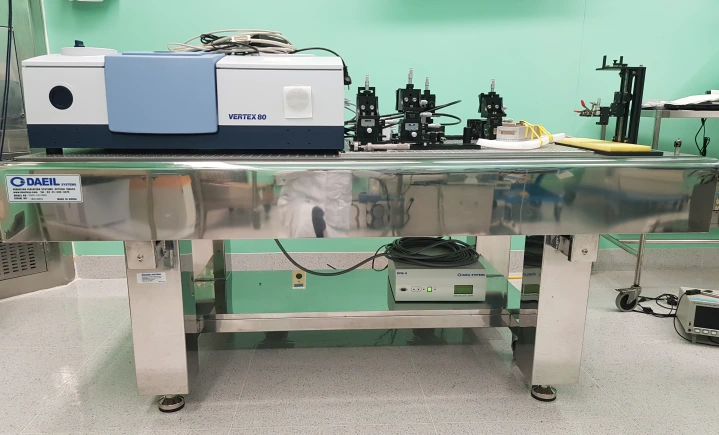

Target equipment
Bruker - VERTEX 80
Place of installation
Seoul Samsung Hospital B4 animal laboratory
Remark
Good isolator performance
END USER
Tier-1 Semiconductor
Trip and report dates
Date of business trip: 18.02.06
Trip personnel: Hyungmoon Choi
Date of report written: 18.02.06
Overview
After installing the isolator, the vibration environment was measured to confirm that there is no problem in using the equipment.
Measurement date: 2018.02.06 (Tuesday)
Operator: DAEIL SYSTEMS Manager Hyungmoon Choi
Place of measurement: Seoul Samsung Hospital B4 animal laboratory
Equipment model: Bruker - VERTEX 80
Measurement conditions and results
Measurement result summary
| Test Condition: VC-Class (general condition) | Z | X | Y |
|---|---|---|---|
| Building floor | G | G | G |
| Isolator top plate | G | G | G |
Omnidirectional performance is good; VC-Class graphs are attached.
Measurements were taken under general conditions and under normal operating conditions (pump running / people walking).
Even when the environment changes, such as nearby pumps operating or people moving around, there is little impact on the vibration environment above the isolator.
Repeatability check completed.
Customer satisfied with performance during the performance check.
MB1000 internal program performance measurement result

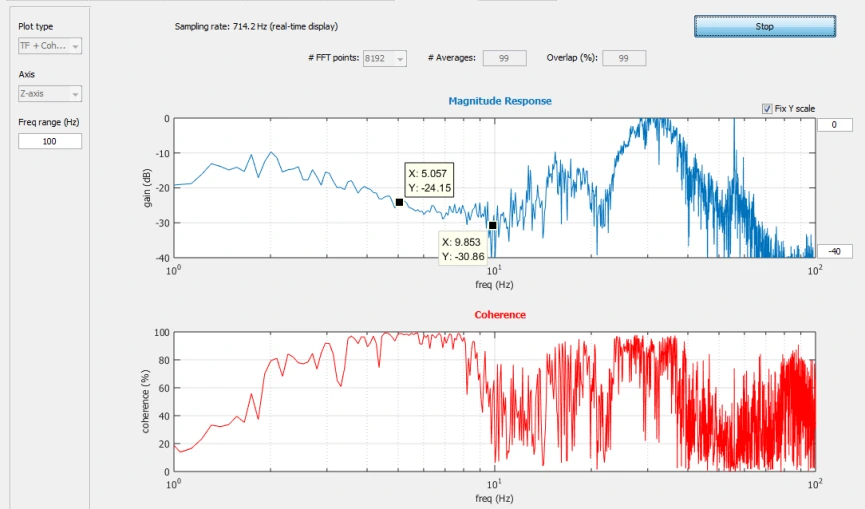

Z axis

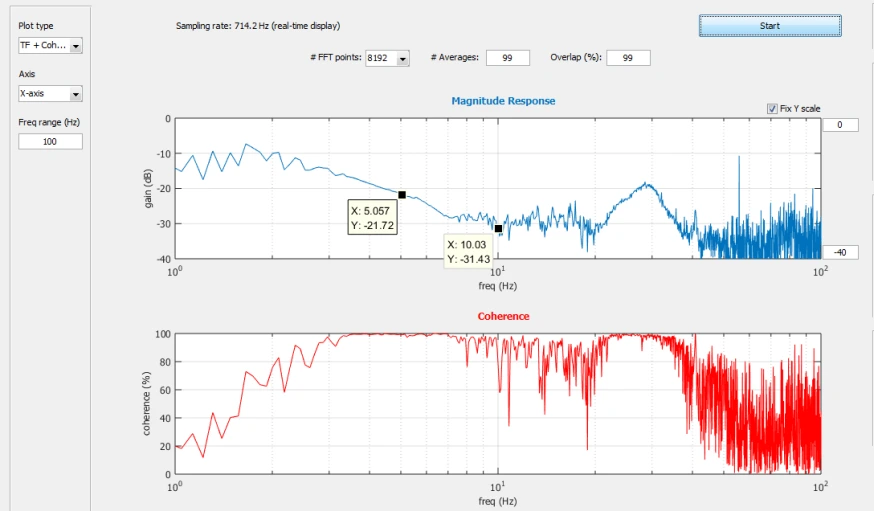

X axis

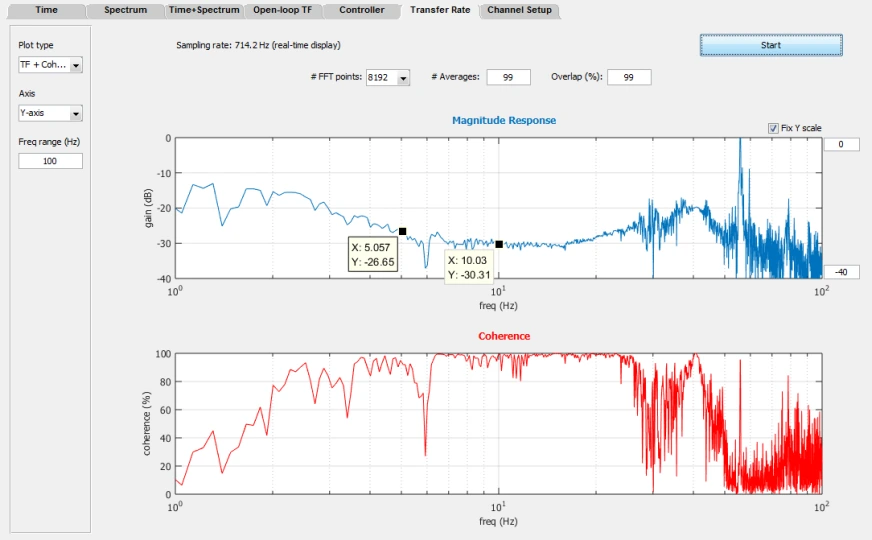

Y axis
Octave Band Result (BASE: Floor, TOP: isolator top plate)

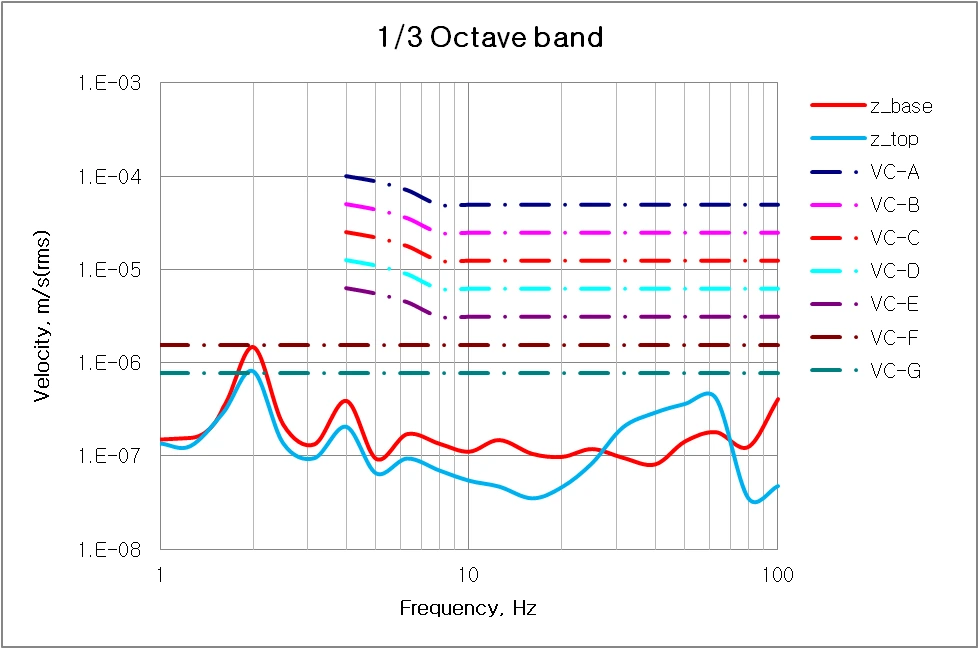

Z axis

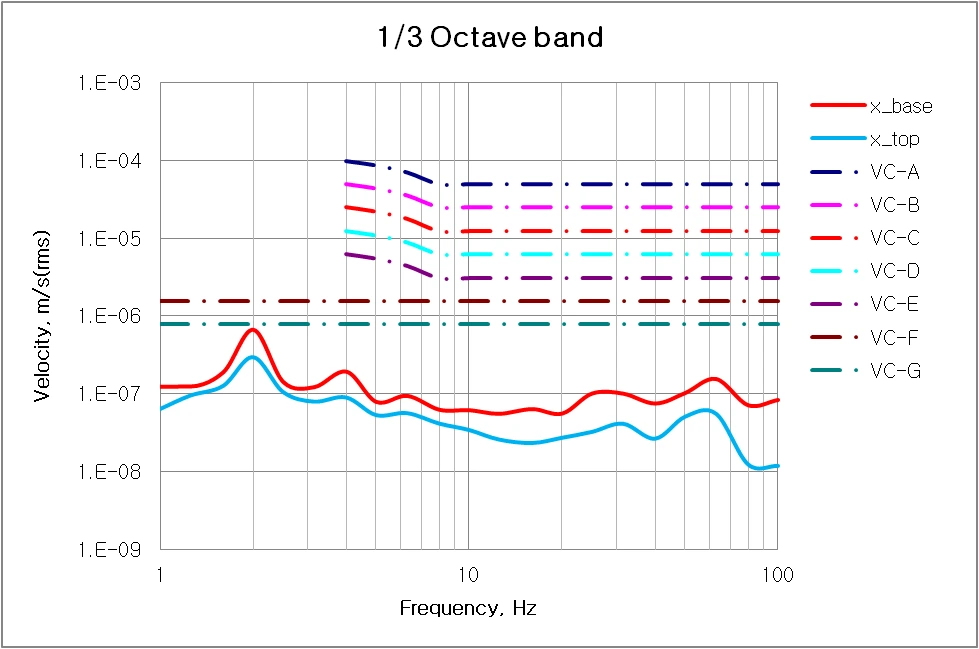

X axis

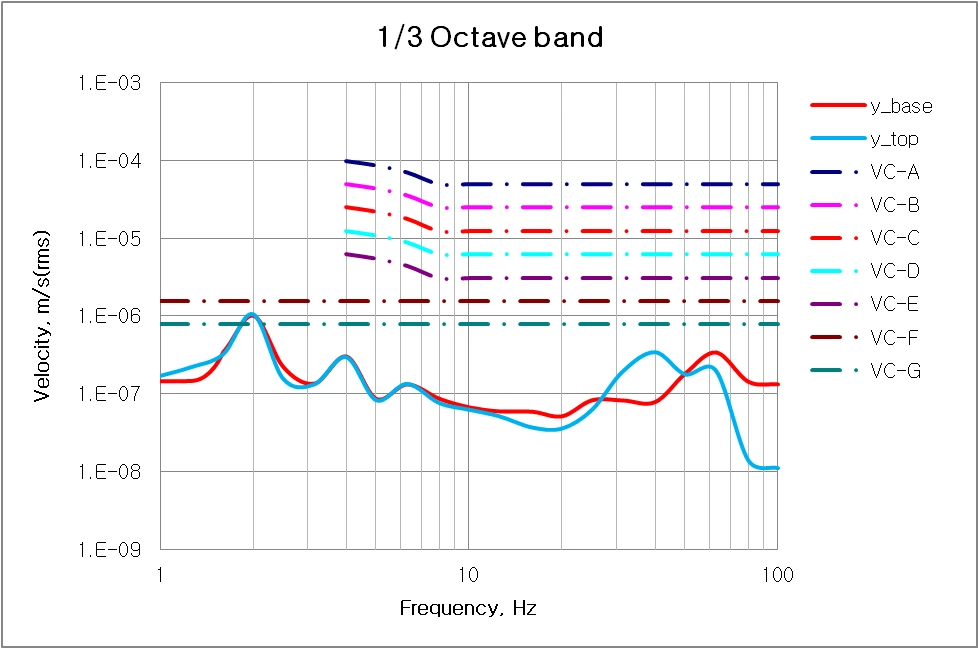

Y axis
