리지드 서포트
(Tie-Bars and Casters)

ce-mark
mark-NRTL_1
  • Overview
  • Options & Accessories
  • Order
  • Resources


대일시스템의 리지드 서포트는 높은 적재 용량을 지니며 저렴한 가격에 이용됩니다.
두꺼운 고무 패드가 장착되어 진동에 매우 민감하지 않은 장비에 무난한 수준의 감쇠를 제공합니다.




Options



Pneumatic Support with Tie-Bars & Casters

Self-Standing-Pneumatic-Support-3

Self-Standing Pneumatic Support

Pneumatic-Support-Self-Standing-Type



Self-Standing Rigid Support

Rigid-Support-Self-Standing-Type



Accessories



DOTS-Overhead Optical Table Shelf System

DOTS-Overhead-Shelf

DOTE - Optical Table Enclosure

DOTE-Table-Enclosure



Joined Table

Joined-Optical-Tables1

DCB - Clean Booth

DCB-Clean Booth



DB - Dark Booth

DB-Dark-Booth

DAC-30 - Air Compressor

DAC-30-Air-Compressor



Related Products



Scientific Grade Optical Table Top

Optical-Tabletop-SG-NEW-LEATHER-COVER2

Research Grade Optical Table Top

Research-Grade-Optical-Table-Top



Non-Magnetic & All Stainless Steel Optical Table Top

Non-magnetic-Stainless-Steel-Optical-Table-Top

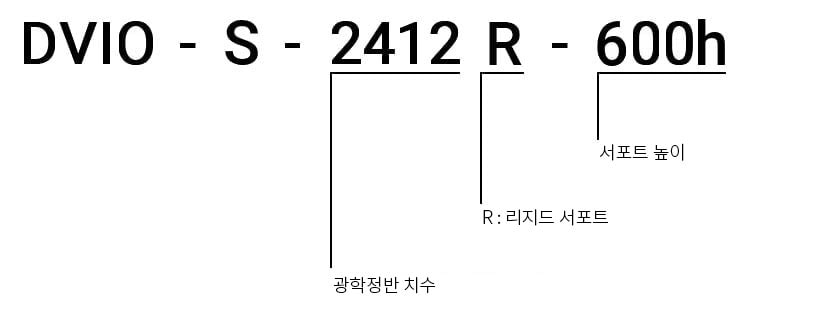

Ordering Information



Rigid-Support-with-tie-bars-and-casters-Ordering-Information



4 Post with Tie-Bar



4-post-with-tie-bar



6 Post with Tie-Bar



6-post-with-tie-bar



Ordering Chart


* Additional dimensions and configurations can be customized upon request.
Model No. Dimensions (Ax B x h) (mm) Cross Section (K) (mm) Maximum Payload Capacity (kg) Number of Isolators
DVIO-S-0906R-h 750 x 450 x h 100 1700 4
DVIO-S-1006R-h
DVIO-S-0975R-h 750 x 650 x h 100 1700 4
DVIO-S-1075R-h
DVIO-S-0909R-h 750 x 750 x h 100 1700 4
DVIO-S-0910R-h
DVIO-S-1009R-h
DVIO-S-1010R-h
DVIO-S-1206R-h 900 x 450 x h 100 1700 4
DVIO-S-1209R-h 900 x 750 x h 100 1700 4
DVIO-S-1210R-h
DVIO-S-1212R-h 900 x 900 x h 100 1700 4
DVIO-S-1275R-h 900 x 600 x h 100 1700 4
DVIO-S-1506R-h 1150 x 450 x h 125 1700 4
DVIO-S-1806R-h
DVIO-S-1509R-h 1150 x 750 x h 125 1700 4
DVIO-S-1510R-h
DVIO-S-1809R-h
DVIO-S-2009R-h
DVIO-S-2010R-h
DVIO-S-1512R-h 1150 x 900 x h 125 1700 4
DVIO-S-1812R-h
DVIO-S-2012R-h
DVIO-S-1515R-h 1150 x 1150 x h 125 1700 4
DVIO-S-1815R-h
DVIO-S-2015R-h
DVIO-S-1575R-h 1100 x 600 x h 125 1700 4
DVIO-S-2409R-h 1400 x 700 x h 150 1700 4
DVIO-S-2410R-h
DVIO-S-2412R-h 1400 x 900 x h 150 1700 4
DVIO-S-2415R-h 1400 x 1150 x h 150 1700 4
DVIO-S-3009R-h 1600 x 700 x h 150 1700 4
DVIO-S-3010R-h
DVIO-S-3012R-h 1800 x 900 x h 150 2500 6
DVIO-S-3015R-h 1800 x 1150 x h 150 2500 6
DVIO-S-3612R-h 2100 x 900 x h 150 2500 6
DVIO-S-3615R-h 2100 x 1150 x h 150 2500 6
